Crystal structure of tetraaqua-(2-(4-formylphenoxy)acetato-k1O)cadmium(II), C18H22O12Cd

  • Xi-Shi Tai ORCID logo EMAIL logo und Li-Hua Wang
Veröffentlicht/Copyright: 20. Oktober 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C18H22O12Cd, monoclinic, P21/c (no. 14), a = 13.3069(9) Å, b = 9.9041(6) Å, c = 8.1580(5) Å, β = 96.244(10)°, V = 1031.57(12) Å3, Z = 2, R gt (F) = 0.0216, wR ref (F2) = 0.0522, T = 200 K.

CCDC no.: 2114338

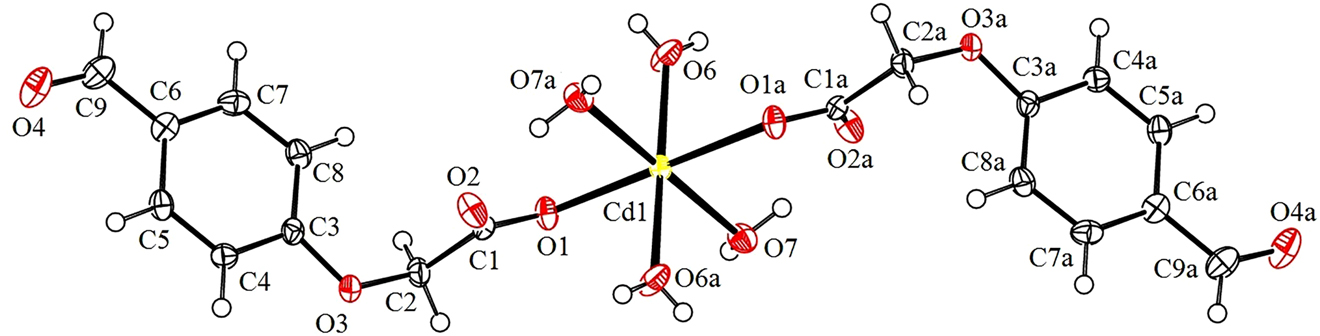

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.14 × 0.12 × 0.09 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.12 mm−1
Diffractometer, scan mode: SuperNova, ω
θmax, completeness: 25.0°, 99%
N(hkl)measured, N(hkl)unique, Rint: 3892, 1801, 0.022
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 1577
N(param)refined: 158
Programs: Bruker [1], Olex2 [2], Shelx [3], Diamond [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Cd1 0.000000 0.500000 0.500000 0.01528 (10)
O1 0.07432 (11) 0.44096 (15) 0.28565 (19) 0.0204 (4)
O2 0.15987 (13) 0.63688 (15) 0.29804 (19) 0.0255 (4)
O3 0.21540 (11) 0.58490 (15) 0.01171 (19) 0.0211 (4)
O4 0.70560 (13) 0.68907 (17) 0.1859 (2) 0.0360 (4)
O6 0.08108 (15) 0.32591 (17) 0.6719 (2) 0.0301 (5)
H6A 0.058 (3) 0.252 (2) 0.702 (4) 0.080 (12)*
H6B 0.137 (2) 0.325 (3) 0.712 (3) 0.021 (8)*
O7 −0.14666 (13) 0.37704 (18) 0.3833 (2) 0.0237 (4)
H7A −0.162 (2) 0.355 (3) 0.472 (4) 0.039 (9)*
H7B −0.147 (3) 0.316 (3) 0.324 (4) 0.055 (11)*
C1 0.12889 (17) 0.5257 (2) 0.2318 (3) 0.0171 (5)
C2 0.1559 (2) 0.4854 (2) 0.0689 (3) 0.0216 (6)
H2A 0.195250 0.401643 0.089148 0.026*
H2B 0.091495 0.469000 −0.020538 0.026*
C3 0.32133 (16) 0.5884 (2) 0.0797 (3) 0.0173 (5)
C4 0.37323 (17) 0.6804 (2) 0.0022 (3) 0.0198 (5)
H4 0.335054 0.735801 −0.085369 0.024*
C5 0.48019 (16) 0.6888 (2) 0.0549 (3) 0.0200 (5)
H5 0.514450 0.749270 0.001815 0.024*
C6 0.53824 (17) 0.6075 (2) 0.1876 (3) 0.0198 (5)
C7 0.4858 (2) 0.5183 (2) 0.2654 (3) 0.0235 (6)
H7 0.524256 0.464421 0.354519 0.028*
C8 0.3773 (2) 0.5071 (2) 0.2139 (3) 0.0219 (6)
H8 0.342965 0.447125 0.267520 0.026*
C9 0.65201 (19) 0.6129 (2) 0.2431 (3) 0.0281 (6)
H9 0.686527 0.553633 0.328890 0.034*

Source of material

An amount of 0.180 g 4-formylphenoxyacetic acid (1.0 mmol) and 0.040 g NaOH (1.0 mmol) were dissolved into 15 ml ethanol-water (v:v = 2:1) solution with stirring at room temperature. After the solution was stirred for 1.0 h, 5 ml water solution of 0.150 g cadmium nitrate tetrahydrate (0.5 mmol) was added. The mixture was stirred for 6 h at 70 °C. The colorless crystals of the title compound were obtained through slow evaporation in 25 days.

Experimental details

The hydrogen atoms were positioned geometrically. Their U iso values were set to 1.2U eq or 1.5U eq of the parent atoms.

Comment

Over the past decades, transition metal complexes show rich coordination pattern [5, 6] and properties in some fields [7], [8], [9], [10]. The Co(II), Mn(II) and Cu(II) complexes using 4-formylphenoxylate as ligand have been reported by Das [11]. Our group has been studying the synthesis, structure and properties of related metal complexes [12], [13], [14], [15].

In the title complex, the fundamental unit contains a Cd(II) ion, two 4-formylphenoxyacetic acid ligands and four coordinated water molecules. The asymmetric unit is one half of the complex (see the figure). The Cd(II) ion is six-coordinated with two O atoms from two 4-formylphenoxy-acetate ligands and four O atoms from four coordinated water molecules, forming a distorted octahedral coordination geometry. The Cd1–O bond distance are 2.3136(16) Å (O1, O1a), 2.2913(17) Å (O6, O6a) and 2.2695(17) Å (O7, O7a), respectively. The sum of bond angles around Cd1 (O7–Cd1–O6a 86.92(6)°, O6a–Cd1–O7a 93.08(6)°, O7a–Cd1–O6 86.92(6)°, O6–Cd1–O7 93.08(6)°) is 360. The complex molecules form 1D chained structure by hydrogen bonds.

Corresponding author: Xi-Shi Tai, College of Chemistry and Chemical Engineering, Weifang University, Weifang, Shandong 261061, P. R. China, E-mail:

Funding source: National Natural Science Foundation of China 10.13039/501100001809

Award Identifier / Grant number: 21171132

Funding source: Natural Science Foundation of Shandong 10.13039/501100007129

Award Identifier / Grant number: ZR2014BL003

Funding source: Project of Shandong Province Higher Educational Science and Technology Program 10.13039/501100015642

Award Identifier / Grant number: J14LC01

Funding source: Science Foundation of Weifang

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This project was supported by the National Natural Science Foundation of China (No. 21171132), the Natural Science Foundation of Shandong (ZR2014BL003), the Project of Shndong Province Higher Educational Science and Technology Program (J14LC01) and Science Foundation of Weifang.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2000.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.0; Crystal Impact: Bonn, Germany, 2015.Suche in Google Scholar

5. Lv, B.-L. Crystal structure of [aqua-(4-iodopyridine-2,6-dicarboxylato-k3O,N,O′)-(1,10-phenanothroline-kN,N′)copper(II)] dihydrate, C19H16O7N3CuI. Z. Kristallogr. NCS 2021, 236, 891–893; https://doi.org/10.1515/ncrs-2021-0112.Suche in Google Scholar

6. Yin, W.-D., Liu, Q.-L., Zhao, Y.-J., Gong, X.-R., Li, G.-L. Crystal structure of catena-poly[bis(μ2-3,5-bis(1-imidazolyl)pyridine-kN:N′)-(μ2-3-nitrophthalato-k3O,O′:O″)cadmium(II)] dihydrate, C30H25N11O8Cd. Z. Kristallogr. NCS 2021, 236, 899–902.10.1515/ncrs-2021-0133Suche in Google Scholar

7. Yao, S.-L., Liu, S.-J., Tian, X.-M., Zheng, T.-F., Cao, C., Niu, C.-Y., Chen, Y.-Q., Chen, J.-L., Huang, H.-P., Wen, H.-R. A ZnII-based metal-organic framework with a rare tcj topology as a turn-on fluorescent sensor for acetylacetone. Inorg. Chem. 2019, 58, 3578–3581; https://doi.org/10.1021/acs.inorgchem.8b03316.Suche in Google Scholar PubMed

8. Cao, C., Liu, S.-J., Yao, S.-L., Zheng, T.-F., Chen, Y.-Q., Chen, J.-L., Wen, H.-R. Spin-canted antiferromagnetic ordering in transition metal-organic frameworks based on tetranuclear clusters with mixed V- and Y-shaped ligands. Cryst. Growth Des. 2017, 17, 4757–4765; https://doi.org/10.1021/acs.cgd.7b00682.Suche in Google Scholar

9. Ma, X.-W., Dong, J., Zhang, J.-X., Wu, W.-F., Ran, H., Zhang, P.-Y. Two novel metal coordination polymers: anticancer activity in human angioneoplasm cells. Chin. J. Struct. Chem. 2019, 38, 1146–1151.Suche in Google Scholar

10. Wang, L.-H., Li, P.-F. Synthesis, structure, and catalytic activity of a new Mn(II) complex with 1,4-phenylenediacetic acid and 1,10-phenanthroline. Bull. Chem. React. Eng. Catal. 2018, 130, 13041–13046; https://doi.org/10.9767/bcrec.13.1.975.1-6.Suche in Google Scholar

11. Pramanik, A., Abbina, S., Das, G. Molecular, supramolecular structure and catalytic activity of transition metal complexes of phenoxy acetic acid derivatives. Polyhedron 2007, 26, 5225–5234; https://doi.org/10.1016/j.poly.2007.07.033.Suche in Google Scholar

12. Tai, X.-S., Zhang, L.-L., Liu, L.-L., Cao, S.-H., Wang, L.-H. The crystal structure of bis(ethanol-kO)-bis(6-aminopicolinato-kN,O)manganese(II), C16H22O6N4Mn. Z. Kristallogr. NCS 2021, 236, 551–552.10.1515/ncrs-2020-0644Suche in Google Scholar

13. Tai, X.-S., Zhou, X.-J., Liu, L.-L. Synthesis, crystal structure and antitumor activity of a Na(I) coordination polymer based on 2-propyl-4,5-imidazoledicarboxylic acid and 1,10-phenanthroline ligands. Chin. J. Struct. Chem. 2019, 38, 1079–1085.Suche in Google Scholar

14. Wang, L.-H., Liang, L., Tai, X.-S. The crystal structure 2,2′-bipyridine-kN,N′-(2-(3-amino-4-chlorobenzoyl)benzoato-k1O)-(2-(3-amino-4-chlorobenzoyl)benzoato-kO,O′)zinc(II)-ethanol (1/1), C40H32Cl2N4O7Zn. Z. Kristallogr. NCS 2020, 235, 1281–1283.10.1515/ncrs-2020-0261Suche in Google Scholar

15. Tai, X.-S., Zhou, X.-J., Liu, L.-L., Cao, S.-H., Wang, L.-H. The crystal structure of catena-poly[(μ2-2-((3-bromo-2-oxidobenzylidene)-amino)acetato-kO,N,O′:O″)-(dimethylformamide-kO)]zinc(II), C12H13N2O4BrZn. Z. Kristallogr. NCS 2020, 235, 901–902.10.1515/ncrs-2020-0090Suche in Google Scholar
Received: 2021-09-13
Accepted: 2021-10-07
Published Online: 2021-10-20
Published in Print: 2021-12-20

© 2021 Xi-Shi Tai and Li-Hua Wang, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
