The crystal structure of poly[(μ 4-4,4′-(azanediylbis(methylene))dibenzoato-κ 4 O:N:O′:Oʺ)zinc(II)], C16H13NO4Zn

  • Hai-Lin Chen ORCID logo , Dong-Mei Yao EMAIL logo , Yan-Ping Wang und Ya-Xin Lao
Veröffentlicht/Copyright: 23. September 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C16H13NO4Zn, triclinic, P 1 ‾ (no. 2), a = 7.5223(6) Å, b = 8.0977(8) Å, c = 11.7739(11) Å, α = 76.410(8)∘, β = 75.495(8)∘, γ = 75.902(8)∘, V = 661.76(11) Å3, Z = 2, R gt (F) = 0.0532, wR ref (F 2) = 0.1041, T = 293(2) K.

CCDC no.: 2108739

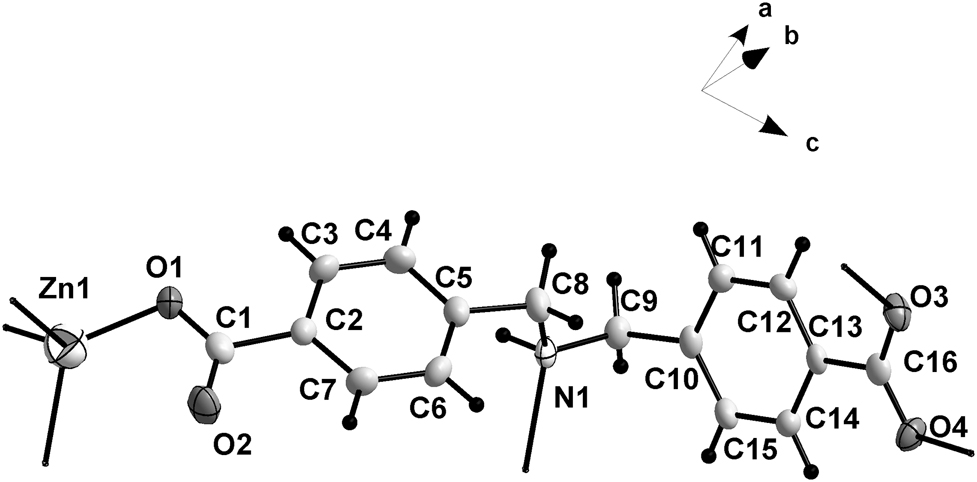

A part of the title coordination-polymeric structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.30 × 0.20 × 0.20 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.87 mm−1
Diffractometer, scan mode: φ and ω
θ max, completeness: 26.4°, >99%
N(hkl)measured, N(hkl)unique, R int: 5365, 2700, 0.043
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 2146
N(param)refined: 199
Programs: CrysAlisPRO [1], Diamond [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Zn1 0.39487 (7) −0.04929 (6) 0.17140 (4) 0.02808 (17)
O1 0.5265 (4) 0.0752 (4) 0.2345 (2) 0.0329 (7)
O2 0.2504 (4) 0.1432 (4) 0.3528 (3) 0.0415 (8)
O3 0.7020 (4) 0.8984 (3) 0.9672 (2) 0.0315 (7)
O4 0.5634 (4) 0.7367 (3) 1.1270 (2) 0.0312 (7)
N1 0.8378 (4) 0.1459 (4) 0.7303 (3) 0.0242 (8)
H1 0.904927 0.059783 0.680304 0.029*
C1 0.4206 (6) 0.1377 (5) 0.3234 (4) 0.0278 (10)
C2 0.5157 (6) 0.2007 (5) 0.3991 (3) 0.0245 (9)
C3 0.7092 (6) 0.1910 (5) 0.3717 (4) 0.0321 (10)
H3 0.779258 0.157377 0.300797 0.039*
C4 0.7978 (6) 0.2305 (5) 0.4483 (4) 0.0334 (10)
H4 0.926755 0.223642 0.428774 0.040*
C5 0.6950 (6) 0.2805 (5) 0.5543 (3) 0.0277 (10)
C6 0.5020 (6) 0.2985 (5) 0.5796 (3) 0.0287 (10)
H6 0.431327 0.338737 0.648197 0.034*
C7 0.4142 (6) 0.2567 (5) 0.5031 (3) 0.0294 (10)
H7 0.284842 0.266442 0.521904 0.035*
C8 0.7944 (6) 0.3092 (5) 0.6429 (4) 0.0325 (10)
H8A 0.909678 0.347862 0.600660 0.039*
H8B 0.715657 0.398991 0.685310 0.039*
C9 0.9766 (6) 0.1532 (5) 0.8002 (3) 0.0270 (9)
H9A 1.095361 0.165128 0.746140 0.032*
H9B 0.996492 0.045570 0.856850 0.032*
C10 0.9098 (5) 0.3033 (5) 0.8667 (3) 0.0238 (9)
C11 0.9651 (6) 0.4602 (5) 0.8147 (3) 0.0261 (9)
H11 1.052979 0.468940 0.743330 0.031*
C12 0.8907 (5) 0.6027 (5) 0.8680 (3) 0.0246 (9)
H12 0.927627 0.707377 0.831274 0.030*
C13 0.7622 (5) 0.5936 (5) 0.9750 (3) 0.0209 (8)
C14 0.7127 (6) 0.4337 (5) 1.0307 (3) 0.0251 (9)
H14 0.629213 0.423568 1.103915 0.030*
C15 0.7883 (6) 0.2906 (5) 0.9767 (3) 0.0262 (9)
H15 0.756932 0.184162 1.014963 0.031*
C16 0.6699 (5) 0.7527 (5) 1.0257 (4) 0.0234 (9)

  1. U eq is equivalent isotropic displacement parameters. U iso∗ is isotropic displacement parameters. So ‘∗’ is U iso∗.

Source of material

All reagents and chemicals were purchased from commercial sources and used without further purification. The starting material 4,4′-(azanediylbis(methylene))dibenzoic acid was synthesized following the literature procedures [5]. A mixture of Zn(NO3)2·6H2O (0.05 mmol), 4,4′-(azanediylbis(methylene))dibenzoic acid (0.05 mmol), N,N-dimethylacetamide (0.5 mL), ethanol(3  mL), and H2O (3  mL) was sealed in a 20 mL vial and heated at 363 K for two days. Colorless block crystals were collected. IR spectra (potassium bromide pellet) were recorded on a Nicolet 6700. IR (v/cm−1): 3433, 3238, 3049, 2974, 2929, 2869, 1612, 1597, 1545, 1509, 1403, 1371, 1356, 1308, 1200, 1186, 1066, 1024, 908, 881, 860, 816, 801, 777, 768, 719, 707, 669, 575, 540, 464.

Experimental details

H atoms were placed in calculated positions and were included in the refinement in the riding model approximation, with U iso(H) set to 1.2 U eq(C). The nitrogen-bound H atoms were located on a difference Fourier map.

Comment

In recent years, 4,4′-(azanediylbis(methylene))dibenzoic acid and its analogues have been widely applied in the formation of zinc coordination polymers [6], [7], [8], [9]. Some zinc complexes have drawn tremendous attention because of their potential applications in gas separation [8] and chemical sensor [9]. To further explore this area, we used 4,4′-(azanediylbis(methylene))dibenzoic acid to prepare a new zinc coordination polymer.

The asymmetric unit consists of one zinc cation and one 4,4′-(azanediylbis(methylene))dibenzoate ligand. The zinc(II) ion is surrounded by one nitrogen atom and three oxygen atoms from four different ligands. Its coordination geometry is a slightly distorted tetrahedron. The Zn—O bond lengths range from 1.983(3) to 1.977(3) Å. The Zn—N bond is 2.059(3) Å, and are in the expected ranges [10]. Adjacent ligands have intramolecular N1—H1⃛O2 hydrogen bond of length 2.384 Å. The zinc coordination polymer is extended to a two dimensional layer along the bc plane. There are weak π ⃛ π interactions between C10—C15 phenyl rings from adjacent layers. The centroid-centroid distance is 3.745(2) Å. Together with the π ⃛ π stacking interactions a three-dimensional network is obtained.

Corresponding author: Dong-Mei Yao, School of Chemical and Biological Engineering, Hechi University, Yizhou, Guangxi 546300, China, E-mail:

Funding source: Guangxi Natural Science Foundation of China

Award Identifier / Grant number: 2020GXNSFBA297138

Funding source: 2021 High-level Talents Scientific Research Startup Fund of Hechi University

Award Identifier / Grant number: 2021GCC021

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was financially supported by Guangxi Natural Science Foundation of China (No. 2020GXNSFBA297138) and 2021 High-level Talents Scientific Research Startup Fund of Hechi University (No. 2021GCC021).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku. CrysAlisPRO; Rigaku Corporation: Yarnton, Oxfordshire, England, 2015.Suche in Google Scholar

2. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 3.2; Crystal Impact: Bonn, Germany, 2012.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M. SHELXTL- integrated space-group andcrystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

5. Horike, S., Hasegawa, S., Tanaka, D., Higuchi, M., Kitagawa, S. Kagomé type extra-large microporous solid based on a paddle-wheel Cu2+dimer. Chem. Commun. 2008, 37, 4436–4438; https://doi.org/10.1039/b806616g.Suche in Google Scholar PubMed

6. Emerson, A. J., Hawes, C. S., Knowles, G. P., Chaffee, A. L., Batten, S. R., Turner, D. R. Coordination polymers from a flexible alkyldiamine-derived ligand. CrystEngComm 2017, 19, 5137–5145; https://doi.org/10.1039/c7ce01133d.Suche in Google Scholar

7. Chahine, A. Y., Turner, D. R., Batten, S. R. Crystal engineering of coordination polymers using flexible tetracarboxylate linkers with embedded cyclohexyldiamine cores. CrystEngComm 2021, 23, 569–590; https://doi.org/10.1039/d0ce01620a.Suche in Google Scholar

8. Huang, N.-Y., Mo, Z.-W., Li, L.-J., Xu, W.-J., Zhou, H.-L., Zhou, D.-D., Liao, P.-Q., Zhang, J.-P., Chen, X.-M. Direct synthesis of an aliphatic amine functionalized metal–organic framework for efficient CO2 removal and CH4 purification. CrystEngComm 2018, 20, 5969–5975; https://doi.org/10.1039/c8ce00574e.Suche in Google Scholar

9. Zhang, X., Chen, H., Li, B., Liu, G., Liu, X. Construction of functional coordination polymers derived from designed flexible bis(4-carboxybenzyl)amine. CrystEngComm 2019, 21, 1231–1241; https://doi.org/10.1039/c8ce01418c.Suche in Google Scholar

10. Fang, H.-L., Zhu, L.-Z., Li, B., Wang, J.-J. Crystal structure of catena-poly[aqua-(μ4-4,4′-(pyridine-3,5-diyl)dibenzoato-κ4O,O′:O′′:O′′′)zinc(II)], C19H13NO5Zn. Z- Kristallogr. N. Cryst. Struct. 2020, 235, 1123–1124; https://doi.org/10.1515/ncrs-2020-0197.Suche in Google Scholar
Received: 2021-08-20
Accepted: 2021-09-09
Published Online: 2021-09-23
Published in Print: 2021-12-20

© 2021 Hai-Lin Chen et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
