Crystal structure of 1,1′-(1,4-phenylenebis(methylene))bis(pyridin-1-ium) bis(1,2-dicyanoethene-1,2-dithiolato-κ2 S,S) platinum(II), C26H18N6PtS4

  • Wei-Hong Yan ORCID logo EMAIL logo und Xian-Cai Zeng
Veröffentlicht/Copyright: 27. Oktober 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C26H18N6PtS4, triclinic, P 1 ‾ (no. 2), a = 8.2661(5) Å, b = 9.1519(6) Å, c = 9.4673(6) Å, α = 70.473(1)°, β = 80.770(1)°, γ = 83.340(1)°, V = 664.77(7) Å3, Z = 1, R gt (F) = 0.0477, wR ref (F 2) = 0.1168, T = 296(2) K.

CCDC no.: 2115383

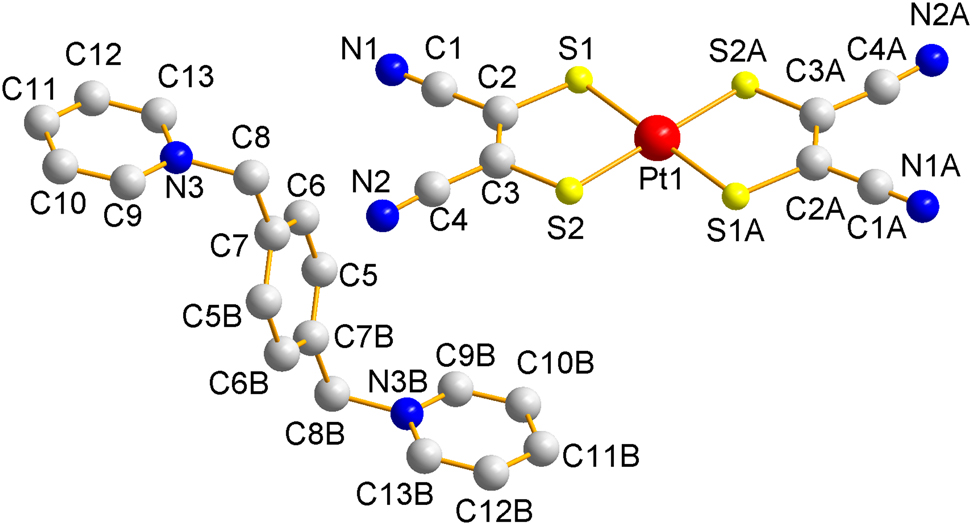

The salt-type title structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Red block
Size: 0.22 × 0.20 × 0.18 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 5.62 mm−1
Diffractometer, scan mode: φ and ω
θ max, completeness: 28.3°, 99%
N(hkl) measured , N(hkl) unique, R int: 4773, 3258, 0.116
Criterion for I obs, N(hkl) gt: I obs > 2 σ(I obs), 3048
N(param) refined: 169
Programs: SHELX [1], Bruker [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.2393 (9) 0.4945 (8) 0.5363 (8) 0.0536 (15)
C2 0.1419 (8) 0.4698 (8) 0.6811 (8) 0.0488 (14)
C3 0.0392 (8) 0.3521 (8) 0.7402 (8) 0.0476 (14)
C4 0.0248 (9) 0.2467 (9) 0.6605 (9) 0.0553 (16)
C5 0.6302 (9) 0.0678 (9) 0.5220 (10) 0.0618 (18)
H5 0.7183 (9) 0.1145 (9) 0.5351 (10) 0.074 (2)*
C6 0.5153 (10) 0.1570 (9) 0.4324 (10) 0.0618 (18)
H6 0.5253 (10) 0.2633 (9) 0.3878 (10) 0.074 (2)*
C7 0.3836 (8) 0.0886 (8) 0.4080 (8) 0.0488 (14)
C8 0.2611 (9) 0.1831 (10) 0.3085 (9) 0.0601 (18)
H8a 0.2516 (9) 0.2888 (10) 0.3113 (9) 0.072 (2)*
H8b 0.1545 (9) 0.1406 (10) 0.3459 (9) 0.072 (2)*
C9 0.2415 (10) 0.0913 (9) 0.0954 (10) 0.0634 (19)
H9 0.1604 (10) 0.0282 (9) 0.1576 (10) 0.076 (2)*
C10 0.2889 (14) 0.0879 (12) −0.0473 (13) 0.084 (3)
H10 0.2443 (14) 0.0189 (12) −0.0812 (13) 0.100 (3)*
C11 0.4016 (13) 0.1853 (14) −0.1413 (11) 0.088 (3)
H11 0.4300 (13) 0.1881 (14) −0.2412 (11) 0.106 (4)*
C12 0.4722 (13) 0.2786(14) −0.0860(13) 0.092 (4)
H12 0.5537 (13) 0.3421 (14) −0.1467 (13) 0.111 (4)*
C13 0.4234 (11) 0.2788 (10) 0.0573(11) 0.071(2)
H13 0.4690 (11) 0.3454 (10) 0.0935 (11) 0.085 (3)*
N1 0.3180 (9) 0.5159 (9) 0.4227 (8) 0.0709 (18)
N2 0.0123 (9) 0.1550 (9) 0.6054 (9) 0.0709 (19)
N3 0.3105 (7) 0.1845 (7) 0.1474 (7) 0.0507 (13)
Pt1 0.0 0.5 1.0 0.04262 (14)
S1 0.1667 (2) 0.5965 (2) 0.7778 (2) 0.0528 (4)
S2 −0.0818 (2) 0.3185 (2) 0.9135 (2) 0.0549 (4)

Source of material

All reagents and chemicals were purchased from commercial sources and used without further purification. The starting materials disodium maleonitriledithiolate and 1,4-bis(methylpyridinium benzene bromide were synthesized following the literature procedures [3, 4]. An aqueous solution (10 mL) of 1,4-bis(methylpyridinium benzene bromide (0.084 g, 0.2 mmol) was added slowly to an aqueous solution (20 mL) of disodium maleonitriledithiolate (0.074 g, 0.4 mmol) and K2PtCl4 (0.166 g, 0.4 mmol), and the mixture was stirred at room temperature for several minutes. A red precipitate which formed, was filtered off, washed by water and dried under vacuum. The precipitate was solved in DMF with ether diffusion to yield red crystals.

Experimental details

Absorption corrections were applied by using multi-scan program. The structure was refined based on F 2 with the SHELXL software package. Hydrogen atoms attached to C of the title complex located in difference electron density maps, and treated as riding atoms. The U iso values of the hydrogen atoms were set to 1.2U eq (C).

Comment

Coordination compounds have always been the focus of research because of their fascinating structures and great potential in diversified applications, such as magnetic materials, luminescence, catalysis, gas adsorption and separation, and so on [5], [6], [7], [8], [9], [10]. Continuous attention has been paid to the compounds with the maleonitriledithiolate (mnt) ligand owing to their special structures and diversity in physical and chemical properties. The ligand possesses a planar conjugate structures and contains N & S atoms, so it is easy to form accumulation of hydrogen bonds. As can be seen from previous reports [11], [12], [13], [14], [15], different counter-cations could induce versatile anion stack modes and bis(maleonitriledithiolate) complexes exhibit various weak interactions and a diversity of magnetic changes. Herein, we choose 1,4-bis(methylpyridinium benzene) as organic divalent cation [1,4–BMPB]2+, to generate new platinum(II) complex.

X-ray crystallography analyses reveal that the title complex shows 3D framework linked through extensive hydrogen bonding interactions. The asymmetric units comprises one half of a [Pt(mnt)2]2− anion and one half of 1,4-bis(methylpyridinium benzene) dication. Pt(II) ion is coordinated by four sulfur atoms, and exhibits a square-planar coordination geometry. The Pt–S distances as well as the S–Pt–S angle are normal, which are comparable to the reported [Pt(mnt)2]2− complex [16] and the title structure is isomorphous to the corresponding Ni(II) salt [14]. The anions and cations are formed segregated columns. The C–H⃛N interactions are observed in complex [17]. A supramolecular network structure is thus constructed through hydrogen bonding interactions.

Corresponding author: Wei-Hong Yan, School of Biology and Chemical Engineering, Nanyang Institute of Technology, Nanyang, 473004, China, E-mail:

Funding source: Scientific and Technological Research Projects of Henan Province

Award Identifier / Grant number: 182102311077

Funding source: National Natural Science Foundation of China http://dx.doi.org/10.13039/501100001809

Award Identifier / Grant number: 21776063, U1704127

Funding source: Science and technology project of Nanyang City

Award Identifier / Grant number: KJGG055

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: We gratefully acknowledge the financial support by the Science and technology project of Nanyang City (KJGG055), the Scientific and Technological Research Projects of Henan Province (182102311077), the National Natural Science Foundation of China (21776063, U1704127).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

2. Bruker. SMART APEX–II CCD; Bruker AXS Inc.: Madison, WI, USA, 2006.Suche in Google Scholar

3. Simmons, H. E., Blomstrom, D. C., Vest, R. D. Thiacyanocarbons. II. chemistry of disodium dimercaptomaleonitrile. J. Am. Chem. Soc. 1962, 84, 4756–4771; https://doi.org/10.1021/ja00883a029.Suche in Google Scholar

4. Musilek, K., Komloova, M., Zavadova, V., Holas, O., Hrabinova, M., Pohanka, M., Dohnal, V., Nachon, F., Dolezal, M., uca, K., Jung, Y. S. Preparation and in vitro screening of symmetrical bispyridinium cholinesterase inhibitors bearing different connecting linkage-initial study for Myasthenia gravis implications. Bioorg. Med. Chem. Lett 2010, 20, 1763–1766; https://doi.org/10.1016/j.bmcl.2010.01.034.Suche in Google Scholar PubMed

5. Kurmoo, M. Magnetic metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1353–1379; https://doi.org/10.1039/b804757j.Suche in Google Scholar PubMed

6. Allendorf, M. D., Bauer, C. A., Bhakta, R. K., Houk, R. J. T. Luminescent metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1330–1352; https://doi.org/10.1039/b802352m.Suche in Google Scholar PubMed

7. Lee, J., Farha, O. K., Roberts, J., Scheidt, K. A., Nguyen, S. T., Hupp, J. T. Metal-organic framework materials as catalysts. Chem. Soc. Rev. 2009, 38, 1450–1459; https://doi.org/10.1039/b807080f.Suche in Google Scholar PubMed

8. Demessence, A., Long, J. R. Selective gas adsorption in the flexible metal-organic frameworks Cu(BDTri)L (L=DMF, DEF). Chem. Eur J. 2010, 16, 5902–5908; https://doi.org/10.1002/chem.201000053.Suche in Google Scholar PubMed

9. Herm, Z. R., Swisher, J. A., Smit, B., Krishna, R., Long, J. R. Metal-organic frameworks as adsorbents for hydrogen purification and precombustion carbon dioxide capture. J. Am. Chem. Soc. 2011, 133, 5664–5667; https://doi.org/10.1021/ja111411q.Suche in Google Scholar PubMed

10. Wang, H. L., Liu, T., Zhu, Z. H., Peng, J. M., Zou, H. H., Liang, F. P. pH manipulates the assembly of a series of dysprosium clusters with subtle differences. Inorg. Chem. Front. 2021, 8, 3134–3140; https://doi.org/10.1039/d1qi00371b.Suche in Google Scholar

11. Duan, H. B., Ren, X. M., Meng, Q. J. One-dimensional (1D) [Ni(mnt)2]− based spin–Peierls-like complexes: structural, magnetic and transition properties. Coord. Chem. Rev. 2010, 254, 1509–1522; https://doi.org/10.1016/j.ccr.2009.12.021.Suche in Google Scholar

12. Wang, P. Crystal structure of Mn(II)(H2O)(2,13-dimethyl-3,6,9,12,18- pentaazabicyclo[12.3.1]octadeca-1(18),2,12,14,16-pentaene)-bis-(maleonitriledithiolate)nickel(II), C23H25MnN9NiOS4. Z. Kristallogr. NCS 2012, 227, 511–512; https://doi.org/10.1524/ncrs.2012.0244.Suche in Google Scholar

13. Yan, W. H., Ji, E. Y., Shen, M. L., Li, Z. Y., Li, X., Xu, X. L. Two ion-pair complexes constructed by [M(mnt)2]n−(M = Ni, Co, mnt = maleonitriledithiolate): syntheses, characterization and thermal stability. Chin. J. Struct. Chem. 2015, 34, 306–312.Suche in Google Scholar

14. Yan, W. H., Pan, H. Y. Crystal structure of 1,4-bis(methylpyridinium benzene) bis(1,2-dicyanoethene-1,2-dithiolato-κ2S:S) nickel(II), C26H18N6NiS4. Z. Kristallogr. NCS 2021, 236, 107–108; https://doi.org/10.1515/ncrs-2020-0407.Suche in Google Scholar

15. Yan, W. H., Liu, X. G., Shen, M. L., Pan, H. Y. Crystal structure of 1,1′-(1,4-phenylenebis(methylene))bis(pyridin-1-ium) bis (1,2-dicyanoethene-1,2-dithiolato-k2S:S) zinc(II), C26H18N6ZnS4. Z. Kristallogr. NCS 2021, 236, 533–535; https://doi.org/10.1515/ncrs-2020-0624.Suche in Google Scholar

16. Bigoli, F., Deplano, P., Mercuri, M. L., Pellinghelli, M. A., Pilia, L., Pintus, G., Serpe, A., Trogu, E. F. Ion pair charge-transfer complexes between anionic and cationic metal-dithiolenes [M(II) = Pd, Pt]. Inorg. Chem. 2002, 41, 5241–5248; https://doi.org/10.1021/ic025788w.Suche in Google Scholar PubMed

17. Jeffrey, G. A. Hydrogen-bonding: an update. Crystallogr. Rev. 2003, 9, 135–176; https://doi.org/10.1080/08893110310001621754.Suche in Google Scholar
Received: 2021-08-31
Accepted: 2021-10-13
Published Online: 2021-10-27
Published in Print: 2021-12-20

© 2021 Wei-Hong Yan and Xian-Cai Zeng, published by De Gruyter, Berlin/Boston
