Design and evaluation of a new intersection model to minimize congestions using VISSIM software

  • Jana Fabianova EMAIL logo , Peter Michalik , Jaroslava Janekova und Michal Fabian
Veröffentlicht/Copyright: 31. Januar 2020
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Open Engineering
Aus der Zeitschrift Open Engineering Band 10 Heft 1

Abstract

Traffic modelling and simulation is one of the frequent tools used in road infrastructure design. Software tools designed for traffic simulations are an important supportive tool in decision-making and in choosing the optimal solution. The aim of this paper is to introduce the application of the VISSIM program, in the design and testing a model of the traffic-light-controlled intersection. The traffic on the selected congested intersection is modelled and simulated first for the current state, then for two models with modifications that are to increase the throughput of the intersection. The monitored criterion of the intersection throughput is the length of queues. Both adjustments have led to a significant reduction of the number of vehicles waiting in direction of the greatest congestions. In the first model, the average line length was reduced by 75%, and in the second model, the modifications lead to a fluent passage of right-turn vehicles and a significant reduction in vehicle lines for other directions.

Keywords: traffic-light-controlled intersection; traffic modelling; simulation; VISSIM

1 Introduction

Traffic modelling and simulations have an irreplaceable place in transport infrastructure planning. Designing road networks and intersections, analysing traffic situations to eliminate congestion, reducing vehicle delays and improving road safety are the subject of many research works. Most of them are based on the creation and analysis of microscopic models. One of the interesting approaches to signal programming was introduced by Yu et al. [1]. In order to optimize signal timing for isolated intersection, the authors proposed a new method based on fuzzy programming approach. This method and the traditional method was compared and analysed through simulation software. In the research by Yuniawan et al. [2] a simulation method was implemented in order to manage the traffic queue. As the tool to modelling the traffic queue line Arena Simulation software was used. Sommer et al. discussed in [3] the need for bidirectional coupling of network simulation and road traffic microsimulation. They developed the hybrid simulation framework Veins (Vehicles in Network Simulation), composed of the network simulator OMNeT++ and the road traffic simulator SUMO. Chen et al. [4] proposed a nearby traffic flow modelling solution based on built-in Cyber-Physical System sensors of autonomous vehicles. Their model helps to select the optimal speed, the optimal distance for timing to brake, and the safe distance from other vehicles. Mesoscopic traffic simulation is used for handling large-scale dynamic traffic problems. In [5] an ideal grid network and a realistic Singapore expressway network were implemented and compared. Further interesting studies presenting traffic modelling and simulation methods were published in [6, 7, 8, 9, 10, 11].

Safety is emerging as an area of increased attention and awareness within transportation engineering [12]. This fact is reflected in many works which are focused on the traffic safety issue. Wang et al. [13] proposed a combined usage of microscopic traffic simulation and Extreme Value Theory for safety evaluation. The effect of driver’s characteristic on the stability of traffic flow was examined by [14]. The authors investigated the effect of anticipation parameter with more aggressive drivers, and it was found that it has a positive effect on the stability of traffic flow dynamics. Essa and Sayed [15] investigated the relationship between field-measured conflicts and simulated conflicts estimated from microsimulation model (PARAMICS) using the surrogate safety assessment model. The issue of safety on roads in connection with modelling and simulation was dealt with also in [16, 17, 18, 19].

Transport modelling uses a wide range of software tools whose functionality and comparison has been the subject of a number of research works. A comparison of 17 simulation software tools has been conducted by [20]. An online survey with the focus on traffic simulation tool developers, functionalities and planned improvements of softwares was performed. Mahmud et al. [21] critically reviewed micro-simulation modelling applications for traffic safety evaluation with respect to the use of different simulation tools. The study by [22] compared the performance of SimTraffic and VISSIM simulation tool in modelling dual lane and triple lane roundabouts under different scenarios. However, the software tools did not show statistically significant difference. Bloomberg and Dale [23] used CORSIM and VISSIM as tools for the traffic analysis and applied two-model approach to make the analysis more reliable and the results more defensible. The traffic simulation model AVENUE, developed in Japan, was described by [24] in terms of its traffic modelling and applications. As can be seen, there is a wide choice of simulation tools, but one of the most widespread softwares used for micro-simulation modelling in transport is VISSIM. This is also due to its very good performance and outputs quality. Modelling and simulation in VISSIM are also presented in [25, 26, 27, 28, 29].

The paper presents the use of the VISSIM microsimulation tool in designing and testing the capacity of a signalized intersection. The main contribution of this paper is the proposal of two intersection models leading to the elimination of congestion during peak hours.

2 Research problem definition

The traffic section we will deal with is a traffic-light-controlled intersection in Spisská Nová Ves, Slovakia. It is a crossroad of streets Duklianska and Sládkovičova,which is located on the main road of the city and is also an entrance to the city center. The problem of the intersection is the occurrence of traffic congestions, especially in the afternoon, mostly in one direction of the intersection. This congestion is caused by a few of factors, such as the presence of a railroad crossing with a long waiting time, an OMV petrol station, a department store, a bus and railway station. It is also one of the access roads to the housing estate, causing an increased number of vehicles. Traffic congestions are formed on Duklianska Street in direction to the city, most often at the time of the afternoon rush hours. Through a simulation model in the VISSIM environment, real traffic corresponding to peak hours will be simulated and analyzed. Subsequently, based on the layout options of the intersection, its new model will be designed to increase the throughput of the intersection for the most exposed direction.

2.1 Description and analysis of the selected intersection

The analyzed intersection is four-armed, light-controlled. Entrance A to the intersection is three-lane (left, straight and right lane), other B, C and D entrances are two-lane. The problematic direction D has two lanes. One lane is for left turn and the other lane is common for straight and right turn. The other entrances B, C are two-lane (Figure 1, 2).

Figure 1 Satellite view of the intersection
Figure 1

Satellite view of the intersection

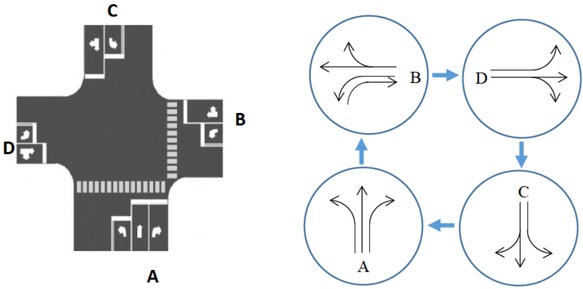

Figure 2 Diagram of driving lanes and sequence of control phases at the intersection [30]
Figure 2

Diagram of driving lanes and sequence of control phases at the intersection [30]

2.2 Time regime of the regulation

The intersection is equipped with light signals, which is divided into 3 time intervals. The first time interval if the signal program is P1 from 14:00 to 24:00 and the cycle lasts 75 seconds. It is followed by a flashing amber light from 00:00 to 06:00. From 06:00 to 14:00, the P2 signal program is switched on with a 90 seconds cycle. Overall, there are four traffic lights for cars and two pedestrian traffic lights at the intersection. The width of the traffic lanes at the intersection is approximately 3 meters. Time intervals vary across weekdays, Saturdays, Sundays and public holidays. The main signal program is P2/90s, which lasts from 6:00 to 21:00 during weekdays. Table 1 shows the daily usage of signal programs.

Table 1

Usage of signal programs

Working daysSaturdaysSundays + State holydays
Time intervalSignal programTime intervalSignal programTime intervalSignal program
00:00 – 06:00Amber light00:00 – 06:00Amber light00:00 – 06:00Amber light
06:00 – 21:00P2/90s06:00 – 14:00P2/90s06:00 – 24:00P1/75s
21:00 – 24:00P1/75s14:00 – 24:00P1/75s

The intersection has four control phases for a coordinated controlling mode. Currently the order of the control phases shown in Figure 2 is used. Since the traffic situation for the working day will be addressed, the analysis and simulation concerns only the P2/90s signal program.

2.3 Traffic survey

The term of the traffic survey was 6 March 2018 (Tuesday) and 13 March 2018 (Tuesday) on the intersection of the streets Duklianska and Sládkovičova. Due to the fact that the most problematic situation at the intersection is in the afternoon on weekdays, the term of the traffic survey was 6 March 2018 from 15:00 to 16:00 and 13 March 2018 from 14:00 to 15:00 at the intersection from the direction D. Vehicle numbers were registered for a 15 minute interval and recorded in census sheets.

The numbers of vehicles that have crossed the intersection from the D direction in both lanes are shown in the tables (Table 3, Table 4). The course of traffic intensity in individual time intervals is shown in the graph in Figure 3, where the peak time and the intensity of traffic in peak time are clearly identified. In addition to the traffic intensity, vehicle types were also recorded. The types of vehicles crossing the intersection were passenger cars, motorcycles,HeavyGoodsVehicle and buses. Table 2 presents the structure of the traffic flow and the identification of individual types of vehicles.

Figure 3 Number of vehicles crossing the intersection from direction D
Figure 3

Number of vehicles crossing the intersection from direction D

Table 2

Structure of traffic flow

Vehicle typeIdentificationNotes
CarsCNot exceed 3.5 tonnes
MotorcyclesM
Heavy Goods VehicleHGVOver 3.5 tonnes
BusesB
Table 3

Traffic intensity - results of traffic survey 1st day [30]

DateTimeDirectionVehicle type
CMHGVBTotal
6.3.201815:00 - 15:15951164116
15:15 - 15:3097082107
15:30 - 15:4593193106
15:45 - 16:008307393
D-A,B Total15:00 - 16:0036824012422
6.3.201815:00 - 15:152904336
15:15 - 15:303201740
15:30 - 15:452903335
15:45 - 16:002205734
D-C Total15:00 - 16:0011201320145
D Total15:00-16:0048025332567
Table 4

Traffic intensity - results of traffic survey 2nd day [30]

DateTimeDirectionVehicle type
CMHGVBTotal
13.3.201814:00 - 14:157806387
14:15 - 14:30882121103
14:30 - 14:45910122105
14:45 - 15:00921142109
D-A, B Total14:00 - 15:003493448404
13.3.201814:00 - 14:152200123
14:15 - 14:302201225
14:30 - 14:452304431
14:45 - 15:002604333
D-C Total14:00 - 15:00930910112
D Total14:00-15:0044235318516

3 Traffic simulation

3.1 Creation of the intersection model

The VISSIM software tool is used to create the intersection model and to simulate the traffic. It is used for microscopic simulation, showing all traffic users and their interactions in one model. It enables accurately simulates automobile, rail and road public transport, pedestrians and cyclists.

The basis for creating the intersection model is a satellite image of the selected section of roads. Based on the scale in the image, the map is scaled to match the model’s dimensions to the actual intersection dimensions. The modelling process starts by drawing straight roads and connecting them directly to the intersection map. In places where roads crossing conflict areas arise where the priority of vehicles in the event of an uncontrolled intersection needs to be defined. In our case, the conflict areas of the intersection remain passive (coloured yellow, see Figure 4), because it is a traffic light- controlled intersection.

Figure 4 Intersection model - conflict zones visualisation
Figure 4

Intersection model - conflict zones visualisation

3.2 Define traffic parameters for the simulation

Based on the data obtained from the traffic survey, the parameters of the traffic flow are defined. The traffic intensity from D direction is approximately 500-600 vehicles per hour, therefore it is set to 550 vehicles/hour in the simulation. According to the traffic survey, the total traffic flow from the D-direction is divided into the individual directions by the following ratio: D-C (24%) and D-A, B (76%). Its further division between directions A and B is determined by estimation, as well as the traffic intensity and the division of traffic flow from the other directions. The traffic flow parameters for all directions are given in Table 5. The traffic flow composition is determined for all directions the same according to the data obtained from the survey in direction D (Figure 5).

Figure 5 Traffic composition from D direction entered in the simulation environment
Figure 5

Traffic composition from D direction entered in the simulation environment

Table 5

Traffic flow parameters

Traffic flow from directionIntensity of traffic flow [vehicles/h]Division of traffic flowSpeed of vehicles in front of the crossroads [km/h]Reduced vehicle speed inside the intersection [km/h]
D55036:40:24

(D–A : D–B : D–C)		4012
A3002:1:2

(A–D : A–C : A–B)		4012
B4502:2:1

(B–A : B–D : B–C)		4012
C2901:1:1

(C–B : C–A : C–D)		4012

The traffic lights are only installed for vehicles, as the model only deals with vehicle traffic. Green for pedestrians does not affect the signal program for vehicles. The signal program for the current state entered in the simulation program VISSIM is presented in Figure 6. Locations of the traffic lights in the intersection model are shown in Figure 7.

Figure 6 Signal program - current status
Figure 6

Signal program - current status

Figure 7 Traffic lights locations - current status
Figure 7

Traffic lights locations - current status

3.3 Simulation results

The results of the simulation during 3,600 s showed the fact that the intersection has a low throughput. From D direction a series of vehicles quickly began to form, with the vehicles having to stop several times before crossing the intersection (Figure 8). The second queue of vehicles formed from the C direction, although the situation was not so critical, the crossing of the intersection also from this direction was not fluent.

Figure 8 Traffic congestion on the current intersection model
Figure 8

Traffic congestion on the current intersection model

To evaluate the overall situation, queue counters were set to the directions D and C to monitor the length of the vehicle line parameter. Average and maximum queue length have been measured. The current queue length is measured upstream by the queue counter and the arithmetic mean and the maximum is thus calculated per time interval. The maximum length of the line of vehicles in the direction D-A, B reached up to 121 m, the average length of the line was 79 m. In the direction C-A, D is the second major delay (max. line length 58 m). The queue length in the directions Cand D is presented in the Figure 9. In other directions the traffic was without significant delays (Figure 9).

Figure 9 Average and maximum length of the vehicle line: direction C and D
Figure 9

Average and maximum length of the vehicle line: direction C and D

4 Design and verification of new intersection models

The problem of low intersection throughput will be solved in two ways in the following simulation models:

  1. In the first model, a separate lane for the D-B direction will be added. It will be controlled by the signal sequence red - red/amber - green - orange and by the program alike direction D-B.

  2. In the second model, this separate lane will not be controlled by traffic lights, with a flashing amber light. The priority of vehicles in this model will be defined by the priority rules function when vehicles from the D direction must give priority to all other vehicles crossing on green the intersection.

The simulation of traffic will be in both models under the same traffic conditions as the original intersection model.

4.1 Design of the 1st intersection model: added driving lane

The intersection model for the added driving lane is shown in Figure 10. Division of the original lane into three directions is at a point approximately 80 m from the intersection. The results of the simulation show that by adding a new lane, the throughput of the intersection significantly improved for direction. The average line length was only 19m(approximately 75% improvement) and the maximum line length was 75 m (approximately 30% improvement) (Figure 11, 12).

Figure 10 Driving directions from direction D after adding a new driving lane
Figure 10

Driving directions from direction D after adding a new driving lane

Figure 11 Traffic situation at the 1st modified intersection model
Figure 11

Traffic situation at the 1st modified intersection model

Figure 12 Maximum and average line lengths for the1st modified intersection model
Figure 12

Maximum and average line lengths for the1st modified intersection model

4.2 Design of the 2nd intersection model: added driving lane, change of the signal program

In the second modified intersection model, the signal program was modified by disabling the D-A direction control and setting a continuous flashing orange light. At the same time, elements defining priority rules have been inserted at the intersection, i.e. give priority to drive for the D direction (orange lane) and the marked directions which have priority (green lanes). This modification of the intersection control will significantly accelerate the exit of vehicles from the D-A direction, which leaves the intersection almost fluently. The waiting time of vehicles and the length of the line from other directions have not been affected by this adjustment (Figure 13, 14).

Figure 13 Traffic situation at the 2nd modified intersection model
Figure 13

Traffic situation at the 2nd modified intersection model

Figure 14 Maximum and average line lengths for the 2nd modified intersection model
Figure 14

Maximum and average line lengths for the 2nd modified intersection model

5 Conclusions

At present, one of the frequent tools used in road infrastructure design is traffic modelling and simulation. Software tools designed for traffic simulations enable to verify parameters of the future road or intersection in a shorttime and at low cost, they are a supportive tool in decision-making and in choosing the optimal solution.

The aim of this paper was to introduce the application of the VISSIM program, designed for road traffic microsimulations, in the design and testing of the traffic-light-controlled intersection model. The traffic on the selected problematic congested intersection was modelled and simulated first for the current state, then for two models with modifications that were to increase the throughput of the intersection. The monitored criterion of the intersection throughput was the length of vehicles line. The first modification of the intersection was the addition of a separate lane in the most exposed direction, while maintaining the current intersection control conditions by light signals. The second modification of the intersection represented except additional separate lane also adjustment of the traffic lights. Both adjustments have led to a significant reduction of the number of vehicles waiting in direction of the greatest congestions. In the first case, the average line length was reduced by 75%, and in the second case, the modifications led to a fluent passage of right-turn vehicles and a significant reduction in vehicle lines for other directions. These modifications presented only some of the ways in which the adjustment of the layout or the signal plan could improve the traffic situation. In order to select the optimal solution, it would be necessary to examine more options, including their cost and safety implications. Because of that, these additional aspects, mainly costs and safety impacts, will be considered in future work.

Acknowledgement

This work has been supported by grant projects VEGA 1/0638/19, VEGA 1/0600/20, KEGA 009TUKE-4/2020, KEGA 012TUKE-4/2019 and APVV SK-SRB-18-0053.

References

[1] Yu D, Tian X, Xing X, et al. Signal Timing Optimization Based on Fuzzy Compromise Programming for Isolated Signalized Intersection. Math Probl Eng 2016: 1–12.10.1155/2016/1682394Suche in Google Scholar

[2] Yuniawan D, Aang Fajar P., Hariyanto S, et al. Traffic queue modeling using arena simulation software (a case study of Mergan 4-Way intersection in Malang City). In: Puspitasari P, Suryanto AH, Lenggo Ginta T, et al. (eds) MATEC Web of Conferences. EDP Sciences, 2018. Epub ahead of print 21 September 2018. DOI: 10.1051/matecconf/201820402009.10.1051/matecconf/201820402009Suche in Google Scholar

[3] Sommer C, German R, Dressler F. Bidirectionally Coupled Network and Road Traffic Simulation for Improved IVC Analysis. IEEE Trans Mob Comput 10: 3–15.10.1109/TMC.2010.133Suche in Google Scholar

[4] Chen B, Yang Z, Huang S, et al. Cyber-physical system enabled nearby Traffic flow modelling for autonomous vehicles. In: 2017 IEEE 36th International Performance Computing and Communications Conference (IPCCC). IEEE, 2017, pp. 1–6.10.1109/PCCC.2017.8280498Suche in Google Scholar

[5] Song X, Xie Z, Xu Y, et al. Supporting real-world network-oriented mesoscopic traffic simulation on GPU. Simul Model Pract Theory 74: 46–63.10.1016/j.simpat.2017.02.003Suche in Google Scholar

[6] Bartuska L, Stopka O, Lizbetin J. Methodology for determining the traffic volumes on urban roads in the Czech Republic. In: 19th Int. Sci. Conf. on Transp. Means (22-23 Oct 2015 Kaunas, 55 Lithuania), Kaunas University of Technology. 2015, pp. 215–218.Suche in Google Scholar

[7] Hlatká M, Bartuška L, Ližbetin J. Application of the vogel approximation method to reduce transport-logistics processes. In: MATEC Web of Conferences, 134, In: 18th Int. Sci. Conf., LOGI 2017, Ceske Budejovice. Ceske Budejovice, 2017, pp. 1–8.10.1051/matecconf/201713400019Suche in Google Scholar

[8] Ližbetin J, Stopka O. Proposal of a Roundabout Solution within a Particular Traffic Operation. Open Eng 2016; 6(1):441-445.10.1515/eng-2016-0066Suche in Google Scholar

[9] Brumerčík F, Krzywonos L. Integrated Transportation System Simulation. Logi - Sci J Transp Logist 4: 5–10.Suche in Google Scholar

[10] Stopka O, Cejka J, Kampf R BL. Draft of the novel system of public bus transport lines in the particular territory. In: 19th Int. Sci. Conf. on Transp. Means (22-23 Oct 2015 Kaunas, Lithuania). Kaunas, 2015, pp. 39–42.Suche in Google Scholar

[11] Kubasakova I, Kubanova J, Poliakova B. Modelling of Opened 70 System in the Road Freight Transport and its Impact on the System Characteristics. In: 19th Int. Sci. Conf. on Transp. Means (22-23 Oct 2015 Kaunas, Lithuania). 2015, pp. 405–409.Suche in Google Scholar

[12] Gettman D, Head L. Surrogate Safety Measures from Traffic Simulation Models. Transp Res Rec J Transp Res Board 1840: 104–115.10.3141/1840-12Suche in Google Scholar

[13] Wang C, Xu C, Xia J, et al. A combined use of microscopic traffic simulation and extreme value methods for traffic safety evaluation. Transp Res Part C Emerg Technol 90: 281–291.10.1016/j.trc.2018.03.011Suche in Google Scholar

[14] Sharma S. Lattice hydrodynamic modeling of two-lane traffic flow with timid and aggressive driving behavior. Phys A Stat Mech its Appl 421: 401–411.10.1016/j.physa.2014.11.003Suche in Google Scholar

[15] Essa M, Sayed T. A comparison between PARAMICS and VISSIM in estimating automated field-measured traffic conflicts at signalized intersections. J Adv Transp 50: 897–917.10.1002/atr.1381Suche in Google Scholar

[16] Jurecki R, Poliak M, Jaśkiewicz M. Young Adult Drivers: Simulated Behaviour in a Car-following Situation. PROMET - Traffic&Transportation 29: 381–390.10.7307/ptt.v29i4.2305Suche in Google Scholar

[17] Metelski A. Analysis of selected methodological problems regarding the examination of traffic events at road intersections. Arch Automot Eng – Arch 82: 75–85.10.14669/AM.VOL82.ART6Suche in Google Scholar

[18] Dižo J, Blatnický M, Melnik R. Assessment of the Passenger Ride Comfort for a Coach by Means of Simulation Computations. LOGI – Sci J Transp Logist 8: 24–32.10.1515/logi-2017-0013Suche in Google Scholar

[19] Kolla E, Ondruš J, Vertaľ P. Reconstruction of traffic situations from digital video-recording using method of volumetric kinetic mapping. Arch Automot Eng – Arch Motoryz 84: 147–170.10.14669/AM.VOL84.ART11Suche in Google Scholar

[20] Pell A, Meingast A, Schauer O. Trends in Real-time traffic Simulation. Transp Res Procedia 25: 1477–1484.10.1016/j.trpro.2017.05.175Suche in Google Scholar

[21] Mahmud SMMS, Ferreira L, Hoque MS, et al. Micro-simulation modelling for traffic safety: A review and potential application to heterogeneous traffic environment. IATSS Research 43: 27–36.10.1016/j.iatssr.2018.07.002Suche in Google Scholar

[22] Shaaban K, Kim I. Comparison of SimTraffic and VISSIM Microscopic Traffic Simulation Tools in Modeling Roundabouts. Procedia Comput Sci 52: 43–50.10.1016/j.procs.2015.05.016Suche in Google Scholar

[23] Bloomberg L, Dale J. A Comparison of the VISSIM and CORSIM Traffic Simulation Models. Transp Res Rec J Transp Res Board 1727: 52–60.10.3141/1727-07Suche in Google Scholar

[24] Kuwahara M, Horiguchi R, Hanabusa H. Traffic Simulation with AVENUE. In: Fundamentals of Traffic Simulation. 2010, pp. 95–129.10.1007/978-1-4419-6142-6_3Suche in Google Scholar

[25] Fedorko G, Rosová A, Molnár V. The application of computer simulation in solving traffic problems in the urban traffic management in Slovakia. Theor Empir Res Urban Manag 9: 5–17.Suche in Google Scholar

[26] Nyame-Baafi E, Adams CA, Osei KK. Volume warrants for major and minor roads left-turning traffic lanes at unsignalized T-intersections: A case study using VISSIM modelling. J Traffic Transp Eng (English Ed 5: 417–428.10.1016/j.jtte.2018.01.005Suche in Google Scholar

[27] Neradilová H, Fedorko G. The Use of Computer Simulation Methods to Reach Data for Economic Analysis of Automated Logistic Systems. Open Eng 6: 700–710.10.1515/eng-2016-0085Suche in Google Scholar

[28] Chen M. Modeling and Simulation Analysis of Road Network Based on VISSIM. In: 2019 International Conference on Intelligent Transportation, Big Data & Smart City (ICITBS). IEEE, 2019, pp. 32–35.10.1109/ICITBS.2019.00017Suche in Google Scholar

[29] Fellendorf M, Vortisch P. Microscopic Traffic Flow Simulator VIS-SIM. In: Fundamentals of Traffic Simulation. Springer, New York, NY, 2010, pp. 63–93.10.1007/978-1-4419-6142-6_2Suche in Google Scholar

[30] Hambor L. Analysis of the traffic situation on the selected transport section in Spišská Nová Ves using simulations. Technical University of Kosice, 2018.Suche in Google Scholar

Received: 2019-10-30
Accepted: 2019-12-11
Published Online: 2020-01-31

© 2020 J. Fabianova et al., published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Artikel in diesem Heft

  1. Regular Articles
  2. Fabrication of aluminium covetic casts under different voltages and amperages of direct current
  3. Inhibition effect of the synergistic properties of 4-methyl-norvalin and 2-methoxy-4-formylphenol on the electrochemical deterioration of P4 low carbon mold steel
  4. Logistic regression in modeling and assessment of transport services
  5. Design and development of ultra-light front and rear axle of experimental vehicle
  6. Enhancement of cured cement using environmental waste: particleboards incorporating nano slag
  7. Evaluating ERP System Merging Success In Chemical Companies: System Quality, Information Quality, And Service Quality
  8. Accuracy of boundary layer treatments at different Reynolds scales
  9. Evaluation of stabiliser material using a waste additive mixture
  10. Optimisation of stress distribution in a highly loaded radial-axial gas microturbine using FEM
  11. Analysis of modern approaches for the prediction of electric energy consumption
  12. Surface Hardening of Aluminium Alloy with Addition of Zinc Particles by Friction Stir Processing
  13. Development and refinement of the Variational Method based on Polynomial Solutions of Schrödinger Equation
  14. Comparison of two methods for determining Q95 reference flow in the mouth of the surface catchment basin of the Meia Ponte river, state of Goiás, Brazil
  15. Applying Intelligent Portfolio Management to the Evaluation of Stalled Construction Projects
  16. Disjoint Sum of Products by Orthogonalizing Difference-Building ⴱ
  17. The Development of Information System with Strategic Planning for Integrated System in the Indonesian Pharmaceutical Company
  18. Simulation for Design and Material Selection of a Deep Placement Fertilizer Applicator for Soybean Cultivation
  19. Modeling transportation routes of the pick-up system using location problem: a case study
  20. Pinless friction stir spot welding of aluminium alloy with copper interlayer
  21. Roof Geometry in Building Design
  22. Review Articles
  23. Silicon-Germanium Dioxide and Aluminum Indium Gallium Arsenide-Based Acoustic Optic Modulators
  24. RZ Line Coding Scheme With Direct Laser Modulation for Upgrading Optical Transmission Systems
  25. LOGI Conference 2019
  26. Autonomous vans - the planning process of transport tasks
  27. Drivers ’reaction time research in the conditions in the real traffic
  28. Design and evaluation of a new intersection model to minimize congestions using VISSIM software
  29. Mathematical approaches for improving the efficiency of railway transport
  30. An experimental analysis of the driver’s attention during train driving
  31. Risks associated with Logistics 4.0 and their minimization using Blockchain
  32. Service quality of the urban public transport companies and sustainable city logistics
  33. Charging electric cars as a way to increase the use of energy produced from RES
  34. The impact of the truck loads on the braking efficiency assessment
  35. Application of virtual and augmented reality in automotive
  36. Dispatching policy evaluation for transport of ready mixed concrete
  37. Use of mathematical models and computer software for analysis of traffic noise
  38. New developments on EDR (Event Data Recorder) for automated vehicles
  39. General Application of Multiple Criteria Decision Making Methods for Finding the Optimal Solution in City Logistics
  40. The influence of the cargo weight and its position on the braking characteristics of light commercial vehicles
  41. Modeling the Delivery Routes Carried out by Automated Guided Vehicles when Using the Specific Mathematical Optimization Method
  42. Modelling of the system “driver - automation - autonomous vehicle - road”
  43. Limitations of the effectiveness of Weigh in Motion systems
  44. Long-term urban traffic monitoring based on wireless multi-sensor network
  45. The issue of addressing the lack of parking spaces for road freight transport in cities - a case study
  46. Simulation of the Use of the Material Handling Equipment in the Operation Process
  47. The use of simulation modelling for determining the capacity of railway lines in the Czech conditions
  48. Proposals for Using the NFC Technology in Regional Passenger Transport in the Slovak Republic
  49. Optimisation of Transport Capacity of a Railway Siding Through Construction-Reconstruction Measures
  50. Proposal of Methodology to Calculate Necessary Number of Autonomous Trucks for Trolleys and Efficiency Evaluation
  51. Special Issue: Automation in Finland
  52. 5G Based Machine Remote Operation Development Utilizing Digital Twin
  53. On-line moisture content estimation of saw dust via machine vision
  54. Data analysis of a paste thickener
  55. Programming and control for skill-based robots
  56. Using Digital Twin Technology in Engineering Education – Course Concept to Explore Benefits and Barriers
  57. Intelligent methods for root cause analysis behind the center line deviation of the steel strip
  58. Engaging Building Automation Data Visualisation Using Building Information Modelling and Progressive Web Application
  59. Real-time measurement system for determining metal concentrations in water-intensive processes
  60. A tool for finding inclusion clusters in steel SEM specimens
  61. An overview of current safety requirements for autonomous machines – review of standards
  62. Expertise and Uncertainty Processing with Nonlinear Scaling and Fuzzy Systems for Automation
  63. Towards online adaptation of digital twins
  64. Special Issue: ICE-SEAM 2019
  65. Fatigue Strength Analysis of S34MnV Steel by Accelerated Staircase Test
  66. The Effect of Discharge Current and Pulse-On Time on Biocompatible Zr-based BMG Sinking-EDM
  67. Dynamic characteristic of partially debonded sandwich of ferry ro-ro’s car deck: a numerical modeling
  68. Vibration-based damage identification for ship sandwich plate using finite element method
  69. Investigation of post-weld heat treatment (T6) and welding orientation on the strength of TIG-welded AL6061
  70. The effect of nozzle hole diameter of 3D printing on porosity and tensile strength parts using polylactic acid material
  71. Investigation of Meshing Strategy on Mechanical Behaviour of Hip Stem Implant Design Using FEA
  72. The effect of multi-stage modification on the performance of Savonius water turbines under the horizontal axis condition
  73. Special Issue: Recent Advances in Civil Engineering
  74. The effects of various parameters on the strengths of adhesives layer in a lightweight floor system
  75. Analysis of reliability of compressed masonry structures
  76. Estimation of Sport Facilities by Means of Technical-Economic Indicator
  77. Integral bridge and culvert design, Designer’s experience
  78. A FEM analysis of the settlement of a tall building situated on loess subsoil
  79. Behaviour of steel sheeting connections with self-drilling screws under variable loading
  80. Resistance of plug & play N type RHS truss connections
  81. Comparison of strength and stiffness parameters of purlins with different cross-sections of profiles
  82. Bearing capacity of floating geosynthetic encased columns (GEC) determined on the basis of CPTU penetration tests
  83. The effect of the stress distribution of anchorage and stress in the textured layer on the durability of new anchorages
  84. Analysis of tender procedure phases parameters for railroad construction works
  85. Special Issue: Terotechnology 2019
  86. The Use of Statistical Functions for the Selection of Laser Texturing Parameters
  87. Properties of Laser Additive Deposited Metallic Powder of Inconel 625
  88. Numerical Simulation of Laser Welding Dissimilar Low Carbon and Austenitic Steel Joint
  89. Assessment of Mechanical and Tribological Properties of Diamond-Like Carbon Coatings on the Ti13Nb13Zr Alloy
  90. Characteristics of selected measures of stress triaxiality near the crack tip for 145Cr6 steel - 3D issues for stationary cracks
  91. Assessment of technical risk in maintenance and improvement of a manufacturing process
  92. Experimental studies on the possibility of using a pulsed laser for spot welding of thin metallic foils
  93. Angular position control system of pneumatic artificial muscles
  94. The properties of lubricated friction pairs with diamond-like carbon coatings
  95. Effect of laser beam trajectory on pocket geometry in laser micromachining
  96. Special Issue: Annual Engineering and Vocational Education Conference
  97. The Employability Skills Needed To Face the Demands of Work in the Future: Systematic Literature Reviews
  98. Enhancing Higher-Order Thinking Skills in Vocational Education through Scaffolding-Problem Based Learning
  99. Technology-Integrated Project-Based Learning for Pre-Service Teacher Education: A Systematic Literature Review
  100. A Study on Water Absorption and Mechanical Properties in Epoxy-Bamboo Laminate Composite with Varying Immersion Temperatures
  101. Enhancing Students’ Ability in Learning Process of Programming Language using Adaptive Learning Systems: A Literature Review
  102. Topical Issue on Mathematical Modelling in Applied Sciences, III
  103. An innovative learning approach for solar power forecasting using genetic algorithm and artificial neural network
  104. Hands-on Learning In STEM: Revisiting Educational Robotics as a Learning Style Precursor
https://doi.org/10.1515/eng-2020-0019
Schlagwörter für diesen Artikel
traffic-light-controlled intersection; traffic modelling; simulation; VISSIM
Creative Commons
BY 4.0

Artikel in diesem Heft

  1. Regular Articles
  2. Fabrication of aluminium covetic casts under different voltages and amperages of direct current
  3. Inhibition effect of the synergistic properties of 4-methyl-norvalin and 2-methoxy-4-formylphenol on the electrochemical deterioration of P4 low carbon mold steel
  4. Logistic regression in modeling and assessment of transport services
  5. Design and development of ultra-light front and rear axle of experimental vehicle
  6. Enhancement of cured cement using environmental waste: particleboards incorporating nano slag
  7. Evaluating ERP System Merging Success In Chemical Companies: System Quality, Information Quality, And Service Quality
  8. Accuracy of boundary layer treatments at different Reynolds scales
  9. Evaluation of stabiliser material using a waste additive mixture
  10. Optimisation of stress distribution in a highly loaded radial-axial gas microturbine using FEM
  11. Analysis of modern approaches for the prediction of electric energy consumption
  12. Surface Hardening of Aluminium Alloy with Addition of Zinc Particles by Friction Stir Processing
  13. Development and refinement of the Variational Method based on Polynomial Solutions of Schrödinger Equation
  14. Comparison of two methods for determining Q95 reference flow in the mouth of the surface catchment basin of the Meia Ponte river, state of Goiás, Brazil
  15. Applying Intelligent Portfolio Management to the Evaluation of Stalled Construction Projects
  16. Disjoint Sum of Products by Orthogonalizing Difference-Building ⴱ
  17. The Development of Information System with Strategic Planning for Integrated System in the Indonesian Pharmaceutical Company
  18. Simulation for Design and Material Selection of a Deep Placement Fertilizer Applicator for Soybean Cultivation
  19. Modeling transportation routes of the pick-up system using location problem: a case study
  20. Pinless friction stir spot welding of aluminium alloy with copper interlayer
  21. Roof Geometry in Building Design
  22. Review Articles
  23. Silicon-Germanium Dioxide and Aluminum Indium Gallium Arsenide-Based Acoustic Optic Modulators
  24. RZ Line Coding Scheme With Direct Laser Modulation for Upgrading Optical Transmission Systems
  25. LOGI Conference 2019
  26. Autonomous vans - the planning process of transport tasks
  27. Drivers ’reaction time research in the conditions in the real traffic
  28. Design and evaluation of a new intersection model to minimize congestions using VISSIM software
  29. Mathematical approaches for improving the efficiency of railway transport
  30. An experimental analysis of the driver’s attention during train driving
  31. Risks associated with Logistics 4.0 and their minimization using Blockchain
  32. Service quality of the urban public transport companies and sustainable city logistics
  33. Charging electric cars as a way to increase the use of energy produced from RES
  34. The impact of the truck loads on the braking efficiency assessment
  35. Application of virtual and augmented reality in automotive
  36. Dispatching policy evaluation for transport of ready mixed concrete
  37. Use of mathematical models and computer software for analysis of traffic noise
  38. New developments on EDR (Event Data Recorder) for automated vehicles
  39. General Application of Multiple Criteria Decision Making Methods for Finding the Optimal Solution in City Logistics
  40. The influence of the cargo weight and its position on the braking characteristics of light commercial vehicles
  41. Modeling the Delivery Routes Carried out by Automated Guided Vehicles when Using the Specific Mathematical Optimization Method
  42. Modelling of the system “driver - automation - autonomous vehicle - road”
  43. Limitations of the effectiveness of Weigh in Motion systems
  44. Long-term urban traffic monitoring based on wireless multi-sensor network
  45. The issue of addressing the lack of parking spaces for road freight transport in cities - a case study
  46. Simulation of the Use of the Material Handling Equipment in the Operation Process
  47. The use of simulation modelling for determining the capacity of railway lines in the Czech conditions
  48. Proposals for Using the NFC Technology in Regional Passenger Transport in the Slovak Republic
  49. Optimisation of Transport Capacity of a Railway Siding Through Construction-Reconstruction Measures
  50. Proposal of Methodology to Calculate Necessary Number of Autonomous Trucks for Trolleys and Efficiency Evaluation
  51. Special Issue: Automation in Finland
  52. 5G Based Machine Remote Operation Development Utilizing Digital Twin
  53. On-line moisture content estimation of saw dust via machine vision
  54. Data analysis of a paste thickener
  55. Programming and control for skill-based robots
  56. Using Digital Twin Technology in Engineering Education – Course Concept to Explore Benefits and Barriers
  57. Intelligent methods for root cause analysis behind the center line deviation of the steel strip
  58. Engaging Building Automation Data Visualisation Using Building Information Modelling and Progressive Web Application
  59. Real-time measurement system for determining metal concentrations in water-intensive processes
  60. A tool for finding inclusion clusters in steel SEM specimens
  61. An overview of current safety requirements for autonomous machines – review of standards
  62. Expertise and Uncertainty Processing with Nonlinear Scaling and Fuzzy Systems for Automation
  63. Towards online adaptation of digital twins
  64. Special Issue: ICE-SEAM 2019
  65. Fatigue Strength Analysis of S34MnV Steel by Accelerated Staircase Test
  66. The Effect of Discharge Current and Pulse-On Time on Biocompatible Zr-based BMG Sinking-EDM
  67. Dynamic characteristic of partially debonded sandwich of ferry ro-ro’s car deck: a numerical modeling
  68. Vibration-based damage identification for ship sandwich plate using finite element method
  69. Investigation of post-weld heat treatment (T6) and welding orientation on the strength of TIG-welded AL6061
  70. The effect of nozzle hole diameter of 3D printing on porosity and tensile strength parts using polylactic acid material
  71. Investigation of Meshing Strategy on Mechanical Behaviour of Hip Stem Implant Design Using FEA
  72. The effect of multi-stage modification on the performance of Savonius water turbines under the horizontal axis condition
  73. Special Issue: Recent Advances in Civil Engineering
  74. The effects of various parameters on the strengths of adhesives layer in a lightweight floor system
  75. Analysis of reliability of compressed masonry structures
  76. Estimation of Sport Facilities by Means of Technical-Economic Indicator
  77. Integral bridge and culvert design, Designer’s experience
  78. A FEM analysis of the settlement of a tall building situated on loess subsoil
  79. Behaviour of steel sheeting connections with self-drilling screws under variable loading
  80. Resistance of plug & play N type RHS truss connections
  81. Comparison of strength and stiffness parameters of purlins with different cross-sections of profiles
  82. Bearing capacity of floating geosynthetic encased columns (GEC) determined on the basis of CPTU penetration tests
  83. The effect of the stress distribution of anchorage and stress in the textured layer on the durability of new anchorages
  84. Analysis of tender procedure phases parameters for railroad construction works
  85. Special Issue: Terotechnology 2019
  86. The Use of Statistical Functions for the Selection of Laser Texturing Parameters
  87. Properties of Laser Additive Deposited Metallic Powder of Inconel 625
  88. Numerical Simulation of Laser Welding Dissimilar Low Carbon and Austenitic Steel Joint
  89. Assessment of Mechanical and Tribological Properties of Diamond-Like Carbon Coatings on the Ti13Nb13Zr Alloy
  90. Characteristics of selected measures of stress triaxiality near the crack tip for 145Cr6 steel - 3D issues for stationary cracks
  91. Assessment of technical risk in maintenance and improvement of a manufacturing process
  92. Experimental studies on the possibility of using a pulsed laser for spot welding of thin metallic foils
  93. Angular position control system of pneumatic artificial muscles
  94. The properties of lubricated friction pairs with diamond-like carbon coatings
  95. Effect of laser beam trajectory on pocket geometry in laser micromachining
  96. Special Issue: Annual Engineering and Vocational Education Conference
  97. The Employability Skills Needed To Face the Demands of Work in the Future: Systematic Literature Reviews
  98. Enhancing Higher-Order Thinking Skills in Vocational Education through Scaffolding-Problem Based Learning
  99. Technology-Integrated Project-Based Learning for Pre-Service Teacher Education: A Systematic Literature Review
  100. A Study on Water Absorption and Mechanical Properties in Epoxy-Bamboo Laminate Composite with Varying Immersion Temperatures
  101. Enhancing Students’ Ability in Learning Process of Programming Language using Adaptive Learning Systems: A Literature Review
  102. Topical Issue on Mathematical Modelling in Applied Sciences, III
  103. An innovative learning approach for solar power forecasting using genetic algorithm and artificial neural network
  104. Hands-on Learning In STEM: Revisiting Educational Robotics as a Learning Style Precursor
Jetzt anmelden und 20% sparen
Institutioneller Zugang
Wie funktioniert Authentifizierung?
Haben Sie eine Idee, wie wir unsere Website verbessern können?
Bitte schreiben Sie uns.
© 2025 De Gruyter Brill
Heruntergeladen am 1.10.2025 von https://www.degruyterbrill.com/document/doi/10.1515/eng-2020-0019/html?lang=de
Button zum nach oben scrollen
