The properties of lubricated friction pairs with diamond-like carbon coatings

  • Joanna Kowalczyk EMAIL logo , Krystian Milewski , Monika Madej and Dariusz Ozimina
Published/Copyright: July 7, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Open Engineering
From the journal Open Engineering Volume 10 Issue 1

Abstract

The purpose of the study was to evaluate the properties of diamond-like carbon DLC coatings with ionic liquids and cutting fluid containing zinc aspartate used as lubricants. The DLC coatings (a–C:H) were deposited onto the 100Cr6 steel substrate by physical vapour deposition PVD. The surface morphology testing, cross section and chemical composition analyses of the DLC coatings were performed using the scanning electron microscope, equipped with an EDS microanalyzer. Surface geometry measurements prior to and after tribological tests were performed on a confocal microscope with interferometry. The tribological tests were carried out on an Anton Paar TRB3 tribometer under technically dry friction and lubricated conditions with an ionic liquid, trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide and 1–butyl– 3–methylimidazolium bis (trifluoromethylsulfonyl) imide and cutting fluid with zinc aspartate. The results show that DLC coatings and ionic liquids can significantly reduce resistance to motion.

Keywords: diamond-like carbon coating; ionic liquids; cutting fluid with zinc aspartate; coefficient of friction

1 Introduction

Diamond-like carbon coatings DLC have attracted a lot of interest in recent years. Today, they are used in almost every branch of industry, from electronics, mechanical equipment, microelectromechanical circuits to optics [1] and medicine [2]. Diamond-like coatings have very good physical, chemical [1] and tribological properties, in particular: low friction coefficient, high resistance to wear and high hardness [1, 3, 4, 5]. Another advantage of diamond-like coatings is that they can be applied to almost any engineering material: metals, ceramics and polymers. The first carbon coating with properties similar to diamond was applied by Schmellenmeier in 1953 [1]. In 1971, Aisenberg and Chabot obtained a diamond-like coating from a carbon ion beam [6, 7, 8, 9, 10].

DLC is an amorphous, thin film carbon based coating [11]. It is a mixture of carbon atoms with sp3 and sp2 bonds, which are characteristic for diamond and graphite respectively. The ratio of sp2/sp3 carbon atoms is one of the most important factors influencing the properties of diamond-like coatings [4]. The structural properties of all DLC coatings are similar, but their tribological and mechanical properties differ greatly, and this is influenced by the technique and parameters of the deposition process [5].

Diamond-like coatings are self–lubricating coatings, although their wear is inevitable under technically dry friction conditions. In order to obtain a longer service life, they should operate under lubrication conditions [12].

Apart from reducing wear, friction and emissions, which leads to a reduction in energy consumption, the task of lubricants is also to increase the service life of friction elements. Lubricants and their additives need to be improved to meet the growing challenges of the industry. Taking into account new regulations and legal norms related to environmental protection, modern lubricants should be non–toxic. The proposed solution is the use of ionic liquids as a new generation of lubricants. Wang et al. [13] compared ionic liquids with phosphazene oils, perfluorinated polyethers and paraffin oil with ZDTP. They performed tribological tests for steel – steel system in air and vacuum. They obtained the lowest value of the friction coefficient for the ionic liquid [14].

Ionic liquids ILs consist of large, asymmetrical organic cations and usually inorganic anions. Because of large sizes of their molecules and the nature of the chemical groups of anions, the charges of the ions of these salts are usually dispersed. As a result of the reduction in electrostatic forces between the anion and the cation in these salts, and their asymmetries, it is difficult to form a regular crystalline structure and so they can be liquid at room temperature. ILs were first used as electrolytes in batteries. Thanks to their unique properties, they were used in chemical reactions as “green” solvents. In addition, ionic liquids are miscible with organic compounds. Ionic liquids and their method of production are also considered in some cases to be more environmentally friendly in comparison to the currently used solvents and electrolytes [15]. In 2001, ionic liquids were used for the first time as lubricants [16]. Ever since then the number of published articles on the subject has been constantly growing. Ionic fluids have a number of advantages that allow them to act as lubricants. Their low volatility and flammability, as well as their thermal stability, mean that they are able to safely work at elevated temperatures and pressures, which occur at high friction. Minami et al. [17] have shown that ionic fluids have a much higher level of stability than traditional synthetic oil at 200∘C. Another significant advantage of ionic liquids is the variety of anions and cations. It is estimated that there are about one million available combinations, each of which has its own unique properties. This means that ionic liquids can be selected for a specific application. ILs can be designed to mix with a specific base oil, react with the surface, e.g. The elements contained in ionic liquids can react with a metal surface to form a protective tribofilm, can be incorporated into a cation and/or an anion, e.g. P, F or B [15].

The authors of the paper [18] discussed the results of investigations of surface properties and lubrication capacity of five selected ionic liquids: 1) tetrafluoroborate 1– benzyl–3–methylmidazolium, 2) bis (trifluoromethylsulfonyl) imide 3–methyl–1– propylpyridinium, 3) bis (trifluoromethylsulfonyl) imide 1,2–dimethyl–3–propylimidazolium, 4) bis (trifluoromethylsulfonyl) imide trihexyltetradecylphosphonium, 5) tetrafluoroborate trihexyltetradecylphosphonium which they compared to the high quality gear oil: mobilube 1SHC 75W90 and two base oils: PAO–6 and SN–650. The results showed better lubricating properties of ionic fluids compared to base oils, and properties comparable to high quality gear oil. The results of these tests confirmed the possibility of using selected ionic liquids as new lubricating substances.

In the publication [19] the scientists presented the results of investigations under conditions of lubrication with 1–butyl–3–methylimidazolium tetrafluoroborate ionic liquid and during technically dry friction. The use of ionic liquid as a lubricant improved the frictional properties of the systems and the presence of tungsten in amorphous, hydrogenated diamond-like coatings caused the improvement of tribological properties.

The authors of the publication [20] compared the ionic liquids: 1–butyl–3–methylimidazolium tetrafluoroborate with trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide. Additionally, they performed tests under technically dry friction conditions as a reference system for tribological tests with ionic liquids. They showed that the use of diamond-like coatings significantly improved tribological properties, which were additionally increased during the use of ionic liquids.

Yan et al. [21] were conducted the tribological tests on a ball-on-disc tribometer in rotation mode under a dry sliding condition and lubricated conditions with the ILs. The experiments were conducted for an Cr-GLC coatings were deposited on the 9Cr18 steel and Si wafer by PVD, and the Cr-DLC coatings were deposited on these substrates by PECVD. The counterpart ball was made of 9Cr18 steel. The results show that the friction coefficient was reduced by approximately 40% compared with that under the dry condition, and the composite system exhibited a good synergistic lubrication effect. The Cr-DLC coating showed better tribological behaviour than the Cr-GLC coating,which can be ascribed to a better physicochemical film formation under friction and the compact microstructure of the Cr-DLC coating. The synergistic effect of the composite systems was affected by the viscosity and corrosiveness of the ILs and the microstructure of the coatings.

This paper compares two ionic liquids: trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide and 1–butyl–3–methylimidazolium tetrafluoroborate and proecological cutting fluid with zinc aspartate. The biodegradable zinc aspartate was used as a cutting fluid additive. Since it is able to impart such desirable characteristics as wear and corrosion resistance, it can replace the most commonly used zinc dialkyldithiophosphates (ZDDPs), which are toxic. Zinc aspartate is also a zinc based compound but of plant origin. Zinc aspartate has been used mainly in medicine and pharmacology, not as a lubricant additive, with this being the novelty of the research. This research was undertaken in response to the current needs of the machining industry for nontoxic cutting fluids that are safe to humans and the environment as well as lubricants with better properties. As a samples were used disc and ball made of 100Cr6 steel were coated with a diamond-like coating of a–C:H. In the papers presented above no one used the ball with DLC coating.

The literature review above shows that there are large gaps in coolant research. To date, no studies have been conducted to use cutting fluid containing zinc aspartate during tribological tests where both disc and ball with deposited thin, hard coatings, which proves the innovation of the research.

2 Test materials

100Cr6 steel discs with a diameter of 42 mm and a height of 6 mm and a 100Cr6 steel ball with a diameter of 6 mm were used. Both the discs and the ball were coated with a diamond-like coating of a–C:H type by PVD physical vapour deposition at <300∘C.

The tribological tests were performed under technically dry friction conditions and with the following lubrication: trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid (IL1) and 1–butyl–3–methylimidazolium tetrafluoroborate (IL2) and a coolant with zinc aspartate (BCCS). Selected properties of ionic liquids are presented in Table 1 and those of the zinc aspartate coolant in Table 2. The coolant contains: alkanolamine borate, biodegradable oligomer based on poly(aspartic acid) (PASP), demineralised water.

Table 1

Structures and selected properties of the analysed ionic liquids

SymbolChemical name Polish/EnglishSummary formulaStructural formulaMolecular mass, g/molDensity, g/cm3
IL1bis (trifluorometylo sulfonylo) imide triheksylotetra decylofosfoniowy/trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide[CH3(CH2)5]3P[N (SO2CF3)2] (CH2)13CH7641.07
IL2tetrafluoroboran 1–butylo–3 1–butyl–metyloimidazoliowy/ 3–methylimidazolium tetrafluoroborateC8H15N2BF42261.21
Table 2

Properties of the cutting fluid containing zinc aspartate

ColourSmellpHDensity, g/cm3Water solubility
from orange to redspecific9.51.25solube

3 Research methodology

The aim of the study was to evaluate the tribological properties of diamond-like carbon coatings of a–C:H type in technically dry friction conditions and with the use of lubricating agents.

Using the Phenom XL scanning electron microscope equipped with the EDS microanalyzer, the elements included in the composition of samples coated with the a–C:H coating were observed and identified before and after the tribological tests.

The Leica DCM8 confocal microscope with interferometry mode was used to measure and analyse the geometric structure of the samples before and after friction tests.

The tribological tests were carried out on the TRB3 tribometer working in the ball–disc combination. The tests were carried out with the following parameters:

  1. frictional association: ball and discs coated with the a–C:H coating,

  2. load P = 20 N,

  3. sliding speed v = 0.1 m/s,

  4. friction path s = 1000 m,

  5. moisture content 50 ± 19%,

  6. ambient temperature T0 = 22±4∘C,

  7. lubricants: none, ionic liquids: trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide (IL1) and 1–butyl–3–methylimidazolium tetrafluoroborate (IL2) and a cooling lubricant containing zinc aspartate (BCCS).

4 Study results

A diamond-like DLC coating of a–C:H type was observed using SEM microscopy. Figure 1a shows the cross–section of a coating deposited on 100Cr6 steel with a thickness measurement of 1.03 μm. Linear analysis of the distribution of elements in the EDS coating (Figure 1b) showed that the coating consists of carbon, and the interlayer between the substrate and the coating is tungsten and chromium. These elements are used to ensure good adhesion of the coating to the substrate.

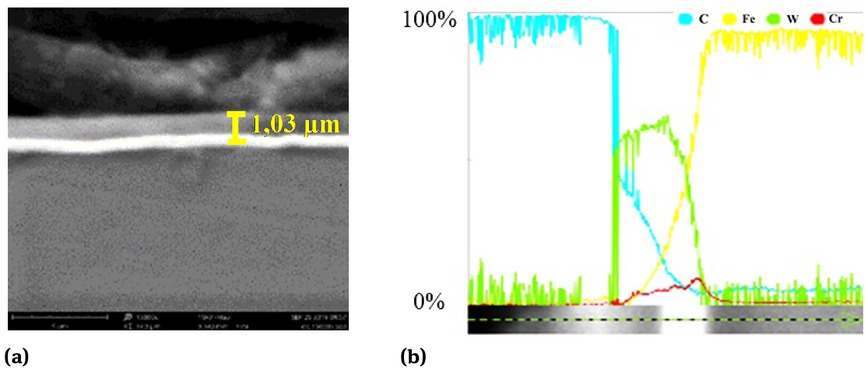

Figure 1 SEM images: a) microstructure of the a–C:H coating in the cross–section together with the thickness measurement, b) view of the cross–section of the a–C:H coating and linear distribution of the elements making up the coating.
Figure 1

SEM images: a) microstructure of the a–C:H coating in the cross–section together with the thickness measurement, b) view of the cross–section of the a–C:H coating and linear distribution of the elements making up the coating.

Figure 2 shows a map of the distribution of individual elements together with the EDS characteristic radiation spectrum and the mass content of elements.

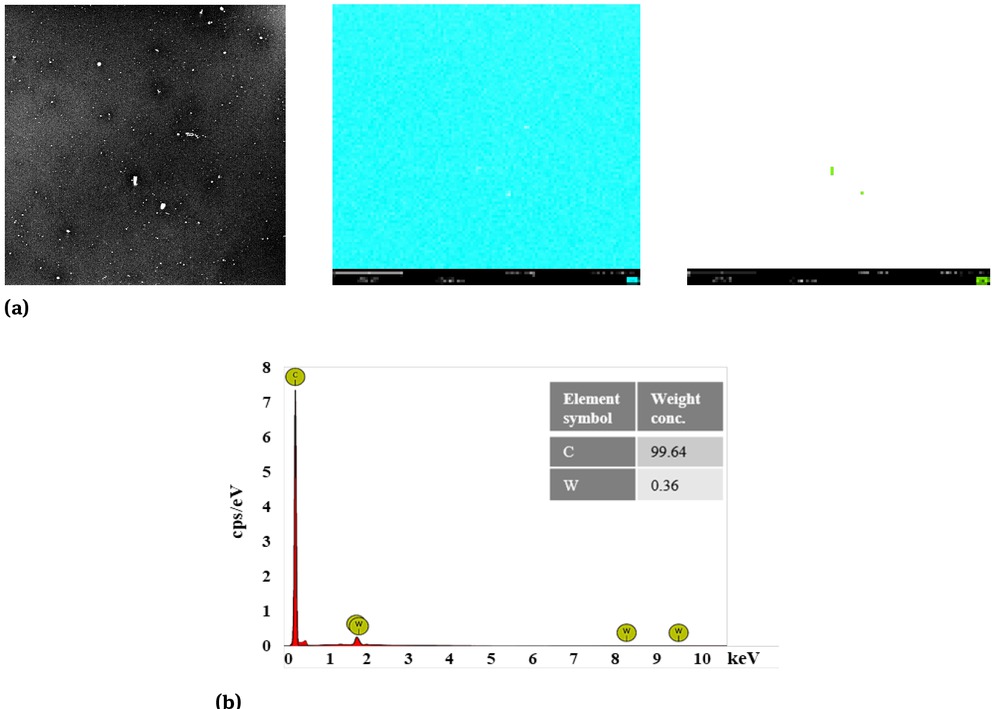

Figure 2 SEM images: a) view of the coating with a map of element concentration distribution, b) EDS spectrum with mass content of elements.
Figure 2

SEM images: a) view of the coating with a map of element concentration distribution, b) EDS spectrum with mass content of elements.

The distribution map of elemental concentration (Figure 2a) and EDS spectrum (Figure 2b) shows that the coating consists mainly of carbon, and in some places tungsten from the interlayer has been additionally observed.

Figure 2 shows a map of the distribution of individual elements together with the EDS characteristic radiation spectrum and the mass content of elements.

The distribution map of elemental concentration (Figure 2a) and EDS spectrum (Figure 2b) shows that the coating consists mainly of carbon, and in some places tungsten from the interlayer has been additionally observed.

Before the tribological tests, the geometric structure of the steel surface of the discs and ball with the a–C:H coating was measured (Figure 3 and 4). An isometric image is shown in Figure 3a and a primary profile in Figure 3b, which suggest that the disc has a homogeneous surface with small indentations of approximately 40 nm that may have formed during sample preparation.

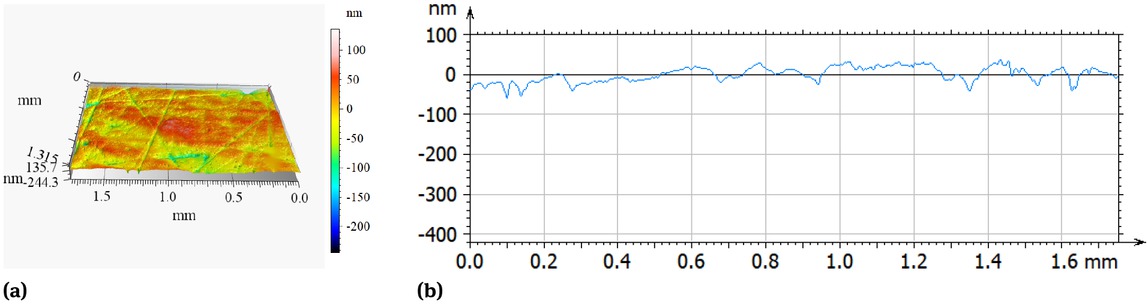

Figure 3 Geometric structure of 100Cr6 steel disk with the a–C:H coating: a) isometic image, b) primary profile.
Figure 3

Geometric structure of 100Cr6 steel disk with the a–C:H coating: a) isometic image, b) primary profile.

Figure 4 Geometric structure of 100Cr6 steel ball with the a–C:H coating: a) isometic image, b) primary profile.
Figure 4

Geometric structure of 100Cr6 steel ball with the a–C:H coating: a) isometic image, b) primary profile.

Figure 5 shows the results of the tribological tests: mean coefficient of friction (Figure 5a) and intensity of linear wear (Figure 5b).

Figure 5 Tribological characteristics depending on the lubricant: a) coefficient of friction, b) linear wear.
Figure 5

Tribological characteristics depending on the lubricant: a) coefficient of friction, b) linear wear.

The lowest value of the coefficient of friction and linear wear was recorded after friction with the lubrication utilizing the trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid (IL1). On the other hand, the highest value of the mean coefficient of friction and linear wear was observed after friction with lubrication with a coolant containing zinc aspartate (BCCS). The ionic liquid (IL1) used for the tests decreased the coefficient of friction and linear wear in comparison with technically dry friction (TDF).

After the tribological tests, the samples and counter–samples were subjected to observations on a confocal microscope with interferometry mode. The geometric structure of the surface of the discs (Figure 6) and balls (Figure 7) in the abrasion areas was analysed and the maximum depth and area of the abrasion surface were determined (Table 3).

Figure 6 Isometric image and primary profile disks after tribological tests in the following conditions: a) TDS, b) IL1 lubrication, c) IL2 lubrication, d) BCCS lubrication.
Figure 6

Isometric image and primary profile disks after tribological tests in the following conditions: a) TDS, b) IL1 lubrication, c) IL2 lubrication, d) BCCS lubrication.

Figure 7 Isometric image and primary profile balls after tribological tests in the following conditions: a) TDS, b) IL1 lubrication, c) IL2 lubrication, d) BCCS lubrication.
Figure 7

Isometric image and primary profile balls after tribological tests in the following conditions: a) TDS, b) IL1 lubrication, c) IL2 lubrication, d) BCCS lubrication.

Table 3

Maximum depth and surface area of the disk and ball.

ParametersTDFIL1 IL2BCCS
diskballdiskballdiskballdiskball
Maximal depth, μm0.371.640.030.0010.200.080.100.07
Surface area μm217.7913.083.810.00112.050.2417.965.85

Comparing the disc abrasion profiles, it was observed that the deepest trace and the depth of abrasion was observed after technically dry friction (Figure 6a). However, the shallowest and the smallest trace, occupying the smallest abrasion area, was obtained after friction in the conditions of lubrication utilizing the trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid (IL1) (Figure 6c).

The highest depth and abrasion area of the ball was recorded after technically dry friction (Figure 7a). The diameter of the abrasion on the ball was about 1 mm. On the other hand, the smallest depth, area and abrasion diameter of about 0.3 mm were obtained for the ball after friction utilizing lubrication with trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid (IL1) (Figure 7c).

The geometrical structure of the surface has a great impact on the operational properties of machine and device components in order to find new durable materials [22, 23]. The quantitative assessment of the geometric structure of the surface is made on the basis of conventionally accepted parameters, which are determined for the primary profile and isolated from this profile by filtration of roughness and corrugation profiles. For example, electric filters are most often used to separate the roughness profile and the wavy profile. Surface topography is like a graphic or network environment [23, 24, 25].

Table 4 presents the parameters of the geometric structure of the surface of discs and balls before and after tribological tests. After analysis of the parameters of the geometric structure of the disc surface (Table 4) before and after tribological tests it was found that the lowest values of the parameters Sa – arithmetic mean of the surface height and Sq – mean square height of the surface were obtained after tribological tests in the conditions of lubrication utilizing the trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid (IL1), which prove that the smooth surface of the disc was obtained at the abrasion point. The lowest values of the parameters Sp – maximum height of the surface peak and Sz – maximum height of the surface were observed after the studies with ionic liquid lubrication with 1–butyl–3–methylimidazolium tetrafluoroborate (IL2). The Ssk parameters – coefficient of surface inclination (asymmetry) had negative values in all cases, which characterizes surfaces with plateau elevations. The lowest values of these parameters were obtained for ionic liquids. Whereas the Sku parameter – the surface slope coefficient – kurtosis is a measure of the smoothness of the distribution curve of ordinates, also called the coefficient of concentration. For normal (Gaussian) ordinates distribution the Sku = 3 [24, 25]. After friction under lubrication conditions (IL2) a normal distribution was obtained, and for the disc before tests and after friction with lubrication (IL1) a distribution of ordinates close to normal was obtained. Different values were obtained for technically dry friction (TDF) – Sku = 12.3 and coolant lubrication with zinc aspartate (BCCS) – Sku = 9. Positive values indicate steep unevenness and defects on these surfaces.

Table 4

Roughness parameters discs before and after tribological tests.

Roughness parameters of surface
TestSample/counter–sampleSaSqSpSvSzSskSku
nmnmnmnmnm––
Disk21.828.189.6147237−0.63.4
Before testsBall982.91 1591 9732 8274 801−181.32 090
Disk45.576.697.1372469−3.012.3
TDFBall3 8474 5279 1099 06518 170−18.571 993
Disk13.516.783.9156240−0.23.5
IL1Ball1 0221 2181 8373 2285 065−523.82 296
Disk17.521.566.1163229−0.23.0
IL2Ball3 0483 5857 2607 00914 27053.041 973
Disk27.136.5122263385−1.69.0
BCCSBall885.51 0422 0892 6084 49721.531 992

After comparison of the obtained parameters of the geometric structure of the ball surface and after tribological tests it was found that the lowest values of the parameters Sa – arithmetic mean of the surface height, Sq – mean square height of the surface, Sv – maximum depth of the surface cavities and Sz – maximum height of the surface were obtained after tribological tests under friction conditions with lubrication with a coolant containing zinc aspartate (BCCS), which prove that the smooth ball surface was obtained at the abrasion point. The lowest values of the parameters Sp – maximum height of the surface peak – were observed after tests under conditions of lubrication utilizing the trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid (IL1). The parameters Ssk – the coefficient of surface inclination (asymmetry) after technically dry friction and under conditions of lubrication utilizing the trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide (IL1) had a negative value characterizing surfaces with plateau elevations. On the other hand, after friction under 1–butyl–3–methylimidazolium tetrafluoroborate ionic liquid (IL2) and coolant (BCCS) lubrication conditions, the values of the Ssk parameter were positive, which proves that a smooth surface without deep scratches was obtained. The Sku parameter – the surface inclination coefficient – kurtosis is a measure of the slenderness of the distribution curve. The lowest value of this parameter was obtained for the ball after friction under coolant (BCCS) lubrication conditions. Positive kurtosis values indicate steep unevenness and the occurrence of defects on these surfaces.

Figure 8 shows the SEM images of the discs in the abrasion areas after tribological tests. After technically dry friction at the selected point of wear trace on the ball, the following elements included in the diamond-like coating were found: carbon and tungsten, as well as iron (on the ball), which comes from the substrate. After friction with lubrication utilising the tested lubricating substances, in addition to the elements included in the DLC coating, the following additional elements from the lubricating agents used in the tests were observed:

  • fluorine and sulphur from the trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid (IL1) both on the disc and on the ball,

  • fluorine from the 1–butyl–3–methylimidazolium tetrafluoroborate ionic liquid (IL2) – on the disc and the ball,

  • zinc from the coolant containing zinc aspartate (BCCS) – on the disc and the ball.

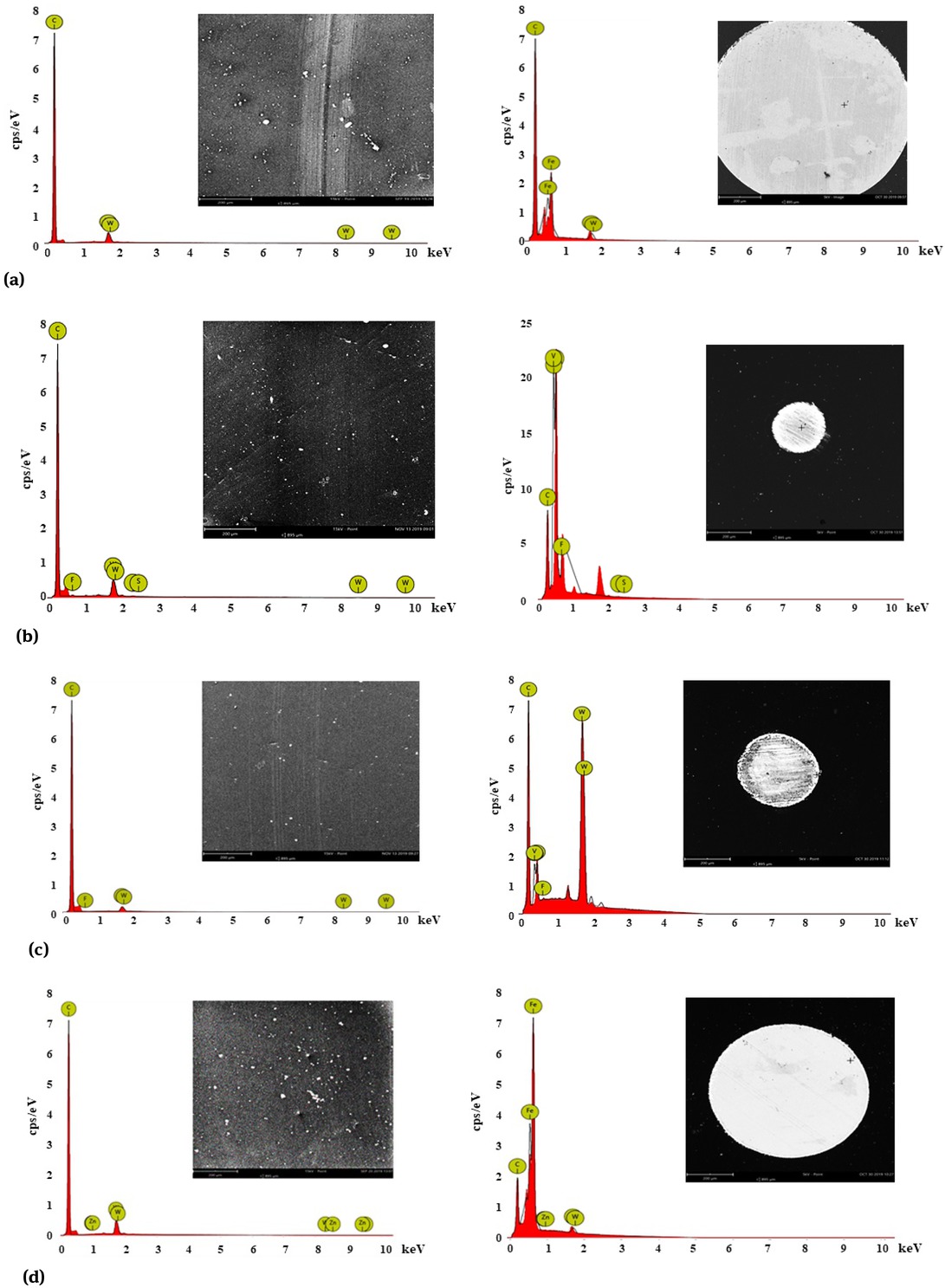

Figure 8 View of the wear trace of the disc and ball and point analysis of the elements after frictional cooperation in the following conditions: a) TDF, b) IL1 lubrication, c) IL2 lubrication, d) BCCS lubrication.
Figure 8

View of the wear trace of the disc and ball and point analysis of the elements after frictional cooperation in the following conditions: a) TDF, b) IL1 lubrication, c) IL2 lubrication, d) BCCS lubrication.

This may indicate the formation of wear–resistant top layers also on the surface of the ball.

During friction, surface layers are formed as a result of physical and chemical process called tribochemicals reactions. They occur mainly between the enriching additives contained in lubricants and friction co-operating surfaces. The surface layer generated in this way reduces friction and extends the service life of the cooperating friction pair elements.

5 Conclusions

The research carried out in this paper is consistent with contemporary issues related to the search for more and more durable materials and modern lubricants.

The results of surface topography tests showed a very good quality of a–C:H coatings resulting from a well–prepared 100Cr6 steel substrate.

Surface morphology and chemical composition of a–C:H coatings confirmed the presence of carbon in their composition, as well as the presence of an interlayer consisting of tungsten and chromium.

Diamond-like coatings of a–C:H type under conditions of lubrication utilizing the trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid affected not only the decrease of the friction coefficient and linear wear, but also lower wear of the analysed disc and ball surface. As a results of forming surface layers containing additives from lubricants.

The performance of the trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid when in contact with the a-C:H coating was better than that of the 1–butyl–3–methylimidazolium tetrafluoroborate ionic liquid and the coolant containing zinc aspartate.

From the isometric views, primary profiles and roughness parameters obtained for the discs after the tribological tests, it is evident that the use of the trihexyltetradecylphosphonium bis (trifluoromethylsulfonyl) imide ionic liquid resulted in the shallowest, the smallest wear track and the lowest values of the amplitude parameters.

After friction tests in the conditions of lubrication utilizing ionic liquids and non–toxic coolant on the disc and the ball, elements included in the lubricating greases used in the tests were found in selected points. This may indicate the formation of wear–resistant top layers and requires further research. The direction of further research is to perform tests with other lubricants.

References

[1] Zahid R, Masjuki BHH, Varmana M, Mufti RA, Kalam MA, Zulkiflia NWBM, Gulzar M. A review on effects of lubricant formulations on tribological performance and boundary lubrication mechanisms of non–doped DLC/DLC contacts. Crit rev solid state. 2017;42(4):267–294.10.1080/10408436.2016.1186599Search in Google Scholar

[2] Zhao YY, Zhao B, Su X, Zhang S, Wang S, Keatch R, Zhao Q. Reduction of bacterial adhesion on titanium–doped diamond–like carbon coatings. Biofouling. 2018;34(1):26–33.10.1080/08927014.2017.1403592Search in Google Scholar

[3] Ghadai RK, Kalita K, Mondal SCh, Swain BP. PECVD process parameter optimization: towards increased hardness of diamond–like carbon thin films. Mater manuf process. 2018;33(16):1905–13.10.1080/10426914.2018.1512114Search in Google Scholar

[4] Chang SH, Lai YCh, Huang KT, Liu ChM. Characteristics of DLC/oxynitriding duplex–treated V8 tool steel by DC–pulsed PECVD. Surf. Eng. 2019:1–8.10.1080/02670844.2019.1635769Search in Google Scholar

[5] Ghadai RK, Kalita K, Mondal SCh, Swain BP. Genetically optimized diamond–like carbon thin film coatings. Mater Manuf Process. 2019;34(13):1476–1487.10.1080/10426914.2019.1594273Search in Google Scholar

[6] Aisenberg S, Chabott R. Ion-Beam Deposition of Thin Films of Diamondlike Carbon. J Appl Phys. 1971;42:2953.10.1063/1.1660654Search in Google Scholar

[7] Żelazko J. Wpływ parametrów technologicznych na właściwości epitaksjalnych warstw węglowych osadzanych z fazy gazowej na podłożach krzemowych. Materiały Elektroniczne. 2004;32:1–4.Search in Google Scholar

[8] Mashayekhi F, Shafiekhani A, Sebt SA, Darabi E. The effect of initial pressure on growth of FeNPs in amorphous carbon films. Int. Nano Lett. 2018;13(8):25–30.10.1007/s40089-018-0228-4Search in Google Scholar

[9] Milewski K, Kudlinski J, Madej M, Ozimina D. The inter–action between diamond like carbon (DLC) coatings and ionic liquids under boundary lubrication conditions. Metalurgija. 2017;56:55– 8.Search in Google Scholar

[10] Wada N, Gaczi PJ, Solin SA. Diamond–Like 3–Fold Coordinated Amorphous Carbon. J Non–Cryst Solids. 1980;35–36:543–8.10.1016/0022-3093(80)90651-1Search in Google Scholar

[11] Mishra T, Nordin B, Svanbäck D, Tervakangas S, Prakash B. The effects of contact configuration and coating morphology on the tribological behavior of tetrahedral amorphous diamond–like carbon (ta–CDLC) coatings under boundary lubrication. Tribology – Materials, Surfaces & Interfaces. 2019;13(2):120–9.10.1080/17515831.2019.1596627Search in Google Scholar

[12] Zeng Q. Superlow friction and diffusion behaviors of a steel– related system in the presence of nano lubricant additivein PFPE oil. J Adhes Sci Technol. 2019;33(9):1001–18.10.1080/01694243.2019.1579433Search in Google Scholar

[13] Wang H, Lu Q, Ye Ch, Liu W, Cui Z. Friction and behaviors of ionic liquid of alkylimidazoliumhexafluorophosphates as lubricanys for steel/steel contact. Wear. 2004; 256:44–8.10.1016/S0043-1648(03)00255-2Search in Google Scholar

[14] Ozimina D. Eksploatacja systemów tribologicznych. Tom I. Znaczenie tribologii w eksploatacji obiektów technicznych M48. Kielce:Wyd PŚk; 2013.Search in Google Scholar

[15] Somers AE, Howlett PC, Mac Farlane DR, Forsyth M. A Review of Ionic Liquid Lubricants. Lubricants. 2013;1:3–21.10.3390/lubricants1010003Search in Google Scholar

[16] Ye C, Liu W, Chen Y, Yu L. Room–Temperature ionic liquids: A novel versatile lubricant. Chemical Communications. 2001;21:2244–5.10.1039/b106935gSearch in Google Scholar PubMed

[17] Minami I, Kamimuram H, Mori S. Thermo–Oxidative stability of ionic liquids as lubricating fluids. J Synthetic Lubric. 2007;24(3):135–47.10.1002/jsl.36Search in Google Scholar

[18] Kałdoński TJ, Stańczyk M, Gryglewicz Ł, Kałdoński T. Initial studies on lubricity and surface properties of selected ionic liquids. Journal of KONES. 2011;18(1):213–26.Search in Google Scholar

[19] Madej M, Marczewska–Boczkowska K, Ozimina D. Wpływ wolframu na odporność powłok diamentopodobnych stosowanych w przemyśle chemicznym. Przem. Chem. 2014;93(4):500–5.Search in Google Scholar

[20] Madej M, Ozimina D. Właściwości tribologiczne powłok diamentopodobnych smarowanych cieczami jonowymi. Tribologia. 2014;4:73–84.Search in Google Scholar

[21] Yan M, Wanga X, Zhanga S, Zhang S, Sui X, Li W, Hao J, Liu W. Friction and wear properties of GLC and DLC coatings under ionic liquid lubrication. Tribology International. 2020;143:1–11.10.1016/j.triboint.2019.106067Search in Google Scholar

[22] Li S. The Art of Clustering Bandits. PhD Dissertation. Insubria: University of Insubria;2016.Search in Google Scholar

[23] Zalewski K, Matuszak J, Zalewski R. Metrologia warstwy wierzchniej. Lublin:Wydawnictwo Politechniki Lubelskie; 2018.Search in Google Scholar

[24] Korda N, Szörényi B, Li S. Distributed Clustering of Linear Bandits in Peer to Peer Networks. ICML’16: Proceedings of the 33rd International Conference on International Conference on Machine Learning. 2016;48:1301–9.Search in Google Scholar

[25] Li S, Karatzoglou A, Gentile C. Collaborative Filtering Bandits. SIGIR ’16: Proceedings of the 39th International ACM SIGIR conference on Research and Development in Information Retrieval. 2016;Jul:539–48.10.1145/2911451.2911548Search in Google Scholar
