Crystal structure of 1,2-bis(4,5-dinitro-1H-imidazol-1-yl)ethane, C8H6N8O8

  • Wang Yong ORCID logo , Wu Bingheng , Yuan Jun ORCID logo EMAIL logo , Cao Duanlin , Wang Jianlong and Chen Lizhen
Published/Copyright: May 6, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 4

Abstract

C8H6N8O8, orthorhombic, P212121 (no. 19), a = 6.7563(9) Å, b = 7.2512(12) Å, c = 25.884(3) Å, V = 1268.1(3) Å3, β = 90°, Z = 4, R gt (F) = 0.0473, wR ref (F 2) = 0.1170, T = 170 K.

CCDC no.: 2168525

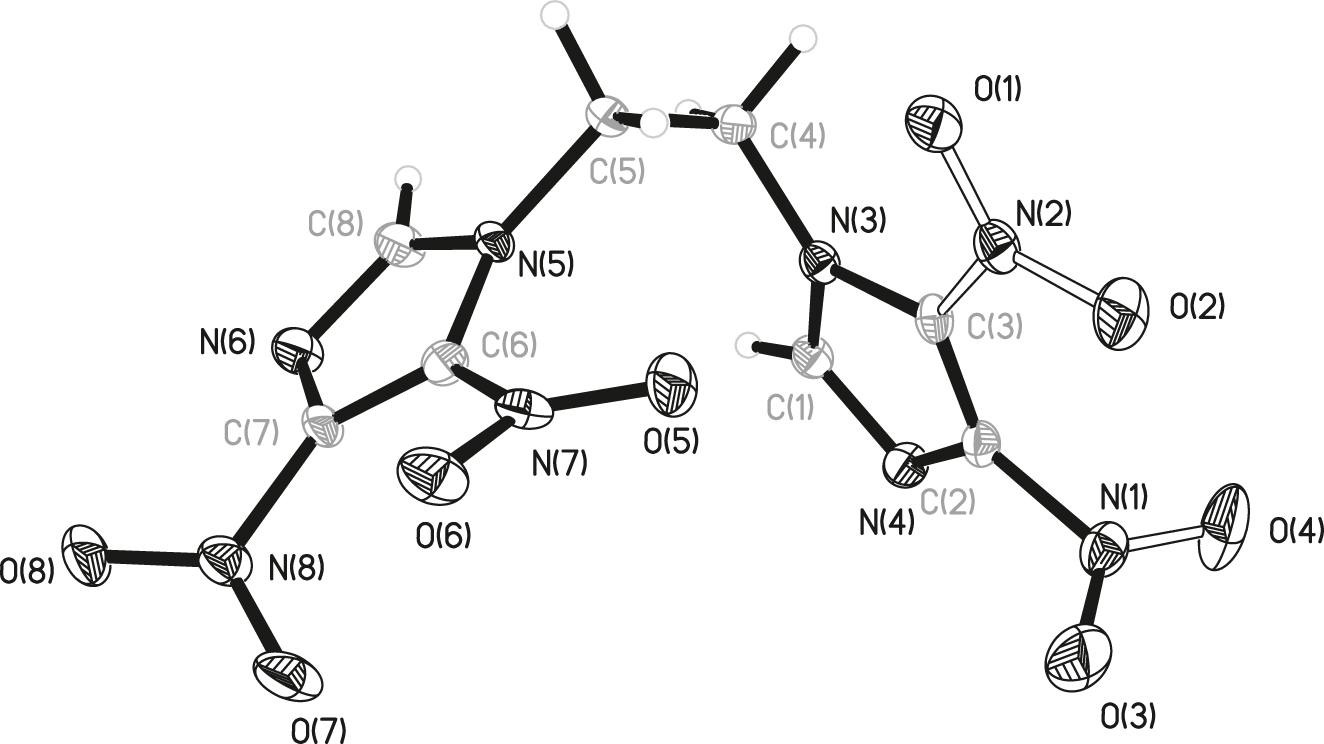

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.15 × 0.07 × 0.04 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.16 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 26.4°, 99%
N(hkl)measured, N(hkl)unique, R int: 9675, 2589, 0.088
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2044
N(param)refined: 218
Programs: Bruker [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
O1 0.2743 (5) 0.2916 (5) 0.48509 (12) 0.0368 (8)
O2 0.4950 (5) 0.4987 (5) 0.50361 (12) 0.0446 (9)
O3 0.7068 (5) 0.7629 (7) 0.42673 (18) 0.0722 (14)
O4 0.5122 (6) 0.9274 (6) 0.47318 (18) 0.0684 (13)
O5 0.4961 (5) 0.2121 (5) 0.38525 (12) 0.0406 (8)
O6 0.6119 (4) 0.0237 (5) 0.32811 (13) 0.0413 (8)
O7 0.6130 (4) 0.1753 (6) 0.23068 (12) 0.0521 (10)
O8 0.3949 (5) 0.0355 (5) 0.18278 (13) 0.0471 (9)
N1 0.5446 (5) 0.8081 (6) 0.44187 (16) 0.0357 (9)
N2 0.3581 (5) 0.4366 (5) 0.47752 (13) 0.0294 (8)
N3 0.1336 (5) 0.5227 (4) 0.40404 (12) 0.0234 (7)
N4 0.2710 (5) 0.7910 (5) 0.38133 (14) 0.0293 (8)
N5 0.1296 (5) 0.1981 (5) 0.33184 (12) 0.0231 (7)
N6 0.1064 (5) 0.1908 (6) 0.24530 (13) 0.0346 (9)
N7 0.4866 (5) 0.1300 (5) 0.34495 (13) 0.0278 (8)
N8 0.4451 (5) 0.1192 (6) 0.22178 (14) 0.0351 (9)
C1 0.1274 (6) 0.6692 (6) 0.37223 (15) 0.0262 (9)
H1 0.030609 0.684333 0.345953 0.031*
C2 0.3722 (6) 0.7141 (6) 0.42056 (15) 0.0252 (9)
C3 0.2963 (6) 0.5520 (6) 0.43599 (15) 0.0238 (9)
C4 −0.0153 (6) 0.3762 (6) 0.40475 (16) 0.0272 (9)
H4A −0.128576 0.414793 0.383035 0.033*
H4B −0.064496 0.361850 0.440557 0.033*
C5 0.0573 (6) 0.1913 (6) 0.38589 (16) 0.0260 (9)
H5A 0.165845 0.148523 0.408616 0.031*
H5B −0.051883 0.100686 0.388304 0.031*
C6 0.3145 (5) 0.1582 (6) 0.31236 (16) 0.0257 (9)
C7 0.2948 (6) 0.1542 (6) 0.26058 (15) 0.0271 (10)
C8 0.0118 (6) 0.2155 (6) 0.28979 (16) 0.0322 (10)
H8 −0.125494 0.242814 0.291899 0.039*

Source of material

All of reagents were purchased with analysis grade. In a representative experiments, 5 ml HNO3 and 15 ml H2SO4 were mixed, then 7.9 g (50 mmol) 1,2-bis(1H-imidazol-1-yl)ethane was added at 293 K. The target compound was obtained by reaction at 353 K for 10 h. The crystal of the title compound was obtained by slow evaporation at 293 K.

Experimental details

A suitable crystal was selected and on a ‘Bruker APEX-II CCD’ diffractometer. The crystal was kept at 170 K during data collection. Using Olex2 [2], the structure was solved with the SHELXT [3] structure solution program and refined with the ShelXL [4] refinement package. All H atoms were positioned geometrically and treated as riding, with C–H bond 0.95 Å, and U iso(H) = 1.2U eq(C).

Comment

Imidazole has arised great attention of chemists. A series of compounds such as nitroimidazole, bisimidazole, benzimidazole have been synthesized [5], [6], [7], [8]. The title compound is been reported for the first time in this paper (cf. the figure).

The asymmetric unit of the title structure contains an ethan-1,2-diyl-bridge connecting two dinitroimidazolyl moieties forming the title molecule. Both dinitroimidazole rings are almost flat, and the dihedral angle of the two imidazole rings is 38.37°.

Corresponding author: Yuan Jun, Shanxi College of Technology, Shuozhou 036000, Shanxi Province, P. R. China, E-mail:

Funding source: Center of Testing and Analysis

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: We thank the Center of Testing and Analysis, Shanghai Institute, for support.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. BRUKER. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar PubMed

5. Jin, S., Chen, W., Qiu, H. Syntheses and structural characterization of a one-dimensional chain, two-dimensional noninterpenetrated grid, and three-dimensional polycatenane coordination polymers assembled from flexible bidentate imidazolyl ligands. Cryst. Growth Des. 2007, 7, 2071–2079; https://doi.org/10.1021/cg060666q.Search in Google Scholar

6. Min, P., Tao, W., Jin, C. M. Assembly of two coordination polymers [Cu(BIM)(suc)]n and [Cd(BIM)(ox)(H2O)]n constructed from bis(imidazol-1-yl)methane. J. Coord. Chem. 2011, 64, 600–609; https://doi.org/10.1080/00958972.2011.552109.Search in Google Scholar

7. Wang, Y., Yuan, J., Cao, D. L., Wang, J. L., Chen, L. Z. The crystal structure of bis(4-nitroimidazole-1–1yl)methane. C7H6N6O4. Z. Kristallogr. N. Cryst. Struct. 2020, 1, 217–218; https://doi.org/10.1515/ncrs-2019-0582.Search in Google Scholar

8. Wang, Y., Yuan, J., Cao, D. L., Wang, J. L., Chen, L. Z. The crystal structure of bis(imidazole-1-yl)methane monohydrate, C7H10N4O. Z. Kristallogr. N. Cryst. Struct. 2020, 1, 215–216; https://doi.org/10.1515/ncrs-2019-0581.Search in Google Scholar
