The crystal structure of 17-(bromoethynyl)-17-hydroxy-10, 13-dimethyl- 1,2,6,7,8,9,10,11,12,13,14,15,16,17-tetradecahydro-3H-cyclopenta[a]phenanthren-3-one, C21H27BrO2

  • Xiao-Liang Ji , Feng Xie und Yi-Biao Li ORCID logo EMAIL logo
Veröffentlicht/Copyright: 20. Mai 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 4

Abstract

C21H27BrO2, monoclinic, P21 (no. 4), a = 6.6220(14) Å, b = 11.7640(2) Å, c = 11.8485(2) Å, β = 95.0757(19)° V = 919.39(3) Å3, Z = 2, R gt (F) = 0.0264, wR ref (F2) = 0.0695, T = 150 K, Flack-parameter = 0.007(13).

CCDC no.: 2059794

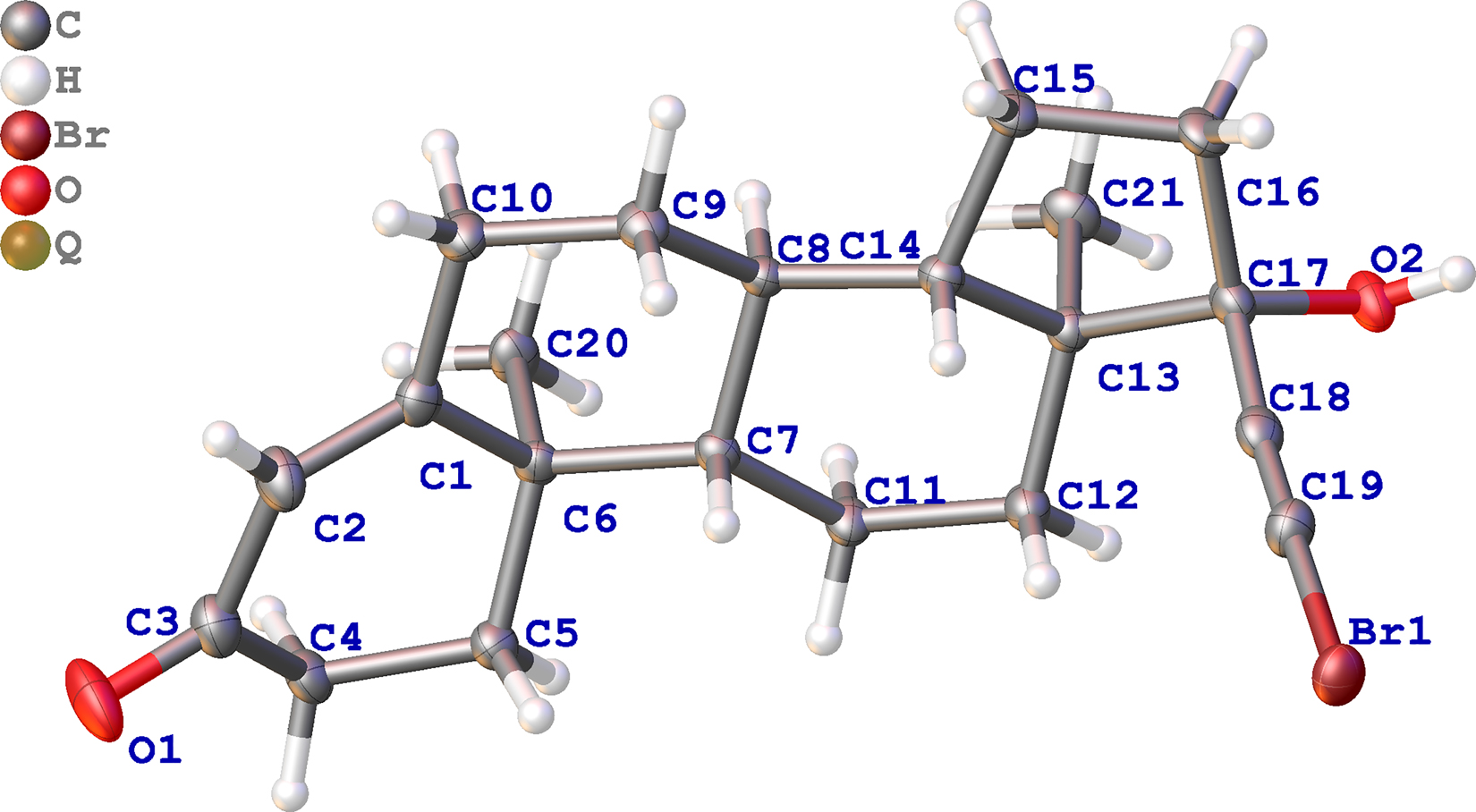

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.13 × 0.12 × 0.11 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 3.11 mm−1
Diffractometer, scan mode: SuperNova, ω
θmax, completeness: 73.8°, >99%
N(hkl)measured, N(hkl)unique, Rint: 5032, 3136, 0.025
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 3117
N(param)refined: 223
Programs: CrysAlisPRO [1], SHELX [2, 3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Br1 0.57735 (4) 0.73015 (4) 0.02963 (2) 0.02312 (11)
O1 0.8707 (5) 0.4905 (3) 0.8885 (3) 0.0375 (8)
O2 0.1317 (4) 0.3783 (2) 0.0460 (2) 0.0226 (5)
H2 0.080 (10) 0.407 (7) −0.013 (6) 0.08 (2)*
C1 0.4423 (5) 0.4721 (3) 0.6846 (3) 0.0182 (6)
C2 0.5656 (6) 0.5079 (3) 0.7731 (3) 0.0239 (7)
H2A 0.527705 0.571802 0.812338 0.029*
C3 0.7573 (6) 0.4518 (3) 0.8114 (3) 0.0244 (7)
C4 0.8025 (5) 0.3438 (3) 0.7510 (3) 0.0205 (6)
H4A 0.737225 0.280412 0.785528 0.025*
H4B 0.947568 0.330182 0.758283 0.025*
C5 0.7265 (5) 0.3516 (3) 0.6258 (3) 0.0186 (6)
H5A 0.754962 0.280463 0.589050 0.022*
H5B 0.800738 0.411148 0.590759 0.022*
C6 0.4980 (5) 0.3767 (3) 0.6057 (3) 0.0155 (6)
C7 0.4464 (4) 0.4166 (3) 0.4810 (2) 0.0145 (6)
H7 0.530774 0.483716 0.471017 0.017*
C8 0.2240 (4) 0.4567 (3) 0.4577 (2) 0.0147 (6)
H8 0.133400 0.393500 0.472173 0.018*
C9 0.1848 (5) 0.5550 (3) 0.5373 (3) 0.0190 (6)
H9A 0.266286 0.619795 0.518928 0.023*
H9B 0.043319 0.577037 0.525444 0.023*
C10 0.2346 (5) 0.5238 (3) 0.6614 (3) 0.0220 (7)
H10A 0.226384 0.591657 0.707314 0.026*
H10B 0.134116 0.470364 0.683863 0.026*
C11 0.5056 (5) 0.3284 (3) 0.3925 (3) 0.0173 (6)
H11A 0.650469 0.314959 0.403711 0.021*
H11B 0.437713 0.257121 0.405577 0.021*
C12 0.4510 (5) 0.3653 (3) 0.2695 (3) 0.0182 (6)
H12A 0.533830 0.429992 0.252332 0.022*
H12B 0.480128 0.303731 0.219012 0.022*
C13 0.2272 (5) 0.3974 (2) 0.2495 (2) 0.0148 (6)
C14 0.1858 (4) 0.4924 (3) 0.3343 (2) 0.0151 (6)
H14 0.281437 0.553885 0.322401 0.018*
C15 −0.0264 (5) 0.5366 (3) 0.2923 (3) 0.0204 (6)
H15A −0.040006 0.616465 0.310348 0.025*
H15B −0.130904 0.494089 0.326430 0.025*
C16 −0.0415 (5) 0.5180 (3) 0.1622 (3) 0.0217 (7)
H16A −0.056540 0.590186 0.122805 0.026*
H16B −0.157113 0.470440 0.138385 0.026*
C17 0.1595 (5) 0.4586 (3) 0.1360 (3) 0.0186 (7)
C18 0.3076 (5) 0.5458 (3) 0.1060 (3) 0.0198 (6)
C19 0.4139 (5) 0.6188 (3) 0.0764 (3) 0.0217 (7)
C20 0.3767 (5) 0.2695 (3) 0.6323 (3) 0.0198 (6)
H20A 0.405844 0.249520 0.710645 0.030*
H20B 0.414356 0.207779 0.585503 0.030*
H20C 0.234277 0.284421 0.617410 0.030*
C21 0.0920 (5) 0.2920 (3) 0.2597 (3) 0.0226 (7)
H21A −0.047996 0.313918 0.248361 0.034*
H21B 0.118667 0.259260 0.333754 0.034*
H21C 0.121021 0.237146 0.203402 0.034*

Source of material

A mixture of ethisterone (2.0 mmol) was dissolved in acetone (15 mL), and then NBS (2.4 mmol), and silver nitrate (0.12 mmol) was added. The reaction mixture was reacted at room temperature and stirred for 8 h. Afterwards, the mixture was filtered and concentrated under vacuum. The residue was purified by flash chromatography (petroleum ether:acetate = 5:1, v/v) on silica gel to afford the title compound as a white solid.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to rode on their parent atoms.

Comment

Bromoalkynols is a high value synthon which is able to provide multiple reaction by activation of bromine atoms at the ethinyl moiety [5, 6]. Therefore, chemists have long been committed to the efficient conversion of bromoalkynols [7, 8]. However, the crystal structure of the title compound has not been reported before. To the best of our knowledge, only a small amount examples of organic molecules containing bromoalkynols or fused ring alkynol derivatives have been reported so far [9], [10], [11].

There is one target molecule in the asymmetric unit of the title compound (see the figure). The so-called Flack parameter (Table 1) verifies the chirality at six carbon atoms (See the figure; C6: R; C7: S; C8: R; C13: S; C14: S; C17: S). Bond lengths and bond angles are all in the expected ranges [12].

Corresponding author: Yi-Biao Li, School of Biotechnology and Health Sciences, Wuyi University, Jiangmen 529020, China, E-mail:

Funding source: Department of Education of Guangdong Province

Award Identifier / Grant number: 2019KZDXM052

Award Identifier / Grant number: 2021KTSCX140

Funding source: Jiangmen City Science and Technology Basic Research

Award Identifier / Grant number: 2020JC01001

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Foundation of the Department of Education of Guangdong Province (2019KZDXM052 and 2021KTSCX140) and Jiangmen City Science and Technology Basic Research Project (2020JC01001) for financial support.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Agilent Technologies: CrysAlispro; Agilent Technologies, Santa Clara, CA, 2017.Suche in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8. https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

5. Li, Y. B., Liu, X. H., Liu, B. F., Chen, Z. W., Zhou, P., Jiang, H. F. Palladium-catalyzed bromoalkynylation of C–C double bonds: ring-structure- dependent synthesis of 7-alkynyl norbornanes and cyclobutenyl halides. Angew. Chem. Int. Ed. 2011, 50, 6341–6345. https://doi.org/10.1002/anie.201100002.Suche in Google Scholar PubMed

6. Chen, X. Y., Kong, W., Cai, H. T., Kong, L. C., Zhu, G. G. Palladium-catalyzed highly regio- and stereoselective synthesis of (1E)-or (1Z)-1,2- dihalo-1,4-dienes via haloallylation of alkynyl halides. Chem. Commun. 2011, 47, 2164–2166. https://doi.org/10.1039/c0cc04879h.Suche in Google Scholar PubMed

7. Jiang, G. B., Li, J. X., Zhu, C. L., Wu, W. Q., Jiang, H. F. Palladium- catalyzed sequential nucleophilic addition/oxidative annulation of bromoalkynes with benzoic acids to construct functionalized isocoumarins. Org. Lett. 2017, 19, 4440–4443. https://doi.org/10.1021/acs.orglett.7b01919.Suche in Google Scholar PubMed

8. García–Fernandez, P. D., Iglesias–Sigüenza, J., Rivero–Jerez, P. S., Díez, E., Gomez–Bengoa, E., Fernández, R., Lassaletta, J. M. AuI-catalyzed hydroalkynylation of haloalkynes. J. Am. Chem. Soc. 2020, 142, 16082–16089. https://doi.org/10.1021/jacs.0c07951.Suche in Google Scholar PubMed

9. Lehnherr, D., Murray, A. H., McDonald, R., Tykwinski, R. R. A modular synthetic approach to conjugated pentacene di-, tri-, and tetramers. Angew. Chem. Int. Ed. 2010, 849, 6190–6194. https://doi.org/10.1002/anie.201000555.Suche in Google Scholar PubMed

10. Top, S., Thibaudeau, C., Vessieres, A., Brule Bideau, F. L., Joerger, J.-M., Plamont, M.-A., Samreth, S., Edgar, A., Edgar, J., Herson, P., Jaouen, G. Synthesis and structure activity relationship of organometallic steroidal androgen derivatives. Organometallics 2009, 28, 1414–1424. https://doi.org/10.1021/om800698y.Suche in Google Scholar

11. Czajkowska-Szczykowska, D., Rodríguez-Molina, B., Magaña-Vergara, N. E., Santillan, R., Morzycki, J. W., Garcia-Garibay, M. A. Macrocyclic molecular rotors with bridged steroidal frameworks. J. Org. Chem. 2012, 77, 9970–9978. https://doi.org/10.1021/jo3020402.Suche in Google Scholar PubMed

12. Rohrer, D. C., Duax, W. L., Peters, R., Tanabe, M. 17β–Hydroxy-19-nor-α,17a- pregn-20-yn-3-one. Acta Crystallogr. 1982, B38, 1362–1364. https://doi.org/10.1107/s0567740882005822.Suche in Google Scholar
Received: 2022-04-02
Accepted: 2022-05-05
Published Online: 2022-05-20
Published in Print: 2022-08-26
