Crystal structure of 2-(4-methoxyphenyl)-3-methyl-1,8-naphthyridine, C16H14N2O

  • Xin-Sheng Xiao und Guo-Kai Jia ORCID logo EMAIL logo
Veröffentlicht/Copyright: 5. Mai 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 4

Abstract

C16H14N2O, monoclinic, P21/c (no. 14), a = 6.903(2) Å, b = 7.217(2) Å, c = 26.071(8) Å, β = 93.023(4)°, V = 1296.9(7) Å3, Z = 4, R gt (F) = 0.0474, wR ref (F 2) = 0.1423, T = 296(2) K.

CCDC no.: 2167392

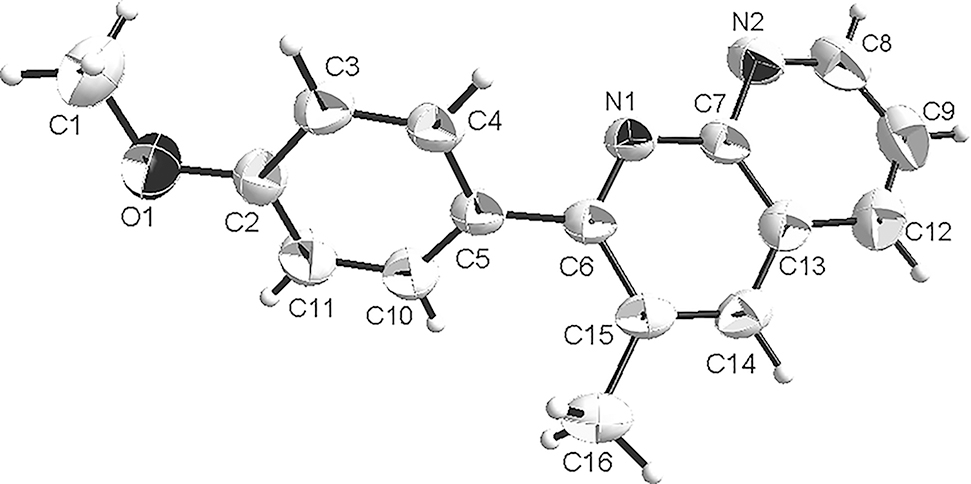

The molecular structure is shown in the Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.26 × 0.24 × 0.20 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.08 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 27.7°, >99%
N(hkl)measured, N(hkl)unique, R int: 14,057, 2953, 0.047
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2227
N(param)refined: 174
Programs: Bruker [1], SHELX [2], Olex2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
O1 0.52135 (17) 0.38716 (16) 0.679694) 0.0696 (3)
N1 0.60958 (15) 0.27562 (16) 0.91744 (4) 0.0496 (3)
N2 0.78826 (18) 0.18212 (19) 0.98981 (5) 0.0634 (4)
C1 0.6785 (3) 0.4878 (3) 0.66002 (7) 0.0755 (5)
H1A 0.673780 0.614090 0.671463 0.113*
H1B 0.668814 0.484442 0.623163 0.113*
H1C 0.798972 0.432771 0.672171 0.113*
C2 0.5072 (2) 0.38309 (19) 0.73184 (5) 0.0519 (3)
C3 0.6282 (2) 0.47898 (19) 0.76663 (6) 0.0536 (4)
H3 0.726756 0.553504 0.755023 0.064*
C4 0.60204 (18) 0.4635 (2) 0.81861 (5) 0.0512 (3)
H4 0.685012 0.527362 0.841646 0.061*
C5 0.45521 (18) 0.35511 (18) 0.83752 (5) 0.0481 (3)
C6 0.44447 (18) 0.32837 (18) 0.89397 (5) 0.0466 (3)
C7 0.61425 (19) 0.24222 (18) 0.96883 (5) 0.0491 (3)
C8 0.7955 (3) 0.1449 (2) 1.03926 (7) 0.0715 (5)
H8 0.912813 0.102215 1.053988 0.086*
C9 0.6409 (3) 0.1643 (2) 1.07152 (6) 0.0727 (5)
H9 0.656644 0.136853 1.106337 0.087*
C10 0.3348 (2) 0.2614 (2) 0.80179 (6) 0.0606 (4)
H10 0.234689 0.188570 0.813228 0.073*
C11 0.360 (2) 0.2739 (2) 0.74981 (6) 0.0632 (4)
H11 0.278687 0.208816 0.726730 0.076*
C12 0.4679 (3) 0.2241 (2) 1.05084 (6) 0.0655 (4)
H12 0.362742 0.238703 1.071351 0.079*
C13 0.4490 (2) 0.26407 (18) 0.99778 (5) 0.0511 (3)
C14 0.2765 (2) 0.3246 (2) 0.97152 (5) 0.0547 (4)
H14 0.165700 0.342120 0.989730 0.066*
C15 0.26912 (18) 0.35771 (18) 0.92006 (5) 0.0503 (3)
C16 0.0860 (2) 0.4292 (2) 0.89283 (6) 0.0672 (4)
H16A 0.029890 0.333618 0.871175 0.101*
H16B 0.116138 0.534625 0.872259 0.101*
H16C −0.004595 0.464874 0.917732 0.101*

Source of material

Under N2 a atmosphere, t-BuOK (50 mol%), Xantphos (3 mol%), Ru3(CO)12 (1 mol%), (2-aminopyridin-3-yl)methanol (0.5 mmol), and 1-(4-methoxyphenyl)propan-1-one (0.5 mmol) were introduced in a Schlenk tube (25 mL), successively. Then, the Schlenk tube was closed and the resulting mixture was stirred in t-amyl alcohol (1.0 mL) at 383 K for 8 h. When the reaction was completed (monitored by TLC), the mixture was cooled to room temperature, the reaction mixture was concentrated by removing the solvent under vacuum, and the residue was purified by preparative TLC on silica, eluting with petroleum ether (333–363 K): ethyl acetate (4:1, v/v) to give 2-(4-methoxyphenyl)-3-methyl-1,8-naphthyridine as a colourless blocks.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

The 1,8-naphthyridine ring system is an attractive structural motif owing to its wide distribution in bioactive molecules and pharmaceuticals, which include a potent α v β 3 receptor antagonist A, antibacterial agents B, and CETP inhibitor C [4]. Recently, some articles describe the synthesis of 1,8-naphthyridines by the hydrogen transfer strategy [5], [6], [7], [8]. We here describe the one-pot facile synthesis of 2-(4-methoxyphenyl)-3-methyl-1,8-naphthyridine. However, the crystal structure of 2-(4-methoxyphenyl)-3-methyl-1,8-naphthyridine has not been reported until now. The title compound is described to enrich the structural chemistry of this class of compounds [9, 10].

Thedre is one molecule in the asymmetric unit (see the figure). The crystal structure verifies that all bond lengths are in normal ranges [10].

Corresponding author: Guo-Kai Jia, Department of Biology and Chemistry, Hunan University of Science and Engineering, Yongzhou Hunan 425199, People’s Republic of China, E-mail:

Funding source: Hunan University of Science and Engineering

Award Identifier / Grant number: 20XKY072

Funding source: HNNSF

Award Identifier / Grant number: 2021JJ30289

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the general scientific research project of Hunan University of Science and Engineering (No. 20XKY072) and HNNSF (No. 2021JJ30289).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2. SAINT and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2009.Suche in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341.10.1107/S0021889808042726Suche in Google Scholar

4. Jiang, S., Yang, Z., Guo, Z., Li, Y., Chen, L., Zhu, Z., Chen, X. Transition metal-free alpha-methylation of 1,8-naphthyridine derivatives using DMSO as methylation reagent. Org. Biomol. Chem. 2019, 17, 7416–7424.10.1039/C9OB01490JSuche in Google Scholar PubMed

5. Chen, X., Zhao, H., Chen, C., Jiang, F., Zhang, M. Hydrogen-transfer-mediated a-functionalization of 1,8-naphthyridines by a strategy overcoming the over-hydrogenation barrier. Angew. Chem. Int. Ed. 2017, 56, 14232–14236.10.1002/anie.201707702Suche in Google Scholar PubMed

6. Chen, X., Zhao, H., Chen, C., Jiang, H., Min Zhang, M. Iridium-catalyzed dehydrogenative a-functionalization of (hetero)aryl-fused cyclic secondary amines with indoles. Org. Lett. 2018, 20, 1171–1174.10.1021/acs.orglett.8b00096Suche in Google Scholar PubMed

7. Chen, X., Li, Y. B., Chen, L., Zhu, Z., Li, B., Huang, Y., Zhang, M. Synthesis of N-biheteroarenes via acceptorless dehydrogenative coupling of benzocyclic amines with indole derivatives. J. Org. Chem. 2019, 84, 3559–3565.10.1021/acs.joc.9b00200Suche in Google Scholar PubMed

8. Chen, X., Zhao, H., Chen, C., Jiang, F., Zhang, M. Transfer hydrogenative para-selective aminoalkylation of aniline derivatives with N-heteroarenes via ruthenium/acid dual catalysis. Chem. Commun. 2018, 54, 9087–9090.10.1039/C8CC04233KSuche in Google Scholar PubMed

9. Li, Y., Yang, Z., Wang, Z., Zhu, Z., Chen, X. Synthesis, crystal structure and antitumor activities of 1,2,3,4-tetrahydroquinoline-2,4-diyl (bisdiphenylphosphine oxide) derivatives. Chin. J. Struct. Chem. 2019, 38, 713–718.Suche in Google Scholar

10. Li, Y. B., Chen, L., Zhu, Z. Z., Huang, Y. B., Chen, X. W. Crystal structure of 2-(4-chlorophenyl)-3-phenyl-1,8-naphthyridine, C20H13N2Cl. Z. Kristallogr. N. Cryst. Struct. 2019, 234, 179–180.10.1515/ncrs-2018-0275Suche in Google Scholar
Received: 2022-03-30
Accepted: 2022-04-19
Published Online: 2022-05-05
Published in Print: 2022-08-26
