Crystal structure of 1-(4-hydroxybenzyl)-4-methoxy-9,10-dihydrophenanthrene-2,7-diol from Arundina graminifolia, C22H20O4

  • Mei-Feng Liu ORCID logo EMAIL logo , Xing-Yu Zhang , Yi-Mei Du and Yan Chen
Published/Copyright: April 12, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 4

Abstract

C22H20O4, orthorhombic, P212121 (no. 19), a = 11.355(5) Å, b = 15.084(7) Å, c = 20.078(9) Å, V = 3439(3) Å3, Z = 4, R gt (F) = 0.0382, wR ref (F2) = 0.0994, T = 296(2) K.

CCDC no.: 2149841

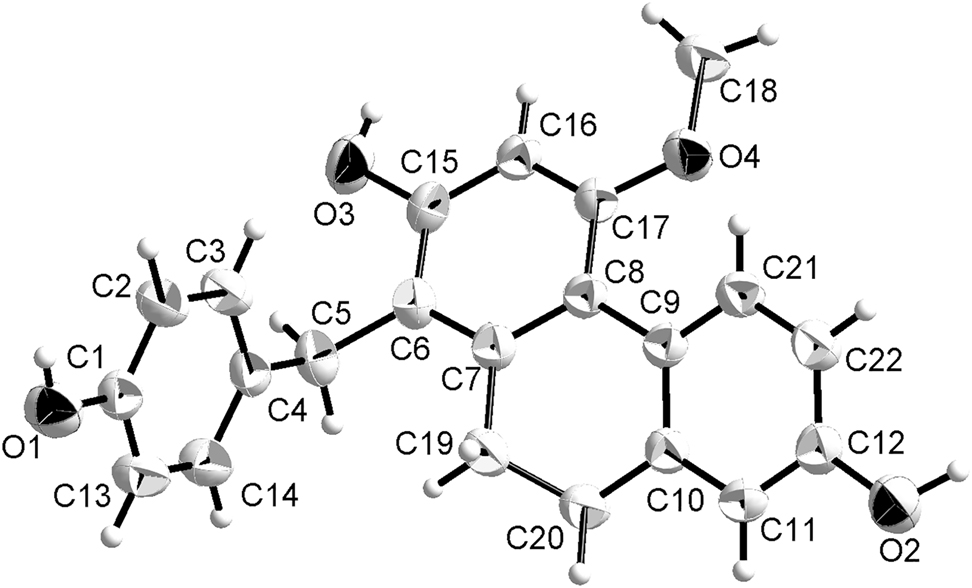

The molecular structure is shown in Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.28 × 0.26 × 0.22 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.09 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θmax, completeness: 27.4°, >99%
N(hkl)measured, N(hkl)unique, Rint: 38650, 7761, 0.0295
Criterion for Iobs, N(hkl)gt: Iobs > 2σ(Iobs), 6565
N(param)refined: 487
Programs: Bruker [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
O1 0.40577 (17) −0.17274 (13) −0.25213 (9) 0.0584 (5)
H1 0.386 (3) −0.220 (3) −0.2354 (17) 0.088*
O2 1.01661 (15) 0.14306 (17) 0.12358 (10) 0.0704 (6)
H2 1.039 (4) 0.146 (3) 0.169 (2) 0.106*
O3 0.17125 (14) 0.08737 (13) 0.03049 (9) 0.0558 (4)
H3 0.124 (3) 0.100 (2) 0.0669 (17) 0.084*
O4 0.48402 (14) 0.09327 (14) 0.19175 (8) 0.0568 (5)
C1 0.3873 (2) −0.10470 (16) −0.20717 (11) 0.0463 (5)
C2 0.3430 (3) −0.11996 (18) −0.14437 (12) 0.0582 (7)
H2A 0.326111 −0.177369 −0.130451 0.070*
C3 0.3241 (3) −0.04899 (17) −0.10233 (12) 0.0575 (6)
H3A 0.293799 −0.059541 −0.060036 0.069*
C4 0.3487 (2) 0.03719 (15) −0.12097 (11) 0.0445 (5)
C5 0.3236 (2) 0.11445 (16) −0.07587 (11) 0.0497 (5)
H5A 0.239109 0.123586 −0.074473 0.060*
H5B 0.358524 0.167114 −0.095351 0.060*
C6 0.36795 (19) 0.10560 (15) −0.00521 (11) 0.0426 (5)
C7 0.48753 (19) 0.11021 (15) 0.01109 (10) 0.0420 (5)
C8 0.52844 (18) 0.10278 (14) 0.07706 (10) 0.0387 (4)
C9 0.65658 (18) 0.10683 (14) 0.09052 (10) 0.0389 (4)
C10 0.72821 (18) 0.15196 (15) 0.04475 (10) 0.0409 (5)
C11 0.84772 (19) 0.16173 (17) 0.05690 (11) 0.0468 (5)
H11 0.894570 0.191468 0.026164 0.056*
C12 0.89760 (19) 0.12807 (17) 0.11368 (12) 0.0490 (5)
C13 0.4111 (2) −0.01979 (17) −0.22744 (13) 0.0552 (6)
H13 0.439508 −0.009214 −0.270154 0.066*
C14 0.3928 (2) 0.04988 (17) −0.18420 (12) 0.0534 (6)
H14 0.410718 0.107120 −0.198112 0.064*
C15 0.28825 (18) 0.09443 (15) 0.04651 (11) 0.0439 (5)
C16 0.32462 (19) 0.09094 (15) 0.11242 (11) 0.0443 (5)
H16 0.269235 0.085923 0.146328 0.053*
C17 0.44313 (19) 0.09493 (15) 0.12765 (10) 0.0417 (5)
C18 0.4035 (2) 0.0831 (2) 0.24468 (12) 0.0626 (7)
H18A 0.351962 0.133509 0.246255 0.094*
H18B 0.445756 0.078495 0.285933 0.094*
H18C 0.357806 0.030274 0.237873 0.094*
C19 0.5792 (2) 0.12626 (18) −0.04231 (11) 0.0504 (6)
H19A 0.615456 0.070480 −0.054845 0.060*
H19B 0.541925 0.151277 −0.081509 0.060*
C20 0.6723 (2) 0.18928 (18) −0.01663 (11) 0.0507 (6)
H20A 0.731794 0.198422 −0.050595 0.061*
H20B 0.636707 0.246172 −0.006491 0.061*
C21 0.7107 (2) 0.06927 (16) 0.14615 (11) 0.0441 (5)
H21 0.665548 0.036707 0.176076 0.053*
C22 0.8298 (2) 0.07942 (18) 0.15772 (12) 0.0506 (5)
H22 0.864375 0.053634 0.194991 0.061*
O5 0.5799 (2) 1.15015 (13) 0.46744 (10) 0.0713 (5)
H5 0.598310 1.195147 0.447037 0.107*
O6 −0.01697 (14) 0.82947 (15) 0.10381 (9) 0.0612 (5)
H6 −0.035 (3) 0.844 (3) 0.0607 (19) 0.092*
O7 0.52609 (14) 0.83749 (15) 0.04515 (7) 0.0593 (5)
O8 0.82875 (14) 0.84154 (12) 0.21153 (9) 0.0510 (4)
H8 0.876 (3) 0.848 (2) 0.1719 (16) 0.076*
C23 0.5999 (2) 1.07626 (16) 0.42751 (12) 0.0512 (5)
C24 0.5396 (2) 1.00031 (18) 0.44225 (13) 0.0584 (6)
H24 0.484884 1.000044 0.476705 0.070*
C25 0.5599 (2) 0.92404 (17) 0.40606 (12) 0.0529 (6)
H25 0.518460 0.872837 0.416847 0.064*
C26 0.63977 (19) 0.92150 (16) 0.35439 (10) 0.0432 (5)
C27 0.6656 (2) 0.83601 (16) 0.31712 (10) 0.0463 (5)
H27A 0.749676 0.824848 0.318910 0.056*
H27B 0.626536 0.787533 0.339914 0.056*
C28 0.62709 (18) 0.83590 (15) 0.24480 (10) 0.0408 (4)
C29 0.50811 (18) 0.83106 (14) 0.22620 (10) 0.0398 (4)
C30 0.4129 (2) 0.81940 (17) 0.27779 (11) 0.0477 (5)
H30A 0.382028 0.877044 0.290143 0.057*
H30B 0.446434 0.792434 0.317346 0.057*
C31 0.3134 (2) 0.76184 (17) 0.25213 (11) 0.0493 (5)
H31A 0.342118 0.702110 0.244618 0.059*
H31B 0.251294 0.759047 0.285231 0.059*
C32 0.2651 (2) 0.79861 (15) 0.18846 (11) 0.0420 (5)
C33 0.1453 (2) 0.79668 (16) 0.17405 (11) 0.0459 (5)
H33 0.093189 0.771285 0.204260 0.055*
C34 0.10315 (18) 0.83204 (16) 0.11546 (12) 0.0465 (5)
C35 0.6803 (3) 1.07618 (18) 0.37588 (12) 0.0562 (6)
H35 0.721451 1.127567 0.365238 0.067*
C36 0.6991 (2) 0.99931 (18) 0.34022 (12) 0.0543 (6)
H36 0.753357 0.999836 0.305540 0.065*
C37 0.47251 (18) 0.83501 (15) 0.15905 (10) 0.0391 (4)
C38 0.34520 (18) 0.83474 (15) 0.14239 (11) 0.0399 (4)
C39 0.1793 (2) 0.87017 (17) 0.07072 (12) 0.0505 (5)
H39 0.150750 0.894910 0.031501 0.061*
C40 0.2989 (2) 0.87164 (15) 0.08424 (11) 0.0471 (5)
H40 0.349749 0.897916 0.053765 0.057*
C41 0.56128 (19) 0.83946 (15) 0.11026 (10) 0.0417 (5)
C42 0.6077 (3) 0.8620 (2) −0.00488 (12) 0.0695 (8)
H42A 0.643640 0.917481 0.006723 0.104*
H42B 0.567532 0.867874 −0.046705 0.104*
H42C 0.667406 0.817150 −0.008578 0.104*
C43 0.67897 (18) 0.84183 (16) 0.12762 (11) 0.0434 (5)
H43 0.736667 0.844169 0.094792 0.052*
C44 0.71043 (18) 0.84069 (15) 0.19430 (11) 0.0414 (5)

Source of material

Crush the dried rhizomes from the underground part of (300.0 g) Arundina graminifolia (D. Don) Hochr. It was extracted twice with ethanol (70%) under reflux. The extracts were combined and concentrated, and the samples were dry mixed and washed with petroleum ether, ethyl acetate, and methanol in sequence. The ethyl acetate fraction was eluted with gradient solvents of dichloromethane (DCM) and MeOH (100:1, 20:1, 5:1, 1:1, v/v) through a silica gel column to afford four fractions. The fraction three was purified by Octadecylsilyl (ODS), semi-preparative High Performance Liquid Chromatography (HPLC) and Sephadex LH-20 to obtain the title compound (10.5 mg).

Experimental details

All hydrogen atoms were identified in difference Fourier syntheses and included with Uiso(H) = 1.2Ueq(C). The methyl groups were idealized and refined using rigid groups allowed to rotate about the C–C bond (AFIX 137 option of the SHELXL program) [2, 3].

Comment

A. graminifolia (Orchidaceae), which is a perennial herb, is mainly distributed in tropical and subtropical regions in China. It is a species of Arundina Blume, a genus in the family Orchidaceae Juss [4]. It is a kind of national medicine that is widely used for clearing heat, detoxicating, and dissipating blood stasis by Dai people [5], [6], [7]. Previous studies of this phytochemistry have shown the presence of bibenzyl [8], phenanthrene [9], stilbenoids [10], and other phenolic compounds [11]. In the previous study, we also obtained a single crystal named orchinol from the plant [12]. Motivating to find biologically active compounds from this plant, further chemical research was carried out.

As a result, the title compound was obtained from the ethyl acetate part in the ethanol extract, and its crystal structure was analyzed. The single crystal structure verifies that all bond lengths and angles are within the normal range. The two crystallographically independent molecules (see the figure) are connected by O–H⃛O hydrogen bonds to form a complex network.

Corresponding author: Mei-Feng Liu, South China University of Technology, Guangzhou, China, E-mail:

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 81473422

Funding source: Guangdong Key Laboratory for Innovative Development and Utilization of Forest Plant Germplasm, South China University of Technology

Award Identifier / Grant number: 170312

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: The work was supported by National Natural Science Foundation of China (grant number 81473422); and an open fund from Guangdong Key Laboratory for Innovative Development and Utilization of Forest Plant Germplasm, South China University of Technology (grant number 170312).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar PubMed

3. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

4. Hong, D. Y., Lian, Y. S., Shen, L. D. Orchidaceae, in flora of China. Chin. Sci. 1983, 73, 320–321.Search in Google Scholar

5. Chinese Pharmacopoeia Commission. Pharmacopoeia of the People’s Republic of China, Edition 2010; Beijing Chemical Industry Press: Beijing, 2010.Search in Google Scholar

6. Zhang, L. X., Zhang, Z. L., Li, T. H., Niu, Y. F., Guan, Y. H., Ma, X. J. Investigation, collation and research of traditional Dai medicine of China. China J. Chin. Mater. Med. 2016, 41, 3107–3112; https://doi.org/10.4268/cjcmm20161628.Search in Google Scholar PubMed

7. Yu, L., Lin, Y. Dai medicine “Yajie” (antidotes) clinical application. J. Med. Pharm. Chin. Minor 2008, 7, 25–29.Search in Google Scholar

8. Liu, M. F., Han, Y., Xing, D. M., Shi, Y., Xu, L. Z., Du, L. J., Ding, Y. A new stilbenoid from Arundina graminifolia. J. Asian Nat. Prod. Res. 2004, 6, 229–232; https://doi.org/10.1080/10286020310001653219.Search in Google Scholar PubMed

9. Hu, Q. F., Zhou, B., Ye, Y. Q., Jiang, Z. Y., Huang, X. Z., Li, Y. K., Du, G., Yang, G. Y., Gao, X. M. Cytotoxic deoxybenzoins and diphenylethylenes from Arundina graminifolia. J. Nat. Prod. 2013, 76, 1854–1859.https://doi.org/10.1021/np400379u.Search in Google Scholar PubMed

10. Liu, Q. Q., Wang, H. T., Lin, F. K., Dai, R. J., Yu, D. L., Lv, F. Study on the structures and anti-hepatic fibrosis activity of stilbenoids from Arundina graminifolia (D. Don) Hochr. Mater. Sci. Eng. 2017, 274, 12024–12031; https://doi.org/10.1088/1757-899x/274/1/012024.Search in Google Scholar

11. Auberon, F., Olatunji, O., Krisa, S., Antheaume, C., Herbette, G., Bonté, F., Mérillon, J., Lobstein, A. Two new stilbenoids from the aerial parts of Arundina graminifolia (Orchidaceae). Molecules 2016, 21, 1430–1439; https://doi.org/10.3390/molecules21111430.Search in Google Scholar PubMed PubMed Central

12. Zhang, X. Y., Chen, W. C., Liu, M. F. Crystal structure of 7-hydroxy-2,4-dimethoxy-9,10-dihydrophenanthrene from Arundina graminifolia, C16H16O3. Z. Kristallogr. NCS 2021, 236, 729–730; https://doi.org/10.1515/ncrs-2021-0053.Search in Google Scholar
Received: 2021-12-23
Accepted: 2022-02-03
Published Online: 2022-04-12
Published in Print: 2022-08-26
