Home Physical Sciences Crystal structure of 3-(3-bromophenyl)-1′,3′-dimethyl-2′H,3H,4H-spiro[furo[3, 2-c]chromene-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H) tetraone, C22H15BrN2O6
Article Open Access

Crystal structure of 3-(3-bromophenyl)-1′,3′-dimethyl-2′H,3H,4H-spiro[furo[3, 2-c]chromene-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H) tetraone, C22H15BrN2O6

  • Dong-Li Jiang ORCID logo , Lian-Lian Fan , Peng Yin , Di Liang ORCID logo and Rui Li ORCID logo EMAIL logo
Published/Copyright: May 31, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 4

Abstract

C22H15BrN2O6, monoclinic, P21/c (No. 14), a = 5.1760 (5) Å, b = 17.5652(19) Å, c = 21.734(2) Å, β = 94.690(3) °, Z = 4, V = 1969.3(3) Å3, R gt (F) = 0.0569, wR ref (F2) = 0.1206, T = 170 K.

CCDC no.: 2155813

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Block, colourless
Size: 0.15 × 0.07 × 0.04 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 2.13 mm−1
Diffractometer, scan mode: Bruker D8 VENTURE, φ and ω-scans
θmax, completeness: 26.4°, >99%
N(hkl)measured, N(hkl)unique, Rint: 18236, 4016, 0.100
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2407
N(param)refined: 282
Programs: Bruker programs [1], OLEX2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

x y z Uiso*/Ueq
Br1 0.91013 (11) 0.59854 (4) 0.05991 (2) 0.0593 (2)
O4 0.5038 (5) 0.33479 (16) 0.28634 (11) 0.0213 (7)
O3 0.3133 (5) 0.37862 (17) 0.17096 (12) 0.0267 (7)
O6 0.8550 (6) 0.46066 (17) 0.42791 (12) 0.0274 (7)
O2 0.9228 (5) 0.24456 (17) 0.29274 (13) 0.0301 (7)
O5 1.1097 (6) 0.51329 (19) 0.36196 (13) 0.0331 (8)
O1 0.9740 (6) 0.2605 (2) 0.08577 (14) 0.0397 (9)
N1 0.6628 (6) 0.3301 (2) 0.12743 (14) 0.0235 (8)
N2 0.9486 (6) 0.2495 (2) 0.18909 (15) 0.0250 (8)
C9 0.6137 (7) 0.3746 (3) 0.33611 (17) 0.0213 (10)
C8 0.8085 (7) 0.4206 (2) 0.32313 (17) 0.0197 (9)
C5 0.6807 (7) 0.3431 (2) 0.23910 (17) 0.0202 (9)
C17 0.7447 (7) 0.4880 (2) 0.22013 (17) 0.0192 (9)
C10 0.9391 (8) 0.4679 (3) 0.36914 (18) 0.0246 (10)
C4 0.8580 (8) 0.2746 (2) 0.24357 (19) 0.0219 (10)
C7 0.8452 (7) 0.4176 (2) 0.25530 (16) 0.0186 (9)
H7 1.031728 0.408755 0.248666 0.022*
C2 0.8703 (8) 0.2795 (3) 0.13116 (19) 0.0255 (10)
C6 0.5277 (8) 0.3506 (2) 0.17672 (18) 0.0210 (9)
C12 0.6603 (8) 0.4112 (3) 0.44131 (18) 0.0257 (10)
C11 0.5260 (8) 0.3661 (2) 0.39639 (18) 0.0217 (9)
C16 0.3250 (8) 0.3185 (3) 0.41299 (19) 0.0273 (10)
H16 0.232650 0.287497 0.382877 0.033*
C22 0.8560 (8) 0.5089 (3) 0.16667 (18) 0.0265 (10)
H22 0.999581 0.481366 0.153503 0.032*
C18 0.5309 (8) 0.5282 (3) 0.2385 (2) 0.0272 (10)
H18 0.451822 0.513726 0.274650 0.033*
C21 0.7556 (9) 0.5701 (3) 0.1329 (2) 0.0333 (12)
C13 0.6007 (9) 0.4086 (3) 0.50256 (19) 0.0351 (12)
H13 0.695206 0.438125 0.533336 0.042*
C15 0.2637 (9) 0.3174 (3) 0.4731 (2) 0.0336 (11)
H15 0.126434 0.285854 0.484591 0.040*
C14 0.4008 (10) 0.3619 (3) 0.5173 (2) 0.0381 (12)
H14 0.355698 0.360206 0.558824 0.046*
C1 0.5597 (9) 0.3546 (3) 0.06500 (18) 0.0359 (12)
H1A 0.697071 0.351296 0.036641 0.054*
H1B 0.498530 0.407307 0.066716 0.054*
H1C 0.415283 0.321466 0.050316 0.054*
C19 0.4352 (9) 0.5897 (3) 0.2034 (2) 0.0377 (12)
H19 0.290348 0.617094 0.216046 0.045*
C20 0.5457 (9) 0.6119 (3) 0.1505 (2) 0.0405 (13)
H20 0.480472 0.654320 0.126947 0.049*
C3 1.1454 (9) 0.1890 (3) 0.1919 (2) 0.0405 (13)
H3A 1.229580 0.185786 0.233879 0.061*
H3B 1.275573 0.200544 0.162937 0.061*
H3C 1.062344 0.140199 0.180734 0.061*

Source of materials

All reagents and chemicals were purchased from commercial surces and used without further purification. The starting material 5-[(3–bromophenyl)methylene]-1,3-dimethyl-2,4,6(1H,3H,5H)-pyrimidinetrione was synthesized following the literature procedures [5]. A dry 100 ml flask was charged with 5-[(3–bromophenyl)methylene]-1,3-dimethyl-2,4,6(1H,3H,5H)-pyrimidinetrione (0.9 g, 2.8 mmol), 4-hydroxycoumarin (0.55 g, 3.36 mmol), iodine (0.14 g, 0.56 mmol) and 30 mL ethanol. The mixture was stirred at 80 °C for 6.5 h. The precipitate was filtrated out and washed with ethanol for 2–3 times and purified by recrystallization from ethanol to give the target material. Crystals of the title compound were obtained by slow evaporation from a mixture of methanol and tetrahydrofuran.

Experimental details

The C-bound H atoms were geometrically placed and refined as riding with UISO(H) = 1.2–1.5Ueq(C) using the appropriate SHELXL commands.

Discussion

In the past years, coumarin derivatives have drawn more and more attentions of the scientists all over the world, for the reason that these compounds demonstrated promising activities such as anticancer [6], antiviral [7, 8], anti-inflammatory [9] and antibacterial properties [10]. Thus the synthesis and property studies of novel coumarin derivatives is an active fields in medicinal chemistry.

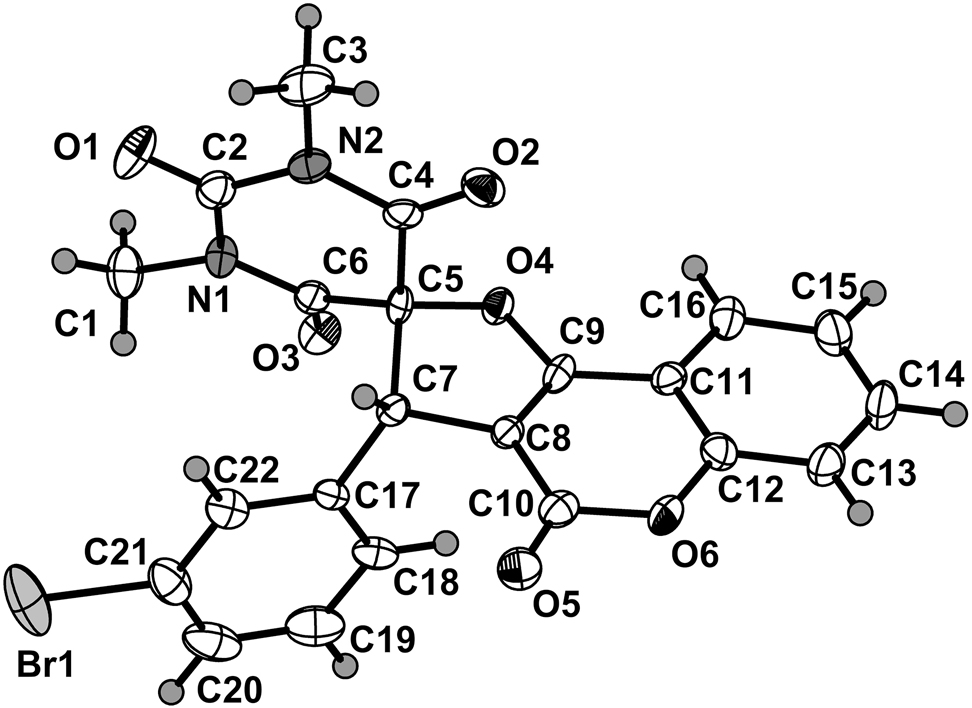

The title structure is shown in the figure. In the title compound, the C–N bond distances are 1.391(5)Å (N1–C2), 1.374(5)Å (N1–C6), 1.481(5)Å (N1–C1), 1.381(5)Å (N2–C4), 1.394(5)Å (N2–C2), 1.471(6)Å (N2–C3), respectively. The O–C bond distances are 1.372(5)Å (O4–C9), 1.438(4)Å (O4–C5), 1.211(5)Å (O3–C6), 1.389(5)Å (O6–C10), 1.214(5)Å (O2–C4), 1.210(5)Å (O5–C10), 1.208(5)Å (O1–C2), respectively. The bond lengths and angles are in the expected ranges [11, 12].

Corresponding author: Rui Li, China–Japan Union Hospital of Jilin University, Changchun, 130033, P. R. China, E-mail:

Funding source: Jilin Province Science and Technology Development Project

Award Identifier / Grant number: 2020010111YY

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the research funds of Jilin Province Science and Technology Development Project (2020010111YY).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. BRUKER. SAINT. APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

5. An, T. L., Du, D. M. Chiral squaramide catalyzed Asymmetric [3+2] Cycloaddition reaction for synthesis of trifluoromethylated barbituric acid derivatives. Chemistry Select 2019, 4, 11302–11306; https://doi.org/10.1002/slct.201903146.Search in Google Scholar

6. Lee, K. H., Chai, H. B., Tamez, P. A. Biologically active alkylate coumarins from Kayea assamica. Phytochemistry 2003, 64, 535–541; https://doi.org/10.1016/s0031-9422(03)00243-7.Search in Google Scholar PubMed

7. Makhija, M. T., Kulkarni, V. M. Molecular electrostatic potentials as input for the alignment of HIV-1 integrase inhibitors in 3D QSAR. J. Comput. Aid. Mol. Des. 2001, 15, 961–978; https://doi.org/10.1023/a:1014888730876.10.1023/A:1014888730876Search in Google Scholar

8. Yu, D. L., Suzuki, M., Xie, L. Recent progress in the development of coumarin derivatives as potent anti–HIV agents. Med. Res. Rev. 2003, 23, 322–345; https://doi.org/10.1002/med.10034.Search in Google Scholar PubMed

9. Andrade, M. F., Kabeya, L. M., Bortot, L. O. The 3-phenylcoumarin derivative 6,7 dihydroxy-3-[3′,4′-methylenedioxyphenyl]- coumarin downmodulates the FcyR-and CR-mediated oxidative metabolism and elastase release in human neutrophils: possible mechanisms underlying inhibition of the formation and release of neutrophil extracellular traps. Free Radical Biol. Med. 2018, 115, 412–435; https://doi.org/10.1016/j.freeradbiomed.2017.12.012.Search in Google Scholar PubMed

10. Shi, Y., Zhou, C. H. Synthesis and evaluation of a class of new coumarin triazole derivatives as potential antimicrobial agents. Bioorg. Med. Chem. Lett. 2011, 21, 956–960; https://doi.org/10.1016/j.bmcl.2010.12.059.Search in Google Scholar PubMed

11. Ligia, R. G., John, N. L., Andre, F. Crystal structures of three 6-substituted coumarin-3-carboxamide derivatives. Acta Crystallogr. 2016, E72, 926–932.10.1107/S2056989016008665Search in Google Scholar PubMed PubMed Central

12. Gabino, G. C., Roberto, M. V., Efren, F. G. B. Crystal structure of a new polymorph of 3-acetyl-8-meth–oxy-2H-chromen-2-one. Acta Crystallogr. 2016, E72, 704–708.Search in Google Scholar
Received: 2022-03-02
Accepted: 2022-05-16
Published Online: 2022-05-31
Published in Print: 2022-08-26
