Synthesis and crystal structure of (E)-1-(4-(((E)-3-(tert-butyl)-2-hydroxybenzylidene)amino)phenyl)ethan-1-one O-ethyl oxime, C21H26N2O2

  • Ji-Xing Zhao ORCID logo EMAIL logo , Da-Qun Chen und Lei-Fang Wu
Veröffentlicht/Copyright: 31. Mai 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 4

Abstract

C21H26N2O2, monoclinic, P21 (no. 4), a = 7.1425(7) Å, b = 9.2733(8) Å, c = 14.3161(13) Å, β = 93.592(4)°, V = 946.36(15) Å3, Z = 2, Rgt (F) = 0.0461, wRref (F 2) = 0.1148, T = 173(2) K.

CCDC no.: 2170731

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Plate, yellow
Size: 0.27 × 0.25 × 0.06 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.08 mm−1
Diffractometer, scan mode: Bruker D8 venture, φ and ω-scans
θ max, completeness: 27.9°, >99%
N(hkl)measured, N(hkl)unique, R int: 15067, 4486, 0.067
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 3423
N(param)refined: 232
Programs: Bruker programs [1], SHELX [2], OLEX2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

x y z U iso*/U eq
O1 −0.0353 (3) 0.5348 (2) 0.22264 (13) 0.0391 (5)
H1 0.025487 0.529506 0.274695 0.059*
N1 0.0338 (3) 0.4763 (2) 0.39732 (15) 0.0350 (5)
C1 −0.2662 (4) 0.4364 (3) 0.31892 (18) 0.0311 (5)
O2 0.9063 (3) 0.4935 (2) 0.74170 (13) 0.0410 (5)
N2 0.7603 (3) 0.5106 (3) 0.67280 (16) 0.0395 (6)
C2 −0.2126 (4) 0.4882 (3) 0.23149 (18) 0.0303 (5)
C3 −0.3403 (4) 0.4909 (3) 0.15240 (19) 0.0316 (6)
C4 −0.5195 (4) 0.4379 (3) 0.1643 (2) 0.0384 (6)
H4 −0.608369 0.437851 0.112034 0.046*
C7 −0.2810 (4) 0.5464 (3) 0.05724 (19) 0.0386 (6)
C6 −0.4486 (4) 0.3846 (3) 0.3263 (2) 0.0378 (6)
H6 −0.485682 0.349011 0.384577 0.045*
C5 −0.5743 (4) 0.3848 (3) 0.2497 (2) 0.0426 (7)
H5 −0.697889 0.349021 0.254794 0.051*
C8 −0.4479 (5) 0.5504 (4) −0.0160 (2) 0.0541 (9)
H8A −0.406212 0.588232 −0.075168 0.081*
H8B −0.546358 0.612942 0.006301 0.081*
H8C −0.497521 0.452717 −0.025835 0.081*
C9 −0.2055 (5) 0.7008 (4) 0.0657 (2) 0.0531 (8)
H9A −0.179243 0.736848 0.003538 0.080*
H9B −0.089795 0.701546 0.106281 0.080*
H9C −0.299236 0.762744 0.092765 0.080*
C10 −0.1324 (5) 0.4454 (4) 0.0212 (2) 0.0525 (8)
H10A −0.099111 0.477382 −0.040848 0.079*
H10B −0.182307 0.347051 0.016990 0.079*
H10C −0.020449 0.447125 0.064459 0.079*
C11 −0.1353 (4) 0.4311 (3) 0.40019 (18) 0.0340 (6)
H11 −0.175716 0.393032 0.457150 0.041*
C12 0.1696 (4) 0.4600 (3) 0.47326 (17) 0.0320 (6)
C13 0.1791 (4) 0.3419 (3) 0.53270 (19) 0.0390 (7)
H13 0.084394 0.269874 0.527131 0.047*
C14 0.3259 (4) 0.3281 (3) 0.60030 (19) 0.0378 (6)
H14 0.329210 0.247092 0.641016 0.045*
C15 0.4686 (4) 0.4304 (3) 0.60972 (17) 0.0303 (5)
C16 0.4563 (4) 0.5499 (3) 0.54949 (17) 0.0335 (6)
H16 0.550199 0.622488 0.554866 0.040*
C17 0.3101 (4) 0.5634 (3) 0.48277 (18) 0.0349 (6)
H17 0.305259 0.644950 0.442505 0.042*
C18 0.6306 (4) 0.4159 (3) 0.67996 (18) 0.0319 (6)
C19 0.6369 (4) 0.2995 (3) 0.75214 (19) 0.0427 (7)
H19A 0.566277 0.215654 0.727652 0.064*
H19B 0.581134 0.334833 0.808626 0.064*
H19C 0.767611 0.271685 0.767538 0.064*
C20 1.0450 (4) 0.6024 (3) 0.7285 (2) 0.0403 (7)
H20A 0.988715 0.699527 0.733019 0.048*
H20B 1.095478 0.592274 0.666028 0.048*
C21 1.1987 (4) 0.5828 (3) 0.8037 (2) 0.0452 (7)
H21A 1.250590 0.485318 0.799812 0.068*
H21B 1.147964 0.596494 0.865150 0.068*
H21C 1.297892 0.653770 0.795363 0.068*

Source of material

The title compound was prepared by a method reported earlier [4, 5]. 3-tert–Butyl-2-hydroxy-benzaldehyde (178.23 mg, 1 mmol) dissolved in ethanol solution (5 mL) was added to 1-(4-aminophenyl)ethanone O-ethyl-oxime (178.21 mg, 1 mmol) dissolved in ethanol (5 mL) at 325 K. The mixture was kept stirring for 6 h. The mixture was cooled to room temperature and filtered. The filtrate was recrystallized and several clear yellow crystals were obtained.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Schiff base compounds are an important class of ligands in coordination chemistry. Schiff base transition metal complexes are attractive because of their show effective applications in various fields of scientific research. For example, these metal complexes are widely applied in ion recognition [6, 7] luminescence materials [8, 9] and supramolecular constructing [10, 11]. Recently, we have also investigated the title compound synthesis, structural characterization, and we predict that this compound can form stable complexes with transition metals [12].

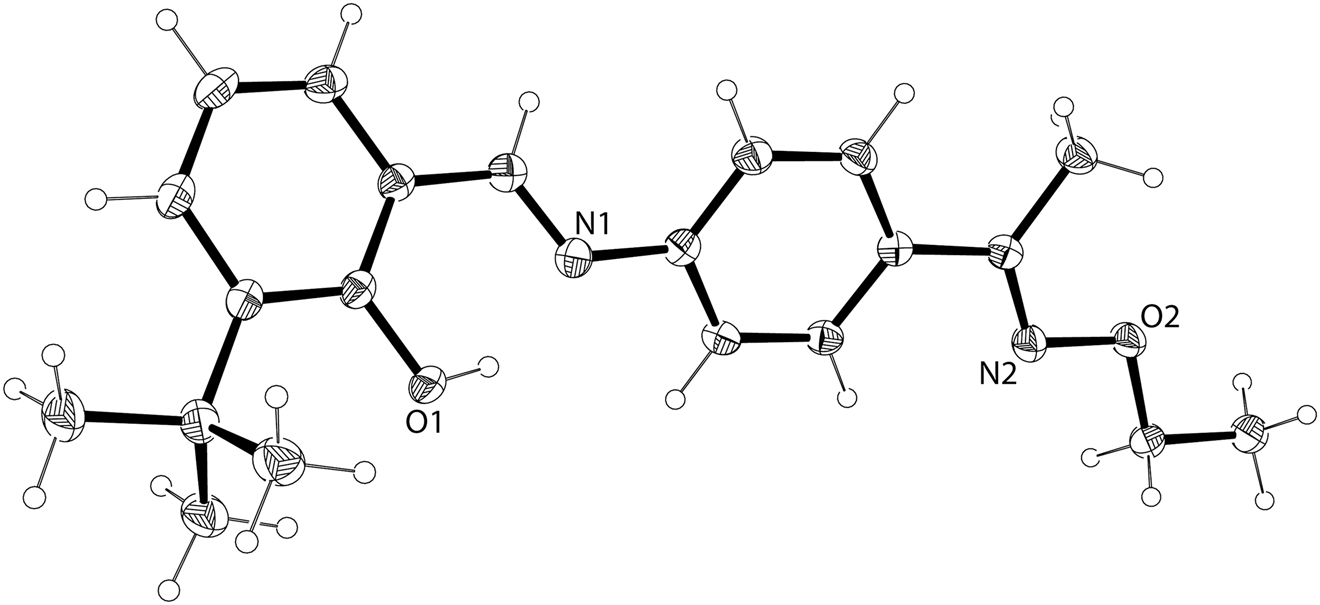

The crystal structure of the title compound is shown in the figure. Compared with reported similar structures, all bond lengths and bond angles are within the normal ranges [4, 5, 13]. In the title compound, there is a strong intramolecular O1—H1···N1 hydrogen bond interaction (d(N1···H1) = 1.821 Å, d(O1—H1) = 0.840 Å and d(O1···N1) = 2.576 Å).

Corresponding author: Ji-Xing Zhao, Analysis and Testing Center, Shihezi University, Xinjiang 832003 , P. R. China, E-mail:

Funding source: Open Project Program of Shihezi University

Award Identifier / Grant number: KX000203

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This project was supported by the Open Project Program of Shihezi University (KX000203).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Brucker AXS Inc.: Madison, WI, USA, 2012.Suche in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

4. Ma, J. X., Wei, P., Li, Q. L., Fu, T., Zhao, J. X., Zhao, L. Crystal structure of (E)-1-(4-(((E)-2-bromo-6-hydroxybenzylidene)amino) phenyl)ethan-1-one O-methyl oxime, C16H15BrN2O2. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 19–20.10.1515/ncrs-2019-0435Suche in Google Scholar

5. Fu, T., Ma, J. X., Li, Q. L., Wei, P., Zhao, J. X., Zhao, L. Crystal structure of (E)-1-{4-[(4-fluoro-2-hydroxybenzylidene)amino] phenyl}ethanone O-methyl oxime, C16H15FN2O2. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 293–295; https://doi.org/10.1515/ncrs-2019-0614.Suche in Google Scholar

6. Wu, Y., Ding, W. M., Li, J., Guo, G., Zhang, S. Z., Jia, H. R., Sun, Y. X. A highly selective turn-on fluorescent and naked-eye colourimetric dual-channel probe for cyanide anions detection in water samples. J. Fluoresc. 2021, 31, 437–446; https://doi.org/10.1007/s10895-020-02677-x.Suche in Google Scholar PubMed

7. Ding, W. M., Wu, Y., Zhang, S. Z., Li, J., Xu, L., Sun, Y. X. A dual-channel ‘turn-on’ fluorescent chemosensor for high selectivity and sensitivity detection of CN− based on a coumarin–Schiff base derivative in an aqueous system. Luminescence 2021, 36, 1–11; https://doi.org/10.1002/bio.4058.Suche in Google Scholar PubMed

8. Wang, F., Gao, L., Zhao, Q., Zhang, Y., Dong, W. K., Ding, Y. J. A highly selective fluorescent chemosensor for CN− based on a novel bis(salamo)-type tetraoxime ligand. Spectrochim. Acta A. 2018, 190, 111–115; https://doi.org/10.1016/j.saa.2017.09.027.Suche in Google Scholar PubMed

9. Hao, J., Li, X. Y., Wang, L., Zhang, Y., Dong, W. K. Luminescent and electrochemical properties of four novel butterfly-shaped hetero-pentanuclear [Zn4Ln] complexes constructed from a bis(salamo)-type ligand. Spectrochim. Acta A. 2018, 204, 388–402; https://doi.org/10.1016/j.saa.2018.06.074.Suche in Google Scholar PubMed

10. Sun, Y. X., Zhao, Y. Y., Li, C. Y., Yu, B., Guo, J. Q., Li, J. Supramolecular cobalt(II) and copper(II) complexes with Schiff base ligand: syntheses, characterizations and crystal structures. Chin. J. Inorg. Chem. 2016, 32, 913–920.Suche in Google Scholar

11. Chang, J., Zhang, H. J., Jia, H. R., Sun, Y. X. Binuclear nickel(II) and zinc(II) complexes based on 2-amino-3-hydroxy-pyridine Schiff base: syntheses, supramolecular structures and spectral properties. Chin. J. Inorg. Chem. 2018, 34, 2097–2107.Suche in Google Scholar

12. Fu, T., Ma, J. X., Wei, P., Li, Q. L., Zhao, J. X., Zhao, L. Synthesis and crystal structure of bis{2-bromo-6-(((4-(1-(methoxyimino) ethyl)phenyl)imino)methyl) phenolato-κ2N,O}cobalt(II)- dichloromethane(1/1), C34H32Br2Cl4CoN4O4. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 59–60.10.1515/ncrs-2019-0474Suche in Google Scholar

13. Ma, B. Y., Fu, T., Jin, Y., Wei, P., Zhao, J. X., Zhao, L. Synthesis and crystal structure of and crystal structure of 1-{4-[(2-bromo-6-hydroxy-benzylidene) amino]phenyl}ethanone, C15H12BrNO2. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 1093–1094; https://doi.org/10.1515/ncrs-2020-0182.Suche in Google Scholar
Received: 2022-03-19
Accepted: 2022-05-05
Published Online: 2022-05-31
Published in Print: 2022-08-26

© 2022 Ji-Xing Zhao et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
