The crystal structure of 3-([1,1′-biphenyl]-2-yl)-1,2-diphenylbenzo[b]phosphole-1-oxide, C32H23OP

  • Chengxiong Yuan , Mingqing Huang , Fen Liu und Haiyang Huang ORCID logo EMAIL logo
Veröffentlicht/Copyright: 29. April 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 4

Abstract

C32H23OP, monoclinic, P21/n (no. 14), a = 9.1869(11) Å, b = 27.940(3) Å, c = 9.6992(11) Å, β = 107.422(2)°, V = 2375.4(5) Å3, Z = 4, R gt (F) = 0.0486, wR ref (F2) = 0.1255, T = 296 K.

CCDC no.: 2158052

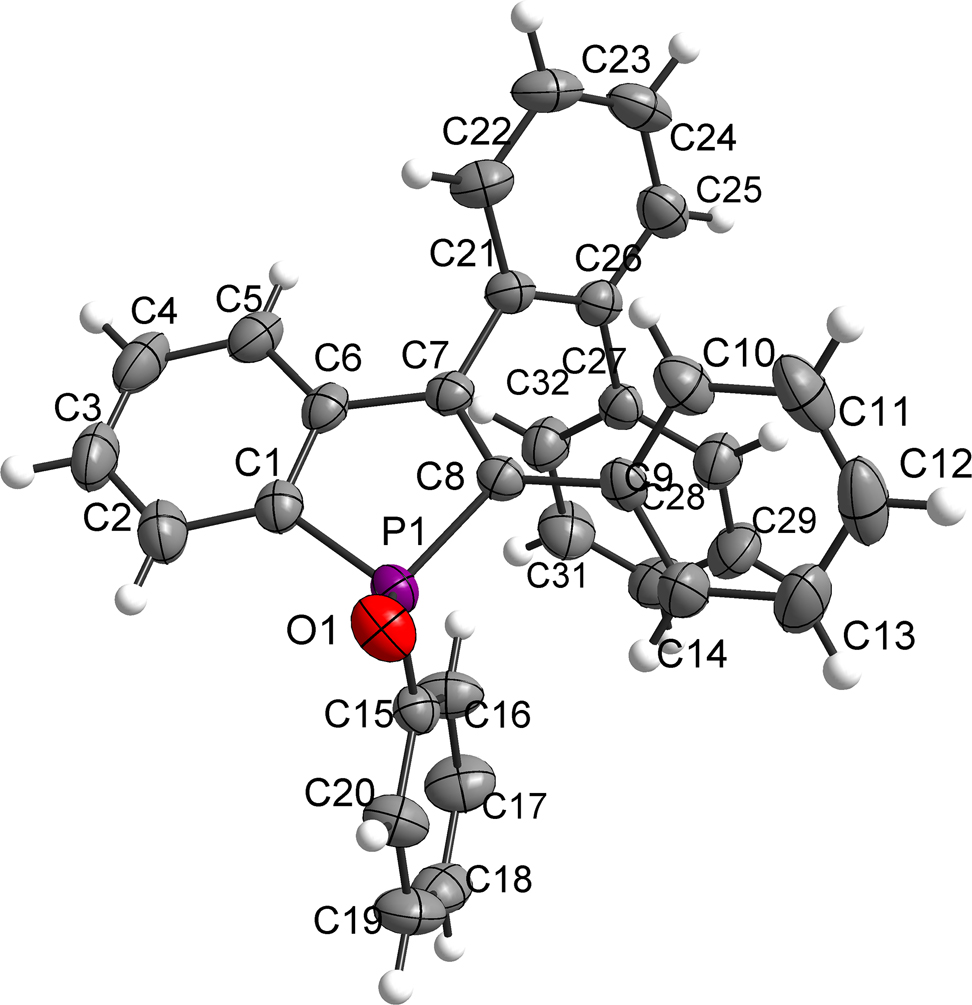

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Block, clear light colourless
Size: 0.03 × 0.02 × 0.02 mm
Wavelength: MoKα radiation (0.71073 Å)
μ: 0.14 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω-scans
θmax, completeness: 27.7°, >99%
N(hkl)measured, N(hkl)unique, Rint: 14340, 5474, 0.023
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 4283
N(param)refined: 307
Programs: Bruker programs [1], OLEX2 [2], SHELX [3], DIAMOND [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

x y z Uiso*/Ueq
P1 −0.31526 (5) −0.62460 (2) −1.10926 (5) 0.03187 (13)
O1 −0.23310 (16) −0.64811 (5) −1.20055 (14) 0.0456 (3)
C15 −0.2687 (2) −0.56190 (6) −1.08523 (19) 0.0339 (4)
C7 −0.43804 (19) −0.65970 (6) −0.92058 (18) 0.0314 (4)
C1 −0.5195 (2) −0.62843 (6) −1.16406 (19) 0.0357 (4)
C8 −0.29812 (19) −0.65141 (6) −0.93524 (18) 0.0308 (4)
C6 −0.5666 (2) −0.64660 (6) −1.0494 (2) 0.0348 (4)
C9 −0.1482 (2) −0.66506 (7) −0.83577 (18) 0.0346 (4)
C27 −0.3507 (2) −0.61312 (6) −0.62986 (18) 0.0337 (4)
C21 −0.4634 (2) −0.68314 (6) −0.79218 (19) 0.0340 (4)
C26 −0.40587 (19) −0.66356 (6) −0.65347 (19) 0.0340 (4)
C20 −0.1948 (2) −0.54123 (7) −1.1750 (2) 0.0478 (5)
H20 −0.1692 −0.5597 −1.2440 0.057*
C5 −0.7214 (2) −0.65133 (7) −1.0659 (2) 0.0466 (5)
H5 −0.7546 −0.6630 −0.9907 0.056*
C22 −0.5319 (2) −0.72819 (7) −0.8084 (2) 0.0447 (5)
H22 −0.5752 −0.7406 −0.9007 0.054*
C16 −0.3067 (3) −0.53379 (7) −0.9842 (2) 0.0497 (5)
H16 −0.3574 −0.5473 −0.9239 0.060*
C25 −0.4070 (2) −0.69139 (7) −0.5345 (2) 0.0454 (5)
H25 −0.3655 −0.6793 −0.4417 0.054*
C10 −0.1248 (2) −0.70930 (7) −0.7662 (2) 0.0471 (5)
H10 −0.2054 −0.7308 −0.7810 0.056*
C23 −0.5362 (2) −0.75470 (7) −0.6894 (3) 0.0519 (5)
H23 −0.5840 −0.7844 −0.7014 0.062*
C28 −0.2023 (2) −0.60206 (8) −0.5523 (2) 0.0486 (5)
H28 −0.1327 −0.6265 −0.5161 0.058*
C32 −0.4515 (2) −0.57576 (7) −0.6797 (2) 0.0477 (5)
H32 −0.5518 −0.5825 −0.7324 0.057*
C2 −0.6242 (2) −0.61585 (7) −1.2938 (2) 0.0483 (5)
H2 −0.5919 −0.6040 −1.3694 0.058*
C18 −0.1961 (2) −0.46567 (7) −1.0615 (3) 0.0531 (5)
H18 −0.1714 −0.4333 −1.0533 0.064*
C4 −0.8264 (2) −0.63825 (8) −1.1974 (3) 0.0577 (6)
H4 −0.9303 −0.6411 −1.2093 0.069*
C31 −0.4060 (3) −0.52869 (8) −0.6527 (3) 0.0573 (6)
H31 −0.4760 −0.5041 −0.6856 0.069*
C24 −0.4694 (3) −0.73672 (8) −0.5535 (3) 0.0527 (5)
H24 −0.4661 −0.7553 −0.4731 0.063*
C30 −0.2578 (3) −0.51829 (8) −0.5774 (2) 0.0576 (6)
H30 −0.2265 −0.4866 −0.5598 0.069*
C3 −0.7782 (3) −0.62122 (8) −1.3093 (3) 0.0582 (6)
H3 −0.8498 −0.6132 −1.3965 0.070*
C17 −0.2698 (3) −0.48576 (8) −0.9721 (3) 0.0578 (6)
H17 −0.2950 −0.4670 −0.9033 0.069*
C19 −0.1588 (3) −0.49295 (8) −1.1624 (3) 0.0588 (6)
H19 −0.1090 −0.4791 −1.2230 0.071*
C14 −0.0246 (2) −0.63459 (9) −0.8135 (2) 0.0531 (5)
H14 −0.0367 −0.6053 −0.8612 0.064*
C29 −0.1563 (3) −0.55475 (8) −0.5281 (3) 0.0586 (6)
H29 −0.0554 −0.5477 −0.4779 0.070*
C11 0.0173 (3) −0.72151 (9) −0.6754 (2) 0.0618 (7)
H11 0.0317 −0.7512 −0.6297 0.074*
C12 0.1374 (3) −0.69019 (11) −0.6522 (3) 0.0683 (7)
H12 0.2324 −0.6984 −0.5896 0.082*
C13 0.1171 (3) −0.64713 (11) −0.7209 (3) 0.0691 (7)
H13 0.1987 −0.6260 −0.7058 0.083*

Source of materials

A modified synthesis similar to a previously reported one was performed [5]: 1-(o-biphenylyl)-2-phenylethyne (5 mmol), diphenylphosphine oxide (10 mmol), and K2S2O8 (15 mmol) were added to a sealed tube under argon, and then CH3CN (20 mL) was added to the reaction tube by syringe. The reaction mixture was kept stirring at 100 °C for 20 h and then was cooled down to ambient temperature. After the reaction was quenched by adding the concentrated aqueous NaCl solution, the aqueous phase was extracted with 3 × 20 mL of CH2Cl2. The organic phase was dried using MgSO4, filtered, and the solvent was removed in vacuo. The residue was column chromatography (petroleum ether/ethyl acetate) to afford the title compound (1.6 g, 71%). Crystals of the title compound were obtained by slow evaporation (n-hexane/CH2Cl2) within seven days.

Experimental details

Coordinates of hydrogen atoms were added using riding models. Their Uiso values were set to 1.2Ueq of the parent atoms.

Comment

Many efforts have been devoted to the development of aggregation-induced emission (AIE) [6]. To date, the primarily accepted AIE mechanism of AIE is derived from the restriction of intramolecular motion including intramolecular rotations and intramolecular vibrations [7]. Therefore, the study on intramolecular motion-mechanical property relationship has received an unprecedented amount of attention [8, 9]. Recently, the benzophosphole-cores, phosphindole oxides, were developed to construct AIEgens [10], because of their unique high stabilities and electronic structures. Their impacts of steric, conjugation and electronic effects on the AIE properties were also showed based on the results of crystallography analysis [11]. The structure-property relationship is of crucial importance for the fundamental understanding and application exploration on AIE luminogens. Therefore, the crystal structure of benzo[b]phosphole with rotatable π-conjugated planes is crucial for understanding their intramolecular motion-mechanical property relationships.

The title compound (see the Figure) consists of a benzo[b]phosphole-core and two rotatable π-conjugated subunits (phenyl and biphenyl). The benzo[b]phosphole-core keeps a perfect co-plane and the quinquevalent phosphorus with four ligands shows a tetrahedral geometry, where the dihedral angle between the phosphole plane and the plane of the phenyl group of the P-substituent is 86.41° due to intramolecular hydrogen-bond of O–H–C20 (2.6023(14) Å). In addition, the motion-restricted o-biphenyl and motion-free phenyl are linked to adjacent C7 (bond length of C7–C21 is 1.486(2) Å) and C8 (bond length of C8–C9 is 1.475(2) Å), respectively.

Corresponding author: Haiyang Huang, Jiangxi Key Laboratory of Organic Chemistry, Jiangxi Science & Technology Normal University, Nanchang 330013, P. R. China, E-mail:

Funding source: Jiangxi Science & Technology Normal University

Award Identifier / Grant number: 2018BSQD025, YC2020-S563

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the PhD start-up fund (NO. 2018BSQD025) and innovation fund (NO. YC2020-S563) of Jiangxi Science & Technology Normal University.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. SHELXT–integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

4. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System (ver. 4.0); Crystal Impact: Bonn, Germany, 2015.Suche in Google Scholar

5. Ma, D., Chen, W., Hu, G., Zhang, Y., Gao, Y., Yin, Y., Zhao, Y. K2S2O8-mediated metal-free direct P–CH/C–CH functionalization: a convenient route to benzo[b]phosphole oxides from unactivated alkynes. Green Chem. 2016, 18, 3522–3526; https://doi.org/10.1039/c6gc01009a.Suche in Google Scholar

6. Luo, J., Xie, Z., Lam, J. W., Cheng, L., Chen, H., Qiu, C., Tang, B. Z. Aggregation-induced emission of 1-methyl-1,2,3,4,5-pentaphenylsilole. Chem. Commun. 2001, 18, 1740–1741; https://doi.org/10.1039/b105159h.Suche in Google Scholar PubMed

7. Mei, J., Hong, Y., Lam, J. W., Qin, A., Tang, Y., Tang, B. Z. Aggregation/induced emission: the whole is more brilliant than the parts. Adv. Mater. 2014, 26, 5429–5479; https://doi.org/10.1002/adma.201401356.Suche in Google Scholar PubMed

8. He, Z., Ke, C., Tang, B. Z. Journey of aggregation-induced emission research. ACS Omega 2018, 3, 3267–3277; https://doi.org/10.1021/acsomega.8b00062.Suche in Google Scholar PubMed PubMed Central

9. Hong, Y., Lam, J. W., Tang, B. Z. Aggregation-induced emission: phenomenon, mechanism and applications. Chem. Commun. 2009, 29, 4332–4353; https://doi.org/10.1039/b904665h.Suche in Google Scholar PubMed

10. Bu, F., Wang, E., Peng, Q., Hu, R., Qin, A., Zhao, Z., Tang, B. Z. Structural and theoretical insights into the AIE attributes of phosphindole oxide: the balance between rigidity and flexibility. Chem. Eur. J. 2015, 21, 4440–4449; https://doi.org/10.1002/chem.201405902.Suche in Google Scholar PubMed

11. Zhuang, Z., Bu, F., Luo, W., Peng, H., Chen, S., Hu, R., Tang, B. Z. Steric, conjugation and electronic impacts on the photoluminescence and electroluminescence properties of luminogens based on phosphindole oxide. J. Mater. Chem. C 2017, 5, 1836–1842; https://doi.org/10.1039/c6tc05591e.Suche in Google Scholar
Received: 2022-03-11
Accepted: 2022-04-19
Published Online: 2022-04-29
Published in Print: 2022-08-26

© 2022 Chengxiong Yuan et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
