The crystal structure of phenantroline-κ2 N,N′-bis(6-phenylpyridine-2-carboxylato-κ2 N,O)copper(II), C36H24N4O4Cu

  • Zhao Mei-Li und Tai Xi-Shi ORCID logo EMAIL logo
Veröffentlicht/Copyright: 29. April 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 4

Abstract

C36H24N4O4Cu, monoclinic, I12/a1 (no. 15), a = 16.5119(17) Å, b = 11.0747(7) Å, c = 17.6272(17) Å, β = 117.916(13)°, V = 2848.3(5) Å3, Z = 4, R gt (F) = 0.0335, wR ref (F 2) = 0.0759, T = 200 K.

CCDC no.: 2167383

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

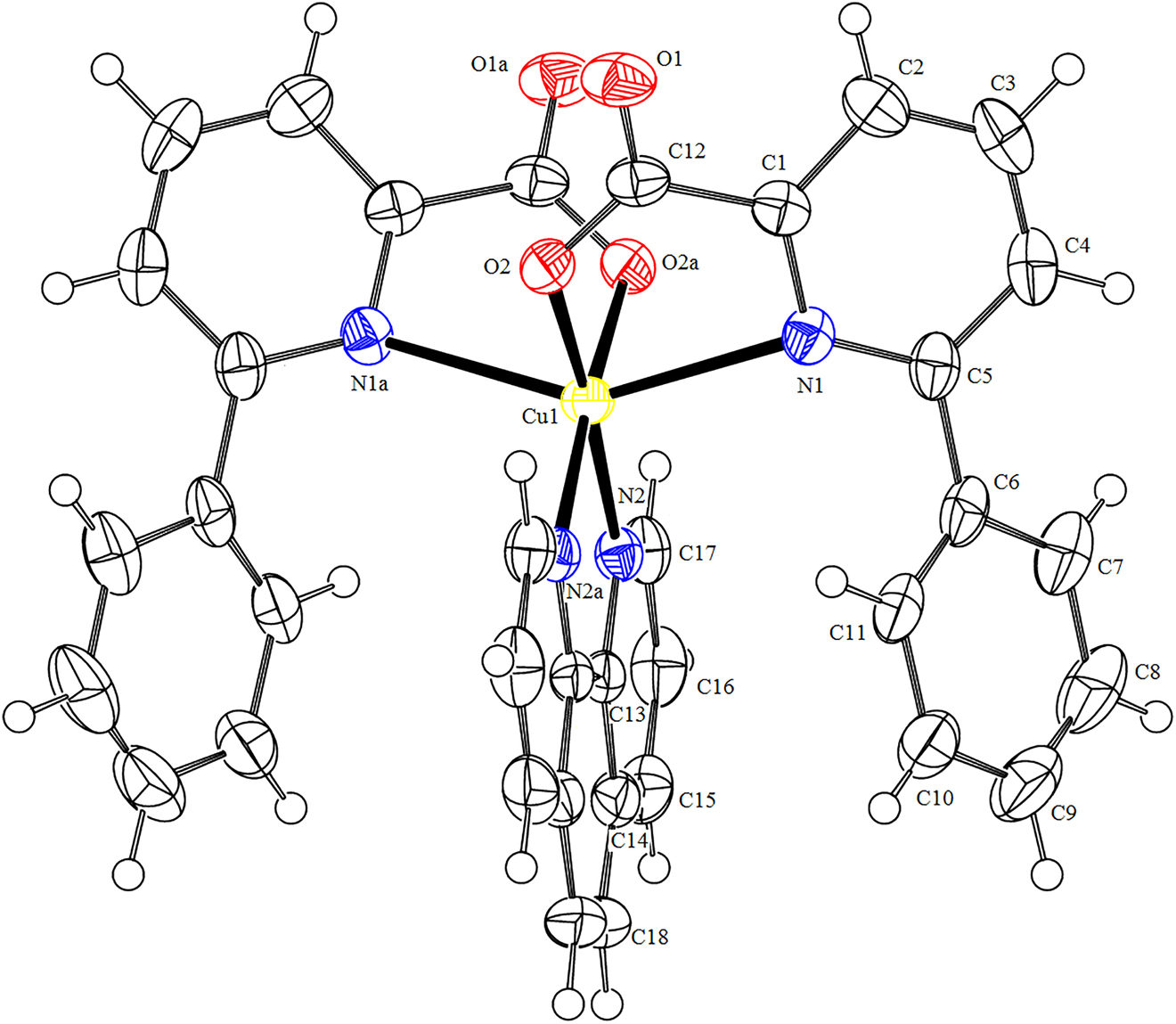

Figure 1: The molecular structure of title compound.
Figure 1:

The molecular structure of title compound.

Table 1:

Data collection and handling.
Crystal: Ble block
Size: 0.13 × 0.12 × 0.1 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.82 mm−1
Diffractometer, scan mode: SuperNova, ω-scans
θ max, completeness: 25°, >99%
N(hkl)measured, N(hkl)unique, R int: 5858, 2513, 0.028
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2156
N(param)refined: 204
Programs: Bruker programs [1], OLEX2 [2], SHELX [3], CrysAlisPRO[4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

x y z U iso*/U eq
Cu1 0.750000 0.66302 (3) 0.500000 0.02650 (13)
O1 0.91121 (12) 0.94971 (14) 0.60478 (10) 0.0427 (4)
O2 0.82833 (11) 0.78297 (14) 0.58435 (9) 0.0327 (4)
N1 0.86092 (12) 0.72077 (16) 0.45147 (11) 0.0293 (4)
N2 0.67609 (12) 0.52537 (16) 0.42456 (11) 0.0263 (4)
C1 0.87672 (15) 0.8348 (2) 0.48023 (14) 0.0298 (5)
C2 0.89685 (16) 0.9265 (2) 0.43810 (16) 0.0415 (6)
H2 0.909055 1.004462 0.460332 0.050*
C3 0.89831 (18) 0.8992 (3) 0.36246 (18) 0.0491 (7)
H3 0.909738 0.959355 0.331860 0.059*
C4 0.88277 (17) 0.7827 (3) 0.33271 (17) 0.0443 (7)
H4 0.883041 0.763399 0.281482 0.053*
C5 0.86662 (15) 0.6937 (2) 0.37956 (15) 0.0333 (6)
C6 0.85970 (16) 0.5637 (2) 0.35623 (16) 0.0362 (6)
C7 0.82686 (18) 0.5263 (3) 0.27118 (17) 0.0502 (7)
H7 0.806144 0.582853 0.227083 0.060*
C8 0.8253 (2) 0.4050 (3) 0.2530 (2) 0.0643 (9)
H8 0.802280 0.380233 0.196254 0.077*
C9 0.8572 (2) 0.3204 (3) 0.3171 (2) 0.0630 (9)
H9 0.856172 0.239028 0.303633 0.076*
C10 0.89069 (19) 0.3555 (2) 0.40155 (19) 0.0499 (7)
H10 0.912826 0.298447 0.445364 0.060*
C11 0.89085 (16) 0.4771 (2) 0.42005 (16) 0.0388 (6)
H11 0.912469 0.501054 0.476832 0.047*
C12 0.87197 (16) 0.8592 (2) 0.56290 (14) 0.0311 (5)
C13 0.70941 (15) 0.41606 (19) 0.45931 (13) 0.0268 (5)
C14 0.66877 (17) 0.3067 (2) 0.42096 (15) 0.0344 (6)
C15 0.58839 (17) 0.3152 (2) 0.34181 (16) 0.0419 (6)
H15 0.558510 0.245303 0.313159 0.050*
C16 0.55422 (17) 0.4248 (3) 0.30703 (16) 0.0417 (6)
H16 0.500917 0.430249 0.254928 0.050*
C17 0.59984 (15) 0.5292 (2) 0.35020 (14) 0.0336 (6)
H17 0.575995 0.603963 0.326050 0.040*
C18 0.7111 (2) 0.1964 (2) 0.46279 (17) 0.0472 (7)
H18 0.684151 0.123239 0.437851 0.057*

Source of materials

Synthesis of phenantroline-κ2 N,N′-bis(6-phenylpyridine-2-carboxylate-κ2 N,O)copper(II): a solution of Cu(CH3COO)2.H2O (100 mg, 0.5 mmol) in 5 mL distilled water was added to the solution of 6-phenylpyridine-2-carboxylic acid (99.6 mg, 0.5 mmol) and NaOH (20 mg, 0.5 mmol) in 10 mL distilled water under stirring. After the solution was heated to 75 °C, a solution of 1,10-phenanthroline (90 mg, 0.5 mmol) in 15 mL ethanol was added to the above mixture. The mixture was then continued to react for 4 h under stirring. When the solution was cooled to room temperature, some blue precipitation appeared and was filtered. The mother liquid was transferred to a small beaker and standed still until blue crystals of the title comound were received after 22 days. Anal. Calcd for C36H24N4O4Cu: C, 67.49; H, 3.75; N, 8.75%. Found: C, 67.27; H, 3.98; N, 8.56%.

Experimental details

The hydrogen atoms were positioned geometrically (C–H = 0.93 Å). Their U iso values were set to 1.2U eq of the parent atoms.

Comment

Pyridine carboxylic acid or 1,10–phenanthroline and their derivatives were widely used to construct metal complexes owing to their abilities to form stable chelates [5]. And their metal complexes exhibited a wide range of potential applications including magnetic properties [6], neurotropic activity [7], fluorescence sensor [8], antimicrobial properties [9], and catalytic activity [10]. We have previously published some metal complexes of Co(II), Cu(II), Zn(II) and Pb(II) with 6-phenylpyridine-2-carboxylate as a bidentate primary ligand [11], [12], [13], [14], [15], [16]. Continuing to enrich our studies on the synthesis of transition metal complexes using pyridine carboxylic acid derivative ligands, herein we used 6-phenylpyridine-2-carboxylic acid and 1,10–phenanthroline as excellent starting materials to construct a new Cu(II) complex.

The molecular structure is given in Figure 1. The Cu(II) complex contains a Cu(II) ion, two 6-phenylpyridine-2-carboxylate ligands and one neutral 1,10-phenanthroline ligand. The asymmetric unit is one half of a complex located on a twofold axis. The Cu(II) ion forms a distorted octahedral six-coordination geometry by coordinating to two N atoms (N1 and N1a) and two O atoms (O2 and O2a) of two 6-phenylpyridine-2-carboxylate ligands, and two N atoms (N2 and N2a) from one 1,10-phenanthroline ligand. The bond angle of both O2–Cu1–N2 and O2a–Cu1–N2a are 173.26(7)°, showing that O2 and N2 (or O2a and N2a) atoms located on the axial position, and other four atoms (O2a, N1, N2a and N1a, or O2, N1, N2 and N1a) located on the equatorial plane. The Cu–N and Cu–O bond distances are 2.0154(18) Å (Cu1–N2),2.0155(17) Å (Cu1–N2a), 2.4418(18) Å (Cu1–N1), 2.4418(17) (Cu1–N1a), 1.9615(15) (Cu1–O2 and Cu1–O2a), respectively, which agrees with the reports [12, 15]. The comlex molecules are further interconnected by π–π intercation of neighboring aromatic rings to form the 3D network structure.

Corresponding author: Tai Xi-Shi, College of Chemistry and Chemical Engineering, Weifang University, Weifang, Shandong 261061, P. R. China, E-mail:

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21171132

Funding source: Natural Science Foundation of Shandong

Award Identifier / Grant number: ZR2014BL003

Funding source: Project of Shandong Province Higher Educational Science and Technology Program

Award Identifier / Grant number: J14LC01

Funding source: Science Foundation of Weifang

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This project was supported by the National Natural Science Foundation of China (No. 21171132), the Natural Science Foundation of Shandong (ZR2014BL003), the Project of Shandong Province Higher Educational Science and Technology Program (J14LC01) and Science Foundation of Weifang.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2000.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Rigaku Oxford Diffraction. CrysAlisPRO Software System (Version 1.171.38.43f); Rigaku Corporation: Oxford, UK, 2015.Suche in Google Scholar

5. Ghadermazi, M., Derikvand, Z., Mahmouidiazar, Z., Shahnejat, E., Rudbari, H. A., Bruno, G., Shokrollahi, A., Nasiri, S., Nader, P. M. A comparison of solution and solid state coordination environments for calcium(II), zirconium(IV), cadmium(II) and mercury(II) complexes with dipicolinic acid and methylimidazole derivatives. J. Coord. Chem. 2015, 68, 3982–4002; https://doi.org/10.1080/00958972.2015.1079627.Suche in Google Scholar

6. Li, J. P., Khan, M. R., Liu, B., Niu, X. G., Li, B. H., Hao, Y. P., Liu, Z. Y. Synthesis, structures and magnetic properties of CuII and CoII compounds based on asymmetric 5-(1H-imidazole-1-yl)-3-pyridine carboxylic acid. Eur. J. Inorg. Chem. 2020, 2020, 3786–3796; https://doi.org/10.1002/ejic.202000595.Suche in Google Scholar

7. Paronikyan, E. G., Ogannisyan, A. V., Paronikyan, R. G., Dzhagatspanyan, I. A., Nazaryan, I. M., Akopyan, A. G., Minasyan, N. S. Synthesis and neurotropic activity of 4-phenylpyridine-3-carboxylic acid and 3-hydroxy-4-phenylthieno[2,3-b]-pyridine derivatives. Pharm. Chem. J. 2019, 52, 839–843; https://doi.org/10.1007/s11094-019-1911-0.Suche in Google Scholar

8. Song, J. F., Wen, H. F., Luo, J. J., Jia, Y. Y., Zhang, X. Y., Su, L. J., Zhou, R. S. Five isomorphic lanthanide metal-organic frameworks constructed from 5-(3-carboxy-phenyl)-pyridine-2-carboxylic acid and oxalate: synthesis, crystal structures and selective fluorescence sensing for aniline. J. Solid State Chem. 2019, 269, 43–50; https://doi.org/10.1016/j.jssc.2018.09.004.Suche in Google Scholar

9. Omoregie1, H. O., Eseol, A. O., Akong, R. A. Mixed ligand complexes of copper(II) with benzoyltrifluoroacetone, 1,10-phenanthroline and 2,2′-bipyridine: structure, spectroscopic and antimicrobial properties. J. Mol. Struct. 2022, 1250, 131826; https://doi.org/10.1016/j.molstruc.2021.131826.Suche in Google Scholar

10. Wang, L. H., Wang, Z. J., Zhao, M. L., Tai, X. S., Ouyang, J., Li, Y. F., Zhang, W., Jia, W. L. Synthesis, crystal structure of tetra-nuclear macrocyclic Zn (II) complex and its application as catalyst for oxidation of benzyl alcohol. Bull. Chem. React. Eng. Catal. 2021, 16, 839–846; https://doi.org/10.9767/bcrec.16.4.10978.839-846.Suche in Google Scholar

11. Tai, X.-S., Wang, Z.-J., Ouyang, J., Li, Y.-F., Zhang, W., Jia, W.-L., Wang, L.-H. The crystal structure of [(phenantroline-κ2N, N″)-bis(6-phenylpyridine-2-carboxylate-κ2N,O) cobalt(II)]monohydrate, C36H26N4O5Co. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1309–1311; https://doi.org/10.1515/ncrs-2021-0319.Suche in Google Scholar

12. Wang, L.-H., Liang, L., Li, X.-T., Cao, S.-H., Tai, X.-S. The crystal structure of bis(6-phenylpyridine- 2-carboxylato-κ2N,O)copper(II), C24H16N2O4Cu. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1251–1253; https://doi.org/10.1515/ncrs-2021-0312.Suche in Google Scholar

13. Wang, L.-H., Wang, Z.-J., Ouyang, J., Tai, X.-S. The crystal structure of bis(6-phenylpyridine- 2-carboxylate-κ2N,O)-(2,2′-bipyridine-κ2N,N″) zinc(II) monohydrate, C34H26N4O5Zn. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1297–1299; https://doi.org/10.1515/ncrs-2021-0312.Suche in Google Scholar

14. Tai, X. S., Liang, L., Li, X. T., Cao, S. H., Wang, L. H. Crystal structure of diaqua-bis(μ2 −6-phenylpyridine-2-carboxylate-κ3N,O:O)- bis(6-phenylpyridine-2-carboxylato-κ2N,O)lead(II)–N,N-dimethylformamide –water (1/2/4), C54H58N6O16Pb2. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1199–1201; https://doi.org/10.1515/ncrs-2021-0277.Suche in Google Scholar

15. Feng, Y. M., Tai, X. S., Xia, Y. P. The crystal structure of [(2,2″-bipyridine-κ2N,N)-bis(6-phenylpyridine-2-carboxylate- κ2N,O)copper(II)], C34H24N4O4Cu. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 285–287.Suche in Google Scholar

16. Tai, X. S., Xia, Y. P. The crystal structure of [(2,2′-bipyridine-κ2N, N″) -bis(6-phenylpyridine- 2-carboxylate-κ2N,O)cobalt(II) monohydrate, C36H26N4O5Co. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 225–227; https://doi.org/10.1515/ncrs-2021-0473.Suche in Google Scholar
