Crystal structure of catena-poly[(5,5,7,12,12,14-hexamethyl -1,4,8,11-tetraazacyclotetradecane- κ4N,N′,Nʺ,N‴)nickel(II)-(μ2-perchlorato-κ2O:O′)] 3,5-dicarboxybenzoate – methanol (1/2), C27H49ClN4NiO12

  • Qiong Wang and Guang-Chuan Ou ORCID logo EMAIL logo
Published/Copyright: June 10, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 4

Abstract

C27H49ClN4NiO12, triclinic, P 1 ‾ (no. 2), a = 11.180(2) Å, b = 12.320(3) Å, c = 12.754(3) Å, α = 98.263(2)°, β = 97.524(2)°, γ = 99.470(2)°, V = 1693.1(6) Å3, Z = 2, Rgt(F) = 0.0423, wRref(F2) = 0.1238, T = 296(2) K.

CCDC no.: 1903262

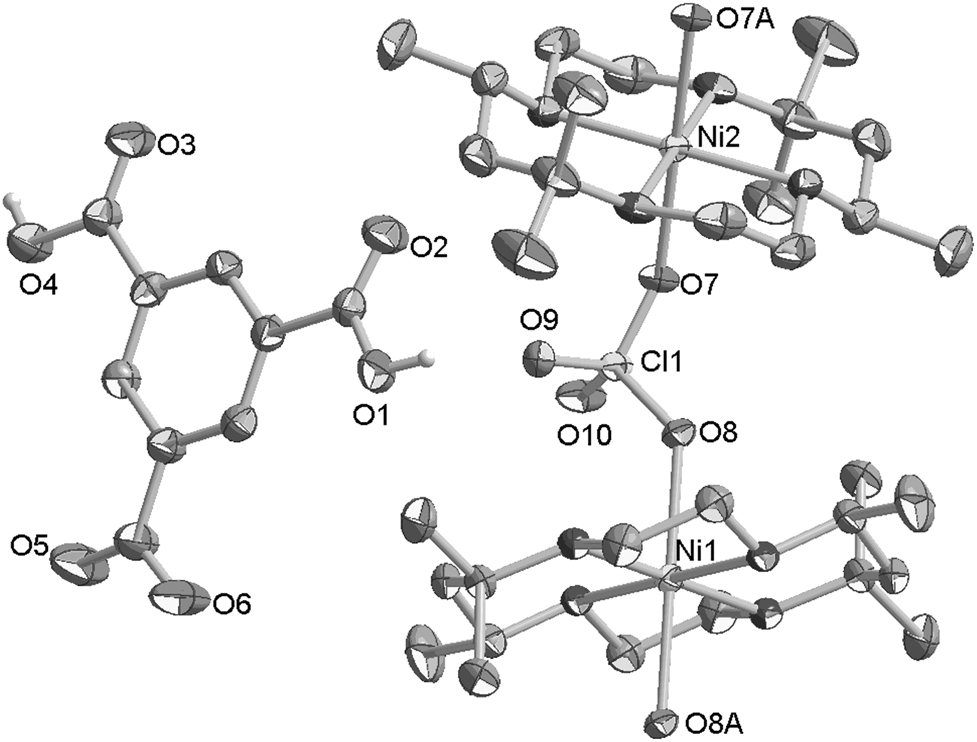

The molecular structure is shown in the figure (methanol molecules are omitted for clarity). Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Pink prism
Size: 0.45 × 0.23 × 0.20 mm
Wavelength: MoKα radiation (0.71073 Å)
μ: 0.72 mm−1
Diffractometer, scan mode: Bruker SMART II, φ and ω
θmax, completeness: 27.4°, >99%
N(hkl)measured, N(hkl)unique, Rint: 19175, 7498, 0.044
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 6179
N(param)refined: 425
Programs: Bruker [1], SHELX [2, 3], Diamond [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Ni1 0.000000 1.000000 1.000000 0.02291 (11)
Ni2 0.000000 1.000000 0.500000 0.02367 (11)
Cl1 −0.07274 (5) 0.91024 (4) 0.73258 (4) 0.02700 (13)
O1 −0.39697 (17) 0.83073 (17) 0.69307 (14) 0.0514 (5)
H1A −0.331490 0.870952 0.690843 0.077*
O2 −0.38133 (19) 0.76220 (17) 0.52536 (15) 0.0535 (5)
O3 −0.70968 (19) 0.44339 (16) 0.33281 (14) 0.0518 (5)
O4 −0.84041 (18) 0.35860 (15) 0.42615 (14) 0.0483 (5)
H4A −0.862574 0.314966 0.369343 0.072*
O5 −0.7749 (2) 0.45750 (19) 0.82119 (17) 0.0690 (7)
O6 −0.6487 (2) 0.61499 (19) 0.89786 (15) 0.0649 (6)
O7 −0.01320 (14) 0.91526 (13) 0.63719 (11) 0.0308 (3)
O8 0.01223 (13) 0.97156 (13) 0.82833 (11) 0.0303 (3)
O9 −0.18267 (13) 0.96314 (14) 0.72100 (12) 0.0333 (4)
O10 −0.10918 (17) 0.79321 (13) 0.74527 (12) 0.0396 (4)
O11 −0.1388 (3) 0.5641 (2) 0.8576 (2) 0.0780 (7)
H11 −0.190 (4) 0.580 (3) 0.795 (4) 0.094*
O12 0.6896 (3) 1.4120 (2) 0.9130 (2) 0.0799 (8)
H12 0.736 (4) 1.457 (4) 0.903 (4) 0.096*
N1 0.14116 (16) 0.91491 (15) 1.04159 (14) 0.0270 (4)
H1 0.154635 0.929888 1.120221 0.032*
N2 0.11609 (16) 1.15188 (15) 1.00967 (14) 0.0273 (4)
H2 0.133042 1.187352 1.085272 0.033*
N3 0.06524 (18) 0.86930 (15) 0.41673 (15) 0.0327 (4)
H3 0.084997 0.897337 0.351731 0.039*
N4 0.17403 (17) 1.08392 (17) 0.57273 (14) 0.0337 (4)
H4 0.210524 1.125235 0.520953 0.040*
C1 −0.4296 (2) 0.7573 (2) 0.60398 (19) 0.0355 (5)
C2 −0.7465 (2) 0.43370 (19) 0.41684 (19) 0.0352 (5)
C3 −0.7029 (3) 0.5388 (2) 0.8146 (2) 0.0441 (6)
C4 −0.5340 (2) 0.66664 (19) 0.60971 (18) 0.0324 (5)
C5 −0.5904 (2) 0.59457 (19) 0.51665 (18) 0.0317 (5)
H5 −0.563774 0.603960 0.451868 0.038*
C6 −0.6866 (2) 0.50810 (19) 0.51923 (18) 0.0325 (5)
C7 −0.7230 (2) 0.4921 (2) 0.61662 (19) 0.0363 (5)
H7 −0.786728 0.433907 0.618842 0.044*
C8 −0.6649 (2) 0.5624 (2) 0.71076 (19) 0.0356 (5)
C9 −0.5717 (2) 0.6509 (2) 0.70739 (19) 0.0359 (5)
H9 −0.534562 0.699644 0.770075 0.043*
C10 0.0842 (2) 0.79573 (19) 1.0155 (2) 0.0362 (5)
H10A 0.134913 0.752295 1.053213 0.043*
H10B 0.077087 0.769749 0.939050 0.043*
C11 0.2679 (2) 0.9451 (2) 1.01443 (18) 0.0320 (5)
C12 0.2722 (2) 0.9001 (2) 0.8968 (2) 0.0436 (6)
H12A 0.260537 0.820087 0.886252 0.065*
H12B 0.350552 0.929700 0.879052 0.065*
H12C 0.208305 0.922274 0.851457 0.065*
C13 0.3587 (2) 0.8975 (3) 1.0880 (2) 0.0474 (6)
H13A 0.354114 0.924303 1.161584 0.071*
H13B 0.440536 0.920986 1.074248 0.071*
H13C 0.338069 0.817446 1.074114 0.071*
C14 0.3049 (2) 1.0736 (2) 1.03913 (18) 0.0342 (5)
H14A 0.298744 1.096684 1.113919 0.041*
H14B 0.390973 1.092277 1.032502 0.041*
C15 0.2365 (2) 1.1460 (2) 0.97418 (18) 0.0332 (5)
H15 0.221561 1.111140 0.898438 0.040*
C16 0.3166 (3) 1.2614 (3) 0.9853 (3) 0.0588 (8)
H16A 0.277394 1.304433 0.938941 0.088*
H16B 0.395155 1.253551 0.965611 0.088*
H16C 0.327715 1.298728 1.058284 0.088*
C17 0.0418 (2) 1.21914 (19) 0.95121 (19) 0.0342 (5)
H17A 0.034646 1.194868 0.874480 0.041*
H17B 0.080973 1.297238 0.968099 0.041*
C18 0.1515 (3) 1.1665 (2) 0.66131 (19) 0.0442 (6)
H18A 0.224266 1.223969 0.685418 0.053*
H18B 0.133824 1.129747 0.721401 0.053*
C19 0.2584 (2) 1.0093 (2) 0.6068 (2) 0.0441 (6)
H19 0.218750 0.962894 0.653380 0.053*
C20 0.3822 (3) 1.0748 (4) 0.6699 (3) 0.0745 (11)
H20A 0.428257 1.111673 0.622485 0.112*
H20B 0.427762 1.024120 0.700366 0.112*
H20C 0.367872 1.129300 0.726357 0.112*
C21 0.2785 (2) 0.9327 (3) 0.5086 (2) 0.0501 (7)
H21A 0.354344 0.906492 0.527527 0.060*
H21B 0.291588 0.977858 0.453237 0.060*
C22 0.1793 (3) 0.8300 (2) 0.4582 (2) 0.0459 (6)
C23 0.1539 (3) 0.7524 (3) 0.5402 (2) 0.0562 (8)
H23A 0.109834 0.786088 0.591767 0.084*
H23B 0.230392 0.740500 0.576339 0.084*
H23C 0.105739 0.682089 0.503756 0.084*
C24 0.2271 (4) 0.7669 (3) 0.3632 (3) 0.0731 (11)
H24A 0.167984 0.700781 0.331396 0.110*
H24B 0.303526 0.746396 0.388673 0.110*
H24C 0.239344 0.814240 0.310480 0.110*
C25 −0.0451 (3) 0.7815 (2) 0.3767 (2) 0.0456 (6)
H25A −0.064876 0.740593 0.433599 0.055*
H25B −0.028919 0.729355 0.318003 0.055*
C26 −0.0301 (4) 0.5299 (4) 0.8309 (4) 0.1033 (15)
H26A 0.001811 0.572997 0.780358 0.155*
H26B −0.048258 0.452191 0.799743 0.155*
H26C 0.029788 0.541328 0.894612 0.155*
C27 0.5846 (4) 1.4032 (4) 0.8396 (4) 0.0979 (15)
H27A 0.527166 1.441121 0.872760 0.147*
H27B 0.548357 1.325915 0.815819 0.147*
H27C 0.605226 1.436612 0.779215 0.147*

Source of material

An acetonitrile solution (20 mL) of [NiL](ClO4)2 (0.270 g, 0.5 mmol) (L=trans-5,5,7,12,12,14-hexamethyl-1,4,8,11-tetraazacyclotetradecane) was added to a methanol solution of trimesic acid (0.210 g, 1 mmol). Crystals of the title compound were obtained by slow evaporation within two weeks.

Experimental details

The structure was solved using direct methods. All the hydrogen atoms of the ligands were placed in calculated positions with fixed isotropic thermal parameters and included in the structure factor calculations in the final stage of full-matrix least-squares refinement. The Uiso values of the hydrogen atoms of methyl groups were set to 1.5Ueq(C) and the Uiso values of all other hydrogen atoms were set to 1.2Ueq(C, N).

Comment

The design and synthesis of extended bridged polymetallic complexes have a subject of great interest in the development of materials chemistry. Many extended bridged complexes such as μ-tetrahedron, μ-succinate, have been synthesized [5], [6], [7].

X-ray crystal structural analysis reveals that the asymmetric unit of the title structure contains one [NiL]2+ (two halfs on centers of symmetry), one [ClO4]− and one [C9H5O6]− plus two methanol molecules. Each Ni(II) atom displays a six-coordinate octahedral coordination geometry by coordination with four nitrogen atoms of ligand L in the equatorial plan, and two oxygen atoms of [ClO4]− in axial positions. Each [ClO4]− anion bridges two adjacent [NiL]2+ cations, forming a one-dimensional chain. The chains are further connected via O–H⃛O hydrogen-bonding interactions, generating a two-dimensional structure.

Corresponding author: Guang-Chuan Ou, Department of Biology and Chemistry, Hunan University of Science and Engineering, Yongzhou, Hunan, 425199, P. R. China, E-mail:

Funding source: Hunan University of Science and Engineering

Award Identifier / Grant number: 19A068

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was financially supported by the scientific research fund of Hunan provincial education department (19A068) and the construct program of applied characteristic discipline in Hunan University of Science and Engineering.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX3, SAINT–Plus, XPREP; Bruker AXS Inc.: Madison, Wisconsin, USA, 2016.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.0; Crystal Impact: Bonn, Germany, 2015.Search in Google Scholar

5. Ou, G. C., Yuan, X. Y., Li, Z. Z. catena–poly[(5,5,7,12,12,14- hexamethyl-1,4,8,11-tetraazacyclotetradecane)nickel(II)]-μ-oxido-[dioxidotungstate(VI)]-μ-oxido] tetrahydrate. Acta Crystallogr. 2012, E68, m1173; https://doi.org/10.1107/s1600536812034538.Search in Google Scholar

6. Ou, G. C., Zhou, Q., Wang, Q. Crystal structure of (4-aminobenzoato)-[5,5,7,12,12,14-hexamethyl-1,4,8,11-tetraazacyclotetradecane]nickel(II) perchlorate monohydrate, C23H44ClN5NiO. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 1095–1097; https://doi.org/10.1515/ncrs-2020-0184.Search in Google Scholar

7. Ou, G. C., Yuan, X. Y., Li, Z. Z. Synthesis and crystal structure of two succinato-bridged macrocyclic nickel(II) complexes. Z. Anorg. Allg. Chem. 2013, 639, 158–162; https://doi.org/10.1002/zaac.201200349.Search in Google Scholar
Received: 2022-04-22
Accepted: 2022-05-30
Published Online: 2022-06-10
Published in Print: 2022-08-26
