The crystal structure of 2,5,5-triphenyl-3,5-dihydro-4H-imidazol-4-one, C21H16N2O

  • De-Xing Wang and Peng Cao ORCID logo EMAIL logo
Published/Copyright: April 29, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 4

Abstract

C21H16N2O, monoclinic, P21/c (no. 14), a = 13.8987(3) Å, b = 15.0321(5) Å, c = 8.1727(2) Å, β = 99.337(2)°, V = 1684.87(8) Å3, Z = 4, R gt (F) = 0.0411, wR ref (F2) = 0.1137, T = 293(2) K.

CCDC no.: 2162862

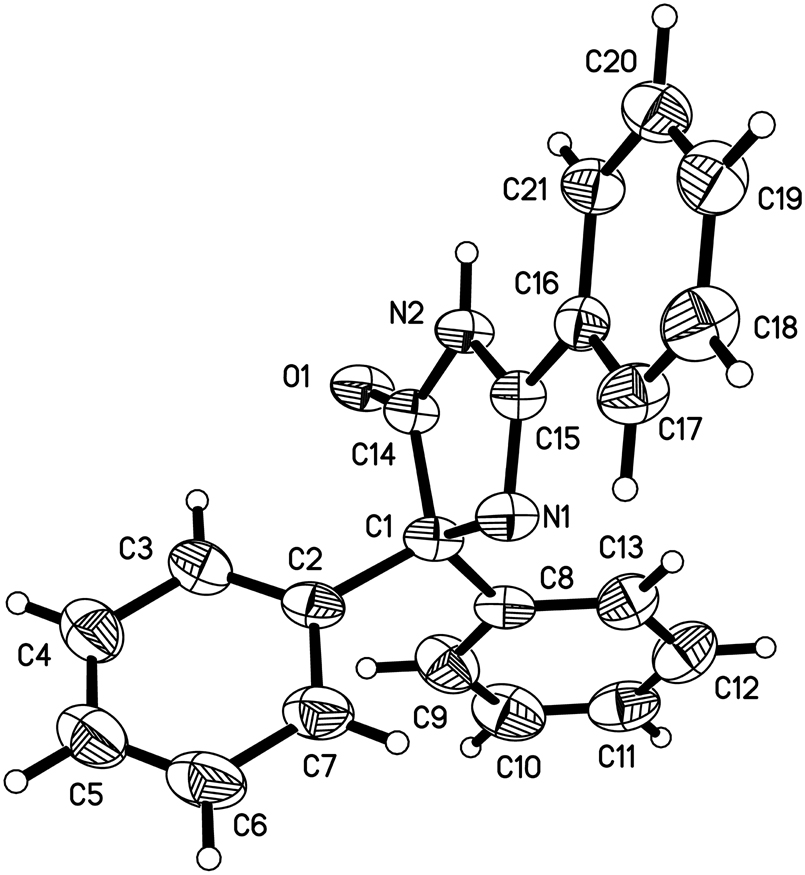

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.22 × 0.15 × 0.11 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 0.61 mm−1
Diffractometer, scan mode: SuperNova, ω
θmax, completeness: 72.8°, >99%
N(hkl)measured, N(hkl)unique, Rint: 6667, 3234, 0.013
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2638
N(param)refined: 217
Programs: CrysAlisPRO [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
C1 0.74319 (9) 0.51071 (10) 0.19701 (16) 0.0550 (3)
C2 0.79443 (9) 0.42408 (11) 0.25976 (17) 0.0585 (4)
C3 0.87390 (12) 0.42931 (14) 0.3870 (2) 0.0790 (5)
H3 0.894475 0.484378 0.431399 0.095*
C4 0.92251 (14) 0.35267 (17) 0.4478 (3) 0.0945 (6)
H4 0.976188 0.356759 0.531764 0.113*
C5 0.89227 (14) 0.27116 (16) 0.3855 (3) 0.0905 (6)
H5 0.924707 0.219982 0.427977 0.109*
C6 0.81470 (14) 0.26513 (14) 0.2614 (2) 0.0844 (5)
H6 0.794053 0.209650 0.219178 0.101*
C7 0.76597 (12) 0.34139 (12) 0.1972 (2) 0.0711 (4)
H7 0.713591 0.336517 0.111016 0.085*
C8 0.80142 (9) 0.56459 (11) 0.08791 (16) 0.0583 (4)
C9 0.85309 (13) 0.52248 (14) −0.0210 (2) 0.0813 (5)
H9 0.856568 0.460703 −0.022206 0.098*
C10 0.89977 (14) 0.57185 (17) −0.1285 (2) 0.0930 (6)
H10 0.934812 0.542920 −0.200477 0.112*
C11 0.89456 (12) 0.66279 (16) −0.1294 (2) 0.0842 (5)
H11 0.925942 0.695599 −0.201527 0.101*
C12 0.84314 (14) 0.70495 (15) −0.0238 (2) 0.0859 (5)
H12 0.839005 0.766706 −0.024803 0.103*
C13 0.79686 (12) 0.65631 (12) 0.0852 (2) 0.0714 (4)
H13 0.762391 0.685877 0.157170 0.086*
C14 0.64152 (9) 0.49473 (10) 0.09496 (16) 0.0531 (3)
C15 0.63067 (9) 0.56885 (9) 0.32955 (15) 0.0511 (3)
C16 0.57888 (10) 0.60890 (9) 0.45479 (16) 0.0519 (3)
C17 0.63227 (12) 0.63793 (12) 0.60360 (19) 0.0704 (4)
H17 0.699840 0.632665 0.622415 0.085*
C18 0.58522 (14) 0.67448 (13) 0.7232 (2) 0.0832 (5)
H18 0.621267 0.694001 0.822644 0.100*
C19 0.48535 (14) 0.68239 (12) 0.6971 (2) 0.0784 (5)
H19 0.454207 0.707566 0.778316 0.094*
C20 0.43147 (12) 0.65316 (12) 0.5510 (2) 0.0706 (4)
H20 0.363884 0.658192 0.533594 0.085*
C21 0.47804 (10) 0.61620 (10) 0.42975 (17) 0.0602 (3)
H21 0.441569 0.596173 0.331111 0.072*
N1 0.72346 (8) 0.56131 (9) 0.34261 (13) 0.0577 (3)
N2 0.57870 (7) 0.53273 (8) 0.18377 (13) 0.0536 (3)
H2 0.516390 0.534468 0.155187 0.064*
O1 0.62100 (7) 0.45767 (8) −0.03928 (12) 0.0653 (3)

Source of material

The synthesis of the title compound was conducted in accord to reference [6] with slightly modification: In a 10 mL dried vessel, 36 mg NaOH (0.9 mmol) and 35.6 mg benzamidine hydrochloride hydrate (0.2 mmol) was purged with oxygen for three times, then 58.9 mg 1,2-diphenylethanone (0.3 mmol) and 0.8 mL pyridine was added. The vessel was sealed and heated at 353 K under stirring for 24 h. The volatiles were removed under vacuum and the residue was dissolved in absolute ethanol. Many colourless crystals were obtained, yield 75.6% (based on benzamidine hydrochloride hydrate).

Experimental details

The structure was solved by direct methods with the SHELXS-2018 program. All H-atoms from C and N atoms were positioned with idealised geometry and refined isotropic (Uiso(H) = 1.2Ueq(C) and 1.2Ueq(N)) using a riding model with C–H = 0.93 Å and N–H = 0.86 Å.

Comment

2-Heterocyclic-5,5-diphenylimidazolones are known as the potent human neuropeptide Y5 receptor antagonists and many analogues have been studied to obtained much better aqueous solubility and oral bioavailability [5]. Although the title compound has been studied earlier as one of the analogues in some places [5, 6], to the best of our knowledge, its single crystal structure has not been reported anywhere except a derivative 2-(anthracen-9-yl)-5,5-diphenyl-1,5-dihydro-4H-imidazol-4-one [7].

The title compound crystalizes as monoclinic, P21/c (no. 14), with the formula C21H16N2O. The title molecule consists of three phenyl groups and one imidazolone fragment. Two identical molecules are connected by two N2–H2⃛O1 hydrogen bonds to generate one dimer, which was reinforced by two weak C21–H21⃛O1 hydrogen bonds. All the bond lengths are similar to the reported results [6–11].

Corresponding author: Peng Cao, Taizhou Institute of Science and Technology, Nanjing University of Science and Technology, Taizhou, Jiangsu, China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. SuperNova, Dual, Cu at home/near, AtlasS2, CrysAlisPro (1.171.40.53): Oxford, England, 2019.10.1353/ner.2019.0086Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Sheldrick, G. M. Using phases to determine the space group. Acta Crystallogr. 2018, A74, a353; https://doi.org/10.1107/s0108767318096472.Search in Google Scholar

5. Gillman, K. W., Higgins, M. A., Poindexter, G. S., Browning, M., Clarke, W. J., Flowers, S., Grace, J. E.Jr., Hogan, J. B., McGovern, R. T., Iben, L. G., Mattson, G. K., Ortiz, A., Rassnick, S., Russella, J. W., Antal-Zimanyi, I. Synthesis and evaluation of 5,5-diphenylimidazolones as potent human neuropeptide Y5 receptor antagonists. Bioorg. Med. Chem. 2006, 14, 5517–5526; https://doi.org/10.1016/j.bmc.2006.04.042.Search in Google Scholar PubMed

6. Xie, Y., Cheng, X., Liu, S., Chen, H., Zhou, W., Yang, L., Deng, G.-J. Efficient 4,5-dihydro-1H-imidazol-5-one formation from amidines and ketones under transition-metal free conditions. Green Chem. 2015, 17, 209–213; https://doi.org/10.1039/c4gc01515k.Search in Google Scholar

7. Eseola, A. O., Görls, H., Plass, W. Importance of monodentate mono-ligand designs in developing N-stabilized Pd catalysts for efficient ambient temperature C–C coupling: donor strengths and steric features. Mol. Catal. 2019, 473, 110398; https://doi.org/10.1016/j.mcat.2019.110398.Search in Google Scholar

8. Alcaide, B., Perez-Ossorio, R., Plumet, J., Sierra, M. A., Garcia-Blanco, S., Martinez-Carrera, S. The reaction of benzil and 2-aminopyridine. A correction. Tetrahedron Lett. 1985, 26, 247–248; https://doi.org/10.1016/s0040-4039(00)61891-9.Search in Google Scholar

9. Zhu, C., Liu, C., Zeng, H., Chen, F., Jiang, H. Transition-metal free selective C(α)–C(β) bond cleavage of trifluoromethyl ketones with amidines under air: facile access to 5-trifluoromethylated imidazol-4-ones. Org. Chem. Front. 2019, 6, 858–862; https://doi.org/10.1039/c9qo00029a.Search in Google Scholar

10. Magirius, F., Linden, A., Heimgartner, H. 4,4-Disubstituted imidazole derivatives from the reaction of 3-amino-2H-azirines with salicylamide. Helv. Chim. Acta 1994, 77, 453–462; https://doi.org/10.1002/hlca.19940770206.Search in Google Scholar

11. Keel, K. L., Tepe, J. J. Total synthesis of Nortopsentin D via a late-stage pinacol-like rearrangement. Org. Lett. 2021, 23, 5368–5372; https://doi.org/10.1021/acs.orglett.1c01681.Search in Google Scholar PubMed

Received: 2022-02-19
Accepted: 2022-03-29
Published Online: 2022-04-29
Published in Print: 2022-08-26

© 2022 De-Xing Wang and Peng Cao, published by De Gruyter, Berlin/Boston
