Crystal structure of (E)-amino(2-(3-ethoxy-4-hydroxybenzylidene)hydrazineyl)methaniminium nitrate hemihydrate C10H16N5O5.5

  • Ze-Sen Jin ORCID logo , E. Liu , Xiao-Jing Liu ORCID logo , Fang-Fang Jian EMAIL logo und Tongling Liang
Veröffentlicht/Copyright: 12. Mai 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 4

Abstract

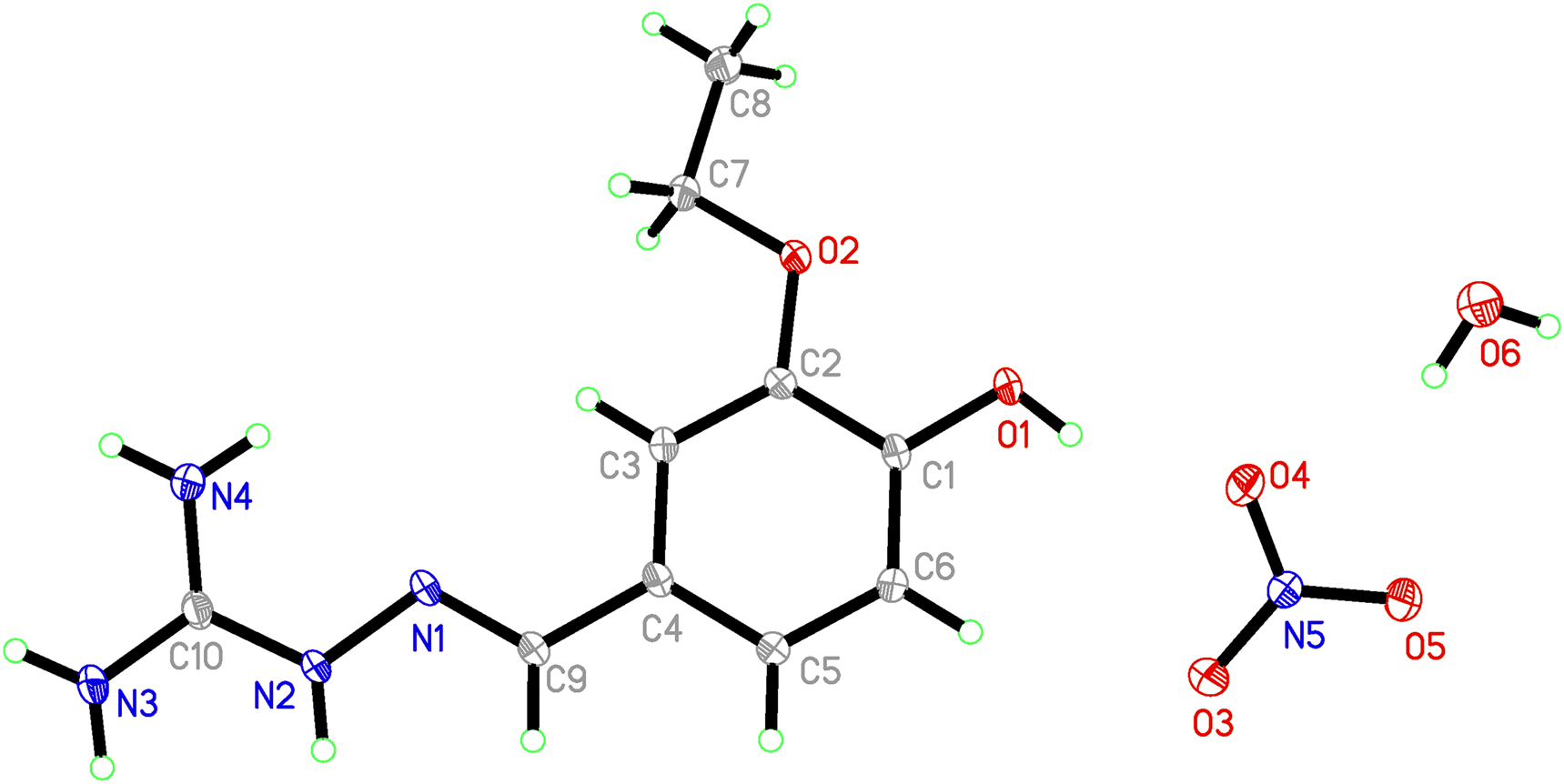

C10H16N5O5.5, monoclinic, C2/c (no. 15), a = 17.7836(8) Å, b = 9.4796(4) Å, c = 15.8740(8) Å, β = 97.093(5)°, V = 2655.6(2) Å3, Z = 8, R gt (F) = 0.0469, wR ref (F2) = 0.1289, T = 170 K.

CCDC no.: 2168515

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Brown block
Size: 0.32 × 0.24 × 0.10 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.12 mm−1
Diffractometer, scan mode: XtaLAB AFC10 (RCD3), ω
θmax, completeness: 30.9°, >99%
N(hkl)measured, N(hkl)unique, Rint: 11,999, 3563, 0.027
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2866
N(param)refined: 188
Programs: CrysAlisPRO [1], SHELX [2], Olex2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
O1 0.25543 (6) 0.39177 (10) 0.39196 (7) 0.0318 (3)
H1 0.229669 0.462203 0.379500 0.048*
O2 0.34455 (6) 0.18510 (9) 0.45047 (6) 0.0284 (2)
N1 0.54638 (6) 0.42068 (11) 0.66818 (7) 0.0232 (2)
N2 0.60827 (6) 0.46825 (12) 0.72163 (7) 0.0249 (3)
H2 0.619101 0.556643 0.725127 0.030*
N3 0.71269 (7) 0.41788 (13) 0.81569 (7) 0.0296 (3)
H3A 0.741245 0.358649 0.845643 0.036*
H3B 0.724219 0.506026 0.816807 0.036*
N4 0.63138 (7) 0.23972 (12) 0.76434 (8) 0.0317 (3)
H4A 0.658947 0.178319 0.793673 0.038*
H4B 0.591003 0.213595 0.732737 0.038*
C1 0.31426 (7) 0.42586 (14) 0.45138 (8) 0.0238 (3)
C2 0.36255 (7) 0.31581 (13) 0.48346 (8) 0.0226 (3)
C3 0.42383 (7) 0.34506 (14) 0.54301 (8) 0.0235 (3)
H3 0.455604 0.272354 0.564714 0.028*
C4 0.43850 (7) 0.48401 (14) 0.57102 (8) 0.0223 (3)
C5 0.39083 (8) 0.59158 (14) 0.53827 (9) 0.0243 (3)
H5 0.400507 0.683902 0.556244 0.029*
C6 0.32881 (8) 0.56270 (14) 0.47890 (9) 0.0258 (3)
H6 0.296932 0.635487 0.457544 0.031*
C7 0.39926 (9) 0.07587 (14) 0.47193 (10) 0.0312 (3)
H7A 0.405204 0.058470 0.532605 0.037*
H7B 0.448020 0.103260 0.455700 0.037*
C8 0.37056 (10) −0.05443 (16) 0.42450 (12) 0.0413 (4)
H8A 0.362942 −0.034757 0.364724 0.062*
H8B 0.323398 −0.082812 0.442902 0.062*
H8C 0.406991 −0.128946 0.435556 0.062*
C9 0.50415 (7) 0.51750 (14) 0.63196 (8) 0.0232 (3)
H9 0.515566 0.611410 0.644769 0.028*
C10 0.65093 (7) 0.37333 (14) 0.76780 (8) 0.0238 (3)
O3 0.21323 (6) 0.76008 (11) 0.32610 (7) 0.0364 (3)
O4 0.14713 (7) 0.56968 (11) 0.33254 (9) 0.0454 (3)
O5 0.10398 (8) 0.73893 (12) 0.25133 (9) 0.0528 (4)
N5 0.15564 (7) 0.69121 (12) 0.30281 (8) 0.0307 (3)
O6 0.000000 0.4579 (2) 0.250000 0.0815 (9)
H6Aa 0.032720 0.516237 0.272680 0.122*
H6Ba −0.021220 0.500368 0.206200 0.122*

  1. aOccupancy: 0.5.

Source of material

3-Ethoxy-4-hydroxybenzaldehyde (1.66 g, 0.01 mol) was placed in 15 ml ethanol at room temperature; then added to the aminoguanidine nitrate (1.37 g, 0.01 mol) solution containing 10 ml water and 8 ml ethanol. The mixture was heated and stirred for 8 h, cooled to room temperature. The precipitate was removed, and the filtrate was left standing to precipitate brown crystals.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

In the field of coordination chemistry, Schiff bases are important organic ligands [4]. Because they contain the >C=N– group, the N atom contains lone electron pairs, and all kinds of functional atomic groups can be introduced around the >C=N– group, which makes it widely studied in the fields of chemistry and biology [5, 6]. Chemists use a variety of amines, aldehydes and ketones for different coordination to form Schiff base compounds with different shapes to meet their different needs for materials in different fields such as materials [7], optics [8] and so on. As an intermediate of medicine and organic synthesis, aminoguanidine has always been a research hotspot in the medical field [9]. Therefore, according to previous studies [10, 11], we synthesized the title compound.

The title compound is formed by dehydration and condensation of amine aldehyde and consists of a positively charged [C10H15N4O2]+, a nitrate anion and a water. The C1=N9 bond length of the compound is 1.2767 Å, which is within the normal range. Other bond lengths and angles are also within the normal range.

Corresponding author: Fang-Fang Jian, School of Chemical Engineering and Pharmaceutics, Henan University of Science and Technology, Luoyang Hekeda Recycling Energy Co.LTD, Luoyang, Henan 471003, P. R. China, E-mail:

Funding source: Open Fund of the Distinguished Professor of Science and Technology of Henan University http://dx.doi.org/10.13039/501100003172

Award Identifier / Grant number: 135100001

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This study was financially supported by the Open Fund of the Distinguished Professor of Science and Technology of Henan University (Grant No. 135100001).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Agilent Technologies. CrysAlispro; Agilent Technologies: Santa Clara, CA, USA, 2017.Suche in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

4. Gomathi, V., Selvameena, R. Synthesis, structural analysis and antimicrobial screening of Mn(II) complexes of Schiff bases. J. Mex. Chem. Soc. 2022, 66, 70–78.10.29356/jmcs.v66i1.1621Suche in Google Scholar

5. Li, M. H., He, W., Zhang, S. Y. The use of cinchona alkaloid derivatives as chiral ligands and organo-catalysts in asymmetric catalysis. Mini-Reviews Org. Chem. 2022, 19, 146–165; https://doi.org/10.2174/1570193x18666210428133120.Suche in Google Scholar

6. Huang, C. Q., Liao, H. Y., Liu, X. H., Xiao, M., Liao, S. Y., Gong, S., Yang, F. J., Shu, X. G., Zhou, X. H. Preparation and characterization of vanillin-chitosan Schiff base zinc complex for a novel Zn2+ sustained released system. Int. J. Biol. Macromol. 2022, 194, 611–618; https://doi.org/10.1016/j.ijbiomac.2021.11.104.Suche in Google Scholar PubMed

7. Zhang, J., Xu, L. L., Wong, W. Y. Energy materials based on metal Schiff base complexes. Coord. Chem. Rev. 2018, 355, 180–198; https://doi.org/10.1016/j.ccr.2017.08.007.Suche in Google Scholar

8. Kamaal, S., Mehkoom, M., Muslim, M., Afzal, S. M., Alarifi, A., Afzal, M., Alowais, A., Muddassir, M., Albalwi, A. N., Ahmad, M. Crystal structure, topological and Hirshfeld surface analysis of a Zn(II) zwitterionic Schiff base complex exhibiting nonlinear optical (NLO) properties using Z-scan technique. Crystals 2021, 11, 508; https://doi.org/10.3390/cryst11050508.Suche in Google Scholar

9. Krollenbrock, A., Li, Y. X., Kelly, J. X., Riscoe, M. K. Robenidine analogues are potent antimalarials in drug-resistant plasmodium falciparum. ACS Infect. Dis. 2021, 7, 1956–1968; https://doi.org/10.1021/acsinfecdis.1c00001.Suche in Google Scholar PubMed PubMed Central

10. Radanović, M. M., Rodić, M. V., Armaković, S., Armaković, S. J., Vojinović-Ješić, L. S., Leovac, V. M. Pyridoxylidene aminoguanidine and its copper(II) complexes – syntheses, structure, and DFT calculations. J. Coord. Chem. 2017, 70, 2870–2887.10.1080/00958972.2017.1367388Suche in Google Scholar

11. Liu, X.-J., Liu, E., Jin, Z.-S., Li, Z.-Y., Jian, F.-F., Liang, T. Crystal structure of (E)-amino(2-(4-(dimethylamino)benzylidene)hydrazineyl)methaniminium nitrate, C10H16N6O3. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 795–796; https://doi.org/10.1515/ncrs-2021-0092.Suche in Google Scholar
Received: 2022-02-22
Accepted: 2022-04-25
Published Online: 2022-05-12
Published in Print: 2022-08-26

© 2022 Ze-Sen Jin et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
