Crystal structure of the cocrystal 1,3,5,7-tetranitro-1,3,5,7-tetrazoctane ─ 2,3-dihydroindole (1/1), C12H17N9O8

  • Penghua Liu ORCID logo , Jiangtao Xing EMAIL logo , Zhiqiang Wang und Baomin Wang EMAIL logo
Veröffentlicht/Copyright: 13. Mai 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 4

Abstract

C12H17N9O8, orthorhombic, Pna21 (no. 33), a = 11.376(4) Å, b = 7.966(2) Å, c = 19.076(6) Å, V = 1728.6(9) Å3, Z = 4, R gt (F) = 0.0373, wR ref (F2) = 0.0908, T = 296 K.

CCDC no.: 2040396

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Block
Size 0.11 × 0.10 × 0.09 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.14 mm−1
Diffractometer, scan mode: φ and ω
θmax, completeness: 25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint: 8177, 2868, 0.031
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2608
N(param)refined: 262
Programs: Bruker [1], SHELX [2, 3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
O1 −0.8248 (3) −0.2308 (4) −0.47495 (19) 0.0764 (10)
O2 −0.7422 (3) −0.4766 (5) −0.4762 (2) 0.0767 (10)
O3 −0.7354 (3) −0.8300 (4) −0.53740 (18) 0.0670 (9)
O4 −0.7177 (2) −0.8092 (3) −0.65001 (18) 0.0633 (8)
O5 −0.7143 (3) −0.4438 (4) −0.6994 (2) 0.0773 (10)
O6 −0.7975 (3) −0.1991 (4) −0.6932 (3) 0.0865 (12)
O7 −0.9795 (3) 0.0106 (3) −0.64065 (19) 0.0695 (9)
O8 −1.0027 (3) −0.0065 (3) −0.5281 (2) 0.0815 (11)
N1 −0.8242 (3) −0.3819 (4) −0.48659 (17) 0.0514 (8)
N2 −0.9242 (2) −0.4502 (3) −0.51380 (14) 0.0345 (6)
N3 −0.7635 (2) −0.7724 (3) −0.5946 (2) 0.0447 (7)
N4 −0.8538 (2) −0.6568 (3) −0.59558 (16) 0.0343 (5)
N5 −0.7985 (3) −0.3527 (4) −0.6893 (2) 0.0524 (8)
N6 −0.9027 (2) −0.4259 (3) −0.67167 (14) 0.0345 (6)
N7 −0.9955 (2) −0.0670 (3) −0.5864 (2) 0.0506 (8)
N8 −1.0067 (2) −0.2407 (3) −0.59208 (18) 0.0414 (6)
C1 −1.0227 (3) −0.3400 (4) −0.5289 (2) 0.0386 (8)
H1A −1.0342 −0.2648 −0.4895 0.046*
H1B −1.0933 −0.4072 −0.5339 0.046*
C2 −0.9212 (3) −0.6272 (4) −0.53184 (18) 0.0355 (7)
H2A −1.0009 −0.6676 −0.5384 0.043*
H2B −0.8863 −0.6898 −0.4935 0.043*
C3 −0.9034 (3) −0.6071 (4) −0.66258 (17) 0.0340 (7)
H3A −0.9836 −0.6479 −0.6658 0.041*
H3B −0.8585 −0.6586 −0.7001 0.041*
C4 −1.0043 (3) −0.3196 (4) −0.6605 (2) 0.0385 (8)
H4A −1.0749 −0.3865 −0.6661 0.046*
H4B −1.0054 −0.2328 −0.6962 0.046*
N9 −0.6252 (4) −0.2716 (5) −0.3394 (2) 0.0743 (11)
H9 −0.6730 −0.3002 −0.3723 0.089*
C5 −0.5291 (7) −0.3883 (6) −0.3281 (3) 0.103 (2)
H5A −0.5060 −0.4413 −0.3718 0.123*
H5B −0.5513 −0.4747 −0.2948 0.123*
C6 −0.4306 (4) −0.2821 (7) −0.2995 (3) 0.0759 (16)
H6A −0.4278 −0.2890 −0.2487 0.091*
H6B −0.3555 −0.3181 −0.3183 0.091*
C7 −0.4588 (3) −0.1082 (4) −0.32259 (18) 0.0420 (8)
C8 −0.3960 (4) 0.0374 (5) −0.3219 (2) 0.0570 (10)
H8 −0.3197 0.0405 −0.3045 0.068*
C9 −0.4501 (5) 0.1822 (5) −0.3482 (2) 0.0672 (13)
H9A −0.4083 0.2826 −0.3484 0.081*
C10 −0.5630 (5) 0.1802 (5) −0.3736 (2) 0.0632 (12)
H10 −0.5965 0.2780 −0.3913 0.076*
C11 −0.6265 (4) 0.0332 (5) −0.3730 (2) 0.0541 (9)
H11 −0.7034 0.0309 −0.3894 0.065*
C12 −0.5742 (3) −0.1108 (4) −0.34762 (16) 0.0380 (7)

Source of material

2.960 g (0.01 mol) of raw β-HMX was added to 5 mL of indoline and was stirred at 320 rpm. After 3 h, the powders were filtered and washed with demonized water before collection.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Energetic materials (explosives, propellants and pyrotechnics) are a class of compounds with large amounts of chemical energy that can decompose and release energy in a very short time while producing high temperature and high pressure and large amounts of gas [5, 6]. At the same time, as an important part of material science, it plays an important role in military and civil fields. The compound 1,3,5,7-tetranitro-1,3,5,7-tetrazoctane (HMX) is one of the best elemental explosives with high density (1.905 g·cm−3) and high energy (detonation velocity 9110 m·s−1, detonation pressure 39 GPa). It has been widely used in many fields such as high-power missile warheads, initiators and high-energy rocket propellants [7]. Solvents are important for the synthesis, eutectic modification and recrystallization of energetic materials [8].

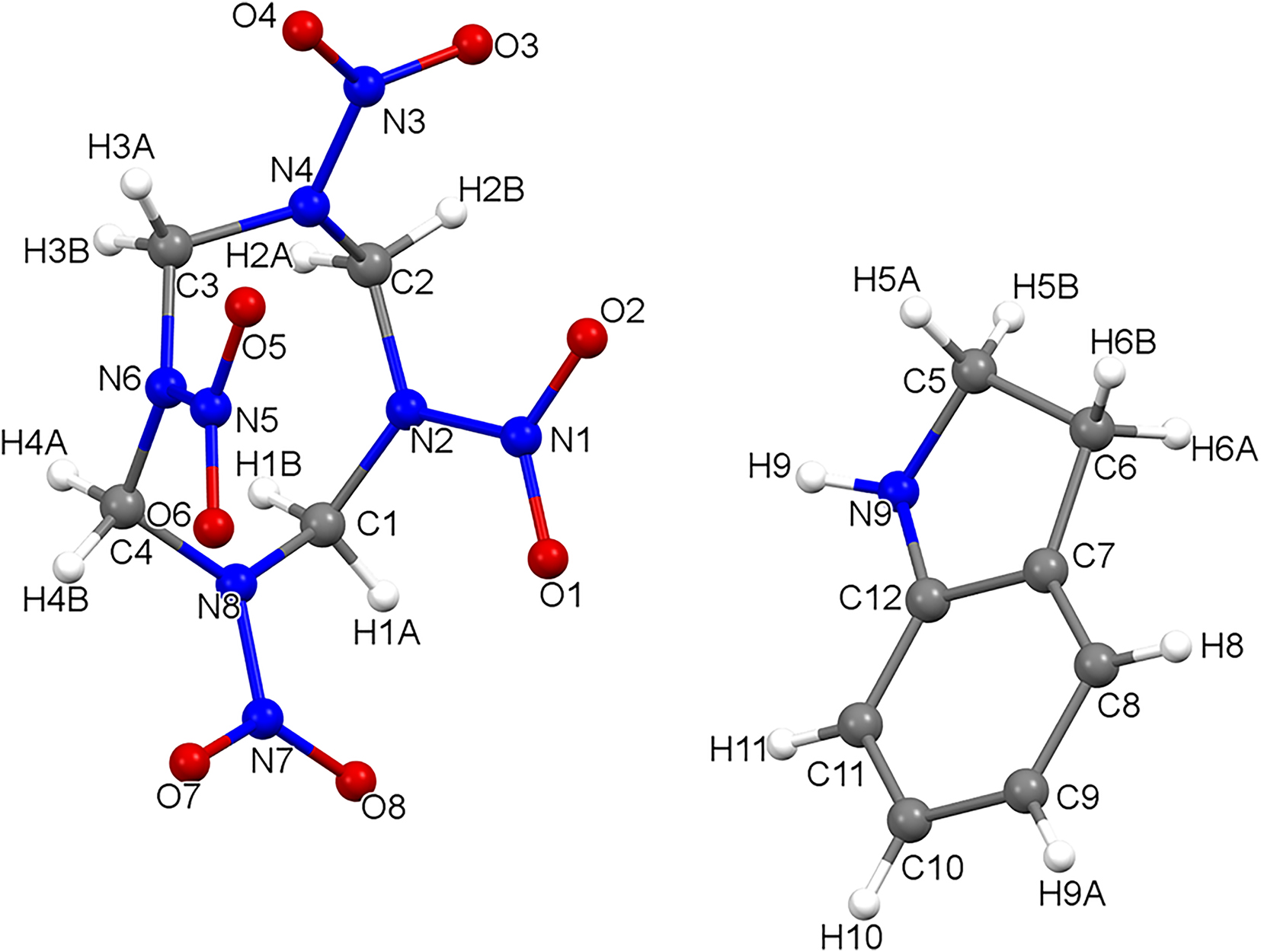

As shown in the figure, the crystal structure of the title compound was formed by 1,3,5,7-tetranitro-1,3,5,7-tetrazoctane (HMX) and 2,3-dihydroindole through intermolecular hydrogen bonding force. There are two kinds of intermolecular hydrogen bonding forces, with bond lengths of 2.554 and 2.669 Å, respectively.

Corresponding authors: Jiangtao Xing, College of Ordnance Engineering, Naval University of Engineering, Wuhan 430000, P. R. China, E-mail: ; and Baomin Wang, School of Environment and Safety Engineering, North University of China, Taiyuan 030051, P. R. China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. BRUKER. SAINT. Version 8.23B; Bruker AXS Inc.: Madison, WI, USA, 2013.Suche in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8. https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with Shelxl. Acta Crystallogr. 2015, C71, 3–8. https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

5. Fried, L. E., Manaa, M. R., Pagoria, P. F., Simpson, R. L. Design and synthesis of energetic materials. Annu. Rev. Mater. Res. 2001, 31, 291–321. https://doi.org/10.1146/annurev.matsci.31.1.291.Suche in Google Scholar

6. Munir, I. Z., Hu, S., Dordick, J. S. Chemoenzymatic synthesis of trinitrobenzyl halides as an alternative approach to hexanitrostilbene. Adv. Synth. Catal. 2002, 344, 1097–1102. https://doi.org/10.1002/1615-4169(200212)344:10<1097::aid-adsc1097>3.0.co;2-s.10.1002/1615-4169(200212)344:10<1097::AID-ADSC1097>3.0.CO;2-SSuche in Google Scholar

7. Herrmann, M., Förter-Barth, U., Bohn, M. A., Krause, H., Koch, M., Arnold, W. Microstructure of the HMX-based PBX KS32 after mechanical loading. Propellants, Explos. Pyrotech. 2015, 40, 880–885. https://doi.org/10.1002/prep.201500052.Suche in Google Scholar

8. Herrmannsdörfer, D., Stierstorfer, J., Klapötke, T. M. Solubility behaviour of CL-20 and HMX in organic solvents and solvates of CL-20. Energ. Mater. Front. 2021, 2, 51–61; https://doi.org/10.1016/j.enmf.2021.01.004.Suche in Google Scholar
Received: 2022-04-06
Accepted: 2022-05-02
Published Online: 2022-05-13
Published in Print: 2022-08-26
