Crystal structure of catena-poly[tribenzyl-κ1C-(μ2-6-oxidopyridin-1-ium-3-carboxylato-κ2O:O’)tin(IV)-dichloromethane-methanol (1/1/1), C29H31Cl2NO4Sn

  • Zhongjun Gao ORCID logo EMAIL logo and Haifeng Zhang
Published/Copyright: May 20, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 4

Abstract

C29H31Cl2NO4Sn, monoclinic, P21/n (no. 14), a = 10.638(4) Å, b = 17.168(7) Å, c = 18.399(5) Å, β = 120.573(16)°, V = 2893.1(18) Å3, Z = 4, R gt (F) = 0.0314, wR ref (F2) = 0.0875, T = 298 K.

CCDC no.: 2158088

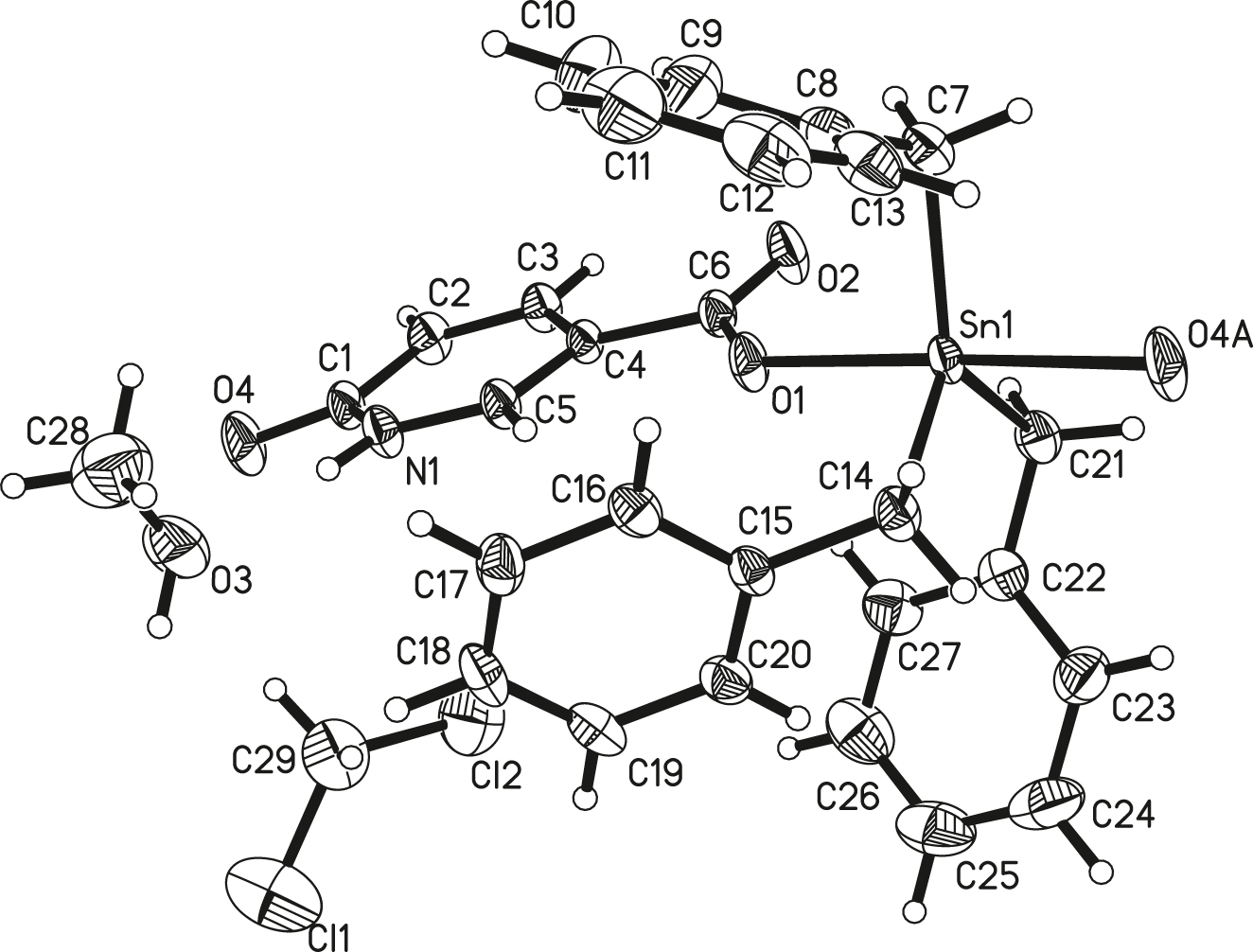

The asymmetric unit of the title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.49 × 0.35 × 0.26 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.10 mm−1
Diffractometer, scan mode: φ and ω
θmax, completeness: 25.5°, >99%
N(hkl)measured, N(hkl)unique, Rint: 14894, 5365, 0.024
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 4501
N(param)refined: 335
Programs: Bruker [1], SHELX [2], Olex2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Sn1 0.15603 (2) 0.25443 (2) 0.99415 (2) 0.03244 (9)
O1 0.3616 (2) 0.26285 (12) 0.99845 (14) 0.0446 (5)
O2 0.5139 (3) 0.23656 (14) 1.13394 (15) 0.0586 (6)
O4 0.9140 (3) 0.25531 (14) 0.97169 (18) 0.0624 (7)
N1 0.6867 (2) 0.27838 (15) 0.94526 (15) 0.0416 (5)
H1 0.664332 0.294523 0.895866 0.050*
C1 0.8280 (3) 0.25667 (16) 0.99955 (19) 0.0402 (7)
C2 0.8619 (3) 0.23765 (17) 1.0825 (2) 0.0437 (7)
H2 0.957580 0.225427 1.123133 0.052*
C3 0.7563 (3) 0.23705 (16) 1.10335 (19) 0.0400 (6)
H3 0.781090 0.224768 1.158304 0.048*
C4 0.6087 (3) 0.25482 (14) 1.04280 (18) 0.0312 (6)
C5 0.5800 (3) 0.27601 (17) 0.96456 (17) 0.0379 (6)
H5 0.485028 0.289113 0.923545 0.045*
C6 0.4885 (3) 0.25093 (14) 1.06240 (19) 0.0368 (6)
C7 0.1870 (4) 0.36473 (17) 1.05591 (19) 0.0466 (7)
H7A 0.114665 0.371213 1.072650 0.056*
H7B 0.283002 0.366407 1.106361 0.056*
C8 0.1730 (4) 0.42922 (18) 0.99772 (19) 0.0480 (7)
C9 0.2933 (5) 0.4664 (2) 1.0043 (3) 0.0712 (10)
H9 0.386388 0.451898 1.046705 0.085*
C10 0.2769 (6) 0.5254 (3) 0.9481 (3) 0.0953 (15)
H10 0.358764 0.550373 0.953540 0.114*
C11 0.1404 (7) 0.5467 (2) 0.8850 (3) 0.0902 (15)
H11 0.129761 0.585651 0.847146 0.108*
C12 0.0212 (6) 0.5112 (2) 0.8777 (3) 0.0783 (12)
H12 −0.071270 0.526278 0.835053 0.094*
C13 0.0353 (4) 0.4528 (2) 0.9328 (2) 0.0594 (9)
H13 −0.047824 0.428745 0.926779 0.071*
C14 0.0323 (3) 0.25772 (16) 0.85884 (18) 0.0410 (7)
H14A −0.030413 0.212217 0.838847 0.049*
H14B −0.030255 0.303296 0.841483 0.049*
C15 0.1211 (3) 0.25991 (15) 0.81650 (17) 0.0355 (6)
C16 0.1675 (3) 0.32986 (17) 0.79970 (17) 0.0419 (7)
H16 0.142100 0.376700 0.814260 0.050*
C17 0.2515 (3) 0.33054 (19) 0.76137 (19) 0.0484 (7)
H17 0.280408 0.377822 0.749851 0.058*
C18 0.2921 (4) 0.2619 (2) 0.7403 (2) 0.0510 (8)
H18 0.347915 0.262578 0.714524 0.061*
C19 0.2491 (3) 0.1925 (2) 0.75797 (18) 0.0508 (8)
H19 0.277176 0.145837 0.744688 0.061*
C20 0.1645 (3) 0.19142 (18) 0.79533 (18) 0.0440 (7)
H20 0.136080 0.143833 0.806526 0.053*
C21 0.1906 (3) 0.13886 (17) 1.04616 (19) 0.0448 (7)
H21A 0.285568 0.135967 1.097301 0.054*
H21B 0.116831 0.126948 1.060592 0.054*
C22 0.1829 (3) 0.08103 (17) 0.98349 (19) 0.0451 (7)
C23 0.0519 (4) 0.0442 (2) 0.9271 (2) 0.0626 (9)
H23 −0.032079 0.055173 0.928970 0.075*
C24 0.0457 (6) −0.0087 (2) 0.8682 (3) 0.0843 (14)
H24 −0.042286 −0.033141 0.831453 0.101*
C25 0.1663 (6) −0.0254 (2) 0.8634 (3) 0.0851 (14)
H25 0.160854 −0.061045 0.823830 0.102*
C26 0.2961 (5) 0.0108 (2) 0.9175 (3) 0.0795 (12)
H26 0.378872 0.000039 0.914375 0.095*
C27 0.3039 (4) 0.0634 (2) 0.9769 (2) 0.0607 (9)
H27 0.392487 0.087463 1.013261 0.073*
O3 0.6395 (3) 0.33764 (18) 0.78776 (16) 0.0820 (8)
H3A 0.609829 0.315078 0.742637 0.123*
C28 0.6180 (6) 0.4162 (3) 0.7735 (3) 0.1045 (16)
H28A 0.515588 0.426538 0.737753 0.157*
H28B 0.669587 0.434351 0.746579 0.157*
H28C 0.653664 0.442832 0.826360 0.157*
Cl1 0.6663 (2) 0.07753 (11) 0.72801 (10) 0.1408 (7)
Cl2 0.63999 (17) 0.08200 (8) 0.87653 (10) 0.1133 (4)
C29 0.6466 (5) 0.1346 (3) 0.7981 (3) 0.0893 (13)
H29A 0.557529 0.164824 0.767348 0.107*
H29B 0.727612 0.170925 0.824303 0.107*

Source of material

A mixture of tribenzyltin oxide (1.6003 g, 2.0 mmol) and 6-hydroxy-nicotinic acid (0.5564 g, 4.0 mmol), in methanol (40 ml) was heated under reflux for 6 h. The obtained clear solution was evaporated under vacuum. The product was crystallized from a mixture of dichloromethane/ethanol (1:1). Yield 1.8892 g, 73%, m.p. 462 K.

Experimental details

H atoms were included in the riding model approximation with C–H 0.93–0.97 Å, and with Uiso(H) = 1.2Ueq(C) or 1.5Ueq(methyl C). The O- and N-bound H atoms were refined with O–H = 0.82+−0.01 Å and N–H = 0.86%A, and with Uiso(H) = 1.5Ueq(O) or 1.2Ueq(N).

Comment

Studies on organotin(IV) compounds having carboxylate ligands with additional donor atom, such as N, O, or S, revealed new structural types which may lead to compounds with different activities [4], [5], [6], [7], [8]. In order to exploring whether or not the hetero-atoms (N, O or S) of the carboxylic acid derivatives influence the coordination mode and extension of triaryltin compounds with heteroatom carboxylate ligands this study was undertaken.

In the title compound, the Sn atom exists in a distorted trigonal bipyramidal, surrounded axially by two oxygen atoms and equatorialy by the carbon atoms of the benzyl groups. It has an infinite one-dimensional polymeric chain structure, due to the Sn1–O1 and Sn1–O4A [symmetry operation: x−1, y, z] distances of 2.153(2) and 2.3391(2) Å, respectively, comparable to a related structure [9]. Translational pseudosymmetry is found in the title structure (klassengleich, c/2). The pseudosymmetry is mainly caused by the solvent molecules. Such a translational symmetry is an often found feature of reported structures [10].

In detail the distortions from ideal trigonal bipyramidal symmetry for the compound is reflected by the bond angles around the tin atom: C7–Sn1–O1 92.39(10)°, C7–Sn1–O4A 87.01(10)°, C14–Sn1–O1 93.04(10)°, C14–Sn1–O4A 80.10(11)°, C21–Sn1–O1 96.01(10)° and C21–Sn1–O4A 90.48(10)°, respectively. The bond angle O1–Sn1–O4A is 172.05(8)° which is deviating from the linear angle by 7.95°. The sum of the C7–Sn1–C21 129.26(13)°, C14–Sn1–C7 115.45(11)° and C14–Sn1–C21 113.93(11)° bond angles is 358.64°, which shows that the atoms of Sn1, C7, C14 and C21 are almost in the same plane. Therefore the tin atom forms a distorted trigonal bipyramidal structure. Due to the protonation at N, a coordination at this site is impossible, which is different to the tribenyltin 4-picolinate and similar others [11], [12], [13], [14].

There are strong intermolecular N–H⋯O hydrogen bonds (N1–O3 = 2.865 Å) involving pyridinium–N–H and the methanol hydroxyl O atom. There are also intermolecular O–H⋯O hydrogen bonds (O3–O2i = 2.752 Å) [symmetry code: x, −y+0.5, z−0.5] between the methanol hydroxyl O atom and the picolinic carboxyl O atom non-coordinating to Sn center.

Corresponding author: Zhongjun Gao, School of Chemistry, Chemical Engineering and Materials, Jining University, Qufu, 273155, Shandong Province, China, E-mail:

Funding source: National Natural Science Foundation of China

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This study was financially supported by National Natural Science Foundation of China (Grant No. 2217011475).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. BRUKER. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

4. Lo, K. M., Lee, S. M., Tiekink, E. R. T. Crystal structure of trans-dichloridobis(4-chlorophenyl-κC1)-(1,10-phenanthroline-κ2N,N’)tin(IV) dimethylsulphoxide solvate, C26H22Cl4N2OSSn. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 1327–1329; https://doi.org/10.1515/ncrs-2020-0302.Search in Google Scholar

5. Gao, Z. J., Tian, G. R., Zhao, G. W., Si, C. D. Synthesis and structure of a novel tetranuclear 32-membered macrocycle of triphenyltin complex with pyridine-4-carboxylic acid N-oxide. Inorg. Chem. Commun. 2010, 13, 461–463; https://doi.org/10.1016/j.inoche.2009.12.026.Search in Google Scholar

6. Lee, S. M., Lo, K. M., Tiekink, E. R. T. Crystal structure of 4-(dimethylamino)pyridinium dibromido-tris(4-chlorophenyl-κC1)stannate(IV), C25H23Br2Cl3N2Sn. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1267–1269; https://doi.org/10.1515/ncrs-2021-0298.Search in Google Scholar

7. Ma, C. L., Zhang, J. H., Tian, G. R., Zhang, R. F. Syntheses, crystal structures and coordination modes of tri- and di-organotin derivatives with 2-mercapto-4-methylpyrimidine. J. Organomet. Chem. 2005, 690, 519–533; https://doi.org/10.1016/j.jorganchem.2004.10.020.Search in Google Scholar

8. Yin, H. D., Wang, C. H., Wang, Y., Ma, C. L., Wang, D. Q. Synthesis and characterization of triorganotin esters of heteroaromatic carboxylic acid and crystal structure of (Bu3SnO2CCH2C8H6N)–Bu-n and (PhCH2)3SnO2CC5H4N. Indian J. Chem. 2003, 42, 881–888.Search in Google Scholar

9. Vollano, J. F., Day, R. O., Holmes, R. R. Hydrolysis pathway leading to the formation of novel oxo- and halo-bridged tin(IV) ladder compounds. The molecular structure of the dimeric distannoxanes [Ph2(Cl)SnOSnPh2(OH)]2·2(CH3)2CO and [Ph2(Cl)SnOSnPh2(Cl)]2. Organometallics 1984, 3, 745–750; https://doi.org/10.1021/om00083a017.Search in Google Scholar

10. Gielen, M., Dalil, H., Ghys, L., Boduszek, B., Tiekink, E. R. T., Martins, J. C., Biesemans, M., Willem, R. Synthesis and structure of di-n-butyltin pyridine-2-phosphonate-6-carboxylate. Organometallics 1998, 17, 4259–4262; https://doi.org/10.1021/om9803725.Search in Google Scholar

11. Reiss, G. J. The pseudosymmetric crystal structure of bis((dimethylphosphoryl)-methanaminium oxonium tribromide, C6H25Br3N2O3P2. Z. Kristallogr. N. Cryst. Struct. 2013, 228, 431–433; https://doi.org/10.1524/ncrs.2013.0203.Search in Google Scholar

12. Lee, M. S., Lo, K. M., Tiekink, E. R. T. Redetermination of the crystal structure of catena-poly[[tribenzyltin(IV)]-(μ2-pyridine-4- carboxylato-κ2N:O)], C27H25NO2Sn. Z. Kristallogr. N. Cryst. Struct. 2019, 234, 835–837; https://doi.org/10.1515/ncrs-2019-0146.Search in Google Scholar

13. Li, F. H., Yin, H. D., Li, G., Wang, D. Q. Tri-n-butyl(5-chloro-6- hydroxypyridine-3-carboxylato)tin(IV). Acta Crystallogr. 2006, E62, 645–647; https://doi.org/10.1107/S1600536806006659.Search in Google Scholar

14. Gao, Z. J., Yin, H. D., Li, G., Wang, D. Q. catena- Poly[[triphenyltin(IV)]-μ-6-hydroxypyridine-3-carboxylato]. Acta Crystallogr. 2006, E62, 666–667; https://doi.org/10.1107/S1600536806006726.Search in Google Scholar
Received: 2022-03-27
Accepted: 2022-05-05
Published Online: 2022-05-20
Published in Print: 2022-08-26
