The crystal structure of diaqua-bis(6-phenylpyridine-2-carboxylato-κ2N,O) manganese(II) — water — dimethylformamide (1/2/1), C27H31N3O9Mn

  • Li-Hua Wang und Xi-Shi Tai ORCID logo EMAIL logo
Veröffentlicht/Copyright: 20. Mai 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 4

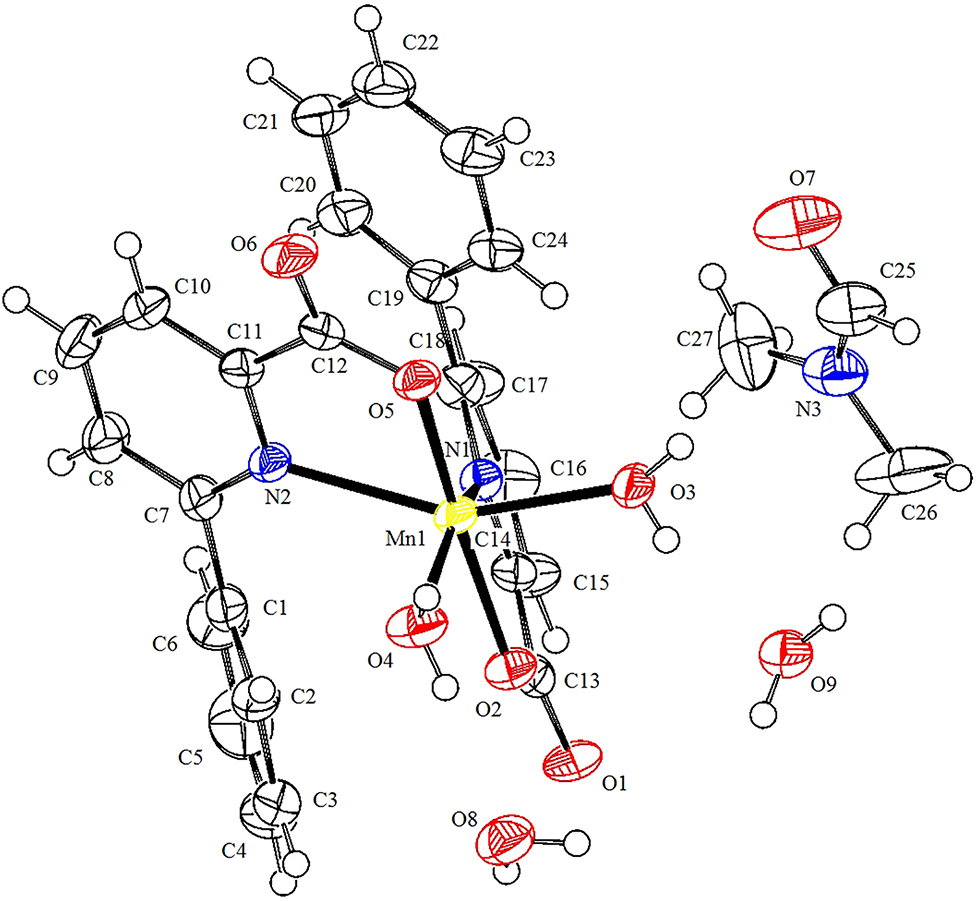

Abstract

C27H31N3O9Mn, monoclinic, P21/n (no. 14), a = 10.8917(9) Å, b = 11.2673(16) Å, c = 23.077(3) Å, β = 93.319(10)°, V = 2827.2(6) Å3, Z = 4, R gt (F) = 0.0735, wR ref (F2) = 0.1938, T = 250 K.

CCDC no.: 2171577

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.14 × 0.12 × 0.11 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.52 mm−1
Diffractometer, scan mode: SuperNova, ω-scans
θmax, completeness: 25°, >99%
N(hkl)measured, N(hkl)unique, Rint: 13,104, 4974, 0.069
Criterion for Iobs, N(hkl)gt: Iobs > 2σ(Iobs), 3515
N(param)refined: 395
Programs: Bruker programs [1], OLEX2 [2], SHELX [3], CrysAlisPRO [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

x y z Uiso*/Ueq
Mn01 0.31430 (5) 0.44299 (6) 0.40765 (2) 0.0265 (2)
O1 −0.0383 (2) 0.3250 (3) 0.44477 (13) 0.0427 (9)
O2 0.1248 (2) 0.4335 (3) 0.42615 (12) 0.0332 (8)
O3 0.3484 (3) 0.4399 (3) 0.50143 (13) 0.0404 (10)
O4 0.2695 (3) 0.6288 (3) 0.39457 (14) 0.0401 (9)
O5 0.5025 (2) 0.4963 (3) 0.39945 (11) 0.0303 (7)
O6 0.6603 (2) 0.5138 (3) 0.34216 (12) 0.0391 (8)
N1 0.2608 (3) 0.2415 (3) 0.40791 (13) 0.0275 (8)
N2 0.3599 (3) 0.4051 (3) 0.31127 (13) 0.0263 (8)
C1 0.1556 (4) 0.3445 (5) 0.27559 (17) 0.0342 (11)
C2 0.0934 (4) 0.4429 (5) 0.29274 (18) 0.0381 (12)
H2 0.136803 0.512320 0.301507 0.046*
C3 −0.0333 (4) 0.4412 (6) 0.2973 (2) 0.0504 (15)
H3 −0.074946 0.508703 0.308485 0.061*
C4 −0.0964 (4) 0.3357 (7) 0.2847 (2) 0.0612 (18)
H4 −0.181111 0.332719 0.287761 0.073*
C5 −0.0353 (5) 0.2372 (7) 0.2680 (2) 0.068 (2)
H5 −0.078535 0.167255 0.260123 0.081*
C6 0.0908 (4) 0.2403 (6) 0.2626 (2) 0.0510 (15)
H6 0.131861 0.173212 0.250392 0.061*
C7 0.2906 (3) 0.3503 (5) 0.26910 (16) 0.0318 (11)
C8 0.3414 (4) 0.3045 (5) 0.22007 (18) 0.0375 (12)
H8 0.292439 0.263827 0.192305 0.045*
C9 0.4648 (4) 0.3198 (5) 0.21300 (19) 0.0471 (14)
H9 0.500624 0.289228 0.180554 0.057*
C10 0.5345 (4) 0.3809 (5) 0.25459 (18) 0.0391 (12)
H10 0.617282 0.395683 0.249752 0.047*
C11 0.4804 (3) 0.4199 (4) 0.30333 (17) 0.0307 (11)
C12 0.5552 (3) 0.4825 (4) 0.35182 (17) 0.0280 (10)
C13 0.0703 (3) 0.3371 (5) 0.43110 (16) 0.0300 (11)
C14 0.1420 (3) 0.2255 (4) 0.41819 (17) 0.0299 (11)
C15 0.0860 (4) 0.1159 (5) 0.41794 (19) 0.0385 (12)
H15 0.004239 0.108384 0.426921 0.046*
C16 0.1545 (4) 0.0163 (5) 0.4039 (2) 0.0504 (14)
H16 0.119093 −0.058878 0.402800 0.060*
C17 0.2762 (4) 0.0320 (5) 0.3918 (2) 0.0461 (13)
H17 0.323304 −0.032579 0.381301 0.055*
C18 0.3278 (4) 0.1445 (4) 0.39531 (18) 0.0309 (10)
C19 0.4614 (4) 0.1610 (4) 0.38822 (18) 0.0327 (10)
C20 0.5193 (4) 0.1076 (5) 0.34281 (19) 0.0446 (13)
H20 0.474081 0.061030 0.316035 0.053*
C21 0.6440 (4) 0.1235 (6) 0.3373 (2) 0.0510 (15)
H21 0.681446 0.089261 0.306252 0.061*
C22 0.7129 (4) 0.1892 (5) 0.3771 (2) 0.0495 (14)
H22 0.796892 0.198432 0.373368 0.059*
C23 0.6569 (4) 0.2418 (5) 0.4231 (2) 0.0452 (13)
H23 0.703350 0.286035 0.450464 0.054*
C24 0.5318 (4) 0.2284 (4) 0.42818 (19) 0.0353 (11)
H24 0.494293 0.264960 0.458676 0.042*
O7 0.5542 (3) 0.2067 (4) 0.58509 (18) 0.0667 (12)
N3 0.3543 (3) 0.1625 (4) 0.59250 (18) 0.0485 (11)
C25 0.4558 (5) 0.2184 (5) 0.6087 (2) 0.0505 (14)
H25 0.453813 0.270372 0.639904 0.061*
C26 0.2427 (5) 0.1802 (7) 0.6238 (3) 0.089 (2)
H26A 0.259761 0.233705 0.655649 0.134*
H26B 0.215719 0.105349 0.638425 0.134*
H26C 0.179287 0.213047 0.597993 0.134*
C27 0.3476 (6) 0.0855 (6) 0.5428 (2) 0.074 (2)
H27A 0.427825 0.077669 0.528080 0.111*
H27B 0.292055 0.118586 0.513267 0.111*
H27C 0.318409 0.008869 0.553875 0.111*
O8 0.0501 (3) 0.7104 (4) 0.43379 (17) 0.0456 (9)
O9 0.1535 (3) 0.4568 (4) 0.57191 (16) 0.0428 (9)
H3A 0.400 (4) 0.449 (4) 0.5288 (19) 0.027 (12)*
H3B 0.289 (4) 0.452 (5) 0.5162 (19) 0.040 (15)*
H8A 0.048 (6) 0.714 (7) 0.471 (3) 0.09 (2)*
H8B −0.010 (5) 0.663 (6) 0.429 (2) 0.056 (18)*
H9A 0.115 (6) 0.530 (7) 0.562 (3) 0.09 (2)*
H9B 0.201 (5) 0.464 (5) 0.599 (2) 0.049 (18)*
H4A 0.204 (4) 0.647 (5) 0.4070 (19) 0.046 (15)*
H4B 0.326 (5) 0.676 (6) 0.405 (3) 0.08 (2)*

Source of materials

Synthesis of the title compound: 6-phenylpyridine-2-carboxylic acid (0.1992 g, 1.0 mmol) and NaOH (0.040 g, 1.0 mmol) dissolved in H2O (15 mL) were added to the ethanol-water solution (15 mL, v:v = 2:1) of Mn(O2CMe)2·4H2O (0.1225 g, 0.5 mmol), and the above mixture was stirred and heated up to 80 °C. A small amount of precipitation appeared, 4 mL N,N-dimethylformamide was added, the precipitation immediately disappeared. Then the resultant mixture was further stirred for 4 h at 80 °C. The solution was filtered off after cooling to room temperature. After slow evaporation of the solvent, crystals of were obtained within three weeks. Anal. Calcd. for C27H31N3O9Mn: C, 54.32; H, 5.20; N, 7.04. Found: C, 54.56; H, 4.88; N, 7.32.

Experimental details

The hydrogen atoms were positioned geometrically (C–H = 0.93 Å and O–H = 0.76–0.95 Å). Their U iso values were set to 1.2U eq or 1.5U eq of the parent atoms.

Comment

Pyridine carboxylic acid derivatives have attracted considerable attention in studies of complex structures and properties of new coordination compounds. They showed strong coordination abilities and novel structures [5], and they have also showed wide applications such as magnetism properties and photoluminescence [6], photocatalytic properties [7], DNA-binding property [8], antitumor activity [9], and so on. Structures complexes containg the 6-phenylpyridine-2-carboxylato ligand and one of the following metal ions: Co(II), Cu(II), Zn(II) and Pb(II) were already reported by us [10], [11], [12], [13], [14], [15]. In this paper, a new Mn(II) complex, the synthesis and structural characterization of. The crystal structure of suggests that it crystallizes in the, P21/n space group with four molecules present in the unit cell. From the crystal structure, it was observed that the asymmetric unit is composed of a Mn(II) ion, two 6-phenylpyridine-2-carboxylate ligands, two coordinated water molecules, two lattice water molecules, and one N,N-dimethylformamide molecule. The Mn(II) is bonded to two oxygen atoms (O2 and O5), two nitrogen (N1 and N2) from two different 6-phenylpyridine-2-carboxylate ligands, and two oxygen atoms (O3 and O4) form two coordinated water molecules. The six-coordinated manganese centre adopts a distorted octahedral coordination geometry around the metal. The equatorial bond angles, for N1–Mn1–N2, O4–Mn1–N2, O4–Mn1–O3, and O3–Mn1–N1 are 83.84(12), 95.85(13), 100.28(14) and 90.57(12) respectively and an axial O2–Mn1–O5 angle of 165.30(13)°. The corresponding bond lengths are 2.135(3) Å (Mn1–O2), 2.175(3) Å (Mn1–O3), 2.166(4) Å (Mn1–O4), 2.155(3) Å (Mn1–O5), 2.344(4) Å (Mn1–N1), 2.346(3) Å (Mn1–N2), respectively. The lattice water molecules play an important effect in the formation of 1D chain structure by O–H⋯O hydrogen bonds.

Corresponding author: Xi-Shi Tai, College of Chemistry and Chemical Engineering, Weifang University, Weifang, Shandong 261061, P. R. China, E-mail:

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21171132

Funding source: Natural Science Foundation of Shandong

Award Identifier / Grant number: ZR2014BL003

Funding source: Shandong Province Higher Educational Science and Technology Program

Award Identifier / Grant number: J14LC01

Funding source: Science Foundation of Weifang

Award Identifier / Grant number: 2020ZJ1054

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This project was supported by the National Natural Science Foundation of China (No. 21171132, https://doi.org/10.13039/501100001809), the Natural Science Foundation of Shandong (ZR2014BL003, https://doi.org/10.13039/501100007129), the Project of Shandong Province Higher Educational Science and Technology Program (J14LC01, https://doi.org/10.13039/501100015642) and Science Foundation of Weifang (2020ZJ1054).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT, SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2000.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Rigaku Oxford Diffraction. CrysAlisPRO Software System (Version 1.171.38.43f); Rigaku Corporation: Oxford, UK, 2015.Suche in Google Scholar

5. Gu, J. Z., Wen, M., Cai, Y., Shi, Z. F., Nesterov, D. S., Kirillova, M. V., Kirillov, A. M. Cobalt(II) coordination polymers assembled from unexplored pyridine-carboxylic acids: structural diversity and catalytic oxidation of alcohols. Inorg. Chem. 2019, 58, 5875–5885; https://doi.org/10.1021/acs.inorgchem.9b00242.Suche in Google Scholar PubMed

6. Zhou, X. J., Liu, K., Liu, L. L., Tai, X. S., Meng, Q. G. Two 3-D metal organic frameworks based on pyridine carboxylic acid ligands with magnetism properties and photoluminescence. Sci. Adv. Mater. 2019, 11, 332–337; https://doi.org/10.1166/sam.2019.3465.Suche in Google Scholar

7. Wang, D. W., Zhao, N., Wang, T., Zhuang, C. F., Wang, Y., Yang, B. Crystal structure, spectroscopy and photocatalytic properties of a Co(II) complex based on 5-(1,2,4-triazol-1-yl)pyridine-3-carboxylic acid. Crystals 2020, 10, 98; https://doi.org/10.3390/cryst10020098.Suche in Google Scholar

8. Wang, J. K., Li, B., Wu, H. P., Tian, X. Y., Ma, X. X. Synthesis, crystal structure and DNA-binding property of a Mn(II) complex based on 5-(tri-fluoromethyl)pyridine-2-carboxylic Acid. Chin. J. Struct. Chem. 2019, 38, 1349–1355.Suche in Google Scholar

9. Tamer, M., Mahmoody, H., Feyzio?lu, K. F., Kilin, O., Avci, D., Orun, O., Dege, N., Atalay, Y. Synthesis of the first mixed ligand Mn (II) and Cd (II) complexes of 4-methoxy-pyridine-2-carboxylic acid, molecular docking studies and investigation of their anti-tumor effects in vitro. Appl. Organomet. Chem. 2020, 34, e5416; https://doi.org/10.1002/aoc.5416.Suche in Google Scholar

10. Tai, X.-S., Wang, Z.-J., Ouyang, J., Li, Y.-F., Zhang, W., Jia, W.-L., Wang, L.-H. The crystal structure of [(phenantroline-κ2N, N′′)-bis(6-phenylpyridine-2-carboxylate-κ2N,O) cobalt(II)]monohydrate, C36H26N4O5Co. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1309–1311; https://doi.org/10.1515/ncrs-2021-0319.Suche in Google Scholar

11. Wang, L.-H., Liang, L., Li, X.-T., Cao, S.-H., Tai, X.-S. The crystal structure of bis(6-phenylpyridine-2-carboxylato-κ2N,O)copper(II), C24H16N2O4Cu. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1251–1253; https://doi.org/10.1515/ncrs-2021-0312.Suche in Google Scholar

12. Wang, L.-H., Wang, Z.-J., Ouyang, J., Tai, X.-S. The crystal structure of bis(6-phenylpyridine- 2-carboxylate-κ2N,O)-(2,2′-bipyridine-κ2N,N′)zinc(II) monohydrate, C34H26N4O5Zn. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1297–1299; https://doi.org/10.1515/ncrs-2021-0312.Suche in Google Scholar

13. Tai, X. S., Liang, L., Li, X. T., Cao, S. H., Wang, L. H. Crystal structure of diaqua-bis(μ2-6-phenylpyridine-2-carboxylate-κ3N,O:O)- bis(6-phenylpyridine-2-carboxylato-κ2N,O)lead(II)–N,N-dimethylformamide – water (1/2/4), C54H58N6O16Pb2. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1199–1201; https://doi.org/10.1515/ncrs-2021-0277.Suche in Google Scholar

14. Feng, Y. M., Tai, X. S., Xia, Y. P. The crystal structure of [(2,2′′-bipyridine-κ2N,N)-bis(6-phenylpyridine-2-carboxylato-κ2N,O)copper(II)], C34H24N4O4Cu. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 285–287.Suche in Google Scholar

15. Tai, X. S., Xia, Y. P. The crystal structure of [(2,2′-bipyridine-κ2N,N′′)-bis (6-phenylpyridine-2-carboxylato-κ2N,O)cobalt(II) monohydrate, C36H26N4O5Co. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 225–227; https://doi.org/10.1515/ncrs-2021-0473.Suche in Google Scholar
