Crystal structure of the dihydrate of tetraethylammonium 1,3,5-thiadiazole-5-amido-2-carbamate, C11H27N5O4S

  • Xiaoke Tan and Xin Zhu ORCID logo EMAIL logo
Published/Copyright: April 20, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 4

Abstract

C11H27N5O4S, triclinic, P 1 ‾ (no. 2), a = 7.8359 (2) Å, b = 8.6966 (3) Å, c = 12.9907(4) Å, α = 92.047 (2)°, β = 92.041 (2)°, γ = 96.087 (2)°, V = 879.02 (5) Å3, Z = 2, R gt (F) = 0.0412, wR ref (F2) = 0.1265, T = 298 K.

CCDC no.: 2164544

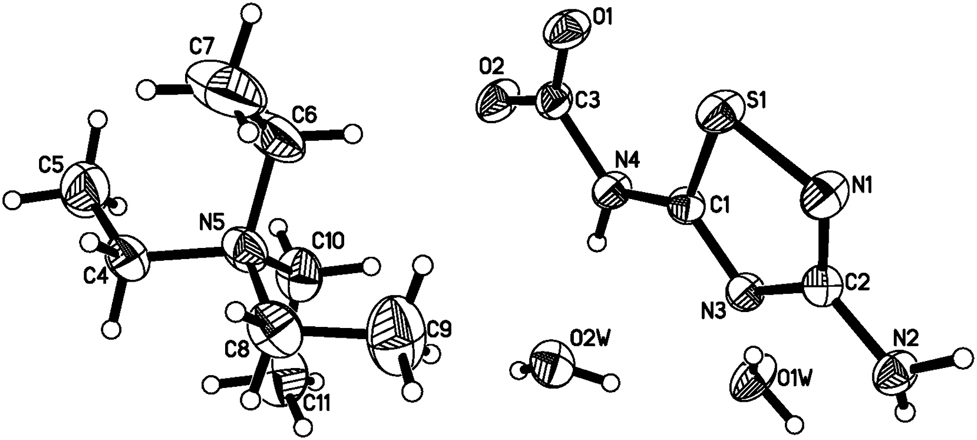

The asymmetric unit of the title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.40 × 0.31 × 0.13 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.21 mm−1
Diffractometer, scan mode: Bruker SMART, φ and ω-scans
θmax, completeness: 27.7°, >99%
N(hkl)measured, N(hkl)unique, Rint: 8700, 4050, 0.013
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 3438
N(param)refined: 211
Programs: Bruker programs [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

x y z Uiso*/Ueq
S1 0.59804 (5) 0.88454 (5) 0.38336 (3) 0.05189 (14)
O1 0.33214 (13) 0.81543 (13) 0.25718 (9) 0.0552 (3)
N1 0.79516 (16) 0.90703 (17) 0.44013 (10) 0.0525 (3)
C1 0.66759 (17) 0.77412 (14) 0.28372 (10) 0.0370 (3)
O1W 0.97872 (15) 0.69772 (17) 0.09675 (9) 0.0644 (3)
H1WA 1.0872 (13) 0.697 (3) 0.1029 (18) 0.097*
H1WB 0.940 (3) 0.715 (3) 0.1570 (11) 0.097*
O2 0.32129 (13) 0.68111 (15) 0.10675 (9) 0.0600 (3)
N2 1.06508 (16) 0.82503 (16) 0.41048 (10) 0.0485 (3)
H2A 1.112 (2) 0.9001 (18) 0.4578 (13) 0.073*
H2B 1.134 (2) 0.807 (2) 0.3566 (12) 0.073*
C2 0.89723 (17) 0.83194 (15) 0.38338 (10) 0.0397 (3)
O2W 0.70329 (18) 0.47303 (15) 0.08461 (10) 0.0649 (3)
H2WB 0.673 (3) 0.425 (3) 0.0274 (12) 0.097*
H2WA 0.8022 (18) 0.523 (3) 0.0794 (19) 0.097*
N3 0.83132 (14) 0.75493 (13) 0.29389 (9) 0.0400 (3)
C3 0.39345 (17) 0.73935 (16) 0.18786 (11) 0.0424 (3)
N4 0.56721 (15) 0.71445 (14) 0.20178 (9) 0.0443 (3)
H4 0.611 (2) 0.6488 (19) 0.1552 (12) 0.067*
C4 0.0542 (3) 0.1052 (2) 0.21862 (17) 0.0678 (5)
H4A 0.0038 0.0912 0.2852 0.081*
H4B 0.1119 0.0145 0.2028 0.081*
N5 0.1874 (2) 0.24451 (16) 0.22769 (12) 0.0599 (4)
C5 −0.0901 (3) 0.1123 (3) 0.1383 (2) 0.0965 (8)
H5A −0.1675 0.0190 0.1385 0.145*
H5B −0.1512 0.1996 0.1541 0.145*
H5C −0.0428 0.1227 0.0714 0.145*
C6 0.1031 (4) 0.3898 (2) 0.2545 (2) 0.0887 (7)
H6A 0.1910 0.4774 0.2583 0.106*
H6B 0.0222 0.4065 0.1988 0.106*
C7 0.0101 (5) 0.3870 (3) 0.3538 (3) 0.1337 (14)
H7A −0.0386 0.4827 0.3643 0.201*
H7B −0.0797 0.3027 0.3504 0.201*
H7C 0.0894 0.3737 0.4100 0.201*
C8 0.3162 (3) 0.2108 (2) 0.31093 (15) 0.0741 (5)
H8A 0.3626 0.1152 0.2918 0.089*
H8B 0.2566 0.1943 0.3744 0.089*
C9 0.4637 (4) 0.3360 (4) 0.3313 (2) 0.1202 (11)
H9A 0.5391 0.3056 0.3849 0.180*
H9B 0.5260 0.3514 0.2695 0.180*
H9C 0.4198 0.4307 0.3523 0.180*
C10 0.2740 (3) 0.2705 (2) 0.12662 (15) 0.0712 (5)
H10A 0.1876 0.2900 0.0748 0.085*
H10B 0.3551 0.3629 0.1348 0.085*
C11 0.3675 (3) 0.1398 (3) 0.08749 (18) 0.0923 (7)
H11A 0.4181 0.1665 0.0234 0.138*
H11B 0.4561 0.1213 0.1371 0.138*
H11C 0.2882 0.0482 0.0770 0.138*

Source of materials

Amidinothiourea and tetraethylammonium hydroxide (25% aqueous solution) were mixed in a molar ratio of 1:2. The mixture was dissolved in a minimum amount of ethanol and water and then vigorously stirred for about 2 h. Subsequently the clean solution was covered with the plastic film with pinholes and set aside to allow it to proceed with slow evaporation in open air at room temperature. Large colorless block crystals were obtained about 15 days later. It can be concluded that amidinothiourea should absorb CO2 of the atmosphere and can be changed into 1,3,5-thiadiazole-5-amido-2-carbamate under basic conditions.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

1,3,5–Thiadiazole-5-amido-2-carbamate is a derived compound of amidinothiourea that is an essential pharmaceutical intermediate of famotidine [4], but the related structures of the carbamate were rarely reported. In 2012, only two inclusion compounds of the carbamate were reported as salts of tetrapropylammonium and tetrabutylammonium cations [5]. The title structure can help us further understand the crystallographic characteristics of 1,3,5-thiadiazole-5-amido-2-carbamate under the inductiveness of the template of tetraalkylammonium.

In the asymmetric unit of the crystal structure, there exist one tetraethylammonium, one 1,3,5-thiadiazole-5-amido-2-carbamate and two water molecules. In the title structure each carbamate can link with another inversion-center-related carbamate to generate anionic dimers by intermolecular N–H⃛N hydrogen bonding bonds. Adjacent dimers are connected with each other by N–H⃛O hydrogen bonds to construct a wide anionic ribbon. Consecutively, the wide ribbons are connected by water molecules to generate a 2-dimensional hydrogen-bonded layer. At last, tetraethylammonium cations are between the layers to form the typical sandwich-like crystal structure. Obviously, 1,3,5-thiadiazole-5-amido-2-carbamate can be regarded as a qualified hydrogen-bond donor and acceptor due to its N–H and –COO groups.

Corresponding author: Xin Zhu, Pharmacy College, Henan University of Chinese Medicine, Zhengzhou, 450046, China, E-mail:

Funding source: Henan University of Chinese Medicine

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by Henan University of Chinese Medicine.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX3, SAINT–Plus, XPREP; Bruker AXS Inc.: Madison, Wisconsin, USA, 2016.Search in Google Scholar

2. Sheldrick, G. M. SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/S2053229614024218.Search in Google Scholar PubMed PubMed Central

4. Adane, L., Bhagat, S., Arfeen, M., Bhatia, S., Sirawaraporn, R., Sirawaraporn, W., Chakraborti, A. K., Bharatam, P. V. Design and synthesis of guanylthiourea derivatives as potential inhibitors of plasmodium falciparum dihydrofolate reductase enzyme. Bioorg. Med. Chem. Lett. 2014, A24, 613–617; https://doi.org/10.1016/j.bmcl.2013.12.009.Search in Google Scholar PubMed

5. Zhang, W. H., Li, K., Li, Q., Mak, T. C. W. Two inclusion compounds of guanylthiourea and 1,3,5-thiadiazole-5-amido-2-carbamate. J. Inclusion Phenom. Macrocycl. Chem. 2012, 74, 353–359; https://doi.org/10.1007/s10847-012-0122-z.Search in Google Scholar
Received: 2022-03-16
Accepted: 2022-04-05
Published Online: 2022-04-20
Published in Print: 2022-08-26
