The crystal structure of N-cyclopentyl-3-hydroxy-4-methoxybenzamide, C13H17NO3

  • Jingxiao Zhang ORCID logo EMAIL logo , Shubin Guo , Yongnan Guo und Yanliang Yang
Veröffentlicht/Copyright: 12. April 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 4

Abstract

C13H17NO3, monoclinic, Cc (no. 9), a = 11.6502(8) Å, b = 13.8752(8) Å, c = 7.9644(5) Å, β = 106.051(2)°, V = 1237.25(14) Å3, Z = 4, R gt (F) = 0.0427, wR ref(F 2) = 0.1023, T = 170 K.

CCDC no.: 2158291

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.28 × 0.15 × 0.12 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.09 mm−1
Diffractometer, scan mode: D8 VENTURE, φ and ω
θ max, completeness: 26.4°, 98%
N(hkl)measured, N(hkl)unique, R int: 5924, 2141, 0.045
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 1747
N(param)refined: 157
Programs: Bruker [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.7121 (3) 0.5779 (2) 0.8326 (4) 0.0368 (9)
H1A 0.708766 0.551263 0.947884 0.044*
C2 0.8348 (3) 0.5581 (3) 0.8098 (5) 0.0426 (9)
H2A 0.836531 0.570422 0.688133 0.051*
H2B 0.859790 0.490786 0.841437 0.051*
C3 0.9146 (4) 0.6297 (3) 0.9369 (5) 0.0503 (11)
H3A 0.942702 0.601663 1.055539 0.060*
H3B 0.984837 0.647802 0.896745 0.060*
C4 0.8349 (4) 0.7172 (3) 0.9366 (6) 0.0570 (12)
H4A 0.839466 0.736907 1.057803 0.068*
H4B 0.860384 0.772170 0.876208 0.068*
C5 0.7080 (4) 0.6871 (3) 0.8407 (6) 0.0526 (11)
H5A 0.651019 0.708429 0.905182 0.063*
H5B 0.683580 0.715006 0.721744 0.063*
C6 0.5604 (3) 0.4543 (2) 0.7103 (4) 0.0301 (8)
C7 0.4537 (3) 0.4270 (2) 0.5658 (4) 0.0286 (8)
C8 0.4214 (3) 0.3299 (2) 0.5526 (4) 0.0337 (8)
H8 0.468580 0.284715 0.631995 0.040*
C9 0.3223 (3) 0.2986 (2) 0.4263 (5) 0.0339 (8)
C10 0.2517 (3) 0.3656 (2) 0.3104 (4) 0.0319 (8)
C11 0.2831 (3) 0.4617 (2) 0.3241 (4) 0.0321 (8)
H11 0.235661 0.507130 0.245544 0.039*
C12 0.3835 (3) 0.4925 (2) 0.4517 (4) 0.0311 (8)
H12 0.404043 0.558965 0.460637 0.037*
C13 0.0842 (3) 0.3921 (3) 0.0620 (5) 0.0464 (10)
H13A 0.018946 0.356452 −0.017842 0.070*
H13B 0.134297 0.421863 −0.004277 0.070*
H13C 0.050918 0.442449 0.121220 0.070*
N1 0.6129 (3) 0.5381 (2) 0.6962 (3) 0.0357 (7)
H1 0.586283 0.571266 0.599029 0.043*
O1 0.5970 (2) 0.40001 (16) 0.8395 (3) 0.0357 (6)
O2 0.2991 (2) 0.20202 (16) 0.4160 (4) 0.0509 (8)
H2 0.225880 0.192950 0.370114 0.076*
O3 0.1550 (2) 0.32725 (16) 0.1895 (3) 0.0384 (6)

Source of material

A mixture of 10 mmol 3-hydroxy-4-methoxybenzoic acid, 10.4 mmol cyclopentylamine, and 20 mmol N,N-diisopropylethylamine (DIEA) were dissolved in 20 mL DMF. Then, 10.4 mmol of 2-(7-Azabenzotriazol-1-yl)-N,N,N′,N′-tetramethyluronium hexafluorophosphate (HATU) was added to the above solution. After 5 h stirring, the reaction was complete as monitored by Thin Layer Chromatography. Hundred milliliters of brine was added to the mixture, and the product was extracted with ethyl acetate (3 times with 500 mL). This product was washed with 5% citric acid, 5% NaHCO3, and H2O respectively. The mixture was dried over MgSO4, filtered, and concentrated under vacuum. The crystals were achieved through recrystallization in ethyl acetate, and dried at room temperature for seven days.

Experimental details

All H atoms bonded to their parent C atoms were treated as riding atoms in their geometrically idealized positions, with d(C–H) = 0.95 Å and U iso = 1.2 U eq.

Comment

Benzamide derivatives were studied to exhibit several biological properties, like antiviral [5], antipsychotic [6], anti-cancer [7], anti-oxidant [8], anti-inflammatory [9], anti-Alzheimer, anti-fatigue [10], and antidiabetic effects [11]. For example, several sulfamoylbenzamides and benzamide derivatives were verified to exhibit antiviral effects via significantly reducing intracellular HBV DNA in the cytoplasm [5, 12]. Some nitro benzamide analogs could significantly inhibit the expression of cyclooxygenase-2, interleukin-1β and tumor necrosis factor, and exhibited anti-inflammatory activities [13]. Additionally, some benzamide derivatives, like metoclopramide, exhibited anti-emetic properties through blocking dopaminergic and serotonergic receptors [6], and were also used for the treatment of gastroesophageal reflux disease in infants [14].

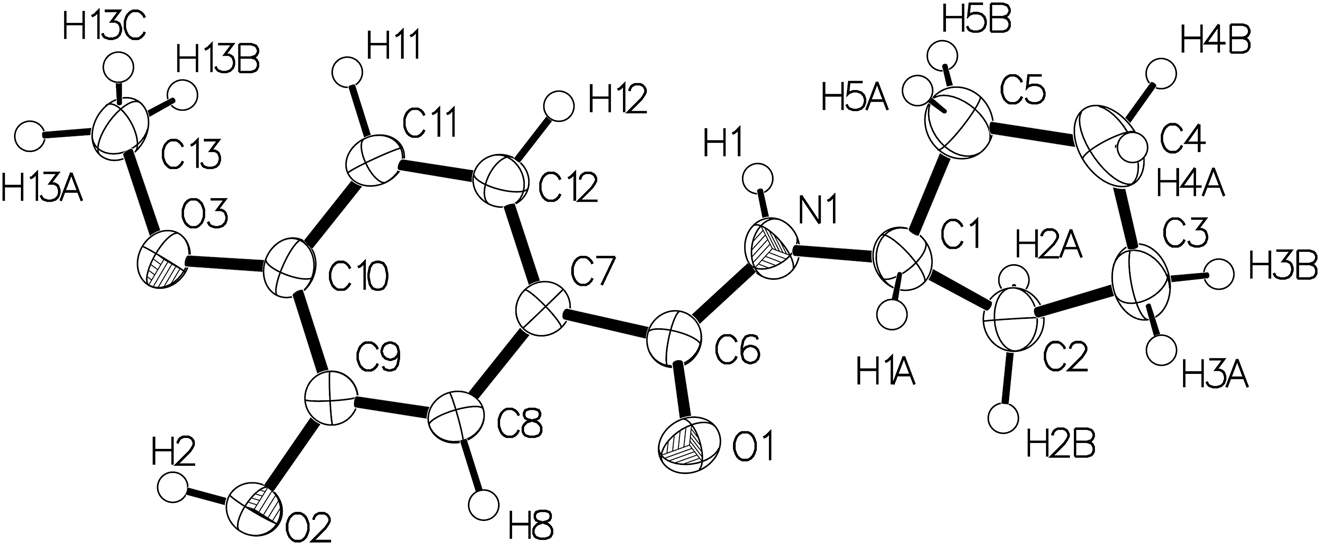

The molecular structure of the title compound is displayed in figure. All bond lengths and angles are normal, and agree with structural reports of 4-methoxybenzamide derivatives [15], [16], [17]. The methoxy-substituted benzene [C7–C12] forms a dihedral angle of 22.9° with the amide group [–N1–C6=O1–]. The cyclopentyl ring adopts a conformation between envelope and half-chair. The hydroxyl group donates its H atom to O1, which acts as acceptor in the strong intermolecular hydrogen bond (O2–H2···O1, 1.943(3) Å).

Corresponding author: Jingxiao Zhang, College of Food and Medicine, Luoyang Normal University, Luoyang, China, E-mail:

Funding source: National Natural Science Foundation of China http://dx.doi.org/10.13039/501100001809

Award Identifier / Grant number: 21902071

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was financially supported by the National Natural Science Foundation of China (21902071).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SMART APEX-II CCD; Bruker AXS Inc.: Madison, WI, USA, 2006.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

5. Wu, S., Zhao, Q., Zhang, P., Kulp, J., Hu, L., Hwang, N., Zhang, J., Block, T. M., Xu, X., Du, Y., Chang, J., Guo, J. T. Discovery and mechanistic study of benzamide derivatives that modulate hepatitis B virus capsid assembly. J. Virol. 2017, 91, Art. no. e00519-17; https://doi.org/10.1128/JVI.00519-17.Suche in Google Scholar PubMed PubMed Central

6. Oltmanns, D., Eisenhut, M., Mier, W., Haberkorn, U. Benzamides as melanotropic carriers for radioisotopes, metals, cytotoxic agents and as enzyme inhibitors. Curr. Med. Chem. 2009, 16, 2086–2094; https://doi.org/10.2174/092986709788612684.Suche in Google Scholar PubMed

7. Mahdavi, M., Lavi, M. M., Yekta, R., Moosavi, M. A., Nobarani, M., Balalaei, S., Arami, S., Rashidi, M. R. Evaluation of the cytotoxic, apoptosis inducing activity and molecular docking of spiroquinazolinone benzamide derivatives in MCF-7 breast cancer cells. Chem. Biol. Interact. 2016, 260, 232–242; https://doi.org/10.1016/j.cbi.2016.10.004.Suche in Google Scholar PubMed

8. Perin, N., Roškarić, P., Sović, I., Boček, I., Starčević, K., Hranjec, M., Vianello, R. Amino-substituted benzamide derivatives as promising antioxidant agents: a combined experimental and computational study. Chem. Res. Toxicol. 2018, 31, 974–984; https://doi.org/10.1021/acs.chemrestox.8b00175.Suche in Google Scholar PubMed

9. Hussain, A. A., Abdulla, M. M., Amr, A. E.-G. E., Al-Omar, M. A., Shalaby, A. F. A. Anti-inflammatory activities of some newly synthesized pyridinyl- and indazolyl benzamide derivatives. Russ. J. Bioorg. Chem. 2015, 41, 87–96; https://doi.org/10.1134/s106816201405015x.Suche in Google Scholar

10. Taj, M., Tirmizi, S., Raheel, A., Ali, H. M., Qureshi, S., Alshatir, H. Benzamide derivatives as potential candidates for anti-Alzheimer, anti-fatigue, anti-urease and anti-oxidant activity. J. Chil. Chem. Soc. 2017, 62, 3342–3344; https://doi.org/10.4067/s0717-97072017000100007.Suche in Google Scholar

11. Singh, R., Lather, V., Pandita, D., Judge, V., Arumugam, K. N., Singh Grewal, A. Synthesis, docking and antidiabetic activity of some newer benzamide derivatives as potential glucokinase activators. Lett. Drug Des. Discov. 2017, 14, 540–553; https://doi.org/10.2174/1570180813666160819125342.Suche in Google Scholar

12. Campagna, M. R., Liu, F., Mao, R., Mills, C., Cai, D., Guo, F., Zhao, X., Ye, H., Cuconati, A., Guo, H., Chang, J., Xu, X., Block, T. M., Guo, J.-T. Sulfamoylbenzamide derivatives inhibit the assembly of hepatitis B virus nucleocapsids. J. Virol. 2013, 87, 6931–6942; https://doi.org/10.1128/jvi.00582-13.Suche in Google Scholar PubMed PubMed Central

13. Tumer, T. B., Onder, F. C., Ipek, H., Gungor, T., Savranoglu, S., Tok, T. T., Celik, A., Ay, M. Biological evaluation and molecular docking studies of nitro benzamide derivatives with respect to in vitro anti-inflammatory activity. Int. Immunopharm. 2017, 43, 129–139; https://doi.org/10.1016/j.intimp.2016.12.009.Suche in Google Scholar PubMed

14. Hibbs, A. M., Lorch, S. A. Metoclopramide for the treatment of gastroesophageal reflux disease in infants: a systematic review. Pediatrics 2006, 118, 746–752; https://doi.org/10.1542/peds.2005-2664.Suche in Google Scholar PubMed

15. Zhang, J., Zhao, X., Cai, C. The crystal structure of N-cyclohexyl-3-hydroxy-4-methoxybenzamide C14H19NO3. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 543–545.10.1515/ncrs-2022-0066Suche in Google Scholar

16. Kant, R., Sahi, S., Gupta, V. K., Kapoor, K., Paul, S. N-(4-Chlorophenyl)-4-methoxybenzamide. Acta Crystallogr. 2012, E68, o3077; https://doi.org/10.1107/s1600536812041384.Suche in Google Scholar PubMed PubMed Central

17. Li, H. L., Zeng, H. S., Kang, S. S., Wang, H. B. 4-Methoxybenzamide oxime. Acta Crystallogr. 2007, E63, o4763; https://doi.org/10.1107/s1600536807059429.Suche in Google Scholar
Received: 2022-02-14
Accepted: 2022-03-14
Published Online: 2022-04-12
Published in Print: 2022-08-26
