Crystal structure of 3-phenoxybenzyl 2-(6-methoxynaphthalen-2-yl)propanoate, C27H24O4

  • Ying Lin , Da-zhuan Lin , De-dong Xue ORCID logo und Quan-le Sun EMAIL logo
Veröffentlicht/Copyright: 9. Oktober 2024
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 239 Heft 6

Abstract

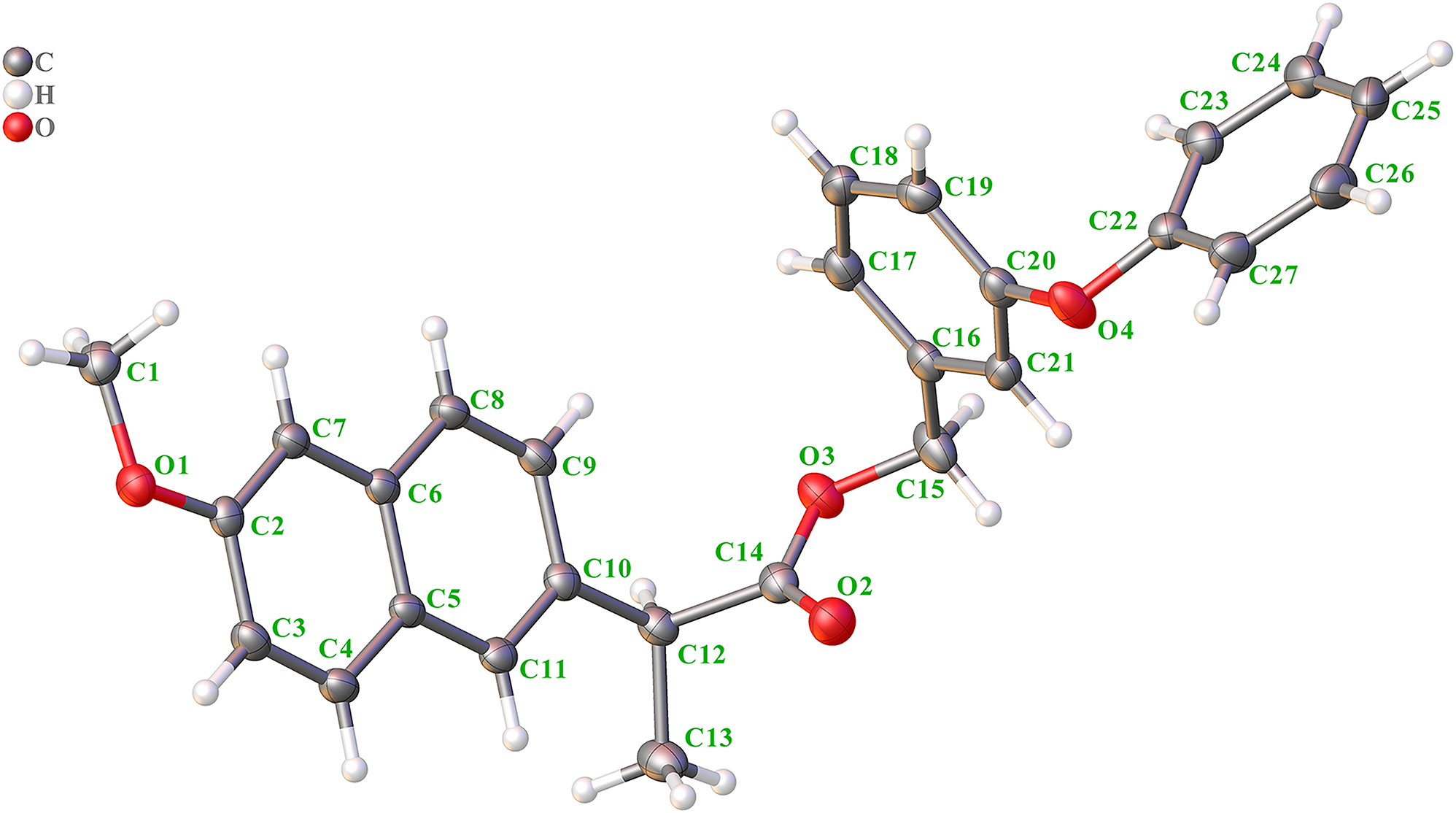

C27H24O4, orthorhombic, P212121 (no. 19), a = 5.694(2) Å, b = 8.957(2) Å, c = 40.662(8) Å, V = 2073.7(10) Å3, Z = 4, Rgt (F) = 0.0339, wRref (F 2) = 0.0837, T = 100(2) K

CCDC no.: 2387242

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size 0.12 × 0.11 × 0.10 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.09 mm−1
Diffractometer, scan mode: Bruker APEX-II,
θ max, completeness: 27.6°, >99 %
N(hkl)measured, N(hkl)unique, R int: 77,707, 4,782, 0.044
Criterion for I obs, N(hkl)gt: I obs > 2σ (I obs), 4,511
N(param)refined: 282
Programs: Bruker, 1 Olex2, 2 SHELX 3
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2)

Atom x y z U iso*/U eq
C1 0.3419 (4) 0.2429 (2) 0.42314 (5) 0.0259 (4)
H1A 0.333227 0.200562 0.400950 0.039*
H1B 0.208511 0.310213 0.426653 0.039*
H1C 0.337000 0.162192 0.439386 0.039*
C2 0.5937 (3) 0.3956 (2) 0.45578 (4) 0.0197 (4)
C3 0.8002 (3) 0.4835 (2) 0.45642 (5) 0.0226 (4)
H3 0.898282 0.487481 0.437540 0.027*
C4 0.8601 (3) 0.5626 (2) 0.48389 (5) 0.0221 (4)
H4 0.999911 0.620449 0.483980 0.027*
C5 0.7154 (3) 0.5591 (2) 0.51228 (4) 0.0186 (4)
C6 0.5089 (3) 0.4715 (2) 0.51149 (4) 0.0186 (4)
C7 0.4495 (3) 0.3887 (2) 0.48284 (4) 0.0202 (4)
H7 0.311503 0.329094 0.482408 0.024*
C8 0.3634 (3) 0.4704 (2) 0.53975 (4) 0.0214 (4)
H8 0.223768 0.412332 0.539725 0.026*
C9 0.4210 (3) 0.5518 (2) 0.56712 (5) 0.0217 (4)
H9 0.320267 0.549578 0.585741 0.026*
C10 0.6279 (3) 0.6389 (2) 0.56811 (4) 0.0201 (4)
C11 0.7723 (3) 0.6413 (2) 0.54099 (5) 0.0202 (4)
H11 0.912300 0.698994 0.541506 0.024*
C12 0.6791 (4) 0.7285 (2) 0.59894 (5) 0.0221 (4)
H12 0.532818 0.783525 0.605143 0.026*
C13 0.8760 (4) 0.8418 (2) 0.59540 (5) 0.0310 (5)
H13A 1.023832 0.789722 0.590873 0.046*
H13B 0.891053 0.899026 0.615845 0.046*
H13C 0.840151 0.909900 0.577213 0.046*
C14 0.7399 (4) 0.6227 (2) 0.62686 (5) 0.0221 (4)
C15 0.6038 (5) 0.5132 (2) 0.67605 (5) 0.0310 (5)
H15A 0.495493 0.539489 0.694192 0.037*
H15B 0.766430 0.526899 0.684122 0.037*
C16 0.5682 (4) 0.3523 (2) 0.66699 (4) 0.0230 (4)
C17 0.3650 (4) 0.3065 (2) 0.65077 (5) 0.0270 (4)
H17 0.251304 0.378094 0.644194 0.032*
C18 0.3288 (4) 0.1562 (2) 0.64422 (5) 0.0270 (4)
H18 0.190007 0.125571 0.633145 0.032*
C19 0.4925 (4) 0.0504 (2) 0.65362 (5) 0.0254 (4)
H19 0.466270 −0.052555 0.649392 0.030*
C20 0.6951 (3) 0.0972 (2) 0.66929 (5) 0.0228 (4)
C21 0.7349 (3) 0.2462 (2) 0.67600 (5) 0.0221 (4)
H21 0.875500 0.276207 0.686711 0.027*
C22 0.8447 (3) −0.1035 (2) 0.70209 (5) 0.0222 (4)
C23 0.6538 (4) −0.1040 (2) 0.72307 (5) 0.0251 (4)
H23 0.527679 −0.036119 0.719795 0.030*
C24 0.6485 (4) −0.2050 (3) 0.74902 (5) 0.0300 (5)
H24 0.517825 −0.205845 0.763543 0.036*
C25 0.8307 (4) −0.3039 (3) 0.75395 (5) 0.0341 (5)
H25 0.826271 −0.372042 0.771846 0.041*
C26 1.0196 (4) −0.3031 (3) 0.73266 (6) 0.0355 (5)
H26 1.145195 −0.371305 0.735958 0.043*
C27 1.0277 (4) −0.2041 (2) 0.70656 (6) 0.0295 (5)
H27 1.157241 −0.204853 0.691838 0.035*
O1 0.5563 (3) 0.32440 (15) 0.42667 (3) 0.0234 (3)
O2 0.9227 (3) 0.55552 (17) 0.62968 (4) 0.0303 (3)
O3 0.5634 (3) 0.61321 (16) 0.64868 (3) 0.0277 (3)
O4 0.8732 (3) −0.00454 (17) 0.67654 (4) 0.0297 (3)

1 Source of material

The compound was obtained commercially (Bide Pharmatech Co., Ltd). Crystals suitable for the diffraction study were taken directly from the provided product.

2 Experimental details

The U iso values were set to be 1.5U eq of the carrier atom for methyl H atoms and 1.2U eq for the remaining H atoms.

3 Comment

Naproxen is one of the most widely prescribed drugs for the treatment and management of inflammatory diseases. Long term use of naproxen can cause serious adverse reactions, such as erosion, narrowing, bleeding, and perforation in the gastrointestinal tract. The pharmacological effects of naproxen are related to the inhibition of COX-1 and COX-2 enzymes. In addition, naproxen contains a free carboxyl group, which, when ionized, leads to an increase in acidity, a decrease in gastric pH, and complicates the problem. 4 , 5 Research has shown that using naproxen as a prodrug for esterification can reduce the gastrointestinal side effects of naproxen and improve its bioavailability. 6 In this study, we prepared a new prodrug of naproxen that masked the free carboxylic acid groups of naproxen, thereby reducing related side effects.

The title compound contains one naphthyl ring and two phenyl rings. The bond distances of C–O are 1.429(2) Å (C1–O1), 1.361(2) Å (C2–O1), 1.207(3) Å (C14–O2), 1.343(2) Å (C14–O3),1.447(2) Å (C15–O3), 1.395(2) Å (C20–O4) and 1.375(2) Å (C22– O4). The bond distance of C14–O2 are shorter than others, indicating a double bond. The dihedral angels of ring 1 (C2–C3–C4–C5–C6–C7) and ring 2 (C5–C6–C8–C9–C10–C11), ring 1 (C2–C3–C4–C5–C6–C7) and ring 3 (C16–C17–C18–C19–C20–C21), ring 1 (C2–C3–C4–C5–C6–C7) and ring 4 (C22–C23–C24–C25–C26–C27), ring 2 (C5–C6–C8–C9–C10–C11) and ring 3 (C16–C17–C18–C19–C20–C21), ring 2 (C5–C6–C8–C9–C10–C11) and ring 4 (C22–C23–C24–C25–C26–C27), and ring 3 (C16–C17–C18–C19–C20–C21) and ring 4 (C22–C23–C24–C25–C26–C27) are 0.99(6)°, 81.35(6)°, 85.27(6)°, 80.37(6)°, 85.61(6)°, and 76.46(6)°. The other bond distances and angles are in their normal ranges. 7 , 8

Corresponding author: Quan-le Sun, Changchun Medical College, Changchun, 130031, China, E-mail:

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2000.Suche in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Programs. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Yoshikawa, Y.; Naito, Y.; Tomii, T.; Kaneko, T.; Iinuma, S.; Ichikawa, H.; Yasuda, M.; Takahashi, S.; Kondo, M. Role of Active Oxygen, Lipid Peroxidation, and Antioxidants in the Pathogenesis of Gastric Mucosal Injury Induced by Indomethacin in Rats. Gut 1993, 34, 732–737; https://doi.org/10.1136/gut.34.6.732.Suche in Google Scholar PubMed PubMed Central

5. Chandiran, S.; Vyas, S.; Sharma, N.; Sharma, M. Synthesis and Evaluation of Antioxidant–S-(+)-Ibuprofen Hybrids as Gastro Sparing NSAIDs. Med. Chem. 2013, 9, 1006–1016; https://doi.org/10.2174/1573406411309070015.Suche in Google Scholar PubMed

6. Zawilska, J. B.; Wojcieszak, J.; Olejniczak, A. B. Prodrugs: A Challenge for the Drug Development. Pharmacol. Rep. 2013, 65, 1–14; https://doi.org/10.1016/s1734-1140(13)70959-9.Suche in Google Scholar PubMed

7. Daichi, H.; Teruhisa, T.; Atsushi, N.; Akiko, O.; Noriyuki, Y. 2,7–Dimethoxy-1,8-Bis(4-Phenoxybenzoyl)Naphthalene. Acta Crystallogr. 2010, E66, 2902–2903.10.1107/S1600536810042170Suche in Google Scholar PubMed PubMed Central

8. Jati, A.; Dam, S.; Kumar, S.; Kumar, K.; Maji, B. A π-conjugated Covalent Organic Framework Enables Interlocked Nickel/photoredox Catalysis for Light-Harvesting Cross-Coupling Reactions. Chem. Sci. 2023, 14, 8624–8634; https://doi.org/10.1039/d3sc02440g.Suche in Google Scholar PubMed PubMed Central

Received: 2024-08-13
Accepted: 2024-09-27
Published Online: 2024-10-09
Published in Print: 2024-12-17
