The crystal structure of 4,5-bis((Z)-chloro(hydroxyimino)methyl)-1H-imidazol-3-ium chloride monohydrate

  • Yunlu Li ORCID logo EMAIL logo , Rui Zhou , Bo Wang und Shengping Fan
Veröffentlicht/Copyright: 23. Oktober 2024
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 239 Heft 6

Abstract

C5H7Cl3N4O3, monoclinic, P21/c (no. 14), a = 5.745(3) Å, b = 29.120(13) Å, c = 6.813(3) Å, β = 107.649(6)°, V = 1086.1(9) Å3, Z = 4, R gt (F) = 0.0411, wR ref (F 2) = 0.1163, T = 296 K.

CCDC no.: 2389954

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.20 × 0.20 × 0.20 mm
Wavelength: MoKα radiation (0.71073 Å)
μ: 0.84 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 27.6°, >99 %
N(hkl)measured, N(hkl)unique, R int: 6479, 2502, 0.023
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 2,118
N(param)refined: 167
Programs: Olex2 1 , SHELX 2 , 3 , Bruker 4
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.7127 (5) 0.69011 (8) 0.2759 (4) 0.0431 (6)
H1 0.713916 0.720247 0.230982 0.052*
N1 0.8127 (4) 0.65474 (7) 0.2121 (3) 0.0401 (4)
H1A 0.889877 0.655881 0.122033 0.048*
Cl1 0.71267 (14) 0.55584 (2) 0.70060 (10) 0.0547 (2)
C2 0.7749 (4) 0.61569 (7) 0.3115 (3) 0.0320 (4)
O2 0.3570 (4) 0.60339 (6) 0.8231 (3) 0.0483 (4)
H2 0.254784 0.618127 0.858413 0.072*
N2 0.6108 (4) 0.67580 (6) 0.4138 (3) 0.0367 (4)
H2A 0.532247 0.692765 0.475578 0.044*
C5 0.8502 (4) 0.57083 (8) 0.2584 (3) 0.0387 (5)
Cl2a 1.12042 (19) 0.56408 (4) 0.2188 (2) 0.0477 (4)
N3a 0.6892 (15) 0.5369 (2) 0.2383 (18) 0.0354 (15)
O1a 0.7811 (4) 0.49535 (8) 0.1912 (4) 0.0505 (7)
H1Ba 0.683178 0.474733 0.189115 0.076*
Cl2Ab 0.7215 (16) 0.5264 (2) 0.2397 (19) 0.0389 (16)
N3Ab 1.086 (2) 0.5794 (4) 0.231 (2) 0.042 (2)
O1Ab 1.1701 (14) 0.5372 (3) 0.1728 (13) 0.0438 (18)
H1AAb 1.317674 0.538749 0.190988 0.066*
C3 0.5725 (4) 0.60623 (7) 0.6026 (3) 0.0317 (4)
Cl3 1.04629 (13) 0.68544 (2) −0.11491 (10) 0.0495 (2)
O3 1.3573 (4) 0.77021 (6) 0.1020 (3) 0.0570 (5)
H3A 1.278113 0.786170 0.177639 0.085*
H3B 1.244903 0.747670 0.059739 0.085*
N4 0.4138 (4) 0.62623 (6) 0.6663 (3) 0.0365 (4)
C4 0.6498 (4) 0.62945 (7) 0.4433 (3) 0.0302 (4)

  1. aOccupancy: 0.772(4), bOccupancy: 0.228(4).

1 Source of material

Add 0.01 mol 4,5-dicyanoimidazole and 0.04 mol hydroxylamine aqueous solution to the reactor. The temperature of the reactor was maintained at 298.15 K and the reaction is for 2 h. After the reaction is completed, the reaction solution is filtered. Remove the filtrate and retain the precipitate. Add 0.01 mol above solid and 20 mL NaNO2 to the reactor. The temperature of the reactor was maintained at 273 K. 10 mL 37 % hydrochloric acid is slowly added dropwise into the reaction for 2 h. After the reaction is completed, the reaction solution is filtered. Remove the filtrate and retain the white solid. The white solid is dissolved in methanol and is volatilized at room temperature to obtain clear colourless block crystals.

2 Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms. All the non-hydrogen atoms were refined anisotropically.

3 Comment

Imidazole compounds and their energetic salts are research hotspots in the field of energetic materials in various countries. 5 , 6 , 7 , 8 4,5-Dicyanoimidazole is an important imidazole compound that has been extensively studied. 9 , 10 The title compound was obtained by reacting 4,5-dicyanoimidazole, hydroxylamine aqueous solution and 37 % hydrochloric acid. The title compound is an organic compound with high research value in the preparation of imidazole energetic salts.

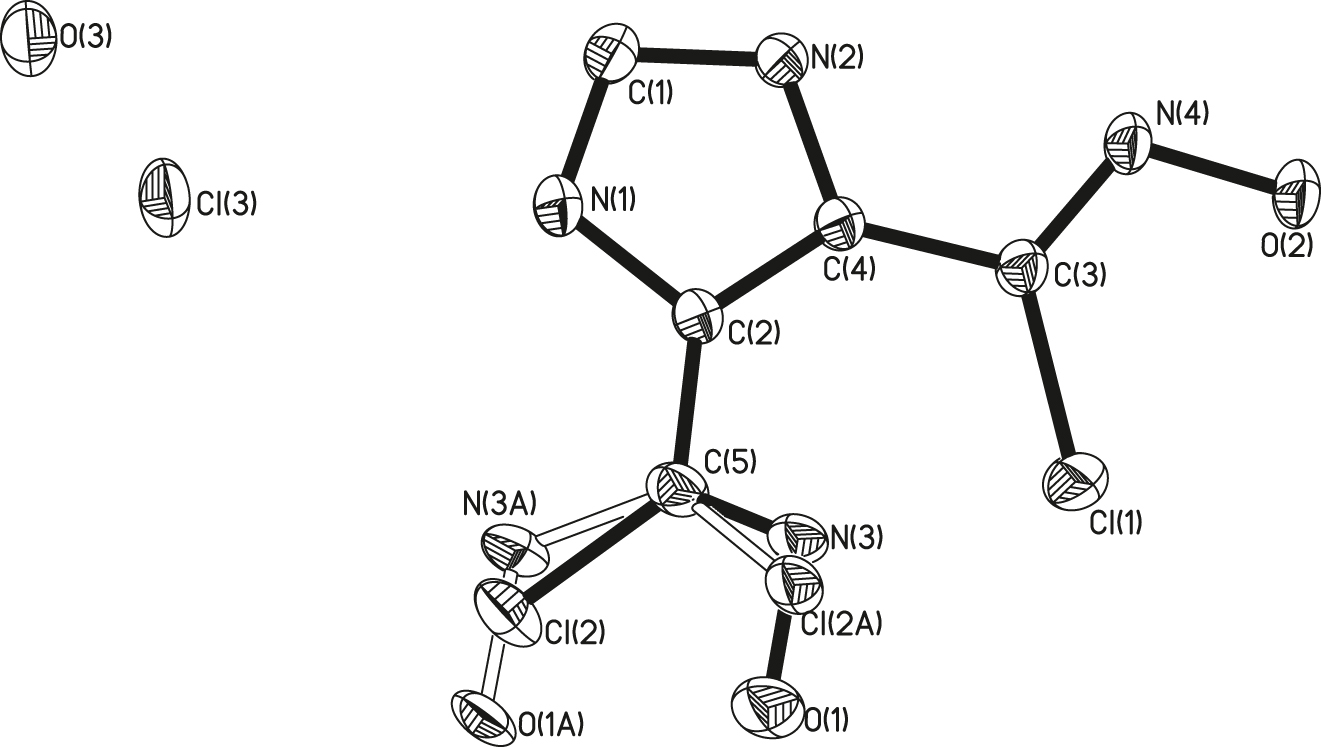

The bond lengths and angles in the title molecule are in the expected ranges. 11 The four atoms Cl2, C5, N3, O1 are in the same plane and the four atoms Cl1, C3, N4, O2 are also in the same plane. The dihedral angle formed by imidazole ring and place of Cl2, C5, N3, O1 is 41.514° and the dihedral angle formed by imidazole ring and place of Cl1, C3, N4, O2 is 21.1°.

The title compound was obtained by reacting 4,5-dicyanoimidazole, hydroxylamine aqueous solution and 37 % hydrochloric acid. During the reaction, hydroxylamine molecules are free in solution in the form –NH2 and –OH and hydrochloric acid is free in solution in the form –Cl. The –CN triple bond of 4,5-dicyanoimidazole becomes double bond, with the C atom connected to –Cl and the N atom connected to –OH, generating the (4Z,5E)-N′4,N′5-dihydroxy-1H-imidazole-4,5-bis(carbimidoyl) dichloride molecule. Due to the presence of a large amount of hydrochloric acid in the solution, the title salt was obtained.

Corresponding author: Yunlu Li, School of Environment and Safety Engineering, North University of China, Taiyuan 030051, Shanxi Province, P.R. China, E-mail:

Funding source: National Science Foundation of China

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by National Science Foundation of China under grant 22105023.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. olex2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Cryst. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

2. Sheldrick, G. M. shelxt – Integrated Space-Group Andcrystal-Structure Determination. Acta Crystallogr. 2015, 71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal Structure Refinement with shelxl. Acta Crystallogr. 2015, 71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. BRUKER saint, apex2 and sadabs; Bruker AXS Inc.: Madison, WI, USA, 2016.Suche in Google Scholar

5. Windler, G. K.; Scott, B. L.; Tomson, N. C.; Leonard, P. W. Crystal Structure of 4,5-Dinitro-1H-Imidazole. Acta Crystallogr. 2015, E71, o634; https://doi.org/10.1107/s2056989015013432.Suche in Google Scholar

6. Kelley, S. P.; Nuss, J. S.; Rogers, R. D. Nonstoichiometric, Protic Azolium Azolate Ionic Liquids Provide Unique Environments for N-Donor Coordination Chemistry. Chem. Eur. J. 2015, 21, 17196–17199; https://doi.org/10.1002/chem.201503914.Suche in Google Scholar PubMed

7. Titi, H. M.; Kelley, S. P.; Easton, M. E.; Emerson, S. D.; Rogers, R. D. Formation of Ionic Co-crystals of Amphoteric Azoles Directed by the Ionic Liquid Co-Former 1-Ethyl-3-Methylimidazolium Acetate. Chem. Commun. 2017, 61, 8569–8572; https://doi.org/10.1039/c7cc04429a.Suche in Google Scholar PubMed

8. Easton, M. E.; Li, K.; Titi, H. M.; Kelley, S. P.; Rogers, R. D. Controlling the Interface between Salts, Solvates, Co-Crystals, and Ionic Liquids with Non-Stoichiometric Protic Azolium Azolates. Cryst. Growth Des. 2020, 20, 2608–2616; https://doi.org/10.1021/acs.cgd.9b01733.Suche in Google Scholar

9. Nagatomo, S.; Takeda, S.; Tamura, H.; Nakamura, N. Crystal Structures and Hydrogen Bonding in One-Dimensional Chains of 4,5-Dicyanoimidazole and 4,5-Dichloroimidazole. Bull. Chem. Soc. Jpn. 1995, 68, 2783–2789; https://doi.org/10.1246/bcsj.68.2783.Suche in Google Scholar

10. Barni, E.; Bianchi, R.; Gervasio, G.; Peters, A. T.; Viscardi, G. Structural Characterization of 4-Cyanoimidazolium-5-Olate, 4,4-Diphenyl-5-Imidazolinone, and 4,5-Dicyanoimidazole. A Novel Mesoionic Compound and Decoding of Intermolecular Hydrogen Bonds. J. Org. Chem. 1997, 62, 7037–7043; https://doi.org/10.1021/jo9621480.Suche in Google Scholar

11. Luo, Y. H.; Wang, J. W.; Chen, C.; Li, Y. J.; Sun, B. W. Reversibly Stretching Cocrystals by the Application of a Magnetic Field. Cryst. Growth Des. 2017, 17, 2576–2583; https://doi.org/10.1021/acs.cgd.7b00116.Suche in Google Scholar
