The crystal structure of (Z)-5-amino-N ′-hydroxy-1H-pyrazole-4-carboximidamide, C4H7N5O

  • Yunlu Li ORCID logo EMAIL logo , Lujing Han , Bo Wang and Sitong Mu
Published/Copyright: August 20, 2024
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 239 Issue 6

Abstract

C4H7N5O, monoclinic, P21 (no. 4), a = 4.855(3) Å, b = 9.026(5) Å, c = 7.092(4) Å, β = 103.267(7)°, V = 302.5(3) Å3, Z = 2, R gt (F) = 0.0369, wR ref (F 2) = 0.0960, T = 296 K.

CCDC no.: 2375763

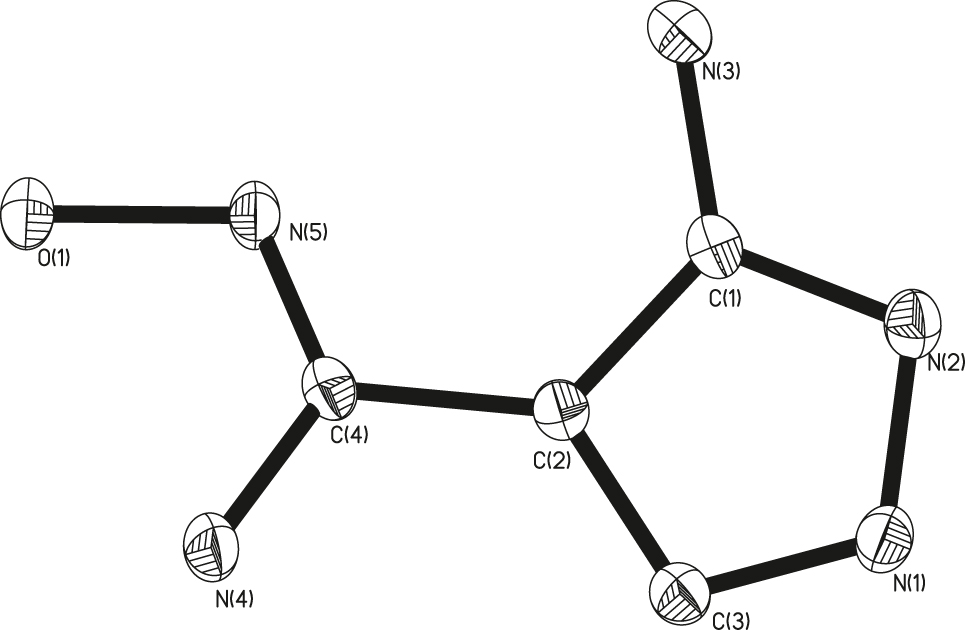

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.12 × 0.08 × 0.06 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.12 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 27.6°, >99 %
N(hkl)measured, N(hkl)unique, R int: 1,891, 1,218, 0.021
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 1,154
N(param)refined: 98
Programs: Olex2 1 , SHELX 2 , 3 , Bruker 4
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso */U eq
O1 0.8029 (4) 0.6763 (2) 0.9073 (3) 0.0355 (5)
H1 0.905 (7) 0.752 (4) 0.875 (2) 0.053*
N1 −0.1043 (5) 0.3266 (3) 0.4462 (3) 0.0301 (5)
N2 −0.0019 (5) 0.4043 (3) 0.3110 (3) 0.0283 (5)
N3 0.3684 (5) 0.5767 (3) 0.3276 (3) 0.0321 (5)
H3A 0.322987 0.588313 0.203968 0.039*
H3B 0.508591 0.625092 0.396301 0.039*
N4 0.5402 (5) 0.4347 (3) 0.9428 (3) 0.0363 (6)
H4A 0.666979 0.468677 1.038247 0.044*
H4B 0.455321 0.352876 0.954953 0.044*
N5 0.5896 (5) 0.6331 (3) 0.7416 (3) 0.0285 (5)
C1 0.2167 (5) 0.4806 (3) 0.4154 (3) 0.0229 (5)
C2 0.2551 (5) 0.4513 (3) 0.6159 (3) 0.0237 (5)
C3 0.0421 (5) 0.3520 (3) 0.6262 (4) 0.0283 (6)
H3 0.007494 0.310557 0.738523 0.034*
C4 0.4749 (5) 0.5096 (3) 0.7747 (3) 0.0243 (5)
H1A −0.267 (8) 0.274 (4) 0.410 (5) 0.043 (9)*

1 Source of material

Add 0.01 mol 4-cyano-5-aminopyrazole and 20 mL methanol to the reactor. The temperature of the reactor was maintained at 298.15 K. Then add 1.35 g 50 % hydroxylamine aqueous solution to the reactor and the reaction lasts for 2 h. After the reaction is complete, the reaction solution is filtered. Remove the filtrate and retain the white solid precipitate. The white solid is dissolved in methanol and the solution is volatilized at room temperature to obtain clear colourless block shaped crystal. X-ray single crystal diffraction was performed on the crystal.

2 Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms. All the non-hydrogen atoms were refined anisotropically.

3 Comment

Pyrazole compounds are research hotspots in the field of energetic materials in various countries. 5 , 6 , 7 , 8 , 9 The 4-cyano-5-aminopyrazole is an important imidazole compound that has been extensively studied. 10 The title compound was obtained by reacting 4-cyano-5-aminopyrazole and hydroxylamine aqueous solution. The title compound is an organic compound with high research value in the preparation of pyrazole energetic materials.

The asymmetric unit of the title compound is one (Z)-5-amino–N′-hydroxy-1H-pyrazole-4-carboximidamide molecule. The bond lengths and angles are in the expected ranges. The four atoms N4, C4, N5, O1 are in the same plane. The dihedral angle formed by pyrazole ring and plane of N4, C4, N5, O1 is 22.273°. Two intramolecular hydrogen bonds are formed in one molecule and the bond lengths of hydrogen bonds are 2.390 and 2.256 Å.

The title compound was obtained by reacting 4-cyano-5-aminopyrazole and hydroxylamine aqueous solution. During the reaction, hydroxylamine molecules are free in solution in the form –NH2 and –OH. The –CN triple bond of 4-cyano-5-aminopyrazole becomes double bond, with the C atom connected to –NH2 and the N atom connected to –OH, generating the title compound.

Corresponding author: Yunlu Li, School of Environment and Safety Engineering, North University of China, Taiyuan 030051, Shanxi Province, P.R. China, E-mail:

Funding source: National Science Fundation of China

Funding source: Center of Testing and Analysis, Shanghai Institute

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Center of Testing and Analysis, Shanghai Institute and National Science Foundation of China (no. 22105023).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

2. Sheldrick, G. M. SHELXT–Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. 2015, 71, 3–8. https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. 2015, 71, 3–8. https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. BRUKER. SAINT APEX2 and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2016.Search in Google Scholar

5. Berthou, J.; Elguero, J.; Rerat, C. Affinement de la structure cristalline du pyrazole. Acta Crystallogr. 1970, B26, 1880–1881. https://doi.org/10.1107/s0567740870005046.Search in Google Scholar

6. Sikora, M.; Katrusiak, A. Pressure-Controlled Neutral-Ionic Transition and Disordering of NH…N Hydrogen Bonds in Pyrazole. J. Phys. Chem. C 2013, 117, 10661–10668. https://doi.org/10.1021/jp401389v.Search in Google Scholar

7. Cong, C.; Yun, X.; Chong, L.; LiZhen, C.; Jianlong, W. The Crystal Structure of 1-Methyl-1H-pyrazol-2-ium Nitrate, C4H7O3N3. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 237–238. https://doi.org/10.1515/ncrs-2021-0474.Search in Google Scholar

8. Matuszek, K.; Vijayaraghavan, R.; Forsyth, C. M.; Mahadevan, S.; Kar, M.; MacFarlane, D. R. Pyrazolium Phase-Change Materials for Solar-Thermal Energy Storage. ChemSusChem 2020, 13, 159–164. https://doi.org/10.1002/cssc.201902601.Search in Google Scholar PubMed

9. Su, P.; Song, X.; Sun, R.; Xu, X. M. Hydrogen Bonding in the Crystal Structure of the Molecular Salt of Pyrazole–Pyrazolium Picrate. Acta Crystallogr. 2016, E72, 861–863. https://doi.org/10.1107/s2056989016008215.Search in Google Scholar PubMed PubMed Central

10. Emelina, E. E.; Petrov, A. A.; Borissova, A. O.; Filyukov, D. V.; Antipin, M. Y. The Interplay of Hydrogen Bonds in the Solid State Structure of NH-Pyrazoles Bearing Cyano and Amino Substituents. J. Mol. Struct. 2012, 1014, 63–69. https://doi.org/10.1016/j.molstruc.2012.01.026.Search in Google Scholar
