Crystal structure of poly[aqua-(pyridine-3-carboxylato-κ1 N)(pyridine-3-carboxylato-κ2 O,O′) cadmium(II)] dihydrate, C12H14N2O7Cd

  • Yu-Quan Feng ORCID logo EMAIL logo , Shu-Yang Chen und Zi-Long Yue
Veröffentlicht/Copyright: 28. Oktober 2024
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 239 Heft 6

Abstract

C12H14N2O7Cd, monoclinic, P21/c (no. 14), a = 13.105(7) Å, b = 7.927 (4) Å, c = 15.281 (9) Å, β = 110.220(9)°, V = 1489.6(14) Å3, Z = 4, R gt (F) = 0.0246, wR ref (F 2) = 0.0530, T = 293 K.

CCDC no.: 2389940

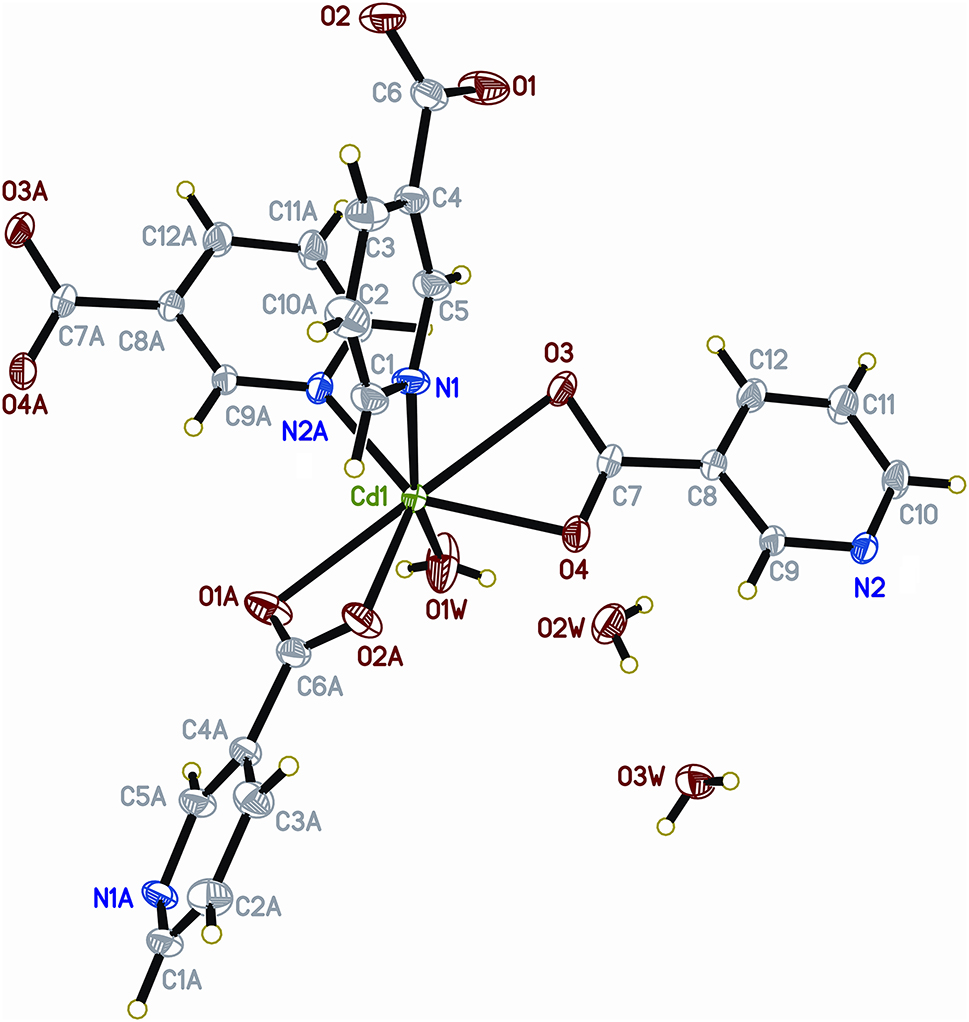

A part of the molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless rod
Size: 0.32 × 0.25 × 0.21 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.50 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 26.0°, >99 %
N(hkl)measured, N(hkl)unique, R int: 7804, 2917, 0.028
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 2,494
N(param)refined: 217
Programs: Olex2, 1 , 2 SHELX 3
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Cd1 0.20015 (2) −0.11585 (2) 0.29145 (2) 0.02936 (8)
C1 −0.0307 (2) −0.2090 (4) 0.1252 (2) 0.0355 (7)
H1 −0.0588 −0.1989 0.1731 0.043*
C2 −0.0969 (2) −0.2697 (4) 0.0406 (2) 0.0446 (8)
H2 −0.1690 −0.2972 0.0310 0.054*
C3 −0.0549 (2) −0.2893 (4) −0.03006 (19) 0.0415 (7)
H3 −0.0974 −0.3344 −0.0872 0.050*
C4 0.0510 (2) −0.2412 (3) −0.01483 (18) 0.0319 (6)
C5 0.1101 (2) −0.1774 (4) 0.07094 (19) 0.0359 (7)
H5 0.1808 −0.1414 0.0808 0.043*
C6 0.1040 (3) −0.2669 (4) −0.0869 (2) 0.0393 (7)
C7 0.2690 (2) 0.1889 (3) 0.23668 (19) 0.0298 (6)
C8 0.30509 (19) 0.3655 (3) 0.22750 (17) 0.0267 (6)
C9 0.2655 (2) 0.5007 (3) 0.26319 (18) 0.0304 (6)
H9 0.2152 0.4792 0.2924 0.036*
C10 0.3702 (2) 0.6881 (4) 0.2180 (2) 0.0394 (7)
H10 0.3935 0.7982 0.2154 0.047*
C11 0.4139 (2) 0.5625 (4) 0.1810 (2) 0.0457 (8)
H11 0.4657 0.5872 0.1538 0.055*
C12 0.3803 (2) 0.3991 (4) 0.1845 (2) 0.0393 (7)
H12 0.4078 0.3120 0.1583 0.047*
N1 0.07228 (18) −0.1639 (3) 0.14160 (15) 0.0352 (6)
N2 0.29528 (18) 0.6603 (3) 0.25805 (16) 0.0319 (5)
O1 0.19146 (18) −0.1932 (3) −0.07813 (15) 0.0578 (6)
O2 0.05941 (18) −0.3681 (3) −0.15195 (14) 0.0501 (6)
O3 0.30077 (16) 0.0718 (2) 0.19791 (14) 0.0412 (5)
O4 0.20952 (15) 0.1683 (2) 0.28513 (14) 0.0396 (5)
O1W 0.3677 (2) −0.0498 (3) 0.4126 (2) 0.0750 (9)
H1WA 0.403 (3) −0.116 (5) 0.446 (3) 0.090*
H1WB 0.388 (3) 0.045 (3) 0.424 (3) 0.090*
O2W 0.4741 (2) 0.2729 (3) 0.4695 (2) 0.0567 (7)
H2WA 0.515 (3) 0.327 (5) 0.461 (3) 0.068*
H2WB 0.439 (3) 0.329 (5) 0.486 (3) 0.068*
O3W 0.3589 (2) 0.5011 (3) 0.54082 (19) 0.0559 (7)
H3WA 0.305 (3) 0.550 (5) 0.506 (3) 0.067*
H3WB 0.350 (3) 0.471 (5) 0.586 (3) 0.067*

1 Source of material

The title compound [Cd(H2O)(C6H4NO2)2]·2H2O was synthesized by means of a mixed solvothermal method. The mixture of Cd(NO3)2·4H2O (0.16 g), pyridine-3-carboxylic acid (C6H5NO2, 0.12 g), ethylene glycol (3.0 mL) and H2O (1.5 mL) was transferred into 50 mL Teflon-lined stainless steel vessels and heated at 160 °C for 144 h. After cooling it to the room temperature, the colorless rod crystals were isolated, washed with distilled water and dried at the room temperature (yield: 83 % based on Cd(NO3)2·4H2O).

2 Experimental details

Hydrogen atoms bounded to the C atoms from the pyridine-3-carboxylato anions were positioned geometrically and refined using a riding model, with C–H = 0.93 Å, with U iso(H) = 1.2 times U eq(C). Hydrogen atoms on water molecules (O1W, O2W and O3W) were generated by Fourier difference peaks. The restrictive refinement of dfix was applied to deal with the distance of O1W and H1WB sites in the crystal structure.

3 Comment

The construction of metal polymers using the organic ligands containing N/O coordinated sites and metal ions have attracted considerable attention due to their varieties of structural features and potential performance. 4 , 5 , 6 , 7 Organic Some polydentate ligands can provide multiple coordination sites and exhibit flexible coordination geometry, which not only improved their structural dimensions and enriched the structural chemistry of metal polymers. 8 , 9 , 10 , 11 The pyridine-3-carboxylic acid (C6H5NO2) can be regarded as an excellent tridentate organic molecule for design and synthesis of metal polymers with new structural architecture. In this text, we reported a new cadmium polymer containing the tridentate ligand pyridine-3-carboxylate by means of a mixed solvothermal method. The polymer exhibited an interesting two-dimensional layered structure constructed by Cd2+ cations, pyridine-3-carboxylato anions and coordinated water molecules. The water molecules (O2W and O3W) were located between the layers. The molecular structural unit of the title polymer is shown in figure. Each Cd(II) cation adopts seven-coordinated by four O atoms and two N atoms from surrounding four different pyridine-3-carboxylato ligands and one O atom from the coordinated water molecule, leading to a capped octahedral geometric configuration {CdN2O5}. The bond lengths of Cd–O and Cd–N are in the ranges of 2.260(2)–2.701(2) Å and 2.354(2)–2.325(2) Å, respectively. These bond distances fall in their normal scopes and are well agree with previously reported cadmium coordination polymers. 12 , 13 , 14 , 15 , 16 , 17 , 18 It is worth noting that three sites (two O atoms and one N atom) of the ligand are all coordinated with cadmium cations in the title polymer. Through the flexible coordination modes between Cd2+ cations and pyridine-3-carboxylato ligands, a fascinating two-dimensional layered structure is formed. The structural features of the title polymer are comparable to those of known cadmium polymers catena-(tetrakis(μ 2-nicotinato–N,O,O′)-bis(μ 2-nicotinato–N,O)-tetraaqua-tri-cadmium(II)) (EKEJIN-221066, [Cd3(C6H4NO2)6·4H2O], A), 13 catena-[tetrakis(μ 2-3-pyridylcarboxylato–N,O,O′)-bis(μ 2-3-pyridylcarboxylato)-tetra-aqua-tri-cadmium] (EKEJIN01–288902, [Cd1·5(C6H4NO2)3)·2H2O], B) 17 and catena-((μ 2–Nicotinato–N,O,O′)-diaqua-(nicotinato–O,O′)-cadmium(II)) (EYINUV-248132, [Cd(C6H4NO2)2)(H2O)2], C): 18 (i) for the coordination mode of Cd2+ cations, the coordination numbers of Cd(1) sites in the title polymer and the above three polymers are the same (7-coordinated), while their coordination atoms are different: the title polymer, A and B exhibit the {CdN2O5} coordination modes, and the polymer C displays the {CdNO6} coordination geometry; (ii) In terms of structural dimension, the title polymer, A and B all own the 2D layered structure, while polymer C forms a 1D chain structure; (iii) From the water molecules, the title polymer contains the coordinated water molecules and free water molecules, while the remaining three polymers contain only coordinated water molecules. Within the layered structure, the distance of the adjacent Cd(II)⋯Cd(II) cations is 7.927(2) Å. In addition, the hydrogen bonds of O–H⋯O (table) and π–π stacking interactions between parallel pyridine rings belonged to pyridine-3-carboxylato ligands (C1–C5, N1, Centroid-to-Centroid distances: 3.725(1) Å and 3.625(6) Å) can be observed in the packing structure. Under the action of these hydrogen bonds and π–π stacking interactions, a three-dimensional supramolecular structure of the titled compound are generated.

Corresponding author: Yu-Quan Feng, College of Chemistry and Pharmacy Engineering, Nanyang Normal University, Nanyang 473061, China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Conflict of interest: The authors declare no conflicts of interest regarding this article.

  3. Research funding: National Natural Science Foundation of China (no. 21601095) and the National Natural Science Foundation Project Cultivation Fund of Nanyang Normal University (no. 2023PY004).

References

1. Bourhis, L. J.; Dolomanov, O. V.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. The Anatomy of a Comprehensive Constrained, Restrained Refinement Program for the Modern Computing Environment—Olex2 Dissected. Acta Crystallogr. 2015, A71, 59–75; https://doi.org/10.1107/s2053273314022207.Suche in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. Olex2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal Structure Refinement with Shelxl. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Feng, Y.-Q. Crystal Structure of catena-poly[Bis (μ2-azido-κ2N: N′)-(nitrato-κ2O:O′)-bis (1, 10-phenanthroline-κ2N: N′) samarium (III)], C24H16N11O3Sm. Z. Kristallogr. N. Cryst. Struct. 2023, 238, 1009–1011; https://doi.org/10.1515/ncrs-2023-0324.Suche in Google Scholar

5. Rosenstengel, K.; Schulz, A.; Villinger, A. Solid State Structure of Bi(N3)3, Bi(N3)3. Solvates and the Structural Dynamics in the [Bi(N3)6]3- Anion. Inorg. Chem. 2013, 52, 6110–6126; https://doi.org/10.1021/ic400493v.Suche in Google Scholar PubMed

6. Zhong, Z.-G.; Li, J.; Feng, Y.-Q. Crystal Structure of Bis (μ2-azido-κ2N: N)-tetrakis (azido-κ1N)-tetrakis (1, 10-phenanthroline-κ2N, N′) Dibismuth (III), C48H32N26Bi2. Z. Kristallogr. N. Cryst. Struct. 2023, 238, 983–985; https://doi.org/10.1515/ncrs-2023-0312.Suche in Google Scholar

7. Wang, J.-G.; Huang, C.-C.; Huang, X.-H.; Liu, D.-S. Three-dimensional Lanthanide Thiophenedicarboxylate Framework with an Unprecedented (4,5)-Connected Topology. Cryst. Growth Des. 2008, 8, 795–798; https://doi.org/10.1021/cg7011342.Suche in Google Scholar

8. Wang, H.-P.; Zhang, C.-M.; Huang, G.-P.; Liang, J.-J. The Crystal Structure of (N-([1,1′:4′,1″-Terphenyl]-4,4′-diethyl)-2-(bis(pyridin-2-ylmethyl) amino) acetamide-κ4N,N, N″,O)tri(nitrato-κO, O′) samarium(III)–Methanol–Acetonitrile (1/1/1), C40H39SmN8O14. Z. Kristallogr. N. Cryst. Struct. 2023, 238, 813–815; https://doi.org/10.1515/ncrs-2023-0163.Suche in Google Scholar

9. Feng, Y.-Q.; Zhong, Z.-G.; Wang, H.-W.; Xing, Z.-Z.; Wang, L. Crystal Structure and Luminescence Properties of a New Dinuclear Bismuth(III) Coordination Polymer Containing Three Types of Ligands. Z. Naturforsch. 2018, 73 b, 155–160; https://doi.org/10.1515/znb-2017-0134.Suche in Google Scholar

10. Zhang, W.; Feng, Y.-Q. A Novel Dinuclear Bismuth (III) Coordination Compound: Bis(u-pyridine-2, 6-dicarboxylato)-κ4O2,N,O6:O6; κ4O2:O2,N,O6-Bis[(azido-κN)(1, 10-phenanthroline-κ2N, N) bismuth(III)] Tetrahydrate. Acta Crystallogr. 2014, C70, 562–565.10.1107/S2053229614009863Suche in Google Scholar PubMed

11. Feng, Y.-Q.; Chen, S.-Y.; Wang, L.; Xing, Z.-Z. Ionothermal Synthesis, Structure and Luminescent Properties of a New 2–D Bismuth(III) Coordination Polymer with (6, 5)-Connected Topological Sheet. Chin. J. Struct. Chem. 2018, 37, 1656–1662.Suche in Google Scholar

12. Yue, Y.-F.; Gao, E.-Q.; Bai, S.-Q.; He, Z.; Yan, C.-H. High-dimensional Azido-Bridged Cadmium(II) Polymeric Complexes with Bis(bidentate) Diazine Ligands. CrystEngComm 2004, 6, 549–555; https://doi.org/10.1039/b415732j.Suche in Google Scholar

13. Li, X.; Cao, R.; Bi, W.; Wang, Y.; Wang, Y.; Li, X.; Guo, Z. A New Family of Cadmium (II) Coordination Polymers from Coligands: Effect of the Coexistent Groups (R= H, –NO2, –OH) on Crystal Structures and Properties. Cryst. Growth Des. 2005, 5, 1651–1656; https://doi.org/10.1021/cg050126d.Suche in Google Scholar

14. Luo, J.; Hong, M.; Wang, R.; Cao, R.; Han, L.; Lin, Z. Synthesis Crystal Structure and Fluorescence of Two Novel Mixed—Ligand Cadmium Coordination Polymers with Different Structural Motifs. Eur. J. Inorg. Chem. 2003, 14, 2705–2710.10.1002/ejic.200300080Suche in Google Scholar

15. He, X.; Zhang, J.; Wu, X. Y.; Lu, C. Z. Syntheses, Crystal Structures and Properties of a Series of 3D Cadmium Coordination Polymers with Different Topologies. Inorg. Chim. Acta 2010, 363, 1727–1734; https://doi.org/10.1016/j.ica.2010.03.019.Suche in Google Scholar

16. Chen, H.-J. Polymeric hexa-μ-nicotinato-tricadmium (II) tetrahydrate. Acta Crystallogr. 2003, C59, m371–m372; https://doi.org/10.1107/s0108270103016731.Suche in Google Scholar PubMed

17. Song, Y. S.; Yan, B.; Chen, Z. X. Hydrothermal Synthesis, Crystal Structure and Luminescence of Four Novel Metal–Organic Frameworks. J. Solid State Chem. 2006, 179, 4037–4046; https://doi.org/10.1016/j.jssc.2006.07.040.Suche in Google Scholar

18. Zhang, J.; Li, Z. J.; Wen, Y. H.; Kang, Y.; Qin, Y. Y.; Yao, Y. G. catena–Poly[[diaqua (nicotinato-κ2 O, O′) cadmium (II)]-μ-Nicotinato-κ3 N: O, O′]. Acta Crystallogr. 2004, C60, m389–m391; https://doi.org/10.1107/s0108270104010558.Suche in Google Scholar PubMed

Received: 2024-07-14
Accepted: 2024-10-10
Published Online: 2024-10-28
Published in Print: 2024-12-17
