The crystal structure of 4-chloro-2-formylphenyl 4-methylbenzenesulfonate, C14H11ClO4S

  • Tao Liu , Yang-Gang Li , Zhong-Yan Li EMAIL logo and Lin Yuan ORCID logo EMAIL logo
Published/Copyright: October 24, 2024
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 239 Issue 6

Abstract

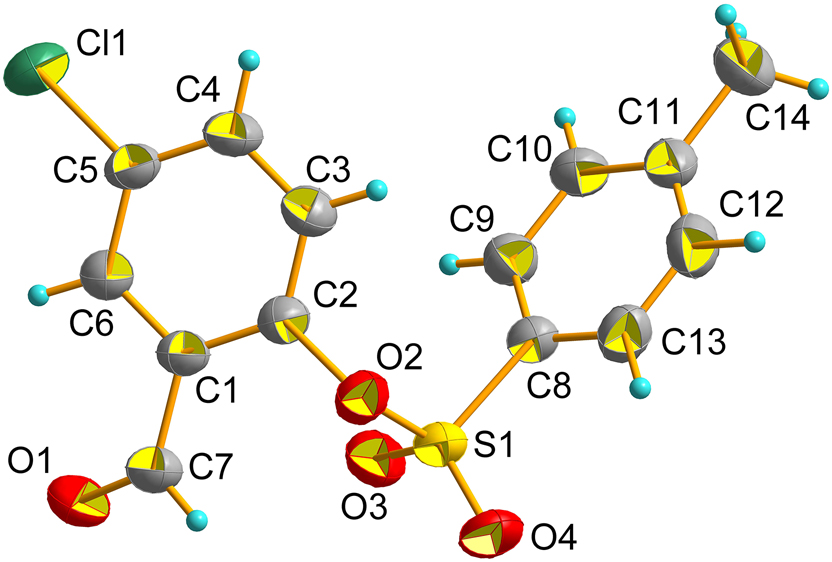

C14H11ClO4S, monoclinic, P21/c (no. 14), a = 8.2472(13) Å, b = 22.431(4) Å, c = 7.9308(13) Å, β = 106.278(2)∘, V = 1,408.3(4) Å3, Z = 4, Rgt (F) = 0.0363, wRref (F 2) = 0.0996, T = 296(2) K.

CCDC no.: 2389971

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless, block
Size: 0.53 × 0.45 × 0.39 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.43 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 25.0°, >99 %
N(hkl) measured , N(hkl)unique, R int: 13,301, 2,489, 0.015
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2,198
N(param) refined: 182
Programs: Bruker, 1 SHELX, 2 , 3 Olex2 4
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.4593 (2) 0.73572 (8) 0.8239 (2) 0.0419 (4)
C2 0.5113 (2) 0.67884 (8) 0.8826 (2) 0.0420 (4)
C3 0.6788 (2) 0.66605 (9) 0.9668 (3) 0.0517 (5)
H3 0.7107 0.6276 1.0067 0.062*
C4 0.7975 (2) 0.71076 (9) 0.9910 (3) 0.0542 (5)
H4 0.9106 0.7028 1.0461 0.065*
C5 0.7467 (2) 0.76757 (9) 0.9324 (3) 0.0477 (4)
C6 0.5795 (2) 0.78057 (9) 0.8498 (3) 0.0467 (4)
H6 0.5477 0.8192 0.8120 0.056*
C7 0.2797 (2) 0.75035 (10) 0.7363 (3) 0.0523 (5)
H7 0.1970 0.7237 0.7478 0.063*
C8 0.5158 (2) 0.54863 (8) 0.7014 (2) 0.0440 (4)
C9 0.6522 (2) 0.56743 (9) 0.6464 (3) 0.0516 (5)
H9 0.6485 0.6037 0.5886 0.062*
C10 0.7939 (2) 0.53184 (9) 0.6782 (3) 0.0556 (5)
H10 0.8859 0.5445 0.6414 0.067*
C11 0.8018 (2) 0.47775 (9) 0.7636 (3) 0.0522 (5)
C12 0.6619 (3) 0.45924 (10) 0.8137 (3) 0.0591 (5)
H12 0.6644 0.4225 0.8686 0.071*
C13 0.5192 (3) 0.49408 (9) 0.7841 (3) 0.0547 (5)
H13 0.4265 0.4812 0.8190 0.066*
C14 0.9586 (3) 0.43989 (11) 0.8017 (4) 0.0778 (7)
H14A 1.0262 0.4470 0.9199 0.117*
H14B 1.0223 0.4499 0.7213 0.117*
H14C 0.9272 0.3986 0.7882 0.117*
Cl1 0.89659 (7) 0.82400 (3) 0.96406 (9) 0.0720 (2)
O1 0.23565 (19) 0.79481 (7) 0.6513 (2) 0.0712 (5)
O2 0.39155 (16) 0.63279 (6) 0.86087 (17) 0.0491 (3)
O3 0.33457 (18) 0.63775 (7) 0.53985 (19) 0.0595 (4)
O4 0.19887 (17) 0.56313 (7) 0.6853 (2) 0.0727 (5)
S1 0.34313 (6) 0.59613 (2) 0.67744 (7) 0.04947 (17)

1 Source of material

4–Toluenesulfonyl chloride (0.419 g, 2.2 mmol), dissolved in THF (5 mL) was added dropwise to a solution of 5-chlorosalicylaldehyde (0.313 g, 2 mmol) and trimethylamine (0.202 g, 2 mmol) in THF (5 mL) with constant stirring at room temperature for 12 h. The solvent was removed and the residue was separated using flash column chromatography to obtain the target product (yield: 0.510 g, 82 %). The single crystal of the product was obtained by recrystallization from dichloromethane at room temperature.

2 Experimental details

All hydrogen atoms were identified in difference Fourier syntheses. The U iso values of the methyl groups and phenolic hydroxyl were set to 1.5U eq(C), and the U iso values of all other hydrogen atoms were set to 1.2U eq(C).

3 Comment

p–Toluene sulfonate has a wide range of applications in biology and industry, which can be used as a synthetic intermediate to synthesize drugs for the treatment of Parkinson ’s disease, and can also be used as a precursor for the preparation of Schiff base. 5 , 6 , 7 , 8 , 9

Herein, a novel p-toluene sulfonate compound was synthesized and characterized by single-crystal X-ray diffraction. 1 , 2 , 3 , 4 In the crystal structure, the benzene ring C(1)–C(6) connects a formyl group, a chlorine atom and a p-toluene sulfonate group through C(1)–C(7), C(5)–Cl(1) and C(2)–O(2). The bond lengths of Cl(1)–C(5), O(1)–C(7), S(1)–O(2), S(1)–O(3), S(1)–O(4) and S(1)–C(8) are 1.7374(19), 1.201(3), 1.6207(14), 1.4228(16), 1.4174(15) and 1.7455(19) Å, respectively. The bond angles of O(1)–C(7)–C(1), O(2)–S(1)–O(3), O(2)–S(1)–C(8), O(3)–S(1)–C(8) and O(4)–S(1)–C(8) are 123.4(2), 107.59(8), 102.94(8), 110.33(9) and 110.22(10)∘, indicating the C(7) atom is in the sp2 hybridization state and S(1) atom is in the sp3 unequal hybridization state. The dihedral angle between the plane through C(1)–C(6) and the plane through C(8)–C(13) is 34.8°.

Corresponding authors: Zhong-Yan Li and Lin Yuan, College of Chemistry and Bioengineering, Hunan University of Science and Engineering, Yongzhou, Hunan 425199, P.R. China, E-mail: (Z.-Y. Li), (L. Yuan)

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Conflict of interest: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX3, SAINT–Plus, XPREP; Bruker AXS Inc.: Madison, Wisconsin, USA, 2016.Search in Google Scholar

2. Sheldrick, G. M. SHELXT - Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A.; Puschmann, H. OLEX2: a Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

5. Ramachandran, G.; Kanakam, C. C.; Gunasekaran, B.; Manivannan, V. 2–Methoxy-4-Methylphenyl 4-Toluenesulfonate. Acta Crystallogr. 2008, E64, o1760; https://doi.org/10.1107/s1600536808025749.Search in Google Scholar

6. Manivannan, V.; Vembu, N.; Nallu, M.; Sivakumar, K.; Fronczek, F. R. 2-Methylphenyl 4-Toluenesulfonate: Supramolecular Aggregation through Weak C–H…O, C–H…π and π-π Interactions. Acta Crystallogr. 2005, E61, o239–o241; https://doi.org/10.1107/s1600536804033112.Search in Google Scholar

7. Navarrete–Gutiérrez, A.; Aguirre, G.; Cisterna, J. Isomeric Effect in Structural Studies of Substituted Nitro Hydroxy-3-Methoxy-Benzaldehyde and Nitro 2,3-Dimethoxy-Benzaldehyde Derivatives. J. Mol. Struct. 2023, 1274, 134436; https://doi.org/10.1016/j.molstruc.2022.134436.Search in Google Scholar

8. Zhao, Y. L.; Zhang, Q. Z.; Chen, X.; Yu, M. 4–Bromo-2-formyl-6-methoxyphenyl 4-methylbenzenesulfonate. Acta Crystallogr. 2005, E61, o5578–o5579; https://doi.org/10.1107/s1600536806047167.Search in Google Scholar

9. Ramachandran, G.; Suresh, R.; Sreedevi, S.; Kanakam, C. C.; Ramkumar, V. 6–Formyl-2-methoxy-3-nitrophenyl 4-toluenesulfonate. Acta Crystallogr. 2008, E64, o2046; https://doi.org/10.1107/s1600536808029711.Search in Google Scholar PubMed PubMed Central

Received: 2024-09-06
Accepted: 2024-10-10
Published Online: 2024-10-24
Published in Print: 2024-12-17
