The crystal structure of bis(μ 2-biphenyl-2,2′-dicarboxylato)-diaqua-bis(nitrato)-bis(2,2′:6′,2′′-terpyridine)dineodymium(III), C46H32I2N8Nd2O16

  • Guang Huang ORCID logo EMAIL logo , Jianhui Liu und Xinyu Chen
Veröffentlicht/Copyright: 25. Oktober 2024
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 239 Heft 6

Abstract

C46H32I2N8Nd2O16, triclinic, P 1 ‾ (no. 2), a = 8.6591(17) Å, b = 11.655(2) Å, c = 12.711(3) Å, α = 81.55(3)°, β = 86.62(3)°, γ = 68.50(3)°, V = 1180.5(5) Å3, Z = 1, R gt(F) = 0.0298, wRref (F 2) = 0.1211, T = 293(2) K.

CCDC no.: 2389958

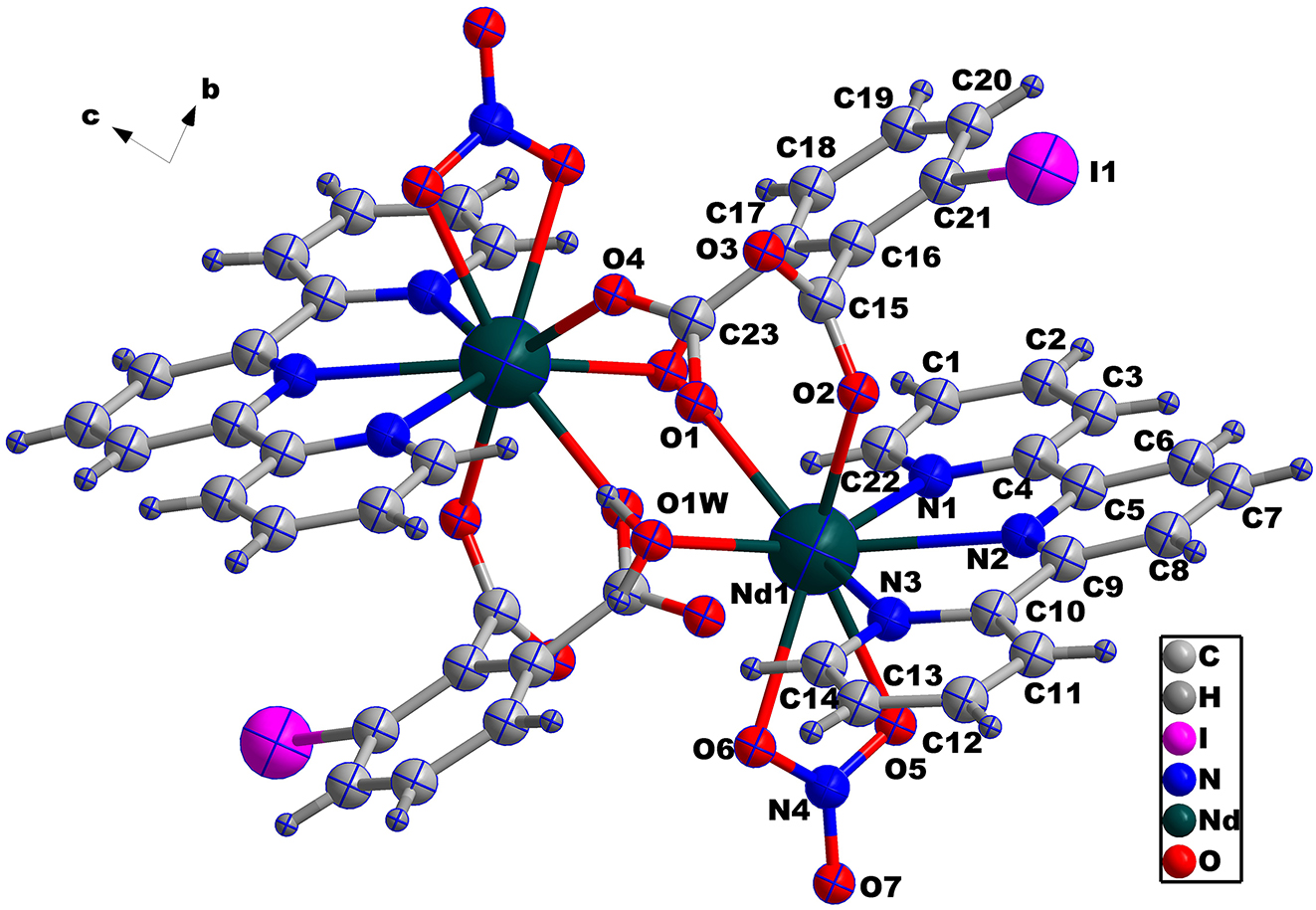

A part of the molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Pink block
Size: 0.26 × 0.18 × 0.12 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 3.57 mm−1
Diffractometer, scan mode: Bruker P4, φ and ω scans
θ max, completeness: 27.5°, >99 %
N(hkl)measured, N(hkl)unique, R int: 11663, 5383, 0.032
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 4,758
N(param)refined: 335
Programs: Bruker, 1 Olex2, 2 SHELX 3 , 4
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.1522 (6) 0.7273 (6) 0.2679 (5) 0.0385 (12)
H1 0.060136 0.723509 0.307787 0.046*
C2 0.1351 (7) 0.8124 (6) 0.1785 (5) 0.0476 (15)
H2 0.030477 0.868820 0.157430 0.057*
C3 0.2746 (8) 0.8140 (6) 0.1196 (5) 0.0469 (15)
H3 0.264559 0.868815 0.057101 0.056*
C4 0.4293 (6) 0.7321 (5) 0.1557 (4) 0.0299 (10)
C5 0.5865 (6) 0.7332 (5) 0.0990 (4) 0.0284 (10)
C6 0.5780 (8) 0.8238 (6) 0.0114 (4) 0.0430 (14)
H6 0.476427 0.880807 −0.014507 0.052*
C7 0.7252 (8) 0.8254 (6) −0.0351 (5) 0.0472 (15)
H7 0.724171 0.885840 −0.091904 0.057*
C8 0.8733 (8) 0.7378 (6) 0.0025 (4) 0.0401 (13)
H8 0.973108 0.737889 −0.028813 0.048*
C9 0.8716 (6) 0.6491 (5) 0.0880 (4) 0.0294 (10)
C10 1.0269 (6) 0.5517 (5) 0.1296 (4) 0.0277 (10)
C11 1.1796 (6) 0.5348 (6) 0.0769 (4) 0.0347 (11)
H11 1.182709 0.583081 0.012293 0.042*
C12 1.3241 (6) 0.4477 (6) 0.1202 (4) 0.0370 (12)
H12 1.425451 0.436234 0.085806 0.044*
C13 1.3148 (6) 0.3782 (5) 0.2153 (4) 0.0345 (11)
H13 1.410887 0.319449 0.246977 0.041*
C14 1.1648 (6) 0.3951 (5) 0.2635 (4) 0.0334 (11)
H14 1.160694 0.345685 0.327299 0.040*
C15 0.7237 (5) 0.7556 (4) 0.4158 (4) 0.0217 (9)
C16 0.5406 (5) 0.8311 (4) 0.4110 (3) 0.0221 (9)
C17 0.4268 (6) 0.7864 (4) 0.4696 (3) 0.0246 (9)
C18 0.2612 (6) 0.8599 (5) 0.4703 (4) 0.0357 (11)
H18 0.186641 0.831046 0.510993 0.043*
C19 0.2049 (7) 0.9768 (5) 0.4107 (5) 0.0440 (14)
H19 0.092439 1.025317 0.410664 0.053*
C20 0.3124 (7) 1.0210 (5) 0.3526 (5) 0.0400 (13)
H20 0.273548 1.098887 0.311750 0.048*
C21 0.4814 (6) 0.9491 (5) 0.3541 (4) 0.0297 (10)
C22 0.3124 (6) 0.6464 (5) 0.2972 (4) 0.0303 (10)
H22 0.324820 0.587831 0.357412 0.036*
C23 0.4847 (6) 0.6558 (4) 0.5262 (4) 0.0247 (9)
I1 0.64666 (5) 1.02360 (3) 0.26854 (3) 0.04201 (13)
N1 0.4490 (5) 0.6485 (4) 0.2433 (3) 0.0271 (8)
N2 0.7291 (5) 0.6468 (4) 0.1349 (3) 0.0245 (8)
N3 1.0221 (5) 0.4809 (4) 0.2222 (3) 0.0286 (9)
N4 0.8356 (6) 0.2750 (5) 0.2096 (4) 0.0405 (11)
Nd1 0.73807 (3) 0.50312 (2) 0.32045 (2) 0.01917 (10)
O1 0.6093 (4) 0.5762 (3) 0.4882 (2) 0.0251 (7)
O2 0.7864 (4) 0.6866 (3) 0.3442 (3) 0.0267 (7)
O3 0.8025 (5) 0.7685 (3) 0.4886 (3) 0.0341 (8)
O4 0.4060 (4) 0.6319 (3) 0.6074 (3) 0.0293 (7)
O5 0.7275 (5) 0.3800 (4) 0.1732 (3) 0.0415 (9)
O6 0.9097 (5) 0.2703 (4) 0.2926 (4) 0.0448 (10)
O7 0.8633 (8) 0.1839 (5) 0.1639 (5) 0.0746 (18)
O1W 0.9263 (5) 0.4108(4) 0.4721(3) 0.0368 (8)
H1WA 0.961452 0.330874 0.477517 0.055*
H1WB 0.872213 0.427544 0.530396 0.055*

1 Source of materials

All raw materials are analytical grade, purchased without further purification, and used directly. The titled neodymium(III) complex was hydrothermally synthesized as follows: 0.0433 g neodymium nitrate hexahydrate (0.1 mmol), 0.0292 g (0.1 mmol) 3-iodobenzene-1,2-dicarboxylic acid, 0.0233 g 2,2′:6′,2″-terpyridine (0.1 mmol), and 0.008 g NaOH (0.2 mmol) were mixed with 5 mL H2O, then added to a 20 mL Teflon-lined stainless steel autoclave at 393 K for 72 h. The pink block crystals were harvested with a yield 56.4 % (based on 3-iodobenzene-1,2-dicarboxylic acid).

2 Experimental details

The structure was solved by direct methods with the SHELXS-2018 program. All H-atoms from C and O atoms were positioned with idealized geometry and refined isotropically (U iso(H) = 1.2U eq(C) and U iso(H) = 1.5U eq(O)) using a riding model with C–H = 0.930 Å and O–H = 0.861 Å.

3 Comment

The crystal structures of four-components of lanthanide complexes base on lanthanide(III), benzenecarboxylic acid or its direvatives, 2,2′:6′,2″-terpyridine, and nitrate have been reported elsewhere, including mono-nuclear Ln(III), 5 , 6 di-nuclear Ln(III) 7 , 8 , 9 , 10 , 11 and 1D chain. 12 Besides, the crystal structure of 3-iodophthalic acid 13 and its mono-nuclear 1D chainlike structure 12 have been reported, the crystal structure of di-nuclear Ln(III) complex based on the four-components mentioned above has not been published anywhere. Thus, we reported one crystal structure of this type of neodymium(III) complex. The asymmetric unit consists of one neodymium(III) cation, one full-deprotonated 3-iodobenzene-1,2-dicarboxylate anion, one neutral 2,2′:6′2″-tripyridine, one nitrate, and one coordinated water molucule. The neodymium(III) is nine-coordinated with three nitrogen atoms from one 2,2′:6′2″-tripyridine, three oxygen atoms from three carboxyl groups of two 3-iodobenzene-1,2-dicarboxylate anions, two oxygen atoms from one nitrate, and one oxygen atom from one coordinated water molecule. 3-Iodobenzene-1,2-dicarboxylates were bridged by two carboxylates to generate one di-nuclear neodymium(III) complex. A three dimensional supramolecular structure is obtained by two kind of hydrogen bonds C–H⋯O (C1–H1⋯O2, C8–H8⋯O7, C11–H11⋯O5, C12–H12⋯O5, and C14–H14⋯O3) and O–H⋯O (O1–H1WA⋯O3), and π⋯π weak interactions.

Corresponding author: Guang Huang, Sino-Portugal Belt and Road Joint Laboratory on Science of Cultural Heritage Conservation, City University of Macau, Taipa, Macau; HERCULES Laboratory, Universidade de Évora, 7000-809, Evora, Portugal; and Sino-Portugal Belt and Road Joint Laboratory on Science of Cultural Heritage Conservation, Soochow University, Suzhou, Jiangsu, P.R. China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest: The authors declare no conflicts of interest regarding this article.

References

1. Bruker XSCANS, Bruker SHEXLTL; Bruker AXS Inc: Madison, Wisconsin, USA, 2012.Suche in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8, https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Sheldrick, G. Using Phases to Determine the Space Group. Acta Crystallogr. 2018, A74, A353; https://doi.org/10.1107/s0108767318096472.Suche in Google Scholar

5. Li, Y.; You, Y.; Zhao, P.; Ding, B.; Zhang, N.; Liu, Z.-Y.; Yang, E.-C.; Zhao, X.-J. Fine Tuning the Relaxation Dynamics of Mononuclear Dy(III) Complexes by Auxiliary Ligand. Inorg. Chem. Commun. 2022, 140, 109461; https://doi.org/10.1016/j.inoche.2022.109461.Suche in Google Scholar

6. Geng, S.; Ren, N.; He, S.-M.; Zhang, J.-J. Synthesis and Structural Characterization of Lanthanide Metal Complexes by 2-Fluorobenzoic Acid with 2,2′:6′,2″-Terpyridine, and Their Fluorescence Properties. J. Mol. Struct. 2021, 1252, 132165; https://doi.org/10.1016/j.molstruc.2021.132165.Suche in Google Scholar

7. Messimeri, A.; Papadimitriou, C.; Raptopoulou, C. P.; Escuer, A.; Perlepes, S. P.; Boudalis, A. K. The Benzoate/Nitrate/2,2′:6′,2″-terpyridine ‘Blend’ in Lanthanide(III) Chemistry: Relevance to the Separation of Lanthanides and Actinides by Solvent Extraction. Inorg. Chem. Commun. 2007, 10, 800–804; https://doi.org/10.1016/j.inoche.2007.03.030.Suche in Google Scholar

8. Xie, H.; Lu, G. Crystal Structures and Fluorescence Properties of Lanthanide Complexes Prepared with 2,2′-Biphenyldicarboxylic Acid and 2,2′:6′,2″-Terpyridine. J. Rare Earths 2013, 31, 639–644; https://doi.org/10.1016/s1002-0721(12)60334-2.Suche in Google Scholar

9. Herder, J. A.; Walusiak, B. W.; Cahill, C. L. RE-Halobenzoic Acid-Terpyridine Complexes, Part V: Synthesis and Supramolecular Assembly of Rare-Earth-3,5-Dihalobenzoic Acid-Terpyridine Naterials and Subsequent Comparison of Non-covalent Interactions. J. Chem. Cryst. 2021, 51, 317–336; https://doi.org/10.1007/s10870-020-00858-x.Suche in Google Scholar

10. Wang, S.-L.; Xu, C.-L.; Liu, Z.-J.; Ren, N.; Zhang, J.-J. Synthesis, Structure, Fluorescence and Thermochemical Properties of the Lanthanide Complexes of 2-Chloro-6-Fluorobenzoic Acid and 2,2′:6′2″-Tripyridine Ligands. J. Solid State Chem. 2022, 315, 123454; https://doi.org/10.1016/j.jssc.2022.123454.Suche in Google Scholar

11. Zhao, J.-Y.; Ren, N.; Zhang, J.-J. Lanthanide Complexes with 2,6-dimethylbenzoic Acid and 2,2′:6′,2″-Terpyridine: Crystal Structures, Thermochemical Property and Luminescent Behavior. Thermochim. Acta 2021, 699, 178915; https://doi.org/10.1016/j.tca.2021.178915.Suche in Google Scholar

12. Cai, B.; Meng, Y. The Crystal Structure of catena-[nitrato-κ2O, O′-(μ3-3-iodobenzene-1,2-dicarboxylato- κ4O: O′: O″, O‴)-(2,2′:6′,2″-Terpyridine-κ3N, N′, N″)lanthanum(III)], C23H14IN4O7La. Z. Kristallogr. N. Cryst. Struct. 2023, 238, 465–466; https://doi.org/10.1515/ncrs-2023-0036.Suche in Google Scholar

13. Du, C.-J.; Wang, Z.-D.; Zhu, D.-F.; Zhu, Y.-L.; Zeng, Y. Crystal Structure of 3-Iodophthalic Acid, C8H5IO4. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 243–244; https://doi.org/10.1515/ncrs-2019-0598.Suche in Google Scholar
Received: 2024-07-31
Accepted: 2024-10-10
Published Online: 2024-10-25
Published in Print: 2024-12-17
