Crystal structure of 4-iodobenzyl 2-(6-methoxynaphthalen-2-yl) propanoate, C21H19IO3

  • Rui Wang , Yijia Yuan , Le Chen und Wei Sun ORCID logo EMAIL logo
Veröffentlicht/Copyright: 22. Oktober 2024
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 239 Heft 6

Abstract

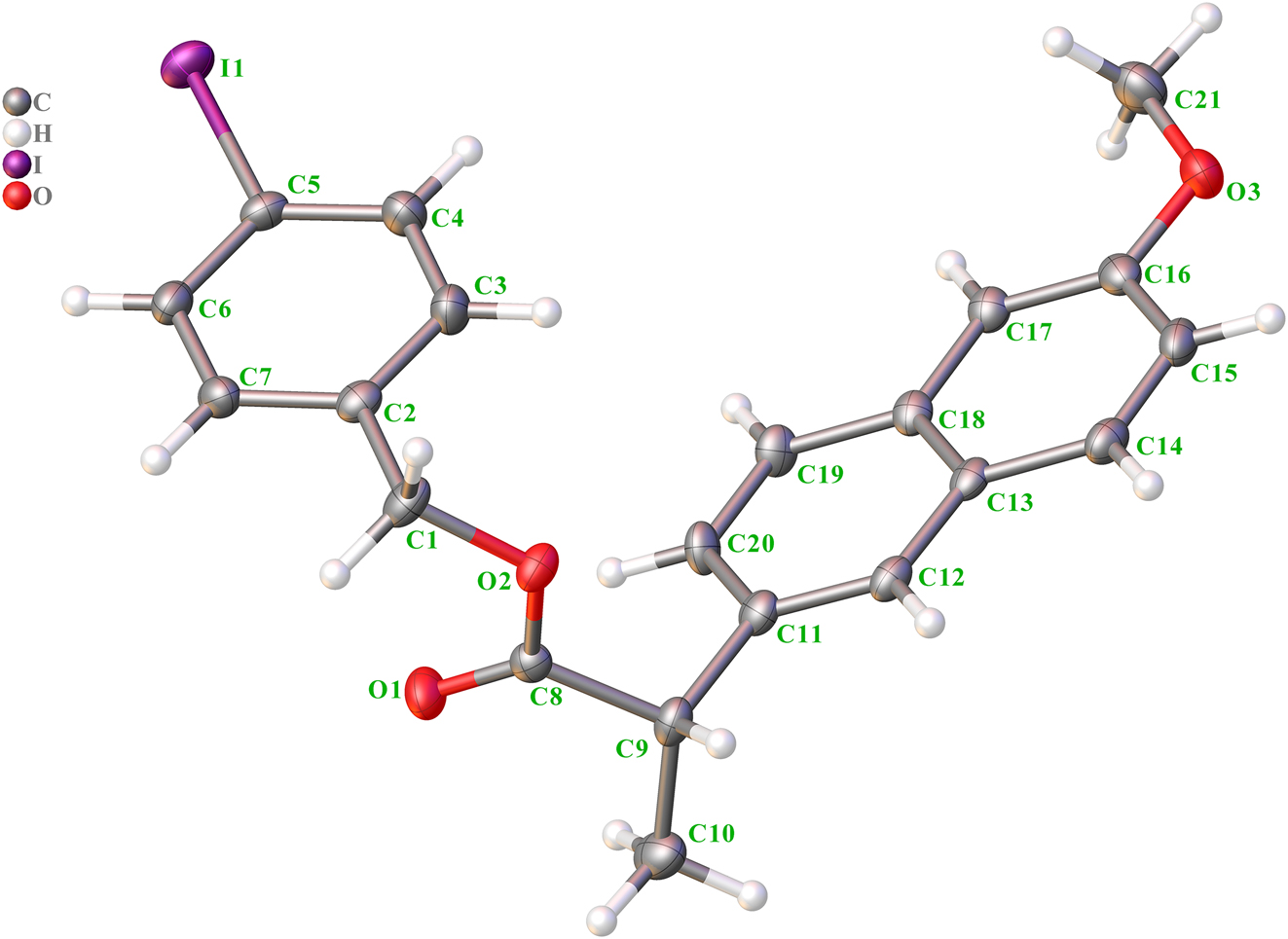

C21H19IO3, monoclinic, P21 (no. 4), a = 11.8252 (4) Å, b = 5.4966 (2) Å, c = 14.9468 (5) Å, β = 106.888 (1)∘, V = 929.62 (6) Å3, Z = 2, R gt (F) = 0.0134, wR ref (F 2) = 0.0319, T = 100 (2) K.

CCDC no.: 2389975

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.15 × 0.13 × 0.12 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.74 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 27.6°, >99 %
N(hkl) measured, N(hkl) unique, R int: 32,753, 4,293, 0.026
Criterion for I obs, N(hkl) gt: I obs > 2 σ(I obs), 4,179
N(param) refined: 228
Programs: Olex2, 1 SHELX 2 , 3
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.8392 (2) 0.7598 (4) 0.45239 (15) 0.0228 (5)
H1A 0.809003 0.918724 0.466617 0.027*
H1B 0.926641 0.765851 0.474167 0.027*
C2 0.7966 (2) 0.5625 (4) 0.50440 (15) 0.0189 (4)
C3 0.68138 (18) 0.4732 (7) 0.47328 (14) 0.0238 (5)
H3 0.629204 0.533698 0.416740 0.029*
C4 0.6417 (2) 0.2967 (5) 0.52382 (16) 0.0239 (5)
H4 0.562908 0.237760 0.502378 0.029*
C5 0.7190 (2) 0.2079 (4) 0.60615 (15) 0.0195 (4)
C6 0.8342 (2) 0.2927 (4) 0.63746 (16) 0.0211 (5)
H6 0.886642 0.230146 0.693487 0.025*
C7 0.87238 (17) 0.4687 (8) 0.58680 (13) 0.0208 (4)
H7 0.951366 0.526514 0.608432 0.025*
C8 0.85481 (19) 0.5384 (4) 0.32020 (15) 0.0171 (4)
C9 0.8060 (2) 0.5099 (4) 0.21472 (15) 0.0197 (5)
H9 0.798832 0.675207 0.185646 0.024*
C10 0.8898 (2) 0.3587 (5) 0.17675 (17) 0.0285 (5)
H10A 0.895002 0.193590 0.202398 0.043*
H10B 0.968364 0.433644 0.195050 0.043*
H10C 0.859891 0.351544 0.108404 0.043*
C11 0.68293 (19) 0.3973 (4) 0.19153 (14) 0.0186 (5)
C12 0.58818 (19) 0.4972 (4) 0.12560 (14) 0.0181 (5)
H12 0.598832 0.641666 0.094111 0.022*
C13 0.4747 (2) 0.3882 (3) 0.10375 (14) 0.0173 (5)
C14 0.37470 (19) 0.4890 (5) 0.03606 (15) 0.0210 (6)
H14 0.383911 0.631397 0.002838 0.025*
C15 0.2662 (2) 0.3837 (4) 0.01843 (15) 0.0231 (5)
H15 0.200730 0.453326 −0.027060 0.028*
C16 0.24989 (19) 0.1725 (4) 0.06691 (15) 0.0206 (4)
C17 0.34416 (19) 0.0650 (4) 0.13131 (15) 0.0189 (4)
H17 0.333120 −0.079369 0.162671 0.023*
C18 0.45835 (19) 0.1721 (4) 0.15051 (15) 0.0175 (4)
C19 0.5578 (2) 0.0706 (4) 0.21780 (16) 0.0202 (4)
H19 0.548889 −0.074398 0.249664 0.024*
C20 0.6667 (2) 0.1801 (4) 0.23725 (15) 0.0197 (4)
H20 0.732252 0.108832 0.282147 0.024*
C21 0.1106 (2) −0.0984 (5) 0.10118 (19) 0.0310 (7)
H21A 0.025938 −0.135967 0.080323 0.046*
H21B 0.132847 −0.045606 0.166614 0.046*
H21C 0.155839 −0.243945 0.095473 0.046*
I1 0.66241 (2) −0.04940 (4) 0.68756 (2) 0.02517 (4)
O1 0.93104 (14) 0.4144 (4) 0.37006 (11) 0.0261 (5)
O2 0.80061 (14) 0.7204 (3) 0.35175 (11) 0.0197 (3)
O3 0.13548 (14) 0.0913 (3) 0.04464 (12) 0.0269 (4)

1 Source of the material

The compound was obtained commercially (Bide Pharmatech Co., Ltd). Its single crystals were obtained from tetrahydrofuran.

2 Experimental details

The C-bound H atoms were geometrically placed and refined as riding with U ISO(H) = 1.2–1.5 U eq(C) using the appropriate SHELXL commands. The N-bound H atoms were freely refined.

3 Comment

Naproxen is a commonly used nonselective nonsteroidal anti-inflammatory drug. The title compound is a Naproxen ester. A view on the structure of the ester is shown in the figure. One carbon-oxygen double bond exists in the compound, the C–O double bond distance (C8–O1) is 1.201 (3) Å. And there is a carbon-iodine bond in the compound, the C–I bond distance (C5–I1) is 2.098 (2) Å.The dihedral angle of naphthalene ring and iodine-substituted benzene ring is 14.798(49)∘. All the bond lengths and angles are in the expected ranges. 4 , 5 , 6 , 7

Corresponding author: Wei Sun, School of Pharmaceutical Sciences of Jilin University, Changchun 130021, P.R. China, E-mail:

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Conflict of interest: The authors declare no conflicts of interest regarding this article.

References

1. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

2. Sheldrick, G. M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

3. Sheldrick, G. M. A Short History of SHELX (2008). Acta Crystallogr. 2008, A64, 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

4. Wei, S.; Yan, W.; Xiaoping, Z.; Muxin, Z.; Jinzhu, Y.; Di, L. Crystal Structure of Benzo[d] [1,3]dioxol-5-Yl-2-(6-Methoxynaphthalen-2-Yl)propanoate, C21H18O5. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 779–780.10.1515/ncrs-2021-0116Suche in Google Scholar

5. Wei, S.; Zhe, S.; Yan, W.; Xiaoping, Z.; Di, L. Crystal Structure of 2-Methoxyphenyl 2-(6-Methoxynaphthalen-2-Yl)propanoate, C21H20O4. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 885–886.10.1515/ncrs-2021-0134Suche in Google Scholar

6. Jiang, D.-L.; Liu, Y.; Cui, Y.; Li, R. Crystal Structure of 3,4-Dimethoxybenzyl 2-(6-Methoxynaphthalen-2-Yl)propanoate, C23H24O5. Z. Kristallogr. N. Cryst. Struct. 2024, 239, 645–647; https://doi.org/10.1515/ncrs-2024-0118.Suche in Google Scholar

7. Bai, Y.; Zhang, X.-R.; Hao, D.; Gu, Y. Crystal Structure of Benzo[d] [1,3]dioxol-5-Ylmethyl 2-(6-Methoxynaphthalen-2-Yl)propanoate, C22H20O5. Z. Kristallogr. N. Cryst. Struct. 2024, 239, 697–699; https://doi.org/10.1515/ncrs-2024-0144.Suche in Google Scholar
Received: 2024-09-09
Accepted: 2024-10-10
Published Online: 2024-10-22
Published in Print: 2024-12-17

© 2024 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
