The crystal structure of 2-amino-N-(pyridin-2-yl)benzamide, C12H11N3O

  • Lin Yuan ORCID logo , Long-Sheng Zou and Xiao-Ming Chen EMAIL logo
Published/Copyright: August 20, 2024
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 239 Issue 6

Abstract

C12H11N3O, monoclinic, P21/c (no. 14), a = 5.323(4) Å, b = 19.530(16) Å, c = 10.302(10) Å, β = 100.965(8)°, V = 1051.4(15) Å3, Z = 4, R gt(F) = 0.0314, wR ref(F 2) = 0.0871, T = 296(2) K.

CCDC no.: 2374481

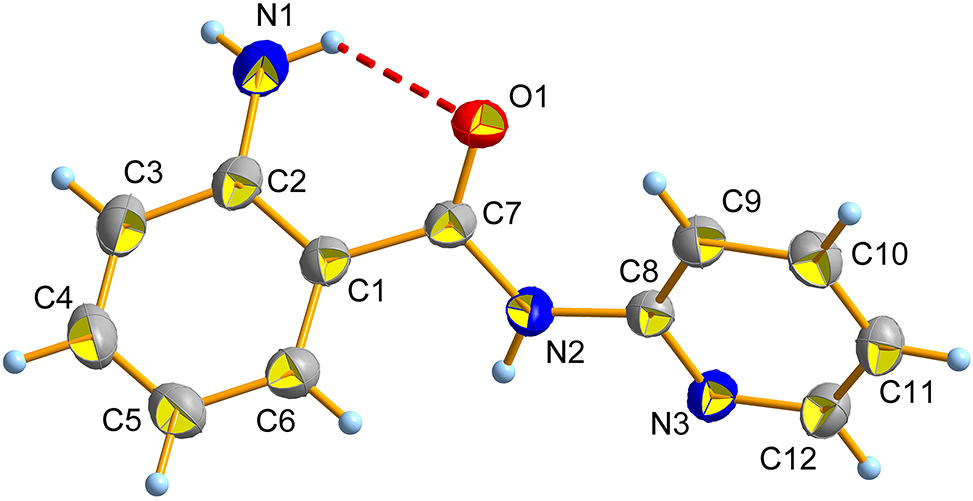

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Block
Size: 0.41 × 0.38 × 0.32 mm
Wavelength:

μ:		 MoKα radiation (0.71073 Å)

0.09 mm−1
Diffractometer, scan mode:

θ max, completeness:		 Bruker APEX-II, φ and ω

25.0°, >99 %
N(hkl)measured, N(hkl)unique, R int: 9628, 1854, 0.021
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 1738
N(param)refined: 154
Programs: Bruker, 1 SHELX 2 , 3
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 −0.0100 (2) 0.37286 (6) 0.27899 (11) 0.0337 (3)
C2 −0.1864 (2) 0.35112 (6) 0.35791 (12) 0.0370 (3)
C3 −0.3002 (3) 0.28658 (7) 0.33068 (14) 0.0482 (4)
H3 −0.4243 0.2723 0.3772 0.058*
C4 −0.2325 (3) 0.24402 (7) 0.23683 (15) 0.0534 (4)
H4 −0.3101 0.2014 0.2217 0.064*
C5 −0.0498 (3) 0.26378 (7) 0.16420 (14) 0.0493 (4)
H5 −0.0002 0.2342 0.1029 0.059*
C6 0.0564 (3) 0.32809 (7) 0.18488 (12) 0.0409 (3)
H6 0.1754 0.3422 0.1350 0.049*
C7 0.1147 (2) 0.44115 (6) 0.29854 (11) 0.0335 (3)
C8 0.3202 (2) 0.52652 (6) 0.17344 (11) 0.0315 (3)
C9 0.5254 (2) 0.54384 (6) 0.27403 (12) 0.0378 (3)
H9 0.5464 0.5229 0.3564 0.045*
C10 0.6957 (2) 0.59273 (7) 0.24818 (13) 0.0415 (3)
H10 0.8354 0.6047 0.3130 0.050*
C11 0.6582 (2) 0.62397 (7) 0.12528 (13) 0.0414 (3)
H11 0.7715 0.6569 0.1056 0.050*
C12 0.4478 (2) 0.60465 (6) 0.03338 (12) 0.0401 (3)
H12 0.4212 0.6259 −0.0489 0.048*
N1 −0.2448 (3) 0.38989 (7) 0.45965 (12) 0.0503 (3)
H1A −0.178 (3) 0.4301 (9) 0.4758 (15) 0.054 (5)*
H1B −0.388 (4) 0.3823 (9) 0.4868 (18) 0.070 (5)*
N2 0.1521 (2) 0.47251 (5) 0.18468 (9) 0.0361 (3)
H2 0.0624 0.4574 0.1120 0.043*
N3 0.27822 (19) 0.55703 (5) 0.05496 (10) 0.0362 (3)
O1 0.18234 (19) 0.46650 (5) 0.40865 (8) 0.0473 (3)

1 Source of material

Isatoic anhydride (0.82 g, 5 mmol) and 2-aminopyridine (0.52 g, 5.5 mmol) were dissolved in DMF (25 mL) and the mixture was refluxed for 5 h. The reaction mixture was concentrated in vacuum, and the title compound was isolated through a silica gel column chromatography (PE: EtOAc = 3:1) as a white solid (0.55 g, 52 % yield). Single crystals of the product can be obtained by recrystallization in ethanol through slow evaporation with in one week.

2 Experimental details

All hydrogen atoms were identified in difference Fourier syntheses. The U iso values of all hydrogen atoms were set to 1.2U eq (C).

3 Comment

2-Aminobenzamide derivatives have antibacterial, antifungal and insecticidal activities, and are often used as intermediates to synthesize quinazolinone compounds. 4 , 5 , 6 , 7 , 8 , 9

In the crystal structure, the title molecule is non-planar and the dihedral angle between rings C1–C6 and C8–N3 is 65.55(3)°. The NH group of the aniline moiety participates in an intramolecular N–H⃛O hydrogen bond (H1a⃛O1 = 2.2723 Å) to the oxygen atom of the amide group. The bond lengths of N(1)–C(2), O(1)–C(7), N(2)–C(7), C(7)–C(1), N(2)–C(8), N(3)–C(8) and N(3)–C(12) are 1376(2) Å, 1.2273(17) Å, 1.3709(18) Å, 1.4864(19) Å, 1.4023(17) Å, 1.3383(18) Å and 1.3437(17) Å, respectively. The bond angles of O(1)–C(7)–N(2), O(1)–C(7)–C(1), N(2)–C(7)–C(1) and C(8)–N(3)–C(12) are 123.08(12)°, 122.15(11)°, 114.76(10)° and 117.26(11)°. All geometric parameters are in the expected ranges. 9 , 10

Corresponding author: Xiao-Ming Chen, College of Chemistry and Bioengineering, Hunan University of Science and Engineering, Yongzhou, Hunan 425199, P.R. China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was financially supported by Natural Science Foundation of Hunan Province of China (2024JJ7198), the Scientific Research Fund of Hunan Provincial Education Department (21A0518, 23B0751).

  3. Competing interests: The authors declare no conflicts of interest regarding this article.

References

1. Bruker: Apex3, Saint-Plus, Xprep; Bruker AXS Inc.: Madison, Wisconsin, USA, 2016.Search in Google Scholar

2. Sheldrick, G. M. Shelxt – Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal Structure Refinement with Shelxl. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Wiesbrock, F.; Schmidbaur, H. Interactions of a β-Dipeptide with Monovalent Metal Cations: Crystal Structures of (Anthranoyl)anthranilic Acid and its Lithium, Sodium and Thallium Salts. J. Inorg. Biochem. 2004, 98, 473–484; https://doi.org/10.1016/j.jinorgbio.2003.12.017.Search in Google Scholar PubMed

5. Khan, I.; Ibrar, A.; Ahmed, W.; Saeed, A. Synthetic Approaches, Functionalization and Therapeutic Potential of Quinazoline and Quinazolinone Skeletons: The Advances Continue. Eur. J. Med. Chem. 2015, 90, 124–169; https://doi.org/10.1016/j.ejmech.2014.10.084.Search in Google Scholar PubMed

6. Riad, N. M.; Zlotos, D. P.; Holzgrabe, U. 2-Amino-N-(2-chloro-pyridin-3-yl) Benzamide. IUCrDATA 2017, 2, x171536; https://doi.org/10.1107/s241431461701536x.Search in Google Scholar

7. Booysen, I.; Gerber, T. I. A.; Hosten, E.; Mayer, P. Formation of a Six-Coordinate fac-[Re(CO)3]+ Complex by the N–C Bond Cleavage of a Potentially Tetradentate Ligand. J. Iran. Chem. Soc. 2008, 5, 689–693; https://doi.org/10.1007/bf03246150.Search in Google Scholar

8. Button, K. M.; Gossage, R. A.; Jenkins, H. A.; Mahdi, T.; Resanović, S. On the Purity of 2-[Ortho-Anilinyl]-1,3-Benzoxazole Derived from 2H-3,1-Benzoxazine-2,4(1H)dione (Isatoic Anhydride). J. Heterocycl. Chem. 2010, 47, 268–271; https://doi.org/10.1002/jhet.326.Search in Google Scholar

9. Mabkhot, Y. N.; Barakat, A.; Ghabbour, H. A.; Fun, H.-K. Crystal Structure of 2-Amino-N-(4-Methoxyphenyl) Benzamide, C14H14N2O2. Z. Kristallogr. N. Cryst. Struct. 2016, 231, 203–204; https://doi.org/10.1515/ncrs-2015-0089.Search in Google Scholar

10. Ying, L.; Xi-Shi, T. The Crystal Structure of Bis{[Monoaqua-μ2-4-[(Pyridine-4-Carbonyl)-Amino]-Phthalato-κ3 N:O,O′-(2,2′-Bipyridine κ2N,N′)Copper(II)]}Decahydrate, C48H56N8O22Cu2. Z. Kristallogr. - N. Cryst. Struct. 2024, 239, 451–453. https://doi.org/10.1515/ncrs-2024-0041 Search in Google Scholar
Received: 2024-06-19
Accepted: 2024-07-30
Published Online: 2024-08-20
Published in Print: 2024-12-17
