Crystal structure of (Z)-1-(((3-acetyl-2-hydroxyphenyl)amino)methylene)naphthalen-2(1H)-one, C19H15NO3

  • Gang Li EMAIL logo , Wei-Min Zhou , Li-Chun Zhu und Li Wang
Veröffentlicht/Copyright: 6. Februar 2016
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 231 Heft 1

Abstract

C19H15NO3, monoclinic, P21/n, a = 9.1811(4) Å, b = 16.0396(6) Å, c = 10.1330(5) Å, β = 98.640(5)° V = 1475.27(11) Å3, Z = 4, Rgt(F) = 0.0539, wRref(F2) = 0.1373, T = 294.29(10) K.

CCDC no.:: 1447501

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

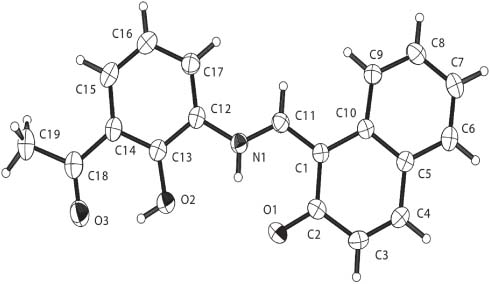

Figure 1: The crystal structure and atom numbering of the title compound.
Figure 1:

The crystal structure and atom numbering of the title compound.

Source of material

To an ethanol solution (20 mL) of 2-hydroxy-naphthalene-1-carbaldehyde (177.6 mg, 1.03 mmol) was added an ethanol solution (30 mL) of 1-(3-amino-2-hydroxy-phenyl)-ethanone (153.68 mg, 1.01 mmol). After stirring at 339 K for 16 h, the mixture was filtered. The residue was washed successively with ethanol and n-hexane, respectively. The isolated compound was dried under reduced pressure to yield 252.8 mg of a clear light brown solid (yield 80%, m.p. 477–478 K). Elemantal analysis: Anal. calcd for C19H15NO3: C, 74.78%; H, 4.81%; N, 4.66%. Found: C, 74.74%; H, 4.95%; N, 4.59%. Crystals were obtained by slow evaporation from an acetonitrile solution at room temperature.

Table 1

Data collection and handling.

Crystal:Clear light brown, block, size 0.26×0.29×0.31 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.94 cm−1
Diffractometer, scan mode:SuperNova, ω scans
2θmax:52.04°
N(hkl)measured, N(hkl)unique:6009, 2913
N(param)refined:210
Programs:SHELX [12]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2)4e0.77970.03570.27410.091
H(1)4e0.50870.08480.38880.055
H(3)4e0.51020.26810.69290.059
H(4)4e0.29820.29370.77090.059
H(6)4e0.03550.26860.77200.063
H(7)4e−0.18030.20320.68860.068
H(8)4e−0.18330.10690.51810.068
H(9)4e0.02600.07630.43190.060
H(11)4e0.22390.04670.36600.053
H(15)4e0.5429−0.14940.00020.068
H(16)4e0.3093−0.14330.05170.071
H(17)4e0.2520−0.05090.21110.061
H(19A)4e0.8250−0.17670.02420.113
H(19B)4e0.9243−0.1067−0.02340.113
H(19C)4e0.7584−0.1140−0.08750.113
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
O(1)4e0.5578(2)0.1660(1)0.5126(2)0.0415(9)0.068(1)0.063(1)−0.0055(8)0.0135(8)−0.0038(9)
O(2)4e0.6979(2)0.0462(1)0.2931(2)0.055(1)0.060(1)0.071(1)−0.0072(9)0.0208(9)−0.0141(9)
O(3)4e0.8795(2)−0.0160(1)0.1566(2)0.066(1)0.075(1)0.085(2)0.002(1)0.032(1)−0.007(1)
N(1)4e0.4321(2)0.0571(1)0.3545(2)0.048(1)0.048(1)0.044(1)−0.0013(9)0.0104(9)−0.0008(9)
C(1)4e0.3020(2)0.1362(1)0.4984(2)0.042(1)0.039(1)0.036(1)0.0008(9)0.006(1)0.0043(9)
C(2)4e0.4332(2)0.1795(1)0.5526(2)0.044(1)0.045(1)0.044(1)−0.001(1)0.006(1)0.009(1)
C(3)4e0.4255(3)0.2394(1)0.6568(2)0.052(1)0.046(1)0.049(2)−0.010(1)0.001(1)−0.000(1)
C(4)4e0.2988(3)0.2547(1)0.7030(2)0.061(2)0.042(1)0.044(1)−0.002(1)0.006(1)−0.004(1)
C(5)4e0.1653(2)0.2133(1)0.6517(2)0.048(1)0.039(1)0.039(1)0.003(1)0.006(1)0.005(1)
C(6)4e0.0342(3)0.2302(2)0.7032(3)0.062(2)0.049(1)0.048(2)0.010(1)0.016(1)0.001(1)
C(7)4e−0.0944(3)0.1912(2)0.6541(3)0.049(1)0.063(2)0.062(2)0.011(1)0.019(1)0.007(1)
C(8)4e−0.0957(3)0.1335(2)0.5520(3)0.041(1)0.067(2)0.063(2)0.001(1)0.007(1)0.003(1)
C(9)4e0.0301(2)0.1152(2)0.5004(3)0.045(1)0.056(1)0.049(2)−0.001(1)0.006(1)−0.005(1)
C(10)4e0.1652(2)0.1538(1)0.5482(2)0.042(1)0.041(1)0.036(1)0.002(1)0.006(1)0.006(1)
C(11)4e0.3094(3)0.0753(1)0.4002(2)0.044(1)0.047(1)0.042(1)−0.001(1)0.009(1)0.003(1)
C(12)4e0.4541(3)−0.0016(1)0.2572(2)0.056(1)0.038(1)0.039(1)0.004(1)0.013(1)0.005(1)
C(13)4e0.5978(3)−0.0058(1)0.2257(2)0.055(1)0.039(1)0.041(1)0.002(1)0.011(1)0.005(1)
C(14)4e0.6332(3)−0.0612(1)0.1287(2)0.062(2)0.041(1)0.044(1)0.010(1)0.014(1)0.006(1)
C(15)4e0.5218(3)−0.1121(2)0.0649(3)0.077(2)0.046(1)0.047(2)0.008(1)0.011(1)−0.005(1)
C(16)4e0.3819(3)−0.1085(2)0.0955(3)0.070(2)0.052(2)0.053(2)−0.001(1)0.005(1)−0.007(1)
C(17)4e0.3476(3)−0.0532(1)0.1913(2)0.054(1)0.048(1)0.052(2)−0.001(1)0.011(1)0.001(1)
C(18)4e0.7848(3)−0.0629(2)0.0972(3)0.071(2)0.052(2)0.056(2)0.014(1)0.020(1)0.010(1)
C(19)4e0.8269(3)−0.1202(2)−0.0066(3)0.088(2)0.075(2)0.070(2)0.026(2)0.034(2)−0.001(2)

Discussion

Schiff base compounds and their metal complexes have been studied for many years [1–5], and successfully applied in many fields. For example, they have been used as antibacterial in the medical field. In addition these compounds show antiseptic, anti-tumor and anti-viral biological activity [6, 7]. Schiff base cobalt and nickel complexes have been used in catalysis [8, 9]. Schiff base compounds have been used to identify quantitatify metal ions [10, 11].

The crystal structure of the title compound is built up by C19H15NO3 molecules, in which all bond lengths are in normal ranges. The molecule crystallizes in the monoclinic system, with four crystallographically dependent molecules in the unit cell. The distance is >3.1 A. The crystals are also held together by π⋯π stacking interactions with centroid-centroid distances of 3.63 Å and 3.76 Å.

Corresponding author: Gang Li, Lanzhou Jiaotong University, School of Chemical and Biological Engineering, Lanzhou 730070, P. R. China, e-mail:

Acknowledgements:

This work was supported by the National Natural Science Foundation of China (21361015), which is gratefully acknowledged.

References

1. Shen, D.; Martell, A. E.; Sun, U.: New synthesis cobalt Schiff base complexes as oxygen carier. Inorg. Chem. 28 (1989) 2647–2662.10.1021/ic00312a029Suche in Google Scholar

2. Ahabadi, N.; Kashanian, S.; Darabi, F.: DNA binding and DNA cleavage studies of a water soluble cobalt(II) complex containing dinitrogen Schiff base ligand: the effect of metal on the mode of binding. Eur. J. Med. Chem. 45 (2010) 4239–4245.10.1016/j.ejmech.2010.06.020Suche in Google Scholar

3. Dong, W. K.; He, X. N.; Yan, H. B.; Lv, Z. W.; Chen, X.; Zhao, C. Y.; Tang, X. L.: Synthesis, structural characterization and solvent effect of copper(II) complexes with a variational multidentate Salen-type ligand with bisoxime groups. Polyhedron 28 (2009) 1419–1428.10.1016/j.poly.2009.03.017Suche in Google Scholar

4. Dong, W. K.; Sun, Y. X.; Zhao, C. Y.; Dong, X. Y.; Xu, L.: Synthesis, structure and properties of supramolecular Mn(II), Co(II), Ni(II) and Zn(II) complexes containing Salen-type bisoxime ligands. Polyhedron 29 (2010) 2087–2097.10.1016/j.poly.2010.04.006Suche in Google Scholar

5. Yi, J.; Liu, J. B.: Molecular assembly of Schiff base interactions: construction and application. Chem. Rev. 115 (2015) 1597–1621.10.1021/cr400559gSuche in Google Scholar

6. Salehia, M.; Amirnasrb, M.; Meghdadib, S.; Mereiterc, K.; Bijanzadehd, H. R.; Khaleghiane, A.: Synthesis, characterization, and X-ray crystal structure of cobalt(III) complexes with a N2O2-donor Schiff base and ancillary ligands. spectral, antibacterial activity, and electrochemical studies. Polyhedron 81 (2014) 90–97.10.1016/j.poly.2014.05.049Suche in Google Scholar

7. Yang, G. S.; Liu, C. B.; Li, H. N.; Chen, Y.; Huang, D. H.; Wen, H, L.: Syntheses, crystal structures and antibacterial activities of two heterocyclic Schiff base compounds. Struct. Chem. 4 (2014) 528–534.Suche in Google Scholar

8. Liu, M.; Zhao, Z. P.; Chen, K. C.; Liu, W. F.: New chiral catalytic membrane reactor created by immobilizing Salen-Mn(III) onto APTES modified ceramic membrane and its performances in epoxidation of styrene. Catal. Commun. 64 (2015) 70–74.10.1016/j.catcom.2015.01.029Suche in Google Scholar

9. Zeinab, A.; Mahdi, B.; Abolfazl, G.; Rudbarib, H. A.; Brunoc, G.: Mononuclear and dinuclear salen-type copper(II) Schiff base complexes: synthesis, characterization, crystal structures and catalytic epoxidation of cyclooctene. Inorg. Chim. Acta 414 (2014) 78–84.10.1016/j.ica.2014.01.047Suche in Google Scholar

10. Singh, T. S.; Paul, P. C.; Pramanik, H. A.: Fluorescent chemosensor based on sensitive Schiff base for selective detection of Zn2+. Spectrochim. Acta A121 (2014) 520–526.10.1016/j.saa.2013.11.002Suche in Google Scholar

11. Yildirim, M.; Ísmet, K.: Synthesis of a novel fluorescent schiff base as a possible Cu(II) ion selective sensor. J. Fluoresc. 20 (2010) 771–777.10.1007/s10895-010-0620-6Suche in Google Scholar

12. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Received: 2015-11-30
Accepted: 2016-1-15
Published Online: 2016-2-6
Published in Print: 2016-3-1
