Crystal structure of catena-poly[diaqua-bis(μ2-5-carboxy-2-(pyridin-4-yl)benzoato-κ2O:N)-cobalt(II)]dihydrate, C26H24N2O12Co

  • Yan Zhao , Xu-Ze Hu and Shi-Hui Li EMAIL logo
Published/Copyright: January 23, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C26H24N2O12Co, triclinic, P1̅, a = 6.892(3) Å, b = 8.469(4) Å, c = 11.306(5) Å, α = 86.963(6)°, β = 88.691(5)°, γ = 85.404(6)°, V = 694.14(15) Å3, Z = 1, Rgt(F) = 0.0561, wRref(F2) = 0.1319, T = 293(2) K.

CCDC no.:: 1442500

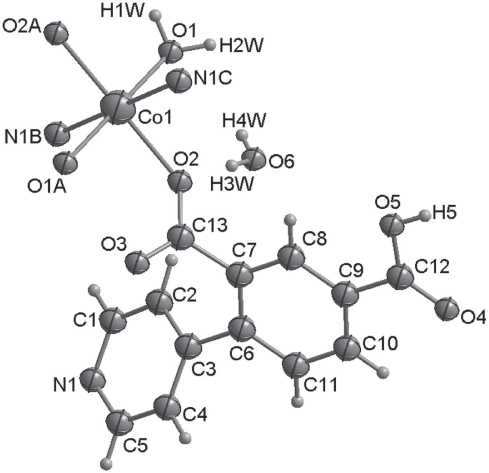

The crystal structure is shown in the figure, Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Red, block, size 0.25×0.32×0.41 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:7.24 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:51°
N(hkl)measured, N(hkl)unique:4061, 2354
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1548
N(param)refined:188
Programs:SHELXL [9]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1W)2i0.82770.58590.00640.040
H(2W)2i0.82540.54370.12120.040
H(5)2i0.22580.61820.62650.066
H(3W)2i0.70180.27460.22960.049
H(4W)2i0.89490.24190.22440.049
H(1A)2i0.6150−0.16760.04810.033
H(2)2i0.55710.03220.17530.031
H(4)2i0.1110−0.19430.31160.038
H(5A)2i0.1782−0.38890.17880.037
H(8)2i0.29120.44410.38110.031
H(10)2i0.22040.10020.63280.033
H(11)2i0.2567−0.08770.49090.032
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Co(1)1e0.50.50.00.0234(6)0.0218(6)0.0146(5)−0.0009(4)0.0017(4)−0.0009(4)
N(1)2i0.4057(6)−0.2992(5)0.1007(3)0.031(2)0.023(3)0.022(2)0.002(2)0.003(2)−0.005(2)
O(1)2i0.7868(5)0.5156(4)0.0552(3)0.032(2)0.029(2)0.020(2)−0.004(2)−0.002(2)−0.001(2)
O(2)2i0.4569(5)0.3535(4)0.1533(3)0.026(2)0.029(2)0.022(2)−0.006(2)0.002(1)0.003(2)
O(3)2i0.1596(5)0.2745(4)0.1301(3)0.030(2)0.042(2)0.024(2)−0.011(2)−0.001(2)0.006(2)
O(4)2i0.1868(6)0.3751(5)0.7171(3)0.061(3)0.042(3)0.019(2)−0.009(2)0.008(2)−0.008(2)
O(5)2i0.2295(7)0.5585(5)0.5715(3)0.075(3)0.035(3)0.024(2)−0.009(2)0.008(2)−0.010(2)
O(6)2i0.8077(5)0.2397(4)0.2623(3)0.034(2)0.038(2)0.026(2)−0.002(2)0.000(2)−0.003(2)
C(1)2i0.5119(7)−0.1734(6)0.1023(4)0.028(3)0.027(3)0.028(3)−0.005(2)0.009(2)−0.002(2)
C(2)2i0.4785(7)−0.0522(6)0.1786(4)0.032(3)0.022(3)0.023(3)−0.003(2)0.005(2)−0.002(2)
C(3)2i0.3257(7)−0.0582(6)0.2606(4)0.027(3)0.023(3)0.015(2)0.003(2)0.003(2)−0.004(2)
C(4)2i0.2152(8)−0.1864(6)0.2585(4)0.032(3)0.033(3)0.029(3)−0.002(3)0.012(2)−0.006(2)
C(5)2i0.2564(7)−0.3044(6)0.1784(4)0.031(3)0.027(3)0.034(3)−0.003(2)0.006(2)−0.006(2)
C(6)2i0.2931(7)0.0655(6)0.3502(4)0.022(3)0.023(3)0.023(3)0.000(2)0.004(2)−0.004(2)
C(7)2i0.2992(7)0.2264(6)0.3171(4)0.022(3)0.023(3)0.013(2)−0.002(2)0.001(2)0.001(2)
C(8)2i0.2815(7)0.3375(6)0.4027(4)0.029(3)0.023(3)0.023(3)−0.003(2)0.003(2)0.002(2)
C(9)2i0.2491(7)0.2907(6)0.5217(4)0.023(3)0.029(3)0.021(3)−0.002(2)0.003(2)−0.006(2)
C(10)2i0.2408(7)0.1319(6)0.5538(4)0.030(3)0.037(4)0.016(2)−0.001(2)0.006(2)−0.003(2)
C(11)2i0.2625(7)0.0191(6)0.4687(4)0.032(3)0.025(3)0.022(3)0.000(2)0.002(2)0.005(2)
C(12)2i0.2220(7)0.4110(6)0.6139(4)0.028(3)0.024(3)0.030(3)0.001(2)0.002(2)−0.007(2)
C(13)2i0.3065(7)0.2872(6)0.1901(4)0.026(3)0.019(3)0.018(2)0.000(2)0.004(2)0.000(2)

Experimental details

A mixture of Co(NO3)2 6H2O (0.1 mmol, 267 mg), 4-(pyridin-4-yl)-isophthalic acid (0.1 mmol, 24.3 mg) (H2tpa) and distilled water (10 mL) was heated in a 25 mL stainless steel reactor with a Teflon liner at 413 K for 24 h, followed by slow cooling to room temperature to formed crystals.

Results and discussion

The design and construction of metal-organic frameworks (MOFs) with well-regulated network structures has been provoked significant interest on these functional materials with various application fields, e.g. in electrochemistry, photophysics, catalysis, adsorption and separation [1–4]. The organic ligands, which have their differences in the size, the flexibility, the coordination ability, the number of the carboxylate groups, the positions of the carboxylate groups and so on, play crucial role in the design and construction of desirable frameworks with interesting properties [5–8]. In addition, N-containing auxiliary ligands are known to be ideal connectors between metal atoms for the propagation of coordination networks. With these considerations in mind, we have chosen the Htpa as bridging ligands to construct a new complex.

The asymmetric unit of the title structure contains one half of a Co(II) metal center, two water molecules and one Htpa monoanion as bridging ligands to construct a new coordination polymer. The cobalt atom is six-coordinated [CoN2O4] in a distorted octahedral manner by two water ligands, two oxygen atoms from two Htpa ligands and two nitrogen atoms from two other symmetry related Htpa ligands. The Co–O bond lengths range from 2.10–2.19 Å. The bond angles of O—Co—O are in the range of 87.73(12)° to 180°. In addition, coordinated and uncoordinated water molecules are connected with 4-(pyridin-4-yl)-isophthalic ligands by hydrogen bonds: d(O6—H4W⋯O3#5) = 2.847(5) Å, d(O6—H3W⋯O2) = 2.815(5) Å, d(O1—H2W⋯O4#6) = 2.797(5) Å, d(O1—H1W⋯O3#1) = 2.713(5) Å. Symmetry codes: #1 −x+1, −y+1, −z; #5 x+1, y, z; #6 −x+1, −y+1, −z+1. These interactions result in the infinite three dimensional architecture of the title structure.

Corresponding author: Shi-Hui Li, College of Chemistry and Chemical Engineering, Luoyang Normal University, Luoyang 471022, Henan Province, P. R. China, e-mail:

References

1. Li, X. L.; Liu, G. Z.; Xin, L. Y.; Wang, L. Y.: Three Zn(II) metal-organic frameworks assembled from a versatile tecton 5-ethyl-pyridine-2,3-dicarboxylate and dipyridyl-type coligand. CrystEngComm. 14 (2012) 1729–1736.10.1039/C1CE06050CSearch in Google Scholar

2. Li, X. L.; Liu, G. Z.; Xin, L. Y.; Wang, L. Y.: A novel metal-organic framework displaying reversibly shrinking and expanding pore modulation. CrystEngComm. 14 (2012) 5757–5760.10.1039/c2ce25715gSearch in Google Scholar

3. Yoneda, K.; Adachi, K.; Nishio, K.; Yamasaki, M.; Fuyuhiro, A.; Katada, M.; Kaizaki, S.; Kawata, S.: Cover picture: organocatalytic highly enantioselective -arylation of -ketoesters/asymmetric organocatalytic-arylation of aldehydes. Angew. Chem. Int. Ed. 45 (2006) 5459–5461.10.1002/anie.200602067Search in Google Scholar

4. Banerjee, A.; Singh, R.; Colacio, E.; Razak, K. K.: Binuclear copper(II) chelates with heptadentate ligands: synthesis, structure, magnetic properties, DFT studies, and catecholase and hydrolytic DNA cleavage activity. Eur. J. Inorg.Chem. 2 (2009) 277–284.10.1002/ejic.200800937Search in Google Scholar

5. Li, K.; Olson, D. H.; Seidel, J.; Emge, T. J.; Gong, H.; Zeng, H.; Li, J.: Zeolitic imidazolate frameworks for kinetic separation of propane and propene. J. Am. Chem. Soc. 131 (2009) 10368–10369.10.1021/ja9039983Search in Google Scholar

6. Liu, G-Z.; Zhang, J.; Wang, L-Y.: A comparison of the coordination preference of Cd, Zn, Cu(II) with flexible homophthalic acid and rigid bipyridine ligands. Polyhedron. 30 (2011) 1487–1493.10.1016/j.poly.2011.02.053Search in Google Scholar

7. Xin, L. Y.; Liu, G. Z.; Li, X. L.; Wang, L. Y.: Structural diversity for a series of Metal(II) complexes based on flexible 1,2-phenylenediacetate and dipyridyl-type coligand. Cryst. Growth Des. 12 (2012) 147–157.10.1021/cg200903kSearch in Google Scholar

8. Pachfule, P.; Panda, T.; Dey, C.; Banerjee, R.: Structural diversity in a series of metal-organic frameworks (MOFs) composed of divalent transition metals, 4,4′-bipyridine and a flexible carboxylic acid. CrystEngComm. 12 (2010) 2381–2389.10.1039/c000723dSearch in Google Scholar

9. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Cryst. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Received: 2015-4-27
Accepted: 2015-12-15
Published Online: 2016-1-23
Published in Print: 2016-3-1

©2016 Yan Zhao et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
