Crystal structure of tetraethylammonium fac-tricarbonyl(hexafluoroacetylacetonato-κ2O,O′)-(nitrato-κO)rhenium(I), C16H21O8N2F6Re

  • Amanda-Lee Manicum EMAIL logo , Marietjie Schutte-Smith , Hendrik G. Visser , Carla Pretorius and Andreas Roodt
Published/Copyright: February 11, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C16H21O8N2F6Re, triclinic, P1̅, a = 9.161(5) Å, b = 10.283(5) Å, c = 12.974(5) Å, α = 87.739(5)°, β = 78.339(5)°, γ = 75.047(5)°, V = 1156.3(10) Å3, Z = 2, Rgt(F) = 0.037, wRref(F2) = 0.1012, T = 100(2) K.

CCDC no.:: 1447936

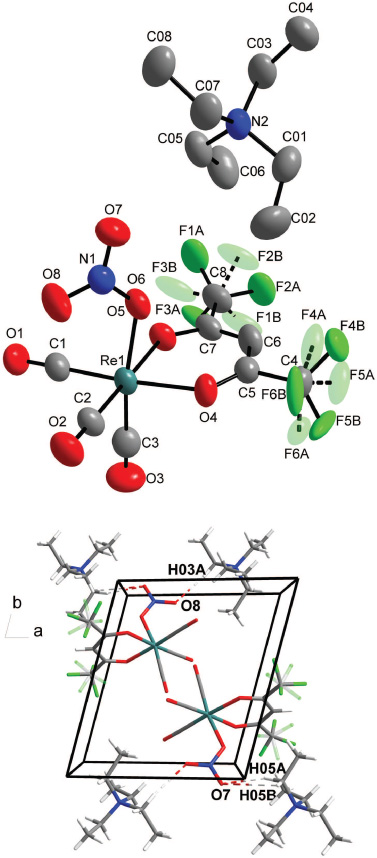

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Source of material

fac-[NEt4]2[Re(CO)3Br3] (500 mg; 0.649 mmol) was dissolved in water (10 ml) at pH 2.2 and AgNO3 (331 mg; 1.947 mmol) was added. The solution was stirred overnight for 16 hours at room temperature and the precipitated AgBr was filtered off and weighed (367 mg; 1.955 mmol). Hexafluoroacetylacetone (0.135 g; 0.649 mmol) was added to the solution and stirred for 24 hours at room temperature. The orange precipitate, fac-[NEt4]2[Re(Hfaa)(CO)3NO3], was filtered off, washed, dried and weighed. (Yield: 274 mg; 86%). Crystals of the title complex was obtained from crystallization of the precipitate in MeOH. Yield = 148 mg; 40%. IR (KBr, cm−1): νCO (2023, 1880).

Experimental details

In the structure all the H atoms were positioned geometrically and refined discernible using a riding model, with C—Hmethine = 0.98 Å; C—Hmethyl = 0.96 Å; C—Haromatic = 0.93 Å. The H atom isotropic displacement parameters were fixed; Uiso(H) = 1.2Ueq(C) for aromatic and methine and Uiso(H) = 1.5Ueq(C) for methyl protons, allowing them to ride on the parent atom. The CF3 substituents on the beta-diketone backbone are both structurally disordered, as manifested by the fluoro-atoms on both carbons (C4 and C8), occupying six positions on each carbon with occupancies of 0.181(16) (for F4A, F5A and F6A) and 0.819(16) (for F4B, F5B and F6B) on C4, and 0.724(13) (for F1A, F2A and F3A) and 0.276(13) (for F1B, F2B and F3B) on C8 [1]. In one case, F1A, F2A and F3A displays the dominant occupancy, and in the other case, F4B, F5B and F6B.

Table 1

Data collection and handling.

Crystal:Orange, plate, size 0.14×0.27×0.69 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:53.46 cm−1
Diffractometer, scan mode:Bruker APEX-II CCD, φ and ω scans
2θmax:56°
N(hkl)measured, N(hkl)unique:21687, 5560
N(param)refined:330
Programs:Bruker data collection and reduction software [17], SHELX [18], Diamond [19]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(01A)2i0.45370.94460.72450.084
H(01B)2i0.47030.78930.70270.084
H(02A)2i0.32580.92210.59210.156
H(02B)2i0.20390.99840.69110.156
H(02C)2i0.22020.84270.66950.156
H(03A)2i0.52350.90290.88760.072
H(03B)2i0.43480.82610.97830.072
H(04A)2i0.67840.69160.91260.114
H(04B)2i0.64230.69930.79650.114
H(04C)2i0.55240.62180.88680.114
H(05A)2i0.12750.99470.86660.079
H(05B)2i0.19340.96890.97240.079
H(6)2i1.19950.33370.58070.071
H(06A)2i0.19091.18490.91330.137
H(06B)2i0.29971.12610.80390.137
H(06C)2i0.36501.10070.91040.137
H(07A)2i0.16820.77030.82810.074
H(07B)2i0.33070.66370.82220.074
H(08A)2i0.15730.63060.97100.114
H(08B)2i0.13660.78061.01120.114
H(08C)2i0.29850.67161.00440.114
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
C(1)2i0.5582(6)0.3619(5)0.8038(5)0.043(3)0.048(3)0.063(4)−0.017(2)−0.009(2)0.000(2)
C(01)2i0.3963(8)0.8743(7)0.7315(5)0.074(4)0.073(4)0.056(4)−0.019(3)0.007(3)0.000(3)
C(02)2i0.276(1)0.913(1)0.6653(6)0.109(6)0.142(8)0.057(5)−0.021(6)−0.026(4)0.010(5)
C(2)2i0.5836(6)0.2237(6)0.6348(5)0.038(2)0.057(3)0.054(3)−0.012(2)−0.011(2)−0.010(2)
C(3)2i0.6244(7)0.4713(6)0.6171(5)0.060(3)0.056(3)0.062(4)−0.021(3)−0.010(3)−0.013(3)
C(03)2i0.4746(7)0.8269(7)0.9015(6)0.048(3)0.071(4)0.067(4)−0.026(3)−0.008(3)−0.007(3)
C(04)2i0.5976(7)0.6988(8)0.8718(6)0.055(3)0.085(5)0.083(5)−0.008(3)−0.015(3)0.003(4)
C(4)2i1.1449(6)0.1871(6)0.4436(5)0.052(3)0.097(5)0.049(4)−0.022(3)0.003(3)−0.005(3)
C(5)2i1.0367(6)0.2566(6)0.5414(5)0.043(3)0.060(3)0.051(3)−0.014(2)−0.008(2)0.004(2)
C(05)2i0.2219(6)0.9826(6)0.8958(6)0.045(3)0.070(4)0.078(4)−0.013(3)−0.002(3)−0.017(3)
C(6)2i1.0955(6)0.3294(6)0.6025(5)0.042(3)0.068(4)0.073(4)−0.026(3)−0.003(3)−0.001(3)
C(06)2i0.2739(8)1.1095(7)0.8794(8)0.071(4)0.056(4)0.137(7)−0.014(3)0.005(4)−0.017(4)
C(07)2i0.2597(7)0.7437(6)0.8612(5)0.061(3)0.070(4)0.064(4)−0.035(3)−0.011(3)−0.004(3)
C(7)2i1.0102(6)0.3960(5)0.6936(5)0.040(2)0.044(3)0.074(4)−0.020(2)−0.020(2)0.004(2)
C(8)2i1.0844(6)0.4718(5)0.7556(5)0.053(3)0.066(4)0.090(5)−0.028(3)−0.028(3)−0.002(3)
C(08)2i0.2087(8)0.7032(7)0.9714(6)0.077(4)0.090(5)0.071(4)−0.048(4)−0.007(3)0.008(4)
O(1)2i0.4603(5)0.3911(4)0.8766(3)0.052(2)0.076(3)0.058(3)−0.009(2)0.002(2)−0.010(2)
O(2)2i0.4997(5)0.1721(4)0.6065(4)0.054(2)0.076(3)0.081(3)−0.030(2)−0.023(2)−0.011(2)
O(3)2i0.5665(6)0.5684(5)0.5790(5)0.103(4)0.055(3)0.098(4)−0.021(3)−0.043(3)0.012(2)
O(4)2i0.9038(4)0.2418(4)0.5546(3)0.044(2)0.065(2)0.053(2)−0.026(2)0.003(2)−0.011(2)
O(5)2i0.8730(4)0.4011(4)0.7371(3)0.047(2)0.057(2)0.063(2)−0.021(2)−0.017(2)−0.010(2)
O(6)2i0.8553(4)0.1418(4)0.7514(3)0.036(2)0.059(2)0.066(3)−0.019(2)−0.009(2)−0.002(2)
O(7)2i0.8915(5)−0.0401(4)0.8417(4)0.061(2)0.074(3)0.071(3)−0.008(2)−0.023(2)0.010(2)
O(8)2i0.6642(5)0.0597(5)0.8210(5)0.045(2)0.087(3)0.143(5)−0.031(2)−0.016(3)0.048(3)
Re(1)2i0.71603(2)0.31160(2)0.68294(2)0.0353(1)0.0490(1)0.0498(2)−0.01844(9)−0.00744(9)−0.00651(9)
N(1)2i0.8010(5)0.0508(5)0.8057(4)0.046(2)0.054(3)0.051(3)−0.015(2)−0.009(2)−0.004(2)
N(2)2i0.3380(5)0.8555(4)0.8471(4)0.042(2)0.047(2)0.051(3)−0.015(2)−0.002(2)−0.006(2)
F(4A)2i1.214(2)0.066(1)0.462(2)0.12(2)0.09(2)0.11(2)−0.05(1)0.06(2)−0.02(1)
F(5A)2i1.250(2)0.248(2)0.407(2)0.12(2)0.09(2)0.11(2)−0.05(1)0.06(2)−0.02(1)
F(6A)2i1.072(2)0.185(2)0.371(1)0.09(2)0.07(2)0.04(1)−0.02(1)0.01(1)−0.01(1)
F(4B)2i1.2884(6)0.1452(8)0.4508(6)0.064(3)0.140(7)0.104(5)0.004(3)0.004(3)−0.030(5)
F(5B)2i1.145(1)0.267(1)0.3644(6)0.21(1)0.22(1)0.067(5)0.069(9)0.040(6)0.059(6)
F(6B)2i1.1100(9)0.083(1)0.4175(8)0.135(8)0.25(1)0.21(1)−0.134(8)0.104(7)−0.18(1)
F(1A)2i1.0885(8)0.4265(9)0.8521(6)0.089(4)0.177(7)0.130(5)−0.075(4)−0.032(3)−0.039(4)
F(2A)2i1.2252(7)0.4748(9)0.7140(6)0.089(4)0.177(7)0.130(5)−0.075(4)−0.032(3)−0.039(4)
F(3A)2i1.0077(7)0.5976(5)0.7744(7)0.090(5)0.042(3)0.21(1)−0.006(3)−0.091(6)−0.026(4)
F(1B)2i1.120(1)0.570(1)0.701(1)0.12(1)0.097(9)0.23(2)−0.016(8)−0.13(1)−0.016(9)
F(3B)2i0.986(1)0.522(1)0.8428(9)0.12(1)0.097(9)0.23(2)−0.016(8)−0.13(1)−0.016(9)
F(2B)2i1.206(1)0.401(2)0.7858(9)0.12(1)0.097(9)0.23(2)−0.016(8)−0.13(1)−0.016(9)

Discussion

Researchers are continually showing interest in the fac-[M(CO)3]+ [M = Re, Tc] synthon, particularly the fac-[Re(CO)3(OH2)3]+ moiety, primarily because of its potential use in the design of new diagnostic and therapeutic radiopharmaceuticals [2–4]. A considerable amount of work, involving the rhenium tricarbonyl core has already been published from our group, and this study forms part of on-going research, aimed at studying the chelation behaviour and structure and reactivity of the rhenium(I) metal centre and other middle and late transition metal complexes' behaviour when coordinated to β-diketone types of ligands [5–15].

The title compound, fac-[NEt4][Re(CO)3(Hfaa)(NO3)], consists of three facial coordinated carbonyl ligands, a fluorinated β-diketone ligand (hexafluoroacetylacetonate-Hfaa) in the axial position, a nitrate ligand in the equatorial plane, as well as a counterion, tetraethylammonium (NEt4), in the asymetric unit (see the figure, upper part). The coordination at Re(I) is a distorted octahedron, as seen in the C3—Re1—O6 (170.30(19)°) angle which deviates from 180°. The O4—Re1—O5 bite angle of 84.14(15)° correlates well with a similar hexafluoroacetylacetonate coordinated Re(I) complex, 84.56(8)° [6]. The bond distances in the coordination polyhedron, are within normal range when compared to a similar structure, ranging from 1.892(6) to 2.157(4) Å [16]. The molecules within the unit cell are packed in horizontal layers, in a head-to-head manner, when viewed along the c-axis. These layers are stabilised by intermolecular C—H⋯O bonds (see the figure, lower part).

Corresponding author: Amanda-Lee Manicum, Department of Chemistry, University of the Free State, P.O. Box 339, Bloemfontein, 9300, South Africa, e-mail:

Acknowledgements:

Financial assistance from the University of the Free State is gratefully acknowledged. We also express our gratitude towards NTeMBI, PETLabs Pharmaceuticals, SASOL and the South African National Research Foundation (SA-NRF/THRIP). This work is based on the research supported in part by the National Research Foundations of South-Africa and the Thuthuka programme (Grant specific unique reference numbers (UID) 84913 and 94142). The Grant holders acknowledge that opinions, findings and conclusions or recommendations expressed in any publication generated by the NRF supported research are that of the author(s) and that the NRF accepts no liability whatsoever in this regard.

References

1. Viljoen, J. A.; Visser, H. G.; Roodt, A.; Steyn, M.: Di-μ-hydroxido-bis[tris(1,1,1,5,5,5-hexafluoroacetylacetonato-κ2O,O′)-hafnium(IV)] acetone solvate. Acta Crystallogr. E65 (2009) m1367–m1368.10.1107/S1600536809041658Search in Google Scholar PubMed PubMed Central

2. Papagiannopoulou, D.; Triantis, C.; Vassileiadis, V.; Raptopoulou, C. P.; Psycharis, V.; Terzis, A.; Pirmettis, I.; Papadopoulous, M. S.: Synthesis, structural characterisation and radiochemistry of di- and tricarbonyl Re(I) and 99mTc(I) complexes with 8-hydroxy quinolone or 8-mercaptoquinoline and triphenylphosphine. Polyhedron. 68 (2014) 46–52.10.1016/j.poly.2013.09.039Search in Google Scholar

3. Vassileiadis, V.; Triantis, C.; Raptopoulou, C. P.; Psycharis, V.; Pirmettis, I.; Papadopoulous, M. S.; Papagiannopoulou, D.: Synthesis, structural characterisation and radiochemistry of “2+1” fac-[99mTc/Re(CO)3(L)(2-mercaptopyridine)] complexes, where L is phosphine or isocyanide. Polyhedron. 81 (2014) 511–516.10.1016/j.poly.2014.07.008Search in Google Scholar

4. Triantis, C.; Tsotakos, T.; Tsoukalas, C.; Sagnou, M.; Raptopoulou, C.; Terzis, A.; Psycharis, V.; Pelecanou, M.; Pirmettis, I.; Papadopoulos, M.: Synthesis and characterization of fac-[M(CO)3(P)(OO)] and cis-trans-[M(CO)2(P)(OO)] complexes (M = Re, 99mTc) with acetylacetone and curcumin as OO donor bidentate ligands. Inorg. Chem. 52 (2013) 12995–13003.10.1021/ic401503bSearch in Google Scholar

5. Visser, H. G.; Roodt, A.; Volmink, A.; Kemp, G.: fac-Tricarbonyl-(pyridine-κN)(1,1,1-trifluoroacetylacetone-κ2O,O′)rhenium(I). Acta Crystallogr. E67 (2011) m1631–m1631.10.1107/S160053681104476XSearch in Google Scholar PubMed PubMed Central

6. Manicum, A.; Schutte-Smith, M.; Kemp, G.; Visser, H. G.: Illustration of the electronic influence of coordinated β-diketone type ligands: A kinetic and structural study. Polyhedron. 85 (2015) 190–195.10.1016/j.poly.2014.08.005Search in Google Scholar

7. Manicum, A.; Visser, H. G.; Engelbrecht, I.; Roodt, A: Crystal structure of fac-(acetylacetonato-κ2O,O′)\ tricarbonyl(cyclohexyldiphenylphosphine-κP) rhenium(I), C26H28O5PRe. Zeits. Z. Kristallogr. NCS. 230 (2015) 150–152.10.1515/ncrs-2014-9013Search in Google Scholar

8. Schutte, M.; Roodt, A.; Visser, H. G.: Coordinated aqua vs methanol substitution kinetics in fac-Re(I) tricarbonyl tropolonato complexes. Inorg. Chem. 51 (2012) 11996–12006.10.1021/ic301891uSearch in Google Scholar

9. Schutte, M.; Kemp, G.; Visser, H. G.; Roodt, A.: Tuning the reactivity in classic low-spin d6 rhenium(I) tricarbonyl radiopharmaceutical synthon by selective bidentate ligand variation (L,L′-Bid; L,L′ = N,N′, N,O and O,O′ donor atom sets) in fac-[Re(CO)3(L,L′-Bid)(MeOH)]n complexes. Inorg. Chem. 50 (2011) 12486–12498.10.1021/ic2013792Search in Google Scholar

10. Brink, A.; Roodt, A.; Steyl, G.; Visser, H. G.: Steric vs electronic anomaly observed from iodomethane oxidative addition to tertiary phosphine modified rhodium (I) acetylacetonato complexes following progressive phenyl replacement by cyclohexyl [PR(3) = PPh(3), PPh(2)Cy, PPhCy(2) and PCy(3)]. Dalt. Trans. 39 (2010) 5572–5578.10.1039/b922083fSearch in Google Scholar

11. Roodt, A.; Basson S. S.; Leipoldt, J. G.: Studies on the substitution reactions of dioxotetracyanometalate systems with bidentate ligands: kinetics of the reaction between aquaoxotetracyanotungstate(IV) and 2-pyridinecarboxylate ions. Polyhedron. 13 (1994) 599–607.10.1016/S0277-5387(00)84737-3Search in Google Scholar

12. Van Aswegen, K. G.; Leipoldt, J. G.; Potgieter, I. M.; Lamprecht,G. J.; Roodt, A.; van Zyl, G. J.: The crystal structure of the acetone adduct of trans-methyliodo-8 hydroxyquinolinatocarbonyltriphenylphosphinerhodium( III). Transit. Met. Chem. 16 (1991) 369–371.10.1007/BF01024085Search in Google Scholar

13. Kemp, G.; Roodt, A.; Purcell, W.; Koch, K. R.: Unprecedented N,S,O co-ordination of the doubly deprotonated anion of N-benzoyl-N′-phenylthiourea (H2L2) bridging two rhodium(I) centres: crystal structure of the acetone solvate of [(PPh3)2(CO)Rh(μ-L2-κN′:κO,S)Rh(PPh3)(CO)]. J. Chem. Soc. Dalton Trans. 23 (1997) 4481–4484.10.1039/a705887jSearch in Google Scholar

14. Sacht, C.; Datt, M. S.; Otto,S.; Roodt, A.: Synthesis, characterisation and coordination chemistry of novel chiral N,N-dialkyl-N′-menthyloxycarbonylthioureas. Crystal and molecular structures of N,N-diethyl-N′-(-)-(3R)-menthyloxycarbonylthiourea and cis-(S,S)-[Pt(L)Cl(DMSO)] [where HL = N-(+)-(3R)-menthyloxycarbonyl-N′-morpholinothiourea or N-benzoyl-N′, N′-diethylthiourea]. J. Chem. Soc. Dalton Trans. (2000) 4579–4586.10.1039/b007589mSearch in Google Scholar

15. Erasmus, J. J. C.; Lamprecht, G. J.; Swarts, J. C.; Roodt, A.; Oskarsson, A.: (E)-1,3-Diferrocenyl-2-buten-1-one-water (4–1). Acta Crystallogr. 52 (1996) 3000–3002.10.1107/S0108270196004258Search in Google Scholar

16. Brink, A.; Visser, H. G.; Roodt, A.: Tetraethylammonium (acetylacetonenato)bromidotricarbonylrhenate(I). Acta Crystallogr. E67 (2011) m34–m35.10.1107/S1600536810050105Search in Google Scholar PubMed PubMed Central

17. Bruker SAINT-Plus (Version 7.12) and SADABS (Version 2004/1). Bruker AXS Inc., Madison, Wisconsin, USA 2004.Search in Google Scholar

18. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

19. Brandenburg, K.; Putz, H. DIAMOND. Visual crystal structure information system. Version 3.2i. Crystal Impact, Bonn, Germany 2012.Search in Google Scholar

Received: 2015-6-3
Accepted: 2016-1-18
Published Online: 2016-2-11
Published in Print: 2016-3-1

©2016 Amanda-Lee Manicum et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
