Crystal structure of bis(1-ethyl-3-methylimidazolium) tetrabromidocadmate(II), [C6H11N2]2[CdBr4]

  • Lei Gou EMAIL logo , Dan Liu , Kun Zhao and Mao Yi-Yang
Published/Copyright: January 23, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

(C6H11N2)2[CdBr4], monoclinic, P21/c, a = 13.8943(17) Å, b = 10.2820(13) Å, c = 14.7986(18) Å, β = 94.241(3)°, V = 2108.4(5) Å3, Z = 4, Rgt(F) = 0.0477, wRref(F2) = 0.1332, T = 273 K.

CCDC no.:: 1443127

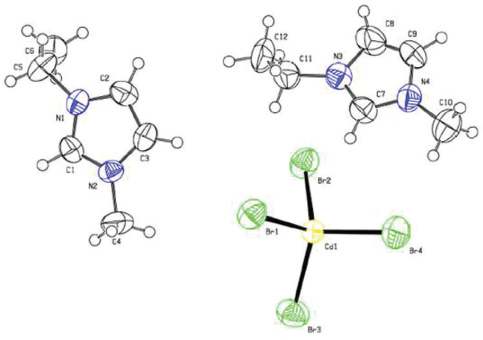

The crystal structure is shown in the figure, Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colorless, block, size 0.20×0.28×0.35 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:86.15 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:50.1°
N(hkl)measured, N(hkl)unique:10279, 3719
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2332
N(param)refined:194
Programs:SHELX [10]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1)4e0.55450.68280.79100.060
H(2)4e0.33940.67650.94910.070
H(3)4e0.28990.55550.80840.067
H(4A)4e0.39940.61240.63480.120
H(4B)4e0.38820.47140.67280.120
H(4C)4e0.49130.53020.66490.120
H(5A)4e0.49600.83710.99070.078
H(5B)4e0.58570.80670.93570.078
H(6A)4e0.51450.64161.06790.100
H(6B)4e0.61460.71251.07660.100
H(6C)4e0.59660.59841.00720.100
H(7)4e0.03800.23690.84820.068
H(8)4e0.04170.23311.11330.092
H(9)4e−0.10080.12481.05550.087
H(10A)4e−0.19310.16540.87330.132
H(10B)4e−0.14570.02700.87590.132
H(10C)4e−0.11650.12980.80470.132
H(11A)4e0.20100.31181.03990.082
H(11B)4e0.20090.30410.93400.082
H(12A)4e0.09730.48740.92850.123
H(12B)4e0.20360.51530.96660.123
H(12C)4e0.12160.50071.03320.123
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Cd(1)4e0.23815(4)0.02440(6)0.76994(4)0.0447(4)0.0460(4)0.0441(4)−0.0031(3)0.0043(3)−0.0014(3)
Br(1)4e0.24952(7)0.27167(9)0.73408(7)0.0767(7)0.0542(6)0.0674(7)−0.0007(5)−0.0013(5)0.0029(5)
Br(2)4e0.29923(8)−0.0051(1)0.93678(7)0.0726(7)0.0681(6)0.0593(6)−0.0079(5)−0.0107(5)0.0051(5)
Br(3)4e0.34387(8)−0.0996(1)0.66475(7)0.0841(8)0.0698(7)0.0779(8)0.0114(6)0.0252(6)−0.0058(6)
Br(4)4e0.06126(8)−0.0379(1)0.74107(8)0.0652(8)0.121(1)0.0850(8)−0.0236(7)0.0023(6)−0.0171(7)
N(1)4e0.4682(5)0.7040(6)0.8930(5)0.043(4)0.042(4)0.050(5)−0.002(3)−0.005(3)−0.001(3)
N(2)4e0.4249(5)0.6018(6)0.7691(4)0.056(5)0.037(4)0.041(4)0.002(3)0.003(4)−0.003(3)
N(3)4e0.0730(5)0.2572(7)0.9799(5)0.049(5)0.057(4)0.056(5)0.004(4)0.003(4)0.001(4)
N(4)4e−0.0587(5)0.1645(7)0.9290(5)0.047(5)0.051(4)0.070(6)−0.002(4)0.004(4)−0.006(4)
C(1)4e0.4947(6)0.6660(8)0.8129(6)0.046(5)0.055(5)0.050(6)0.000(4)0.007(4)0.010(5)
C(2)4e0.3766(7)0.6626(9)0.9003(6)0.061(7)0.069(6)0.047(6)0.002(5)0.011(5)0.003(5)
C(3)4e0.3489(7)0.5962(8)0.8223(6)0.048(6)0.056(5)0.061(6)−0.007(5)−0.008(5)−0.003(5)
C(4)4e0.4260(8)0.550(1)0.6776(6)0.111(9)0.083(7)0.048(6)−0.015(7)0.018(6)−0.018(5)
C(5)4e0.5312(7)0.7680(9)0.9630(6)0.076(7)0.056(6)0.061(6)−0.005(5)−0.019(5)−0.012(5)
C(6)4e0.5676(7)0.6712(9)1.0354(6)0.069(7)0.074(7)0.054(6)−0.009(5)−0.008(5)0.012(5)
C(7)4e0.0213(7)0.2227(9)0.9071(6)0.049(6)0.076(7)0.045(6)0.004(5)−0.001(5)0.006(5)
C(8)4e0.0228(8)0.219(1)1.0525(7)0.082(8)0.101(9)0.048(6)−0.010(7)0.008(6)0.016(6)
C(9)4e−0.0548(8)0.162(1)1.0210(7)0.078(8)0.084(7)0.057(7)−0.019(6)0.024(6)0.006(6)
C(10)4e−0.1349(7)0.118(1)0.8654(7)0.064(7)0.115(9)0.083(8)−0.022(7)−0.015(6)−0.014(7)
C(11)4e0.1635(7)0.331(1)0.9836(7)0.054(6)0.087(8)0.063(7)−0.008(5)0.006(5)−0.005(6)
C(12)4e0.1449(8)0.471(1)0.9774(8)0.065(7)0.092(8)0.088(8)−0.034(6)−0.008(6)−0.008(7)

Source of material

All the reagents and solvents were commercially available and used as purchased. A mixture of CdCl2·2.5 H2O (0.129 g, 0.56 mmol) and excessive amount of 1-ethyl-3-methylimidazolium bromide (0.5 g, 2.6 mmol) was placed in a Teflon-lined stainless vessel and heated to 433 K for 72 h. After cooling to room temperature, the colorless crystals were obtained (yield, 76% based on cadmium). Elemental analysis-found: C, 21.99%; H, 3.38%; N, 8.57%; calc. for C12H22Br4 N4Cd: C, 22.02%; H, 3.39%; N, 8.56%.

Discussion

Room temperature ionic liquids have attracted attention due to their interesting and useful physicochemical properties such as high thermal and chemical stability, negligible vapor pressures and extended electrochemical windows. Particularly, ionic liquids composed of or containing transition metal ions are of great interest regarding their potential catalytic applications [1–5]. So far, some solid-state studies have examined the influence of the cation and anion structures and interionic interactions on the behavior of metal containing ion liquids, such as [EMIM] [AlCl4] [6, 7], [EMIM][AuCl4] [8], [EMIM]2 [MCl4] [9] M = Ni2+, Co2+ (EMIM = 1-ethyl-3-methylimidazolium). The structure of title compound contains two crystallographically independent [EMIM]+ cations and one [CdBr4]2− anion. [CdBr4]2− is approximately tetrahedral with Cd-Br bond lengths in the range of 0.25452(1)–0.26044(1) nm. No obvious strong hydrogen bonds exist, except for some weak C–H ⋯ Br interactions between imidazolium-bound H atoms and Br atoms. These interactions, although relatively weak, seem to direct the orientation between ions and might govern the overall assembly.

Corresponding author: Lei Gou, School of Materials Science and Engineering, Department of Inorganic Nonmetallic Materials, Changán University, Xián, 710061, Shaanxi, P. R. China, e-mail:

Acknowledgements:

This work was supported by the National Natural Science Foundation of China (No. 21103013) and the Fundamental Research Funds for the Central Universities, 0009–2014G1311085.

References

1. Chauvin, Y.; Olivier, H.; Wyrwalski, C. N.; Simon, L. C.; De Souza, R. F.: Oligomerization of n-butenes catalyzed by nickel complexes dissolved in organochloroaluminate ionic liquids. J. Catal. 165 (1997) 275–278.10.1006/jcat.1997.1488Search in Google Scholar

2. Chauvin, Y.; Einloft, S. M. O.; Olivier, H.: Catalytic dimerization of propene by nickel-phosphine complexes in 1-butyl-3-methylimidazolium chloride/AlEtxCl3-x(x = 0, 1) ionic liquids. Ind. Eng. Chem. Res. 34 (1995) 1149–1155.10.1021/ie00043a017Search in Google Scholar

3. Einloft, S.; Dietrich, F. K.; De Souza, R. F.; Dupont, J.: Selective two-phase catalytic ethylene dimerization by NiII complexes/AlEtCl2 dissolved in organoaluminate ionic liquids. Polyhedron 15 (1996) 3257–3259.10.1016/0277-5387(96)00048-4Search in Google Scholar

4. Dullius, J. E. L.; Suarez, P. A. Z.; Einloft, S.; DeSouza, R. F.; Dupont, J.: Selective catalytic hydrodimerization of 1,3-butadiene by palladium compounds dissolved in ionic liquids. Organometallics 17 (1998) 815–819.10.1021/om970982pSearch in Google Scholar

5. Earle, M. J.; McCormac, P. B.; Seddon, K. R.: Regioselective alkylation in ionic liquids. Chem. Commun. 20 (1998) 2245–2246.10.1039/a806328aSearch in Google Scholar

6. Takashahi, S.; Curtiss, L. A.; Gosztola, D.; Koura, N.; Saboungi, M. L.: Molecular orbital calculations and raman measurements for 1-ethyl-3-methylimidazolium chloroaluminates. Inorg. Chem. 34 (1995) 2990–2993.10.1021/ic00115a029Search in Google Scholar

7. Elawi, A.; Hitchcock, P. B.; Seddon, K. R.; Srinivasan, N.; Tan, Y. M.; Welton, T.; Zora, J. A.: Hydrogen bonding in imidazolium salts and its implications for ambient temperature halogenoaluminate (III) ionic liquids. J. Chem. Soc., Dalton Trans. 21 (1995) 3467–3472.10.1039/dt9950003467Search in Google Scholar

8. Hasan, M., Kozhevnikov. I. V., Siddiqui, M. R. H.; Steiner, A., Winterton, N.: Gold compounds as ionic liquids. synthesis, structures, and thermal properties of N,N′-dialkylimidazolium tetrachloroaurate salts. Inorg. Chem. 38 (1999) 5637–5641.10.1021/ic990657pSearch in Google Scholar

9. Hitchcock, P. B.; Seddon, K. R.; Welton, T.: Hydrogen-bond acceptor abilities of tetrachlorometalate(II) complexes in ionic liquids. J. Chem. Soc., Dalton Trans. 17 (1993) 2639–2643.10.1039/dt9930002639Search in Google Scholar

10. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-6-5
Accepted: 2015-12-17
Published Online: 2016-1-23
Published in Print: 2016-3-1
