Crystal structure of the catena-poly[bis(1H-imidazole-κN)-(μ2-furan-2,5-dicarboxylato-κ2O1:O4)manganese(II)]monohydrate, C12H12MnN4O6

  • Yuan-Rui Wang , Wen-Yuan Gao and Ya-Feng Li EMAIL logo
Published/Copyright: January 29, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C12H12MnN4O6, monoclinic, P21/c (no. 14), a = 8.1583(16) Å, b = 16.525(3) Å, c = 13.134(3) Å, β = 117.96(3)°, V = 1564.0(7) Å3, 4 = 2, Rgt(F) = 0.0503, wRref(F2) = 0.1579, T = 293 K.

CCDC no.:: 1446144

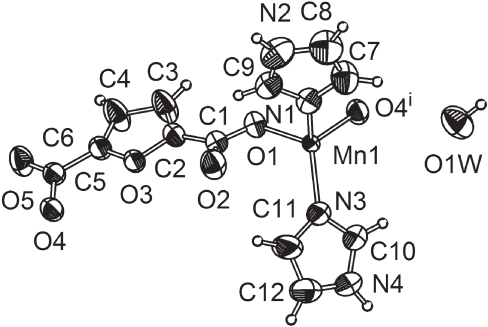

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Pink, block, size 0.23×0.38×0.44 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:8.79 cm−1
Diffractometer, scan mode:Rigaku R-AXIS RAPID, ω
2θmax:54.96°
N(hkl)measured, N(hkl)unique:15160, 3586
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3121
N(param)refined:215
Programs:SHELX [5], Diamond [6]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(3)4e−0.20280.65430.84500.090
H(4)4e−0.35960.53540.88420.092
H(2)4e0.75090.70181.10710.091
H(7)4e0.61520.83850.83960.084
H(8)4e0.84220.82411.04220.101
H(9)4e0.48230.64480.95610.067
H(4A)4e0.12180.64170.32840.087
H(10)4e0.15920.74520.46000.072
H(11)4e0.26760.54100.62170.137
H(12)4e0.19490.51340.42310.161
H(1A)4e0.765(6)0.944(2)0.711(5)0.101
H(1B)4e0.606(2)0.898(3)0.653(4)0.101
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Mn(1)4e0.25204(5)0.72008(2)0.71535(3)0.0290(3)0.0215(3)0.0257(3)0.0014(1)0.0129(2)−0.0002(1)
O(1)4e0.0730(4)0.6807(2)0.7681(2)0.062(2)0.041(1)0.058(2)−0.005(1)0.031(1)0.002(1)
O(2)4e0.2236(4)0.5645(2)0.7968(3)0.069(2)0.054(2)0.091(2)0.002(1)0.054(2)0.003(2)
O(3)4e−0.0446(3)0.4862(1)0.8267(2)0.051(1)0.035(1)0.052(1)−0.003(1)0.032(1)−0.002(1)
O(4)4e−0.1371(3)0.3300(1)0.8232(2)0.053(1)0.037(1)0.055(1)−0.001(1)0.029(1)−0.003(1)
O(5)4e−0.3382(4)0.3597(2)0.8871(3)0.067(2)0.047(2)0.096(2)−0.005(1)0.055(2)0.002(2)
C(1)4e0.0955(5)0.6058(2)0.7940(3)0.053(2)0.039(2)0.045(2)−0.004(1)0.026(2)−0.001(1)
C(2)4e−0.0441(5)0.5691(2)0.8209(3)0.056(2)0.034(2)0.054(2)−0.001(1)0.030(2)−0.001(1)
C(3)4e−0.1751(7)0.5999(2)0.8437(6)0.086(3)0.036(2)0.139(5)0.001(2)0.082(4)−0.003(2)
C(4)4e−0.2631(7)0.5331(2)0.8654(5)0.089(3)0.039(2)0.141(5)−0.001(2)0.086(4)−0.006(2)
C(5)4e−0.1809(5)0.4663(2)0.8537(3)0.053(2)0.039(2)0.058(2)−0.003(1)0.035(2)−0.003(2)
C(6)4e−0.2221(5)0.3795(2)0.8566(3)0.045(2)0.038(2)0.048(2)−0.002(1)0.026(2)−0.003(1)
N(1)4e0.4903(4)0.7363(2)0.8589(3)0.045(2)0.052(2)0.048(2)0.004(1)0.019(1)0.003(1)
N(2)4e0.6935(6)0.7215(3)1.0386(4)0.056(2)0.105(4)0.050(2)0.011(2)0.011(2)0.008(2)
C(7)4e0.6164(6)0.7977(3)0.8887(4)0.055(2)0.073(3)0.068(3)−0.011(2)0.016(2)0.010(2)
C(8)4e0.7423(8)0.7901(4)0.9999(5)0.059(3)0.097(4)0.069(3)−0.016(3)0.008(2)−0.001(3)
C(9)4e0.5429(6)0.6913(3)0.9520(3)0.051(2)0.062(2)0.050(2)0.007(2)0.020(2)0.005(2)
N(3)4e0.2277(5)0.6595(2)0.5785(3)0.062(2)0.046(2)0.044(2)0.004(1)0.027(1)0.002(1)
N(4)4e0.1557(7)0.6341(2)0.4003(3)0.108(3)0.068(2)0.044(2)−0.007(2)0.038(2)−0.005(2)
C(10)4e0.1775(7)0.6902(3)0.4766(4)0.083(3)0.053(2)0.053(2)0.000(2)0.039(2)0.004(2)
C(11)4e0.237(1)0.5797(3)0.5641(5)0.237(9)0.044(2)0.067(3)0.017(4)0.075(5)0.001(2)
C(12)4e0.196(2)0.5639(4)0.4547(5)0.28(1)0.060(3)0.077(4)0.000(5)0.098(6)−0.009(3)
O(1W)4e0.7188(5)0.8969(2)0.6978(4)0.076(2)0.069(2)0.112(3)−0.019(2)0.047(2)−0.016(2)

Source of material

In a typically synthetic protocol, furan-2,5-dicarboxyl acid (0.0156 g, 0.10 mmol), MnCl2·4H2O (0.0198 g, 0.10 mmol), C3N2H4 (0.020, 0.30 mmol) and NaOH (0.004, 0.10 mmol) were dissolved in water (5 ml, 278 mmol) under stirring. The mixture with a molar ratio of 1 (furan-2,5-dicarboxyl acid) : 1 (MnCl2·4H2O) : 3 (C3N2H4) : 1 NaOH : 2780 H2O was stored at room temperature for 4 days. The pink product was collected as a single phase.

Experimental details

Water H atoms were located in a difference Fourier map and refined with O—H = 0.82 Å and Uiso(H) = 1.2Ueq(O)). The carbon H-atoms and nitrogen H-atoms were placed in calculated positions (C—H = 0.93 Å and N—H = 0.86 Å) and were included in the refinement in the riding-model approximation, with Uiso(H) = 1.2Ueq(C).

Discussion

In the past decades, the MOF materials (metal-organic framework materials) have being attracted extensive attentions due to the applications for gas absorption and catalyst reactions [1, 2]. So far, thousands of MOFs have been synthesized, which reveals the diversities of the compositions and structures. MOF is generally constructed by the means of metal ions/metal clusters as the nodes and bidentate/multi-dentate organic molecule as the linkers [3, 4].

The asymmetric unit of the title structure consists of one Mn(II) cation, one furan-2,5-dicarboxylate anion, two imidazoles and one water molecule (see the Figure). Each manganese is tetrahedrally coordinated by two carboxylate oxygens (dMn1–O of 1.997(14) Å and 1.997(3) Å) from different furan-2,5-dicarboxylate, and two imidazoles (dMn1–N of 1.984(3) Å and 1.992(3) Å).

In the title coordination polymer, an infinite chain is formed along [010] by linking the Mn(C3N2H4)2 entities with two bridging monodentate carboxylate groups of two crystallographically dependent furan-2,5-dicarboxylate dianions. The dihedral angle between the imidazole planes is 49.6(3)°. Ow—H⋯O and Ni—H⋯O (w = water and i = imidazole) hydrogen bonds help to establish the packing.

Corresponding author: Ya-Feng Li, School of Chemical Engineering, Changchun University of Technology, Changchun 130012, P. R. China, e-mail:

Acknowledgements:

This project was sponsored by the National Science Foundation of China (No. 21171026).

References

1. Murray, L. J.; Dinca, M.; Long, J. R.: Hydrogen storage in metal-organic frameworks. Chem. Soc. Rev. 38 (2009) 1294–1314.10.1039/b802256aSearch in Google Scholar

2. Corma, A.; Garcia, H.; Xamena, F. X. L. I.: Engineering metal organic frameworks for heterogeneous catalysis. Chem. Rev. 110 (2010) 4606–4655.10.1021/cr9003924Search in Google Scholar

3. Tranchemontagne, D. J.; Mendoza-Cortés, J. L.; O'Keeffe, M.; Yaghi, O. M.: Secondary building units, nets and bonding in the chemistry of metal-organic frameworks. Chem. Soc. Rev. 38 (2009) 1257–1283.10.1039/b817735jSearch in Google Scholar

4. Li, M.; Li, D.; O'Keeffe, M.; Yaghi, O. M.: Topological analysis of metal-organic frameworks with polytopic linkers and/or multiple building units and the minimal transitivity principle. Chem. Rev. 114 (2014) 1343–1370.10.1021/cr400392kSearch in Google Scholar

5. Brandenburg, K.: DIAMOND. Visual crystal structure information system. Version 3.2i. Crystal Impact, Bonn, Germany 2012.Search in Google Scholar

6. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-4-3
Accepted: 2016-1-8
Published Online: 2016-1-29
Published in Print: 2016-3-1

©2016 Yuan-Rui Wang et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
