Crystal structure of poly-[μ2-4,4′-bipyridine-κ2N:N′−μ3-thiophene-2,3-di-carboxylato-κ4O,O′, O′′:O′′′ -cadmium(II)]

  • Li-Ping Yao and Li Zhang EMAIL logo
Published/Copyright: January 8, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C16H10N2O4S1Cd, orthorhombic, P2(1)2(1)2(1), a = 8.977(2) Å, b = 11.751(3) Å, c = 14.224(4) Å, α = 90°, β = 90°, γ = 90°, V = 1500.6(6) Å3, Z = 4, Rgt(F) = 0.0188, wRref(F2) = 0.0431, T = 296(2) K.

CCDC no.:: 966307

Source of material

A mixture of Cd(OAc)2·2H2O (0.1 mmol, 0.0267 g), 4,4′-bipyridine (0.1 mmol, 0.015 g), thiophene-2,3-dicarboxylic acid (0.25 mmol, 0.043 g) was dissolved in 10 mL H2O. Then the solution was heated in a 25 mL Teflon-lined autoclave under autogenous pressure at 413 K for four days. After cooling to room temperature, The colourless block crystals that formed were collected.

Table 1

Data collection and handling.

Crystal:Colourless, block, size 0.20×0.30×0.40 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:16.15 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:50.98°
N(hkl)measured, N(hkl)unique:11030, 2776
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2669
N(param)refined:233
Programs:SHELX [15]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(14)4a0.47540.11980.2770.043
H(15)4a0.68450.03050.20240.031
H(14′)4a0.41720.09770.30110.043
H(15′)4a0.2227−0.03840.26850.031
H(1)4a−0.24720.5584−0.0060.035
H(2)4a−0.24540.3639−0.01450.035
H(4)4a0.11440.36430.15190.034
H(5)4a0.11550.55950.14330.034
H(7)4a−0.11190.1976−0.07440.045
H(8)4a−0.10510.0036−0.07870.047
H(9)4a−0.0053−0.01130.18680.031
H(10)4a−0.00660.18310.19870.034
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
S(1)4a0.3057(2)−0.0192(2)0.2348(2)0.0323(7)0.0359(8)0.0393(8)0.0028(6)−0.0011(6)−0.0117(7)
C(12)4a0.3899(9)−0.1321(9)0.1794(8)0.021(2)0.021(2)0.021(2)−0.001(1)0.001(1)−0.001(1)
C(13)4a0.5417(9)−0.1166(6)0.1733(8)0.021(2)0.022(2)0.022(2)−0.001(1)0.001(1)0.000(1)
C(14)4a0.4686(8)0.0503(6)0.2460(5)0.037(2)0.034(2)0.036(2)−0.002(1)0.001(1)−0.003(1)
C(15)4a0.5895(7)−0.0005(7)0.2072(5)0.026(2)0.026(2)0.025(2)0.001(1)−0.002(1)−0.000(1)
S(1')4a0.6043(3)−0.0104(3)0.2308(2)0.0323(7)0.0359(8)0.0393(8)0.0028(6)−0.0011(6)−0.0117(7)
C(12')4a0.533(1)−0.1308(9)0.179(1)0.021(2)0.021(2)0.021(2)−0.001(1)0.001(1)−0.001(1)
C(13')4a0.381(1)−0.136(1)0.188(1)0.021(2)0.022(2)0.022(2)−0.001(1)0.001(1)0.000(1)
C(14')4a0.433(1)0.0301(7)0.2687(6)0.037(2)0.034(2)0.036(2)−0.002(1)0.001(1)−0.003(1)
C(15')4a0.3208(9)−0.0445(8)0.2481(8)0.026(2)0.026(2)0.025(2)0.001(1)−0.002(1)−0.000(1)
Cd(1)4a−0.04930(2)−0.22545(2)0.05035(2)0.0239(1)0.0128(1)0.0260(1)−0.0005(1)0.0024(1)−0.00138(9)
N(1)4a−0.0641(3)0.5785(2)0.0665(2)0.025(1)0.015(1)0.028(1)−0.002(1)0.002(1)0.001(1)
N(2)4a−0.0526(3)−0.0235(2)0.0532(2)0.034(1)0.016(1)0.029(1)0.001(1)−0.003(2)−0.002(1)
O(1)4a0.6379(2)−0.2524(2)0.0589(2)0.031(1)0.049(2)0.028(1)0.012(1)−0.003(1)−0.012(1)
O(2)4a0.7828(2)−0.1924(2)0.1732(2)0.021(1)0.036(2)0.036(1)0.000(1)−0.003(1)−0.007(1)
O(3)4a0.3351(2)−0.3042(2)0.0988(2)0.031(1)0.022(1)0.036(1)−0.000(1)0.003(1)−0.006(1)
O(4)4a0.1452(2)−0.2062(2)0.1588(2)0.019(1)0.035(2)0.032(1)−0.002(1)0.0006(9)−0.005(1)
C(1)4a−0.1702(4)0.5189(3)0.0232(2)0.029(2)0.021(2)0.037(2)0.003(1)−0.004(1)0.002(1)
C(2)4a−0.1718(4)0.4016(3)0.0193(2)0.029(2)0.018(2)0.040(2)−0.005(1)−0.009(2)−0.002(1)
C(3)4a−0.0623(4)0.3402(2)0.0665(2)0.028(2)0.017(2)0.030(2)−0.001(1)0.002(2)0.000(1)
C(4)4a0.0428(4)0.4017(3)0.1162(2)0.026(2)0.021(2)0.037(2)0.002(2)−0.006(2)0.002(1)
C(5)4a0.0406(4)0.5195(3)0.1124(2)0.025(2)0.024(2)0.036(2)−0.005(2)−0.004(2)−0.004(1)
C(6)4a−0.0606(3)0.2144(2)0.0630(2)0.027(2)0.017(2)0.034(2)0.001(2)−0.003(2)−0.002(1)
C(7)4a−0.0895(4)0.1571(3)−0.0201(2)0.054(3)0.021(2)0.036(2)−0.001(2)−0.015(2)0.002(1)
C(8)4a−0.0848(4)0.0402(3)−0.0222(2)0.059(3)0.024(2)0.035(2)−0.002(2)−0.013(2)−0.005(1)
C(9)4a−0.0260(4)0.0314(3)0.1333(2)0.031(2)0.020(2)0.027(2)0.002(2)−0.001(2)0.002(1)
C(10)4a−0.0275(4)0.1486(3)0.1413(2)0.040(2)0.019(2)0.027(2)0.003(2)−0.004(2)−0.006(1)
C(11)4a0.2819(3)−0.2228(3)0.1434(2)0.025(2)0.020(1)0.020(2)0.002(2)−0.001(1)0.005(2)
C(16)4a0.6583(3)−0.1963(2)0.1322(2)0.022(2)0.017(2)0.022(2)−0.002(1)0.004(1)0.003(1)

Experimental details

There is a positional disorder concerning the sulfur position in the thiophene ring.

Discussion

Great interest has been focused on the rapidly expanding field of metal-organic frameworks (MOFs) due to their structural and topological diversity as well as their potential applications as functional materials [1–3]. In recent years, organic carboxylate ligands have been widely used in synthesizing MOFs due to the rich coordination modes and strong coordination ability of the carboxyl group [4, 5]. Among them, thiophenedicarboxylic acids are useful and important organic moieties in preparing electronic and optical materials owing to their good electron-transferring ability and structural rigidity [6–9]. However, MOFs constructed from thiophenedicarboxylic acids are rather limited and most of the work has been devoted on MOFs built from commercially available thiophene-2,5-dicarboxylic acid [10]. On the other hand, a number of bis(imidazole)-containing ligands have been widely employed as the secondary ligands meeting the requirement of coordination geometries of metal ions or tuning the fine structure [11, 12]. As the most widely used flexible bidentate 1,10-(1,4-butanediyl)bis(imidazole) ligands, it possesses an excellent coordination ability and has been widely used to construct MOFs [13, 14].

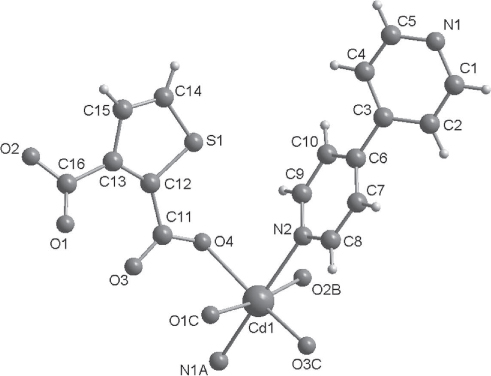

The asymmetric unit of the title structure contains one Cd(II) ion, one 4,4′-bipyridine ligand and one thiophene-2,3-di-carboxylate dianion as bridging ligand to construct a new coordination polymer. The cadmium atom is six-coordinated by four atoms of three anionic ligands and two nitrogen atoms in a trans-arrangment from two bipyridine ligands. The O—Cd—O are in the range of 74.60(8)° to 172.90(8)°. The O4—Cd—N2 angle is 84.32(9)° (Tables 1–3). These interactions result in the infinite three dimensional architecture.

Corresponding author: Li Zhang, College of Chemistry and Chemical Engineering, Luoyang Normal University, Luoyang 471022, Henan Province, P. R. China, e-mail:

References

1. Hong, M. C.: Inorganic-organic hybrid coordination polymers: a new frontier for materials research. Cryst. Growth Des. 7 (2007) 10–14.10.1021/cg068015hSearch in Google Scholar

2. Qiu, S. L.; Zhu, G. S.: Molecular engineering for synthesizing novel structures of metal-organic frameworks with multifunctional properties. Coord. Chem. Rev. 253 (2009) 2891–2911.10.1016/j.ccr.2009.07.020Search in Google Scholar

3. Xuan, W. M.; Zhu, C. F.; Liu, Y.; Cui, Y. Mesoporous metal-organic framework materials. Chem. Soc. Rev. 41 (2012) 1677–1695.10.1039/C1CS15196GSearch in Google Scholar

4. Suh, M. P.; Min, K. S.; Ko, J. W.; Choi, H. J. Assembly of hydrogen-bonded organic layers with macrocyclic complexes acting as pillars. Eur. J. Inorg. Chem. (2003) 1373–1379.10.1002/ejic.200390178Search in Google Scholar

5. Ding, B. B.; Weng, Y. Q.; Mao, Z. W.; Lam, C. K.; Chen, X. M.; Ye, B. H. Pillared-layer microporous metal-organic frameworks constructed by robust hydrogen bonds. Synthesis, characterization, and magnetic and adsorption properties of 2,2′-biimidazole and carboxylate complexes. Inorg. Chem. 44 (2005) 8836–8845.10.1021/ic051195kSearch in Google Scholar

6. Wang, J. G.; Huang, C. C.; Huang, X. H.; Liu, D. S. Three-dimensional lanthanide thiophenedicarboxylate framework with an unprecedented (4,5)-connected topology. Cryst. Growth Des. 8, (2008) 795–798.10.1021/cg7011342Search in Google Scholar

7. Zou, H. H.; He, Y. P.; Gui, L. C.; Liang, F. P. A new 8-connected porous coordination polymer: crystal structure and selective adsorption properties. CrystEngComm. 13 (2011) 3325–3329.10.1039/c1ce05103bSearch in Google Scholar

8. Li, Z. H.; Xue, L. P.; Li, S. H.; Wang, J. G.; Zhao, B. T.; Kan, J.; Su, W. P. Bis(pyridyl) ancillary ligands modulated uninodal 4-, 5- and 6-connected Cd(II) coordination polymers based on 3,4-thiophenedicarboxylate linker. CrystEngComm. 15 (2013) 2745–2752.10.1039/c3ce26686aSearch in Google Scholar

9. Xue, L. P.; Li, Z. H.; Li, S. H.; Wang, J. G. Synthesis, crystal structure and fluorescent property of a new one- dimensional cadmium(II) coordination polymer based on 3,4-thiophenedicarboxylic acid and 1,10-phenanthroline. Chin. J. Struct. Chem. 32 (2013) 704–708.Search in Google Scholar

10. Chen, B. L.; Mok, K. F.; Ng, S. C.; Drew, M. G. B. Thiophene-2,5-dicarboxylic acid incorporated self-assembly of one-, two- and three- dimensional coordination polymers. New J. Chem. 23 (1999) 877–883.10.1039/a901688kSearch in Google Scholar

11. Wen, L.; Lu, Z.; Lin, J.; Tian, Z.; Zhu, H.; Meng, Q. Syntheses, structures, and physical properties of three novel metal-organic frameworks constructed from aromatic polycarboxylate acids and flexible imidazole-based synthons. Cryst. Growth Des. 7 (2007) 93–99.10.1021/cg0604982Search in Google Scholar

12. Lan, Y. Q.; Li, S. L.; Su, Z. M.; Shao, K. Z.; Ma, J. F.; Wang, X. L.; Wang, E. B. Spontaneous resolution of a 3D chiral polyoxometalate-based polythreaded framework consisting of an achiral ligand. Chem. Commun. (2008) 58–60..10.1039/B714413JSearch in Google Scholar PubMed

13. Yang, Y.; Du, P.; Ma, J. F.; Kan, W. Q.; Liu, B.; Yang, J. A. Series of metal organic frameworks based on different salicylic derivatives and 1,10-(1,4-butanediyl)bis(imidazole) ligand: syntheses, structures, and luminescent properties. Cryst. Growth Des. 11 (2011) 5540–5553.10.1021/cg201118xSearch in Google Scholar

14. Zhang, L. P.; Ma, J. F.; Pang, Y. Y.; Ma, J. C.; Yang, J. Four novel topological frameworks based on 4,4′-(hexafluoroisopropylidene) diphthalic acid and 1,1′-(1,4-butanediyl)bis(imidazole) ligand. CrystEngComm. 12 (2010) 4433–4442.10.1039/c0ce00181cSearch in Google Scholar

15. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122..10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-4-21
Accepted: 2015-11-4
Published Online: 2016-1-8
Published in Print: 2016-3-1
