Crystal structure of (E)-2-((2-(2,4-dinitrophenyl)hydrazono)methyl)-4-nitrophenol — triethylamine (2/1), C32H33N11O14

  • Xun Feng EMAIL logo , Ai-Qin Tian , Cai-Lu Wang and Yang Wang
Published/Copyright: February 3, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C32H33N11O14, Monoclinic, P21/c a = 12.3339(18) Å, b = 37.764(5) Å, c = 8.2077(12) Å, α = 90°, β = 109.053(2)°, γ = 90°, V = 3613.6(9) Å3, Z = 4, Rgt(F) = 0.0621, wRref(F2) = 0.1574, T = 296(2) K.

CCDC no.:: 1446315

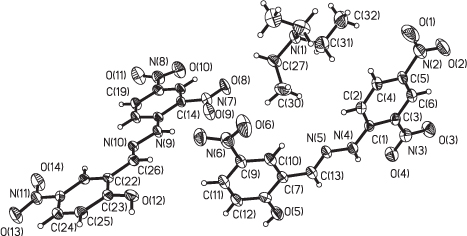

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Red, block,
Size:0.25×0.32×0.41 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.17 cm−1
Diffractometer, scan mode:Bruker SMART APEX, ϕ and ω scans
2θmax:51°
N(hkl)measured, N(hkl)unique:18974, 6644
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2654
N(param)refined:527
Programs:SHELX [5, 6]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(5)4e0.89070.13420.87540.114
H(12)4e1.05770.1506−0.00410.090
H(2)4e0.40920.03050.39720.058
H(4)4e0.24170.00210.25630.064
H(6)4e0.1851−0.01390.70370.066
H(10)4e0.61070.07930.35540.065
H(11)4e0.84200.15170.32910.074
H(12A)4e0.91360.15360.62620.074
H(13)4e0.67400.07940.80950.065
H(15)4e0.39550.26490.24780.061
H(16)4e0.71420.29610.10240.063
H(19)4e0.59870.33890.15180.072
H(20)4e0.94120.27620.00340.051
H(24)4e1.21870.2458−0.11280.063
H(25)4e1.16530.1880−0.10950.066
H(26)4e0.83310.19120.04580.056
H(27A)4e0.28690.14230.05840.085
H(27B)4e0.27080.15180.23450.085
H(28A)4e0.12140.1165−0.23170.145
H(28B)4e0.15790.0782−0.26680.145
H(28C)4e0.25040.1050−0.15800.145
H(29A)4e0.07780.0733−0.04850.106
H(29B)4e0.20960.06590.03350.106
H(30A)4e0.37490.10310.36280.161
H(30B)4e0.44740.12470.27200.161
H(30C)4e0.38330.09030.18560.161
H(31A)4e0.19080.08040.31730.110
H(31B)4e0.15270.11860.35060.110
H(32A)4e−0.03360.10580.17530.173
H(32B)4e0.00630.07960.33190.173
H(32C)4e0.00530.06730.14900.173
H(9A)4e0.683(3)0.2092(9)0.104(5)0.03(1)
H(4A)4e0.517(4)0.051(1)0.833(5)0.08(2)
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
N(1)4e0.1626(3)0.11296(9)0.1062(5)0.056(2)0.046(2)0.078(3)−0.006(2)0.030(2)−0.001(2)
N(2)4e0.0908(4)−0.0259(1)0.3766(7)0.066(3)0.076(3)0.089(4)−0.024(2)0.023(3)−0.003(3)
N(3)4e0.3580(4)0.0170(1)0.9129(5)0.068(3)0.062(3)0.060(3)0.000(2)0.030(2)−0.004(2)
N(4)4e0.4984(3)0.04651(9)0.7162(5)0.052(2)0.056(2)0.054(3)−0.010(2)0.023(2)−0.001(2)
N(5)4e0.5552(3)0.06121(9)0.6134(4)0.046(2)0.046(2)0.065(2)−0.008(2)0.026(2)−0.002(2)
N(6)4e0.6719(4)0.1144(1)0.1297(6)0.080(3)0.092(4)0.066(3)−0.020(3)0.040(3)−0.012(3)
N(7)4e0.4938(4)0.2087(1)0.2030(5)0.058(3)0.059(3)0.072(3)−0.014(2)0.032(2)−0.004(2)
N(8)4e0.4147(4)0.3330(1)0.2442(6)0.063(3)0.069(3)0.103(4)0.004(3)0.042(3)−0.006(3)
N(9)4e0.6977(3)0.2287(1)0.1109(5)0.045(2)0.043(3)0.071(3)−0.006(2)0.030(2)0.002(2)
N(10)4e0.7911(3)0.23933(9)0.0662(4)0.035(2)0.058(2)0.048(2)−0.003(2)0.017(2)0.003(2)
N(11)4e1.1180(3)0.3027(1)−0.0595(5)0.052(3)0.056(3)0.089(3)−0.001(2)0.036(2)0.012(2)
O(1)4e0.0606(4)−0.0268(1)0.2203(6)0.124(4)0.178(5)0.077(3)−0.086(3)0.008(3)−0.014(3)
O(2)4e0.0354(3)−0.0388(1)0.4613(5)0.084(3)0.116(3)0.122(3)−0.052(2)0.036(3)−0.005(3)
O(3)4e0.2976(3)0.0017(1)0.9847(4)0.091(3)0.117(3)0.078(2)−0.023(2)0.051(2)0.005(2)
O(4)4e0.4417(3)0.03491(9)0.9957(4)0.086(3)0.081(2)0.060(2)−0.022(2)0.027(2)−0.014(2)
O(5)4e0.8368(3)0.12036(9)0.8417(4)0.065(2)0.082(3)0.077(3)−0.030(2)0.020(2)−0.005(2)
O(6)4e0.6100(4)0.0896(1)0.0642(5)0.165(4)0.141(4)0.076(3)−0.094(3)0.050(3)−0.039(3)
O(7)4e0.6946(3)0.1388(1)0.0468(4)0.101(3)0.102(3)0.074(2)−0.024(2)0.046(2)0.003(2)
O(8)4e0.4099(3)0.20368(8)0.2465(5)0.068(2)0.075(2)0.133(3)−0.016(2)0.064(2)0.007(2)
O(9)4e0.5529(3)0.18428(9)0.1767(5)0.080(3)0.054(2)0.134(3)−0.007(2)0.066(2)0.001(2)
O(10)4e0.3434(3)0.3238(1)0.3108(5)0.087(3)0.094(3)0.144(4)0.005(2)0.080(3)−0.012(2)
O(11)4e0.4290(3)0.3636(1)0.2087(6)0.102(3)0.062(3)0.194(5)0.008(2)0.086(3)−0.002(3)
O(12)4e0.9994(2)0.16258(7)−0.0236(4)0.039(2)0.049(2)0.090(2)0.001(1)0.017(2)0.001(2)
O(13)4e1.2100(3)0.30911(8)−0.0812(5)0.070(2)0.066(2)0.148(3)−0.008(2)0.061(2)0.011(2)
O(14)4e1.0532(3)0.32612(8)−0.0433(5)0.086(3)0.049(2)0.173(4)0.012(2)0.077(3)0.014(2)
C(1)4e0.4003(3)0.0282(1)0.6382(5)0.043(3)0.032(2)0.058(3)−0.001(2)0.018(2)0.003(2)
C(2)4e0.3638(4)0.0223(1)0.4600(5)0.053(3)0.045(3)0.050(3)−0.002(2)0.022(2)0.004(2)
C(3)4e0.3305(4)0.0137(1)0.7288(6)0.054(3)0.037(3)0.055(3)0.000(2)0.024(2)0.000(2)
C(4)4e0.2645(4)0.0051(1)0.3752(6)0.061(3)0.041(3)0.061(3)−0.010(2)0.023(3)0.001(2)
C(5)4e0.1979(4)−0.0078(1)0.4689(6)0.055(3)0.041(3)0.069(3)−0.014(2)0.021(3)0.000(2)
C(6)4e0.2299(4)−0.0043(1)0.6429(6)0.056(3)0.047(3)0.070(4)−0.007(2)0.031(3)0.002(3)
C(7)4e0.7072(3)0.0969(1)0.5891(6)0.042(3)0.045(3)0.059(3)−0.004(2)0.021(2)−0.004(2)
C(8)4e0.8008(4)0.1190(1)0.6693(6)0.038(3)0.055(3)0.061(3)−0.001(2)0.012(2)−0.007(3)
C(9)4e0.7191(4)0.1154(1)0.3159(6)0.050(3)0.055(3)0.061(3)−0.009(2)0.030(3)−0.005(3)
C(10)4e0.6698(4)0.0948(1)0.4113(6)0.046(3)0.046(3)0.074(3)−0.006(2)0.025(3)−0.011(3)
C(11)4e0.8097(4)0.1378(1)0.3948(7)0.055(3)0.060(3)0.079(4)−0.014(3)0.033(3)−0.002(3)
C(12)4e0.8513(4)0.1391(1)0.5715(7)0.044(3)0.058(3)0.086(4)−0.014(2)0.026(3)−0.004(3)
C(13)4e0.6463(4)0.0785(1)0.6897(6)0.049(3)0.055(3)0.064(3)−0.007(2)0.026(2)−0.005(2)
C(14)4e0.5283(3)0.2448(1)0.1855(5)0.042(3)0.054(3)0.041(3)−0.010(2)0.019(2)0.000(2)
C(15)4e0.4597(3)0.2710(1)0.2181(5)0.038(3)0.070(3)0.051(3)−0.008(2)0.022(2)−0.001(2)
C(16)4e0.6502(3)0.2894(1)0.1312(5)0.042(3)0.053(3)0.071(3)−0.007(2)0.030(2)0.003(2)
C(17)4e0.6276(3)0.2533(1)0.1418(5)0.034(2)0.055(3)0.044(3)−0.004(2)0.017(2)−0.003(2)
C(18)4e0.4865(4)0.3057(1)0.2067(6)0.044(3)0.059(3)0.064(3)0.003(2)0.024(2)−0.005(2)
C(19)4e0.5818(4)0.3151(1)0.1614(6)0.057(3)0.049(3)0.081(3)−0.006(2)0.030(3)0.001(3)
C(20)4e0.9864(3)0.2581(1)−0.0166(5)0.035(2)0.053(3)0.044(3)0.006(2)0.018(2)0.001(2)
C(21)4e1.0838(3)0.2662(1)−0.0554(5)0.041(3)0.042(3)0.046(3)−0.001(2)0.017(2)0.007(2)
C(22)4e0.9550(3)0.2232(1)−0.0072(5)0.030(2)0.045(3)0.043(2)0.002(2)0.011(2)0.003(2)
C(23)4e1.0242(3)0.1959(1)−0.0376(5)0.037(2)0.042(3)0.050(3)−0.004(2)0.010(2)0.003(2)
C(24)4e1.1525(3)0.2400(1)−0.0879(5)0.042(3)0.062(3)0.060(3)0.006(2)0.025(2)0.009(3)
C(25)4e1.1214(4)0.2056(1)−0.0827(5)0.047(3)0.056(3)0.067(3)0.008(2)0.025(2)−0.002(3)
C(26)4e0.8530(3)0.2148(1)0.0378(5)0.042(3)0.050(3)0.048(3)−0.005(2)0.015(2)−0.002(2)
C(27)4e0.2757(4)0.1322(1)0.1605(7)0.051(3)0.052(3)0.101(4)−0.005(2)0.015(3)−0.009(3)
C(28)4e0.1725(5)0.0971(1)−0.1844(7)0.108(5)0.091(4)0.103(5)−0.006(3)0.053(4)−0.019(4)
C(29)4e0.1533(4)0.0840(1)−0.0193(7)0.075(4)0.060(3)0.122(5)0.002(3)0.024(4)−0.025(4)
C(30)4e0.3797(4)0.1106(1)0.2536(8)0.058(4)0.085(4)0.154(6)0.007(3)0.000(4)0.019(4)
C(31)4e0.1385(5)0.0996(1)0.2666(7)0.092(4)0.072(4)0.122(5)0.017(3)0.051(4)0.014(4)
C(32)4e0.0185(5)0.0870(2)0.2272(8)0.094(5)0.130(6)0.138(6)−0.005(4)0.060(4)0.038(4)

Source of material

A methanol solution (10 mL) containing 5-nitro-salicyl aldehyde (0.038 g, 0.2 mmol) and 2,4 (2,4-dinitrophenyl)hydranzine (0.037 g, 0.2 mmol) is mixed with an aqueous solution (10 mL) of Zn(NO3)2·6H2O, 0.2 mmol (0.061 g). After stirring for 20 min in air, the pH value was adjusted to 5.5, and the mixture was further stirred for 6 h at room temperature, then the mixture was cooled over a period of 12 h at a rate 5° C/h. Colorless crystals of title complex were obtained suitable for X-ray diffraction analysis. For title complex, yield: 0.0682 g (44°) based on 5-nitro-salicyl aldehyde. Elemental analysis (%): calcd for C32H31N11O14: C 48.43, H 3.93, N 19.41, found: C 48.72, H 3.90, N 19.54.

Experimental details

Positions of hydrogen atoms at N atoms were located from the difference Fourier syntheses and refined. All Uiso values were restrained on Ueq values of the parent atoms.

Discussion

It is well-known that Schiff base compounds have continued to enjoy extensive interests owing to their structural diversity and potential applications in pharmacology and catalysis [1, 2]. The chelating salicylaldehyde derivatives ligands containing O and N donor atoms show broad biological activity, especially with one or more halogen atoms added in the aromatic ring (e.g. antitumor, antibacterial and antifungal activities [3, 4]). Substituted Schiff base can be employed to construct functional covalent organic frameworks (COF). In order to develop environmentally benign methods, a new salicyl aldehyde-type Schiff base compound has been prepared through transition metal catalysis. The X-ray diffraction analysis reveals that title compound consists of three discrete molecules: two similar Schiff base and one triethylamine molecule. The Zn(II) cation is not present in the final product, this is also confirmed by the bond length of C–O linker by hydroxyl rather in ketone group form, which is just is 1.34 Å. The perspective view of the title compound with atom labeling is illustrated in the figure.

All the atoms of this Schiff base are nearly coplanar. For the first benzene ring of C1—C2—C3—C4—C5—C6, carbon atom C5 is beyond the least square plane at 0.0118 Å, while, the for second benzene ring of C7—C8—C9—C10—C11—C12, C7 atom is beyond the least square plane at just 0.0183 Å, and for the two Schiff base compounds the dihedral angles between the two benzene rings within same mioety are 1.59°, 13.59°, respectively. Interestingly, the nitro groups show different bond lengths although they displayed the same configuration in the Schiff base compound, in which the bond distance of N(2)—O(1), N(2)—O(2), N(3)—O(3), N(6)—O(6), N(6)—O(7) are found to be 1.210(5), 1.224(5), 1.234(4), 1.217(5), 1.232(5) Å, respectively. The triethylamine is involved in hydrogen bonding between the hydroxyl oxygen and tert-amine nitrogen, such as, O(12)—H(12)⋯N(1)#2 [O(12)—N(1)#2 = 2.702(5), O(12)—H(12)⋯N(1)#2 = 155.7°]. Among the three ethyl groups, only one terminal carbon extended along the opposite direction to the two others. There is another hydrogen bond found between the two adjacent Schiff base units, which is, O(5)—H(5)⋯O(12)#1, [O(5)⋯O(12)#1 = 2.517(4), O(5)—H(5)⋯O(12)#1 = 168.7].

Corresponding author: Xun Feng, Luoyang Normal University, College of Chemistry and Chemical Engineering, Luoyang, Henan, 471022, P. R. China, e-mail:

Acknowledgements:

This work was supported by the National Natural Science Foundation of China (No. 21273101). Foundation of the Key program of Education Committee of Henan Province (No. 14B150033), and the tackle key problem of science and technology Project of Henan Province (No. 142102310483).

References

1. Somani, R. R.; Shirodkar, P. Y.; Toraskar, M. P.; Kadam, V. J.: Synthesis and biological evaluation of 2,5-disubstituted-1,3,4-oxadiazole analogues. Ind. J. Pharm. Educ. Res. 42 (2008) 53–C58.10.2174/157018008785777360Search in Google Scholar

2. Guo, A. J.; Xu, X. S.; Hu, Y. H.; Wang, S. Z.; Tan, X.: Effect and mechanism of ternary complex of copper with salicylaldehyde-amino acid Schiff base on the proliferation of BGC 823 cells. Chin. J. Cancer. 29 (2010) 298–303.10.5732/cjc.009.10155Search in Google Scholar

3. Naeimi, H.; Safari, J.; Heidarnezhad, A.: Synthesis of Schiff base ligands derived from condensation of salicylaldehyde derivatives and synthetic diamine. Dyes and Pigments. 73 (2007) 251–253.10.1016/j.dyepig.2005.12.009Search in Google Scholar

4. Feng, W.-X.; Hui, Y.; Shi, G. X.; Zou, D.; L1, X. Q.; Song, J-R.; Fan, D.-D.; Wong, W.-K.; Jones, R. A.: Synthesis, structure and near-infrared (NIR) luminescence of series of Zn2Ln(Ln = Nd, Yb or Er) complexes based on the Salen-type Schiff-base ligand with the flexible linker. Inorg. Chem. Commun. 20 (2012) C33–C36.10.1016/j.inoche.2012.02.008Search in Google Scholar

5. Sheldrick, G. M.: SHELXS-97. Program for the Solution of Crystal Structures. University of Göttingen, Germany 1997.Search in Google Scholar

6. Sheldrick, G. M.: SHELXL-97. Program for the Refinement of Crystal Structures. University of Göttingen, Germany 1997.Search in Google Scholar

Received: 2015-5-2
Accepted: 2016-1-11
Published Online: 2016-2-3
Published in Print: 2016-3-1
