Crystal structure of methyl 5-methoxy 1H-indole-2-carboxylate, C11H11NO3

  • Mohamed I. Attia , Hazem A. Ghabbour EMAIL logo and Hoong-Kun Fun
Published/Copyright: February 13, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C11H11NO3, monoclinic, P21/n (no. 14), a = 7.8956(6) Å, b = 5.8304(4) Å, c = 22.0407(16) Å, β = 91.919(3)°, V = 1014.06(13) Å3, Z = 4, R(F) = 0.045, wR(F2) = 0.125, T = 100 K.

CCDC no.:: 1052719

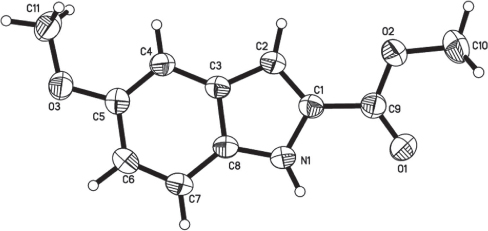

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow, block, size 0.247×0.268×0.410 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.99 cm−1
Diffractometer, scan mode:Bruker APEX-II D8 venture, φ and ω scans
2θmax:55.98°
N(hkl)measured, N(hkl)unique:9399, 2407
N(param)refined:143
Programs:SHELX [9]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1)4e0.493(2)0.997(3)0.4334(9)0.067(5)
H(2)4e0.27830.43330.36460.058
H(4)4e0.37700.51790.23880.054
H(6)4e0.64221.11140.22440.059
H(7)4e0.61521.19300.32690.058
H(10A)4e0.28080.42800.57710.102
H(10B)4e0.16280.22990.54850.102
H(10C)4e0.08810.48240.55730.102
H(11A)4e0.54790.44890.15370.095
H(11B)4e0.51840.58150.09070.095
H(11C)4e0.36650.55770.13650.095
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
O(1)4e0.3386(2)0.7911(2)0.52344(5)0.0837(9)0.0780(9)0.0492(7)−0.0277(7)0.0068(6)−0.0117(6)
O(2)4e0.2416(2)0.4563(2)0.48726(5)0.0785(8)0.0548(7)0.0535(7)−0.0138(6)0.0164(5)0.0012(5)
O(3)4e0.5395(1)0.7856(2)0.16189(5)0.0583(6)0.0568(7)0.0465(6)0.0026(5)0.0083(4)0.0002(5)
N(1)4e0.4484(2)0.9017(2)0.40557(6)0.0482(6)0.0447(7)0.0449(7)−0.0090(5)−0.0016(5)−0.0038(5)
C(1)4e0.3620(2)0.7040(2)0.41916(6)0.0431(7)0.0444(7)0.0472(8)−0.0053(6)0.0008(5)0.0000(6)
C(2)4e0.3358(2)0.5762(3)0.36759(7)0.0512(7)0.0433(8)0.0502(8)−0.0111(6)0.0043(6)−0.0027(6)
C(3)4e0.4106(2)0.6973(2)0.31937(6)0.0413(6)0.0399(7)0.0471(7)−0.0040(5)0.0008(5)−0.0014(6)
C(4)4e0.4255(2)0.6517(2)0.25680(6)0.0467(7)0.0422(7)0.0474(8)−0.0041(6)0.0020(6)−0.0042(6)
C(5)4e0.5121(2)0.8064(2)0.22290(6)0.0401(6)0.0465(7)0.0449(7)0.0054(5)0.0013(5)0.0013(6)
C(6)4e0.5829(2)1.0077(3)0.24923(7)0.0470(7)0.0452(8)0.0559(9)−0.0045(6)0.0046(6)0.0078(6)
C(7)4e0.5681(2)1.0570(2)0.30969(7)0.0484(7)0.0410(7)0.0564(9)−0.0093(6)−0.0001(6)−0.0005(6)
C(8)4e0.4813(2)0.8997(2)0.34489(6)0.0391(6)0.0400(7)0.0463(7)−0.0029(5)−0.0015(5)−0.0019(6)
C(9)4e0.3151(2)0.6599(3)0.48138(7)0.0433(7)0.0513(8)0.0472(8)−0.0031(6)0.0009(5)−0.0007(7)
C(10)4e0.1891(2)0.3941(3)0.54741(8)0.072(1)0.072(1)0.061(1)−0.0025(9)0.0191(8)0.0154(9)
C(11)4e0.4892(2)0.5774(3)0.13351(8)0.077(1)0.062(1)0.0512(9)0.0072(8)0.0072(8)−0.0090(8)

Source of material

A suspension of 5-methoxy-1H-indole-2-carboxylic acid (2 g, 0.01 mol) in absolute methanol (30 mL) and a few drops of concentrated sulfuric acid was heated to reflux for 4 h. The reaction mixture was allowed to cool to room temperature and the precipitated solid was filtered off to give 2.1 g (96%) of methyl 5-methoxy 1H-indole-2-carboxylate as yellow crystals m.p. 450–451 K [1]. Single crystals of the title compound were obtained via slow evaporation of methanolic solution.

Discussion

The pineal hormone melatonin (N-acetyl-5-methoxytryptamine, MLT) is primarily synthesized and released by the pineal gland in a circadian rhythm, with elevated peripheral blood levels at night. MLT appears to have sleep-inducing properties in addition to the other effects reported in the literature like anti-inflammatory, pain modulatory, antitumor and antioxidant properties [2–5]. MLT exerts its effects via manipulation of two G-protein-coupled receptors, namely MT1 and MT2 receptors as well as a low-affinity putative MLT binding site called MT3 [6, 7]. The title compound is the starting material of a number of melatoninergic ligands [8] and can serve as a starting synthon for other new compounds able to modulate melatonin receptors. The asymmetric unit of the title structure contains one complete molecule in which the indole moiety is nearly planar. The stability of the molecules in the crystal structure is ensured by one intermolecular hydrogen bond, of which O1 works as hydrogen bond acceptor and N1 works as hydrogen bond donor. The distance of the interactions between N1—H1⋯O1 is 2.03(1) Å and the angle is 160°.

Corresponding author: Hazem A. Ghabbour, Department of Pharmaceutical Chemistry, College of Pharmacy, King Saud University, Riyadh 11451, Saudi Arabia, e-mail: ; and Department of Medicinal Chemistry, Faculty of Pharmacy, Mansoura University, Mansoura 35516, Egypt

Acknowledgements:

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for its funding of this research through the Research Group Project No. RGP-VPP-196.

References

1. Coowar, D.; Bouissac, J.; Hanbali, M.; Paschaki, M.; Mohier, E.; Luu, B.: Effects of indole fatty alcohols on the differentiation of neural stem cell derived neurospheres. J. Med. Chem. 47 (2004) 6270–6282.10.1021/jm0493616Search in Google Scholar

2. Genovese, T.; Mazzon, E.; Muia, C.; Bramanti, P.; De Sarro, A.; Cuzzocrea, S.: Attenuation in the evolution of experimental spinal cord trauma by treatment with melatonin. J. Pineal Res. 38 (2005) 198–208.10.1111/j.1600-079X.2004.00194.xSearch in Google Scholar

3. Peres, M. F. P.: Melatonin, the pineal gland and their implications for headache disorders. Cephalalgia 25 (2005) 403–411.10.1111/j.1468-2982.2005.00889.xSearch in Google Scholar

4. Witt-Enderby, P. A.; Radio, N. M.; Doctor, J. S.; Davis, V. L.: Therapeutic treatments potentially mediated by melatonin receptors: potential clinical uses in the prevention of osteoporosis, cancer and as an adjuvant therapy. J. Pineal Res. 41 (2006) 297–305.10.1111/j.1600-079X.2006.00369.xSearch in Google Scholar

5. Sofic, E.; Rimpapa, Z.; Kundurovic, Z.; Sapcanin, A.; Tahirovic, I.; Rustembegovic, A.; Cao, G. J.: Antioxidant capacity of the neurohormone melatonin. Neural Transm. 112 (2005) 349–358.10.1007/s00702-004-0270-4Search in Google Scholar

6. Csernus, V.; Mess, B.: Biorhythms and pineal gland. Neuroendocrinol. Lett. 24 (2003) 404–411.Search in Google Scholar

7. Nosjean O.; Ferro M.; Coge F.; Beauverger P.; Henlin J.-M.; Lefoulon F.; Fauchere J.-L.; Delagrange P.; Canet E.; Boutin J. A.: Identification of the melatonin binding site MT3 as the quinone reductase 2. J. Biol. Chem. 275 (2000) 31311–31317.10.1074/jbc.M005141200Search in Google Scholar

8. Attia, M. I.; Witt-Enderby, P. A.; Julius, J.: Synthesis and pharmacological evaluation of pentacyclic 6a,7-dihydrodiindole and 2,3-dihydrodiindole derivatives as novel melatoninergic ligands. Bioorg. Med. Chem. 16 (2008) 7654–7661.10.1016/j.bmc.2008.07.012Search in Google Scholar

9. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-11-25
Accepted: 2016-1-14
Published Online: 2016-2-13
Published in Print: 2016-3-1

©2016 Mohamed I. Attia et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
