Crystal structure of catena-poly[bis(μ2-4-(3-(pyridin-3-yl)-1H-1,2,4-triazol-5-yl)benzoato)-κ2N:O)copper(II)] dihydrate, C28H22N8O6Cu

  • Yan Zhao and Mei Zhu EMAIL logo
Published/Copyright: January 12, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C28H22O6N8Cu, Triclinic, P1̅, a = 6.826(5) Å, b = 9.040(7) Å, c = 10.930(8) Å, α = 101.068(8)°, β = 95.054(8)°, γ = 96.278(8)°, V = 653.8(9) Å3, Z = 1, Rgt(F) = 0.0469, wRref(F2) = 0.1063, T = 293(2) K.

CCDC no.:: 1441404

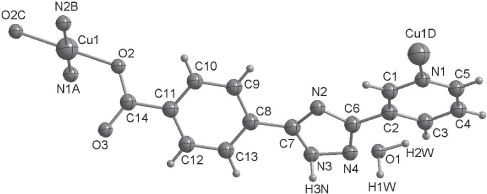

The crystal structure is shown in the figure, Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless, block, size 0.28×0.35×0.41 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:8.97 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:51°
N(hkl)measured, N(hkl)unique:4056, 2328
Criterion for Iobs, N(hkl)gt:Iobs > 2σ(Iobs), 1816
N(param)refined:196
Programs:SHELX [10]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(3N)2i0.56170.48630.72280.040
H(1W)2i0.35700.46830.08810.088
H(2W)2i0.46300.34890.04670.088
H(1)2i0.46980.13130.26590.039
H(3)2i0.99480.35150.43550.041
H(4)2i1.13210.26600.25240.044
H(5)2i0.93650.11860.08220.044
H(9)2i0.12390.07330.57920.041
H(10)2i−0.14560.03150.68660.042
H(12)2i−0.01450.45460.89580.040
H(13)2i0.25880.49460.79180.040
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Cu(1)1d−0.50.01.00.0332(4)0.0396(4)0.0262(3)−0.0075(3)0.0140(3)0.0034(3)
N(1)2i0.6834(4)0.1111(3)0.1560(3)0.029(2)0.040(2)0.028(2)0.000(1)0.014(1)0.005(1)
N(2)2i0.4320(4)0.2310(3)0.5001(2)0.029(2)0.037(2)0.030(2)−0.007(1)0.012(1)0.003(1)
N(3)2i0.5533(4)0.4213(3)0.6533(2)0.028(2)0.040(2)0.026(2)−0.007(1)0.010(1)−0.004(1)
N(4)2i0.6936(4)0.4152(3)0.5727(3)0.028(2)0.041(2)0.029(2)−0.005(1)0.010(1)0.001(1)
O(1)2i0.3636(4)0.3795(3)0.1019(3)0.046(2)0.086(2)0.047(2)0.007(2)0.019(1)0.015(2)
O(2)2i−0.3171(4)0.0677(3)0.8913(2)0.041(2)0.044(2)0.032(1)−0.013(1)0.018(1)−0.000(1)
O(3)2i−0.3415(4)0.3171(3)0.9443(3)0.050(2)0.060(2)0.058(2)0.018(1)0.036(2)0.018(1)
C(1)2i0.6043(5)0.1595(4)0.2634(3)0.028(2)0.040(2)0.027(2)−0.003(2)0.010(2)0.004(2)
C(2)2i0.7134(5)0.2489(4)0.3699(3)0.028(2)0.034(2)0.028(2)0.000(2)0.011(2)0.008(1)
C(3)2i0.9167(5)0.2909(4)0.3661(3)0.028(2)0.038(2)0.034(2)−0.004(2)0.007(2)0.005(2)
C(4)2i0.9977(5)0.2404(4)0.2570(3)0.022(2)0.045(2)0.043(2)0.000(2)0.014(2)0.010(2)
C(5)2i0.8791(5)0.1518(4)0.1549(3)0.030(2)0.047(2)0.035(2)0.002(2)0.017(2)0.009(2)
C(6)2i0.6139(5)0.2991(3)0.4818(3)0.026(2)0.032(2)0.026(2)−0.000(1)0.007(1)0.006(1)
C(7)2i0.3986(5)0.3115(4)0.6097(3)0.028(2)0.030(2)0.027(2)−0.003(1)0.006(2)0.006(1)
C(8)2i0.2237(5)0.2880(4)0.6760(3)0.027(2)0.033(2)0.025(2)−0.001(1)0.010(1)0.004(1)
C(9)2i0.0979(5)0.1489(4)0.6441(3)0.036(2)0.032(2)0.033(2)−0.002(2)0.016(2)0.000(2)
C(10)2i−0.0637(5)0.1239(4)0.7085(3)0.038(2)0.030(2)0.036(2)−0.006(2)0.017(2)0.004(2)
C(11)2i−0.1053(5)0.2362(4)0.8065(3)0.028(2)0.038(2)0.025(2)0.001(2)0.011(1)0.008(1)
C(12)2i0.0156(5)0.3769(4)0.8340(3)0.033(2)0.035(2)0.029(2)0.001(2)0.012(2)−0.003(1)
C(13)2i0.1785(5)0.4015(4)0.7709(3)0.028(2)0.033(2)0.036(2)−0.006(2)0.008(2)0.002(2)
C(14)2i−0.2686(5)0.2083(4)0.8857(3)0.031(2)0.050(2)0.023(2)0.000(2)0.008(2)0.006(2)

Source of material

A mixture of Cu(OAc)2·H2O (0.1 mmol, 199 mg), THF (10 mL), 4-(3-(pyridin-3-yl)-1H-1,2,4-triazol-5-yl)benzoic acid (0.3 mmol, 266 mg) was dissolved in 8 mL H2O. Then the solution was heated in a 23 mL Teflon-lined autoclave under autogenous pressure at 393 K for five days. After cooling to room temperature crystals formed. The red crystals suitable for X-ray diffraction analysis were collected.

Experimental details

At the pyridine ring, the hydrogen atoms were assigned with Uiso(H) = 1.2 Ueq(C), and included in the final refinement by using geometrical restraints, with d(C—H) = 0.93 Å. A data completeness of only 97.2% was achieved.

Discussion

Over the past few decades, supramolecular chemistry depending upon hydrogen bonding and intermolecular weak interactions have been a field of rapid growth due to potential application such as catalysis, magnetism, semiconductor, nonlinear optical materials, biological activity [1–6]. Benzimidazole and its derivatives, which are one kind of important building modules of N-containing heterocyclic ring compounds, may provide supramolecular recognition sites for N–H⋯O, C–H⋯O, C–H⋯π and π–π interactions to construct supramolecular architectures. On account of its various coordination modes, multi-carboxylate ligands are extremely popular as efficient linkers in the construction of supramolecular compounds. Thereinto, the 4-(3-(pyridin-3-yl)-1H-1,2,4-triazol-5-yl)benzoate (bta) as unsymmetrical carboxylate bridging ligands possess two or more coordination sites with differing donor abilities. Its carboxylate group can be used as hydrogen-bond acceptor. Discrete subunits or low-dimensional entities have been linked highdimensional supramolecular compounds through hydrogen bonds, π…π stacking and host-guest interactions [6–9].

The asymmetric unit of the title structure contains one half of a Cu(II) ion, and 4-(3-(pyridin-3-yl)-1H-1,2,4-triazol-5-yl)benzoate as a bridging ligand to construct a coordination polymer. The copper atom is four-coordinated by two oxygen atoms and two nitrogen atoms from four ligands to give a chain structure. The Cu–O bond lengths range is 1.928(2) Å, the Cu–N bond lengths range is 2.043(3) Å. In addition, there are intermolecular hydrogen bonds d(O(1)—H(1W)⋯O(3)#6) = 2.900(5) Å, d(O(1)—H(2W)⋯O(3)#4) = 2.798(4) Å; d(N(3)—H(3N)⋯O(1)#5) = 2.895(4) Å. Symmetry codes: #4 x+1, y, z−1; #5 −x+1, −y+1, −z+1; #6 −x, −y+1, −z+1. Thus these interactions result in a hydrogen bonded three dimensional architecture.

Corresponding author: Mei Zhu, College of Chemistry and Chemical Engineering, Luoyang Normal University, Luoyang 471022, Henan Province, P. R. China, e-mail:

Acknowledgements:

This work was supported from the Admin is tration of Science and Technology of Henan province P. R. China (grant No. 132102310257).

References

1. Ma, L. F.; Wang, Y. Y.; Wang, L. Y.; Liu, J. Q.; Wu, Y. P.; Wang, J. G.; Shi, Q. Z.: Two novel flexible multi dentate ligands for crystal engineering: syntheses, structures, and properties of CuII, MnII complexes with N-[(3-carboxyphenyl)sulfonyl]glycine and N,N′-(1,3-Phenyl enedisulfonyl) bis(glycine). Eur. J. Inorg. Chem. 5 (2008) 693–703.10.1002/ejic.200700847Search in Google Scholar

2. Xin, L. Y.; Liu, G. Z.; Wang, L. Y.: New coordination polymers from 1D chain, 2D layer to 3D frame work constructed from 1,2-phenylenediacetic acid and 1,3-bis(4-pyridyl)propane flexible ligands. J. Solid State Chem. 184 (2011) 1387–1392.10.1016/j.jssc.2011.04.002Search in Google Scholar

3. Liu, G. Z.; Xin, L. Y.; Wang, L. Y.: Ancillary ligand-mediated syntheses and fluorescenc properties of zinc(II) complexes based on flexible benzene dicarboxylic acid. CrystEngComm. 13 (2011) 3013–3020.10.1039/c0ce00873gSearch in Google Scholar

4. Liu, G. Z.; Li, X. L.; Xin, L. Y.; Wang, L. Y.: Two topologically new trinodal cobalt(II) metal-organic frameworks characterized as a 1D metallic oxide and a 2D-3D penetrated porous solid. CrystEngComm. 14 (2012) 5315–5321.10.1039/c2ce25556aSearch in Google Scholar

5. Qin, L.; Ma, D. Y.; Lu, K.: A new 1D Cadmium coordination polymer based on N- and O-donor ligands: synthesis, structure and luminescent property. Chinese J. Struct. Chem. 9 (2012) 1235–1240.Search in Google Scholar

6. Zhao, Y.; Deng, D. S.; Ma, L. F.; Ji, B. M.; Wang, L. Y.: A new copperbased metal-organic framework as a promising heterogeneous catalyst for chemo- and regio-selective enamination of β-ketoesters. Chem. Commun. 49 (2013) 10299–10301.10.1039/c3cc45310cSearch in Google Scholar

7. Weng, Z. H.; Liu, D. C.; Chen, Z. L.; Zou, H. H.; Qin, S. N.; Liang, F. P.: Two types of lanthanide coordination polymers of (2,3-f)-pyrazino(1,10)phenanthroline-2,3-dicarboxylic acid: syntheses, structures, and properties. Cryst. Growth Des. 9 (2009) 4163–4170.10.1021/cg900400tSearch in Google Scholar

8. Yang, J.; Ma, J. F.; Liu, Y. Y.; Ma, J. C.; Batten, S. R.: Organic-acid effect on the structures of a series of lead(II) complexes. Inorg. Chem. 46 (2007) 6542–6555.10.1021/ic700613cSearch in Google Scholar

9. Liu, C. B.; Chen, J.; Bai, H. Y.; Wang, S. T.; Wang, Q. W.; Che, G. B.: Hydrothermal synthesis, crystal structure and magnetic behavior of a novel 3D supramolecular complex [Cu(HDPPZC) (SO4)(H2O)]2. Chin. J. Struct. Chem. 8 (2012) 1182–1186.Search in Google Scholar

10. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Cryst. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Received: 2015-4-24
Accepted: 2015-12-9
Published Online: 2016-1-12
Published in Print: 2016-3-1
