Crystal structure of poly[diaqua-μ5-4-(3,5-dicarboxylato-κ3O1:O2:O3-phenoxy)phthalato-κ3O5,O7:O8)(μ2-4-(1H-pyrazol-5-yl)pyridine-κ2N:N′)dicobalt(II)] C24H16N3O11Co2

  • Li-Ping Yao and Yan Zhao EMAIL logo
Published/Copyright: February 12, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C24H16N3O11Co2, monoclinic, P21/n, a = 7.3343(2) Å, b = 42.2275(12) Å, c = 7.5118(2) Å, β = 100.988(3)°, V = 2283.82(11) Å3, Z = 4, Rgt(F) = 0.0365, wRref(F2) = 0.1142, T = 293(2) K.

CCDC no.:: 1450168

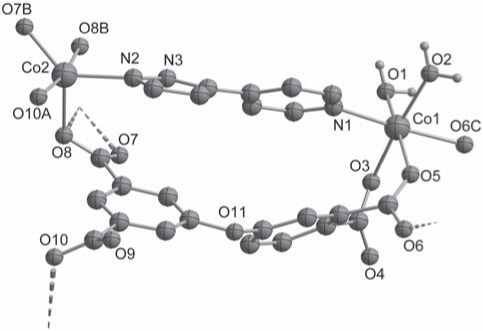

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Source of material

A mixture of Co(NO3)2·6H2O (29 mg, 0.1 mmol), 4-(3,5-dicarboxyphenoxy)phthalic acid (35 mg, 0.1 mmol), 4-(1H-pyrazol-5-yl)pyridine (55 mg, 0.1 mmol) was dissolved in 10 mL H2O. Then the solution was heated in a 25 mL Teflon-lined autoclave under autogenous pressure at 413 K for 4 days. After cooling to room temperature red block crystals formed.

Table 1

Data collection and handling.

Crystal:Colourless, block, size 0.28×0.38×0.42 mm
Wavelength:Cu Kα radiation (1.54178 Å)
μ:120.55 cm−1
Diffractometer, scan mode:multiwire proportional, φ and ω scans
2θmax:147.28°
N(hkl)measured, N(hkl)unique:8489, 4456
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4032
N(param)refined:361
Programs:SHELX [10]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1W)4e−0.18380.78070.23400.046
H(2W)4e−0.09810.80190.15890.046
H(3W)4e0.27710.76080.19580.063
H(4W)4e0.27270.73660.31480.063
H(3)4e0.59480.82090.96080.033
H(5)4e0.27800.89461.05040.036
H(6)4e0.01500.86440.94820.032
H(10)4e0.90750.90531.21220.031
H(12)4e0.78820.99170.99720.036
H(14)4e0.43700.91870.84600.033
H(18)4e0.88840.88360.64380.039
H(19)4e0.99540.93930.64490.041
H(21)4e0.26050.89820.47530.035
H(22)4e0.07310.85430.44070.035
H(23)4e0.49670.79830.45380.039
H(24)4e0.69630.84050.47760.039
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Co(1)4e0.09364(6)0.78151(1)0.46284(6)0.0229(2)0.0173(2)0.0208(2)−0.0012(2)−0.0002(2)0.0009(2)
Co(2)4e0.74300(8)0.99912(1)0.51501(8)0.0413(3)0.0245(3)0.0515(4)−0.0129(2)−0.0247(3)0.0146(2)
N(1)4e0.2652(3)0.82204(6)0.4465(3)0.027(1)0.021(1)0.030(1)−0.0013(9)0.007(1)0.0016(9)
N(2)4e0.7389(4)0.95078(6)0.5137(3)0.035(1)0.026(1)0.031(1)−0.011(1)−0.002(1)0.001(1)
N(3)4e0.5891(4)0.93141(6)0.4629(3)0.032(1)0.022(1)0.028(1)−0.0061(9)0.000(1)0.0014(9)
O(1)4e−0.1181(3)0.79705(5)0.2562(3)0.035(1)0.031(1)0.024(1)−0.0013(9)0.0005(8)0.0026(8)
O(2)4e0.2366(4)0.75705(6)0.2899(4)0.056(2)0.032(1)0.044(1)0.008(1)0.023(1)−0.000(1)
O(3)4e−0.0644(3)0.80167(6)0.6320(3)0.0231(9)0.047(1)0.022(1)−0.0029(9)0.0007(8)−0.0062(9)
O(4)4e−0.1384(3)0.80140(7)0.9019(3)0.035(1)0.061(2)0.031(1)−0.018(1)0.011(1)−0.006(1)
O(5)4e0.2679(3)0.76516(5)0.7001(3)0.038(1)0.0202(9)0.031(1)0.0024(8)−0.0124(9)−0.0016(8)
O(6)4e0.4486(3)0.76237(5)0.9735(3)0.038(1)0.021(1)0.027(1)0.0082(8)−0.0045(9)−0.0006(8)
O(7)4e0.3193(3)0.96894(6)0.6885(3)0.035(1)0.033(1)0.043(1)−0.0021(9)−0.014(1)0.007(1)
O(8)4e0.5487(4)1.00223(6)0.6921(4)0.053(2)0.028(1)0.047(1)−0.006(1)−0.013(1)0.014(1)
O(9)4e1.1811(3)0.94635(6)1.2933(4)0.035(1)0.032(1)0.058(2)−0.007(1)−0.017(1)0.012(1)
O(10)4e1.0214(4)0.99026(6)1.3205(4)0.043(1)0.034(1)0.048(1)−0.006(1)−0.018(1)−0.010(1)
O(11)4e0.6293(3)0.87587(5)1.0687(4)0.036(1)0.019(1)0.057(2)−0.0089(9)−0.018(1)0.008(1)
C(1)4e0.3469(4)0.77729(6)0.8481(4)0.021(1)0.019(1)0.026(1)−0.000(1)0.001(1)0.001(1)
C(2)4e0.3195(4)0.81194(6)0.8871(4)0.023(1)0.018(1)0.023(1)−0.000(1)−0.001(1)0.000(1)
C(3)4e0.4776(4)0.82988(7)0.9521(4)0.023(1)0.022(1)0.034(2)−0.001(1)−0.005(1)0.002(1)
C(4)4e0.4604(4)0.86100(7)1.0035(4)0.031(1)0.021(1)0.028(2)−0.007(1)−0.007(1)0.004(1)
C(5)4e0.2882(5)0.87418(7)1.0072(4)0.038(2)0.020(1)0.029(2)−0.002(1)−0.001(1)−0.004(1)
C(6)4e0.1315(4)0.85606(7)0.9447(4)0.027(1)0.025(1)0.029(1)0.002(1)0.003(1)−0.001(1)
C(7)4e0.1443(4)0.82555(6)0.8764(4)0.023(1)0.019(1)0.020(1)−0.002(1)0.000(1)0.001(1)
C(8)4e−0.0298(4)0.80795(6)0.7987(4)0.018(1)0.022(1)0.025(1)0.001(1)0.002(1)0.001(1)
C(9)4e0.6606(4)0.90722(7)1.0379(4)0.032(1)0.019(1)0.027(1)−0.006(1)0.000(1)−0.000(1)
C(10)4e0.8268(4)0.91877(7)1.1375(4)0.026(1)0.022(1)0.026(1)−0.002(1)−0.005(1)0.000(1)
C(11)4e0.8716(4)0.95049(7)1.1250(4)0.028(1)0.025(1)0.025(1)−0.005(1)−0.005(1)0.001(1)
C(12)4e0.7582(4)0.97043(7)1.0051(4)0.033(2)0.021(1)0.030(2)−0.007(1)−0.006(1)0.003(1)
C(13)4e0.5982(4)0.95801(7)0.8964(4)0.028(1)0.024(1)0.026(1)−0.002(1)−0.004(1)0.003(1)
C(14)4e0.5464(4)0.92657(7)0.9150(4)0.026(1)0.026(1)0.027(1)−0.006(1)−0.006(1)−0.002(1)
C(15)4e1.0403(5)0.96266(7)1.2528(4)0.034(2)0.025(1)0.033(2)−0.010(1)−0.009(1)0.005(1)
C(16)4e0.4823(5)0.97754(7)0.7534(4)0.035(2)0.026(2)0.032(2)−0.000(1)−0.009(1)0.000(1)
C(17)4e0.6334(4)0.90110(7)0.5103(4)0.030(1)0.025(1)0.027(1)−0.002(1)0.006(1)0.001(1)
C(18)4e0.8180(4)0.90102(8)0.5958(5)0.029(2)0.030(2)0.038(2)−0.001(1)0.002(1)0.003(1)
C(19)4e0.8764(5)0.93228(8)0.5952(4)0.029(2)0.036(2)0.033(2)−0.008(1)−0.003(1)0.001(1)
C(20)4e0.5024(4)0.87442(7)0.4817(4)0.029(1)0.022(1)0.024(1)−0.002(1)0.003(1)0.003(1)
C(21)4e0.3117(4)0.87817(7)0.4702(4)0.030(2)0.021(1)0.038(2)0.001(1)0.006(1)0.002(1)
C(22)4e0.2005(4)0.85157(7)0.4510(4)0.024(1)0.026(1)0.037(2)0.000(1)0.003(1)0.002(1)
C(23)4e0.4489(4)0.81867(7)0.4572(5)0.030(2)0.022(1)0.047(2)0.001(1)0.009(1)−0.001(1)
C(24)4e0.5702(4)0.84392(8)0.4729(5)0.025(1)0.025(2)0.048(2)−0.000(1)0.009(1)0.000(1)

Discussion

The keen interest in the design and synthesis of coordination polymers (CPs) stems not only because of their potential applications in gas storage, molecular sieves, catalysis, drug delivery, nonlinear optics, and molecular sensing, but also because of impressive structural topologies [1–3]. Over the past decades, numerous CPs have been successfully constructed, and crystal engineering has reached a relatively mature level that some CPs with specific topologies can be designed by the judicious selection of metal ions and organic ligands [4]. However, it still remains a great and long-term challenge to predict exactly the molecular structure and property of coordination polymers because of many subtle factors involved in the formation and crystallization process such as the geometries of the metal ions (node) and ligands (linker), supramolecular interaction, and reaction conditions [5]. One strategy is to perform reactions with mixed-ligands such as polycarboxylate and N-containing ligands in the same system, and a great number of novel intriguing structures are obtained [6–9], which indicates that the introduction of N-containing auxiliary ligands into a metal-polycarboxylate system often leads to structural diversity and affords novel frameworks.

The asymmetric unit of the title structure contains two Co(II) ions, and 4-(3,5-dicarboxylato-phenoxy)phthalato as well as 4-(1H-pyrazol-5-yl)pyridine as bridging ligands to construct a coordination polymer. Co1 is six-coordinated by three oxygen atoms from the tetracarboxylato ligands, by one nitrogen atom from the N-heterocyclic ligand and by two coordinated water molecules. The Co—O bond lengths range from 2.060(2) to 2.146(2) Å, the Co—N bond lengths is 2.141(2) Å. The Cobalt atom Co2 is five-coordinated by four oxygen atoms from the tetracarboxylato ligands, and by one nitrogen atom. The Co—O bond lengths range from 1.975(2) to 2.394(3) Å, the Co—N bond lengths is 2.041(3) Å. The bond angles of O—Co1—O are in the range of 84.38(9)°–174.22(10)°. The bond angles of O—Co2—O are in the range of 58.67(9)°–168.22(10)°. In addition, there is a complex network of intermolecular hydrogen bonds. These interactions result in an infinite three dimensional architecture.

Corresponding author: Yan Zhao, College of Physics and Electronic Information, Luoyang Normal University, Luoyang 471022, Henan Province, P. R. China, e-mail:

References

1. Bu, X. H.; Tong, M. L.; Chang, H. C.; Kitagawa, S.; Batten, S. R.: A neutral 3D copper coordination polymer showing 1D open channels and the first interpenetrating NbO-type network. Angew. Chem. Int. Ed. 43 (2004) 192–195.10.1002/anie.200352024Search in Google Scholar

2. Dybtsev, D. N.; Nuzhdin, A. L.; Chun, H.; Bryliakov, K. P.; Talsi, E. P.; Fedin, V. P.; Kim, K.: A Homochiral metal–organic material with permanent porosity, enantioselective sorption properties, and catalytic activity. Angew. Chem. Int. Ed. 45 (2006) 916–920.10.1002/anie.200503023Search in Google Scholar

3. Du, M.; Li, C. P.; Liu, C. S.; Fang, S. M.: Design and construction of coordination polymers with mixed-ligand synthetic strategy. Coord. Chem. Rev. 257 (2013) 1282–1305..10.1016/j.ccr.2012.10.002Search in Google Scholar

4. Liu, H. Y.; Wu, H.; Ma, J. F.; Liu, Y. Y.; Liu, B.; Yang, J.: Syntheses, structures, and photoluminescence of zinc(II) coordination polymers based on carboxylates and flexible bis-[(pyridyl)-benzimidazole] ligands. Cryst. Growth Des. 10 (2010) 4795–4805.10.1021/cg100688zSearch in Google Scholar

5. Xu, B.; Xie, J.; Hu, H. M.; Yang, X. L.; Dong, F. X.; Yang, M. L.; Xue, G. L.: Synthesis, crystal structure, and luminescence of Zn/Cd coordination polymers with a new fuctionalized terpyridyl carboxylate ligand. Cryst. Growth Des. 14 (2014) 1629–1641.10.1021/cg4016977Search in Google Scholar

6. Mistri, S.; Zangrando, E.; Figuerola, A.; Adhikary, A.; Konar, S.; Cano, J.; Manna, S. C.: Syntheses, crystal structures, and magnetic properties of metal–organic hybrid materials of Mn(II)/Co(II): three-fold interpenetrated alpha-polonium-like network in one of them. Cryst. Growth Des. 14 (2014) 3276–3285.10.1021/cg500162xSearch in Google Scholar

7. Mistri, S.; Zangrando, E.; Farmetti, E.; Manna, S. C.: 3D supramolecular networks of Mn(II)-5-sulfosalicylate assembled with 4,4′-dipyridyl N,N′-dioxide and 4,4′-dipyridyl: structure, photoluminescence and DFT calculations. Polyhedron 89 (2015) 250–259.10.1016/j.poly.2015.01.021Search in Google Scholar

8. Mukherjee, S.; Samanta, D.; Mukherjee, P. S.: New structural topologies in a series of 3d metal complexes with isomeric phenylenediacetates and 1,3,5-tris(1-imidazolyl)benzene ligand: syntheses, structures, and magnetic and luminescence properties. Cryst. Growth Des. 13 (2013) 5335–5343.10.1021/cg4011967Search in Google Scholar

9. Wang, X. L.; Luan, J.; Lin, H. Y.; Xu, C.; Liu, G. C.; Zhang, J. W.; Tian A. X.: The design and construction of a series of metal-organic coordination polymers based on two isomeric semi-rigid bis-pyridyl-bis-amide ligands and three aromatic polycarboxylates. CrystEngComm. 15 (2013) 9995.10.1039/c3ce41498aSearch in Google Scholar

10. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-11-17
Accepted: 2016-1-27
Published Online: 2016-2-12
Published in Print: 2016-3-1

©2016 Li-Ping Yao et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
