The second polymorph of triethylammonium 2,4,6-trisulfanylidene-1,3,5-triazinan-1-ide, C9H18N4S3

  • Peizhi Wang EMAIL logo , Huahui Zeng and Xiangxiang Wu
Published/Copyright: February 4, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C9H18N4S3, monoclinic, P21/c (no. 14), a = 12.8444(3) Å, b = 15.7980(5) Å, c = 14.1803(4), β = 98.293(2)°, V = 2847.32(14) Å3, Z = 8, Rgt(F) = 0.0510, wRref(F2) = 0.1466, T = 296 K.

CCDC no.:: 1446554

Tables 1–3 contain details of the measurement and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:block, colorless, size 0.15×0.17×0.37 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:5.03 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:55.16°
N(hkl)measured, N(hkl)unique:13621, 6579
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4735
N(param)refined:307
Programs:BRUKER Software [4], SHELX [5]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2)4e1.056(1)0.033(2)0.164(2)0.064
H(3)4e0.760(2)0.029(2)0.148(2)0.066
H(5)4e0.548(2)0.076(2)0.098(2)0.069
H(6)4e0.255(1)0.070(2)0.105(2)0.067
H(7A)4e0.925200.162700.78760.086
H(7B)4e0.825400.171800.83860.086
H(7)4e0.965(3)0.229(2)0.922(2)0.095
H(8)4e0.428(4)0.095(2)0.639(3)0.137
H(8A)4e0.78370.20440.67860.156
H(8B)4e0.86850.27650.68930.156
H(8C)4e0.76820.28480.73990.156
H(9A)4e0.98560.35390.79510.101
H(9B)4e1.05630.34590.89420.101
H(10A)4e1.14740.30150.77510.147
H(10B)4e1.06160.23260.74360.147
H(10C)4e1.13300.22520.84270.147
H(11A)4e0.80580.28300.94240.095
H(11B)4e0.82950.35850.87700.095
H(12A)4e0.86280.39961.03490.171
H(12B)4e0.96860.40060.99190.171
H(12C)4e0.94380.32551.05740.171
H(13A)4e0.58560.16830.68110.186
H(13B)4e0.52700.24970.63840.186
H(14A)4e0.54500.25250.80180.294
H(14B)4e0.48260.25250.80180.294
H(14C)4e0.42540.24940.75940.294
H(15A)4e0.33520.23960.59020.208
H(15B)4e0.31420.18090.67520.208
H(16A)4e0.18270.14810.53570.282
H(16B)4e0.25280.06760.56070.282
H(16C)4e0.27310.12650.47630.282
H(17A)4e0.43310.08900.48940.289
H(17B)4e0.45160.18600.48710.289
H(18A)4e0.57400.11870.44120.290
H(18B)4e0.59560.06950.53810.290
H(18C)4e0.61430.16750.53580.290
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
S(1)4e0.68466(5)0.12886(5)0.00357(5)0.0382(3)0.0625(4)0.0580(4)0.0032(3)0.0017(3)0.0149(3)
C(1)4e0.8058(2)0.0977(2)0.0515(2)0.041(1)0.043(1)0.041(1)0.001(1)0.006(1)0.002(1)
N(1)4e0.8923(2)0.1257(1)0.0182(2)0.040(1)0.052(1)0.044(1)0.0030(9)0.0071(9)0.010(1)
S(2)4e1.09725(5)0.13404(5)0.02222(6)0.0397(3)0.0814(5)0.0583(4)0.0012(3)0.0111(3)0.0261(4)
C(2)4e0.9102(2)0.0176(2)0.1758(2)0.042(1)0.038(1)0.044(1)0.003(1)0.010(1)0.002(1)
N(2)4e0.9945(2)0.0469(1)0.1380(2)0.037(1)0.050(1)0.041(1)0.0041(9)0.0064(9)0.0093(9)
S(3)4e0.92109(6)−0.03944(5)0.27461(6)0.0564(4)0.0634(5)0.0569(4)0.0062(3)0.0120(3)0.0249(4)
C(3)4e0.9866(2)0.1002(2)0.0612(2)0.041(1)0.046(1)0.039(1)0.002(1)0.009(1)0.002(1)
N(3)4e0.8165(2)0.0428(1)0.1273(2)0.036(1)0.048(1)0.048(1)−0.0002(9)0.0073(9)0.010(1)
S(4)4e0.63874(6)0.02075(6)0.26842(6)0.0398(4)0.1015(6)0.0544(4)0.0031(4)0.0025(3)0.0219(4)
C(4)4e0.5128(2)0.0332(2)0.2176(2)0.043(1)0.055(2)0.046(1)0.003(1)0.007(1)0.007(1)
N(4)4e0.4333(2)0.0139(2)0.2645(2)0.042(1)0.069(2)0.043(1)0.001(1)0.007(1)0.014(1)
S(5)4e0.37445(6)0.11787(5)−0.03062(5)0.0508(4)0.0663(5)0.0431(4)−0.0014(3)0.0053(3)0.0133(3)
C(5)4e0.3964(2)0.0799(2)0.0793(2)0.039(1)0.038(1)0.044(1)0.001(1)0.007(1)0.001(1)
N(5)4e0.4941(2)0.0644(1)0.1259(2)0.037(1)0.057(1)0.044(1)0.0018(9)0.0084(9)0.009(1)
S(6)4e0.22892(6)0.00516(6)0.27428(6)0.0458(4)0.0870(6)0.0561(4)−0.0009(4)0.0158(3)0.0199(4)
C(6)4e0.3346(2)0.0276(2)0.2217(2)0.045(1)0.048(1)0.044(1)0.001(1)0.009(1)0.005(1)
N(6)4e0.3189(2)0.0626(1)0.1317(2)0.036(1)0.055(1)0.043(1)0.0008(9)0.0047(9)0.009(1)
C(7)4e0.8759(3)0.2031(2)0.8076(2)0.093(2)0.063(2)0.057(2)−0.007(2)0.005(2)0.007(2)
N(7)4e0.9346(2)0.2628(2)0.8783(2)0.086(2)0.049(1)0.052(2)0.001(1)−0.003(1)0.012(1)
N(8)4e0.4374(3)0.1429(2)0.6133(3)0.122(3)0.066(2)0.092(2)−0.005(2)0.036(2)0.007(2)
C(8)4e0.8190(4)0.2461(3)0.7211(3)0.123(4)0.113(3)0.068(2)−0.004(3)−0.014(2)0.010(2)
C(9)4e1.0190(3)0.3137(2)0.8416(3)0.092(3)0.064(2)0.096(3)−0.007(2)0.012(2)0.016(2)
C(10)4e1.0972(4)0.2638(3)0.7968(3)0.122(4)0.084(3)0.096(3)−0.008(3)0.041(3)0.014(2)
C(11)4e0.8616(3)0.3179(2)0.9237(3)0.097(3)0.066(2)0.077(2)0.005(2)0.018(2)0.004(2)
C(12)4e0.9140(4)0.3652(3)1.0098(3)0.146(5)0.111(4)0.087(3)−0.010(3)0.026(3)−0.025(3)
C(13)4e0.5185(6)0.1976(4)0.6726(5)0.176(6)0.127(5)0.164(6)−0.025(4)0.035(5)−0.019(4)
C(14)4e0.4904(7)0.2185(5)0.7672(4)0.33(1)0.195(7)0.077(4)−0.048(7)0.069(5)−0.014(4)
C(15)4e0.3344(5)0.1814(4)0.6119(6)0.137(5)0.137(5)0.254(9)0.038(4)0.058(6)0.085(6)
C(16)4e0.2523(6)0.1251(5)0.5386(5)0.159(6)0.231(9)0.156(6)−0.001(6)−0.038(5)0.088(6)
C(17)4e0.4738(7)0.1347(7)0.5220(7)0.22(1)0.31(1)0.22(1)0.058(8)0.144(9)0.002(8)
C(18)4e0.5709(7)0.1218(5)0.5084(6)0.213(8)0.197(8)0.190(8)−0.019(6)0.094(7)−0.080(6)

Source of material

Trithiocyanuric acid (0.044 g, 0.25 mmol) was dissolved in a water-ethanol (1:2 v/v) mixture and triethylamine was added to neutralize the acid. Colorless block crystals formed after several weeks.

Experimental details

All hydrogen atoms bonded to carbon were introduced at idealized positions and allowed to ride on their parent atoms. Hydrogen atoms bonded to nitrogen were located in difference Fourier syntheses and refined with a N—H distance of 0.86 Å.

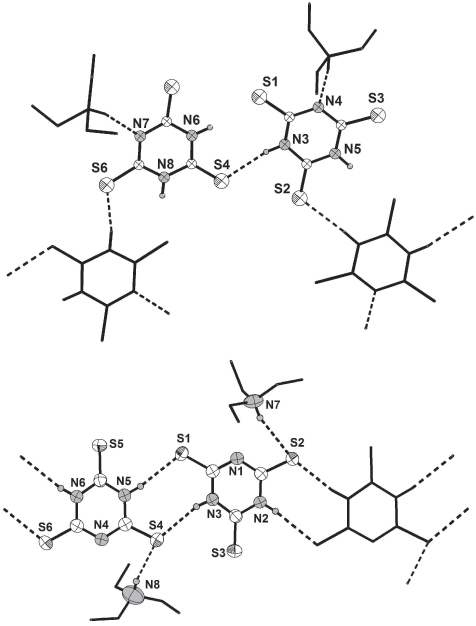

Discussion

1,3,5-Triazinane-2,4,6-trithione (thiocyanuric acid), which can be regarded as the polymer of three thiourea molecules, tends to form various hydrogen bonds [1]. In the aymmetric unit of the title structure, there are two thiocyanuric anions and two triethylammonium cations, in which the anions are both planar with the mean deviation from the least-square plane are 0.0352 Å and 0.0165 Å respectively. Two crystallographically independent triethylammonium cations form N—H⋯S hydrogen bonds to yield the stable title structure.

Previous articles report the crystal structures of tripropylammonium [2] and triethylammonium [3]. Interestingly, the crystal structure of the title compound has been reported before [3] which is different from the structure in this paper. The literature known structure (polymorph 1 [3]) is shown in the upper part of the figure, whereas the title structure (polymorph 2) is shown in the lower part. In both polymorphs, there are two thiocyanuric anions and two triethylammonium cations in the asymmetric unit. But the cell parameters are different: polymorph 1: a = 13.1648 (3) A, b = 13.0636 (3) A, c = 16.9552 (4) A, β = 93.779 (2)°. In both polymorphs, the thiocyanuric anions are linked to form hydrogen-bonded ribbons with N—H⋯S contacts and the cations both generate N—H⋯S bonds with the anions, but the anionic ribbons show a completely different connectivity (see the figure).

Corresponding author: Peizhi Wang, Scientific Research Department, Henan University of Traditional Chinese Medicine, Zhengzhou, 450046, China, e-mail:

Acknowledgements:

We thank Henan University of Traditional Medicine for supporting the research. We would like to thank the responsible Co-Editor for providing the figure.

References

1. Dean, P. A. W.; Jennings, M.; Houle, T. M.; Craig, D. C.; Dance, I. G.; Hook, J. M.; Scudder, M. L.: Crystal packing in tetraphenylphosphonium salts of trithiocyanuric acid and its methanol solvate. CrystEngComm. 6 (2004) 543–548.10.1039/b413145bSearch in Google Scholar

2. Yang, Y.: Tripropylammonium trithiocyanurate. Acta Crystallogr. E66 (2010) o2793–o2793.10.1107/S1600536810038924Search in Google Scholar PubMed PubMed Central

3. Li, H. P.; Ng. S. W.: Triethylammonium 2,4,6-trisulfanylidene-1,3,5-triazinan-1-ide. Acta Crystallogr. E67 (2011) o2473–o2473.10.1107/S1600536811034271Search in Google Scholar PubMed PubMed Central

4. Bruker. APEX2 and SAINT. Bruker AXS Inc., (2007) Madison, Wisconsin, USA.Search in Google Scholar

5. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-6-29
Accepted: 2016-1-11
Published Online: 2016-2-4
Published in Print: 2016-3-1
