Crystal structure of diaquabis(phenoxyacetato-κ2O,O′)-zinc(II), C16H18O8Zn

  • Wei Xiao , Hou-Qun Yuan , Yan-Xia Li , Chun-Yan Hu and Guang-Ming Bao EMAIL logo
Published/Copyright: January 6, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C16H18O8Zn, Monoclinic, C2, a = 11.612(2) Å, b = 5.2119(11) Å, c = 13.762(3) Å, β = 101.151(3)°, V = 817.2(3) Å3, Z = 2, Rgt(F) = 0.0248, wRref(F2) = 0.0790, T = 296(2) K.

CCDC no.:: 1434864

Source of material

An aqueous solution (8 mL) of phenoxyacetic acid (270 mg, 1.8 mmol), NaHCO3 (150 mg, 1.8 mmol) was added into an aqueous solution (2 mL) dissolving Zn(NO3)2·6H2O (360 mg, 1.2 mmol). To the mixture a methanolic solution of imidazole (60 mg, 0.8 mmol) was added, resulting a colorless solution. Colorless block crystals were obtained after two weeks (yield 140 mg, 38.5%), in which imidazole molecules were not included.

Table 1

Data collection and handling.

Crystal:Colorless, block, size 0.19×0.21×0.25 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:15.46 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:56.72°
N(hkl)measured, N(hkl)unique:2570, 1714
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1670
N(param)refined:150
Programs:SHELX [9]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1A)4c0.141(4)0.53(1)0.429(3)0.08(2)
H(1B)4c0.042(4)0.607(9)0.407(3)0.05(1)
H(2A)4c−0.284(3)−0.166(7)0.283(2)0.038(9)
H(2B)4c−0.266(3)−0.352(7)0.375(2)0.038(9)
H(4)4c−0.083(3)−0.75(1)0.176(2)0.039(8)
H(5)4c−0.183(4)−1.05(1)0.065(3)0.07(1)
H(6)4c−0.377(4)−1.10(1)0.043(3)0.07(1)
H(7)4c−0.489(3)−0.82(1)0.125(3)0.06(1)
H(8)4c−0.388(3)−0.53(1)0.237(3)0.06(1)
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Zn(1)2b0.00.22814(2)0.50.0422(2)0.0201(2)0.0342(2)0.0−0.0000(1)0.0
O(1)4c0.0759(2)0.4871(5)0.4270(2)0.037(1)0.034(1)0.072(2)0.0086(9)0.012(1)0.015(1)
O(2)4c−0.0379(2)−0.0557(4)0.3883(2)0.0321(9)0.032(1)0.042(1)−0.0057(8)−0.0004(8)0.0041(8)
O(3)4c−0.1914(2)0.0855(4)0.4417(2)0.049(1)0.032(1)0.039(1)−0.0012(9)0.0033(9)−0.0098(8)
C(1)4c−0.1453(2)−0.0661(5)0.3895(2)0.037(1)0.023(1)0.027(1)−0.003(1)−0.002(1)0.0032(8)
C(2)4c−0.2252(2)−0.260(1)0.3299(2)0.029(1)0.027(1)0.0317(9)0.001(2)0.0032(8)−0.004(2)
O(4)4c−0.1612(2)−0.4269(4)0.2790(1)0.0281(9)0.033(1)0.045(1)−0.0010(8)0.0062(8)−0.0127(8)
C(3)4c−0.2268(2)−0.6004(6)0.2172(2)0.033(1)0.027(1)0.030(1)0.000(1)0.005(1)−0.0018(9)
C(4)4c−0.1641(2)−0.760(1)0.1649(2)0.042(1)0.034(2)0.040(1)0.003(2)0.014(1)−0.004(2)
C(5)4c−0.2231(3)−0.9403(7)0.1001(2)0.068(2)0.035(2)0.036(1)0.005(1)0.016(1)−0.007(1)
C(6)4c−0.3429(3)−0.9620(7)0.0863(2)0.064(2)0.037(2)0.038(1)−0.005(2)−0.004(1)−0.008(1)
C(7)4c−0.4044(3)−0.807(1)0.1389(2)0.041(1)0.041(3)0.050(1)−0.008(2)−0.004(1)−0.005(2)
C(8)4c−0.3475(2)−0.6255(6)0.2044(2)0.034(1)0.034(2)0.042(1)0.000(1)0.004(1)−0.006(1)

Experimental details

All the hydrogen atoms were found from the Fourier difference map.

Discussion

The rigid aromatic carboxylic acids have been extensively used to construct metal complexes with fascinating topological structures [1, 2]. On the other hand, flexible aromatic carboxylic ligands have not been much studied due to their varied geometries and conformations [3, 4]. Phenoxyacetic acid (pa) and its derivatives, a class of flexible aromatic carboxylic ligands, have been applied in agriculture such as herbicides, etc. [5]. In recent, they have been used as ligands to build carboxylic complexes [6–8]. In this paper, we report the synthesis, crystal structure of a phenoxyacetic acid (pa) complex, [Zn(pa)2(H2O)2].

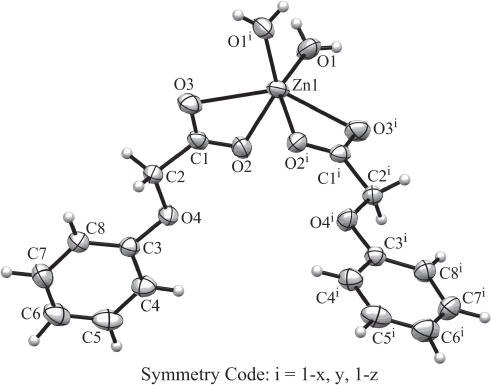

The asymmetric unit of the title complex consists of one half of a Zn2+ ion, one pa− ligand, and a water ligand. Each Zn2+ ion is six coordinated in a distorted triprism geometry with four oxygen atoms of two pa− ligands, and the other two oxygen atoms of two water molecules. Each pa− ligand adopts chelating mode to coordinate with the Zn2+ ion by using the carboxylate group. The oxyacetate group is almost parallel to the phenyl ring, with the torsion angle of C1–C2–O4–C3 being −175.9(2)°. Each water molecule is hydrogen bonded with two different carboxyl groups from the two [Zn(pa)2(H2O)2] molecules (O1–H1A⋯O3 = 2.719(3), O1–H1B⋯O2 = 2.727(3) Å). Thus, each [Zn(pa2(H2O)2] complex is hydrogen bonded with six neighboring complexes to form a 2-D hydrogen bonding sheet.

Corresponding author: Guang-Ming Bao, School of Animal Science and Technology, Jiangxi Agricultural University, Nanchang 330045, People's Republic of China, e-mail:

Acknowledgements

This work was supported by the National Nature Foundation of China (No. 21461011), the Natural Science Foundation of Jiangxi Province (No. 20132BAB213002 and 20142BAB214017).

References

1. Kitagawa, S.; Kitaura, R.; Noro, S.: Functional porous coordination polymers. Angew. Chem., Int. Ed. 43 (2004) 2334–2375.10.1002/anie.200300610Search in Google Scholar

2. Suh, M. P.; Cheon, Y. E.; Lee, E. Y.: Syntheses and functions of porous metallosupramolecular networks. Coord. Chem. Rev. 252 (2008) 1007–1026.10.1016/j.ccr.2008.01.032Search in Google Scholar

3. Yang, Y.-Q.; Li, C.-H.; Li, W.; Kuang, Y.-F.: Synthesis, crystal structure, luminescent and electrochemical properties of a new binuclear Cd(II) complex with 2,4-DAA as ligand. Chin. J. Inorg. Chem. 26 (2010) 1890–1894.Search in Google Scholar

4. Ji, N.-N.; Zhang, Y.-N.; Shi, Z.-Q.; He, G.-F.: Hydrothermal synthesis, crystal structure and characterization of two- dimension zinc(II) complex based on p-chlorophenoxyacetic acid and 4,4′-bipyridine. Chin. J. Inorg. Chem. 29 (2013) 1957–1961.Search in Google Scholar

5. Lin, Y.: Handbook of Besticide Application. Agriculture Press, Beijing, China 1982.Search in Google Scholar

6. Gao, S.; Huo, L.-H.; Ng, S. W.: Catena-poly[tetra-aqua-manganese(II)-μ-4,4′-bipyridine] catena-poly[[diaqua- manganate(II)-di-μ-4-carboxy-phenoxy-acetato] dihydrate]. Acta Crystallogr., Sect. E 61 (2005) m2270–m2272.10.1107/S1600536805031910Search in Google Scholar

7. Zhang, X.-F.; Gao, S.; Huo, L.-H.; Zhao, J.-G .: Triaqua-(2,2′-bipyridine-K2N,N′)(3-carboxyphenoxy-acetato-\ K0)-manganese(II) 3-carboxy-phenoxy-acetate monohydrate. Acta Crystallogr., Sect. E 61 (2005) m2471–m2473.10.1107/S1600536805035336Search in Google Scholar

8. Yang, Y.-Q.; Chen, Z.-M.; Kuang, Y.-F.: Synthesis, crystal structure and properties of a trinuclear zinc(II) complex constructed by 2,4-dichlorophenoxyacetate. Chin. J. Inorg. Chem. 29 (2013) 185–189.Search in Google Scholar

9. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-4-16
Accepted: 2015-11-3
Published Online: 2016-1-6
Published in Print: 2016-3-1
