Crystal structure of n-butyl-chlorido-bis[N-sec-butyl,N-n-propyl-carbamodithioato κ2S,S′]-tin(IV), C20H41ClN2S4Sn

  • Amirah Faizah Abdul Muthalib , Ibrahim Baba EMAIL logo , Siti Nadiah Abdul Halim and Edward R. T. Tiekink
Published/Copyright: February 9, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C20H41ClN2S4Sn, triclinic, P1̅ (no. 2), a = 10.0750(3) Å, b = 10.7593(7) Å, c = 13.3097(6) Å, α = 74.619(5)°, β = 86.861(3)°, γ = 88.582(4)°, V = 1388.93(12) Å3, Z = 2, Rgt(F) = 0.044, wRref(F2) = 0.106, T = 100 K.

CCDC no.:: 1448005

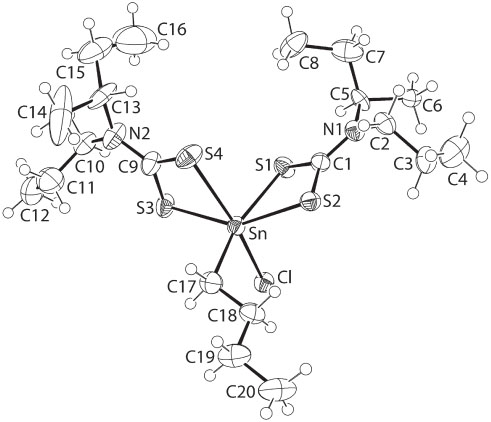

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless, prism, size 0.18×0.20×0.30 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:13.26 cm−1
Diffractometer, scan mode:Agilent Technologies SuperNova Dual diffractometer with Atlas detector, ω scan
2θmax:55°
N(hkl)measured, N(hkl)unique:13831, 6362
N(param)refined:289
Programs:CrysAlis [13], SHELXL-2014/7 [14], WinGX [15]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2A)2i1.29900.58070.64490.044
H(2B)2i1.39850.58930.73210.044
H(3A)2i1.32230.79830.72800.051
H(3B)2i1.21170.78970.64780.051
H(4A)2i1.49250.78280.60190.101
H(4B)2i1.39740.90300.55450.101
H(4C)2i1.38320.77120.52210.101
H(5A)a2i1.16670.47610.94180.042
H(6A)a2i1.39910.63840.89030.047
H(6B)a2i1.34330.57311.00690.047
H(6C)a2i1.25890.68390.93150.047
H(7A)a2i1.38110.37390.97440.073
H(7B)a2i1.41840.42200.85200.073
H(8A)a2i1.20900.24310.94200.087
H(8B)a2i1.34800.20470.89360.087
H(8C)a2i1.24320.29280.81920.087
H(5B)b2i1.18270.48680.95050.042
H(6D)b2i1.35210.34580.99620.047
H(6E)b2i1.43480.40420.88850.047
H(6F)b2i1.29970.32870.88940.047
H(7C)b2i1.35830.68730.87330.073
H(7D)b2i1.32130.63070.99410.073
H(8D)b2i1.09530.70740.95920.087
H(8E)b2i1.14970.78060.84400.087
H(8F)b2i1.20330.81860.94280.087
H(10A)2i0.7316−0.11230.88890.070
H(10B)2i0.67960.02020.91150.070
H(11A)2i0.55680.05760.75280.082
H(11B)2i0.5915−0.08940.75380.082
H(12A)2i0.4953−0.15580.92680.110
H(12B)b2i0.3882−0.08570.84540.110
H(12C)2i0.4525−0.00930.91850.110
H(13A)a2i0.99080.03420.70570.067
H(14A)a2i0.9097−0.12540.61850.209
H(14B)a2i0.84930.01760.58350.209
H(14C)2i0.7649−0.09460.66230.209
H(15A)a2i0.9080−0.19920.85200.093
H(15B)a2i1.0498−0.17780.79010.093
H(16A)a2i1.0785−0.00780.87000.192
H(16B)a2i1.0858−0.15160.94400.192
H(16C)a2i0.9536−0.06640.94580.192
H(13B)2i0.8028−0.17230.68240.067
H(14D)b2i0.8781−0.10640.79850.209
H(14E)b2i0.96300.01230.72870.209
H(14F)b2i0.8325−0.03200.68460.209
H(15C)b2i1.0022−0.02230.53100.093
H(15D)b2i0.8864−0.11580.50410.093
H(16D)b2i0.71970.02850.60890.192
H(16E)b2i0.8134−0.00700.51930.192
H(16F)b2i0.86600.08710.58320.192
H(17A)2i0.74720.46480.52270.048
H(17B)2i0.62060.50980.58250.048
H(18A)2i0.70920.71840.54970.051
H(18B)2i0.83910.67400.49320.051
H(19A)2i0.71380.64760.35710.068
H(19B)2i0.57940.68040.41520.068
H(20A)2i0.63570.89240.38500.109
H(20B)2i0.66790.85780.27640.109
H(20C)2i0.78580.86450.35060.109

aDisordered, occupancy factor: 0.732(5); bDisordered, occupancy factor: 0.268(5).

Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Sn2i0.81750(2)0.46615(3)0.71037(2)0.0270(1)0.0291(2)0.0339(2)−0.0023(1)0.0031(1)−0.0099(1)
Cl(1)2i0.67063(9)0.6121(1)0.78751(7)0.0347(5)0.0346(5)0.0355(5)0.0010(4)0.0029(4)−0.0123(4)
S(1)2i0.9690(1)0.4564(1)0.85712(8)0.0306(5)0.0455(6)0.0337(5)−0.0066(4)0.0004(4)−0.0032(4)
S(2)2i1.03716(9)0.5911(1)0.63757(8)0.0286(5)0.0321(5)0.0336(5)0.0002(4)0.0010(4)−0.0039(4)
S(3)2i0.6943(1)0.2629(1)0.81307(9)0.0379(5)0.0334(6)0.0563(7)−0.0098(4)0.0098(5)−0.0149(5)
S(4)2i0.9356(1)0.2618(1)0.6768(1)0.0572(7)0.0361(6)0.0501(7)0.0086(5)0.0147(5)−0.0105(5)
N(1)2i1.2081(3)0.5558(3)0.7883(3)0.029(2)0.037(2)0.035(2)−0.003(1)0.003(1)−0.010(2)
N(2)2i0.8095(4)0.0479(4)0.7828(3)0.069(3)0.031(2)0.062(3)−0.002(2)0.008(2)−0.014(2)
C(1)2i1.0864(4)0.5368(4)0.7640(3)0.028(2)0.032(2)0.037(2)−0.000(2)0.001(2)−0.011(2)
C(2)2i1.3092(4)0.6153(4)0.7058(3)0.026(2)0.048(3)0.036(2)−0.004(2)0.005(2)−0.016(2)
C(3)2i1.3023(4)0.7615(4)0.6699(3)0.043(2)0.043(3)0.044(2)−0.011(2)0.012(2)−0.018(2)
C(4)2i1.4028(6)0.8088(5)0.5790(5)0.067(3)0.051(3)0.072(4)−0.005(3)0.036(3)−0.003(3)
C(5)a2i1.248(2)0.506(1)0.895(2)0.027(5)0.052(3)0.029(5)−0.009(3)−0.008(3)−0.013(2)
C(6)a2i1.3188(6)0.6100(6)0.9347(5)0.029(3)0.032(3)0.031(3)0.002(2)0.000(2)−0.005(2)
C(7)a2i1.344(2)0.395(2)0.905(1)0.059(4)0.082(7)0.041(6)0.021(4)−0.014(5)−0.016(5)
C(8)a2i1.2802(8)0.2727(6)0.8883(5)0.097(5)0.037(3)0.039(3)0.011(3)−0.013(3)−0.008(3)
C(5')b2i1.265(5)0.516(3)0.906(5)0.027(5)0.052(3)0.029(5)−0.009(3)−0.008(3)−0.013(2)
C(6')b2i1.345(3)0.387(3)0.921(3)0.029(3)0.032(3)0.031(3)0.002(2)0.000(2)−0.005(2)
C(7')b2i1.286(2)0.646(2)0.924(2)0.059(4)0.082(7)0.041(6)0.021(4)−0.014(5)−0.016(5)
C(8')b2i1.173(2)0.747(2)0.917(1)0.097(5)0.037(3)0.039(3)0.011(3)−0.013(3)−0.008(3)
C(9)2i0.8125(5)0.1757(4)0.7584(4)0.050(3)0.035(2)0.049(3)−0.002(2)0.003(2)−0.017(2)
C(10)2i0.7008(5)−0.0235(5)0.8557(5)0.066(3)0.031(2)0.076(4)0.002(2)−0.013(3)−0.007(2)
C(11)2i0.5783(6)−0.0287(6)0.7980(5)0.065(4)0.071(4)0.075(4)0.010(3)−0.008(3)−0.032(3)
C(12)2i0.4692(6)−0.0738(6)0.8791(5)0.067(4)0.050(3)0.099(5)−0.015(3)−0.001(3)−0.013(3)
C(13)a2i0.9176(8)−0.0279(7)0.7356(6)0.070(5)0.025(3)0.065(4)0.010(3)0.036(4)−0.010(3)
C(14)a2i0.854(2)−0.061(2)0.641(1)0.16(1)0.12(1)0.17(1)−0.07(1)0.05(1)−0.10(1)
C(15)a2i0.9770(9)−0.1343(8)0.8211(8)0.074(5)0.051(4)0.097(6)0.018(4)0.031(5)−0.008(4)
C(16)a2i1.028(1)−0.086(1)0.902(1)0.090(7)0.121(9)0.16(1)0.028(7)0.003(7)−0.010(8)
C(13')b2i0.863(3)−0.096(2)0.662(2)0.070(5)0.025(3)0.065(4)0.010(3)0.036(4)−0.010(3)
C(14')b2i0.873(5)−0.022(4)0.747(3)0.16(1)0.12(1)0.17(1)−0.07(1)0.05(1)−0.10(1)
C(15')b2i0.913(2)−0.061(2)0.549(2)0.074(5)0.051(4)0.097(6)0.018(4)0.031(5)−0.008(4)
C(16')b2i0.812(3)0.011(4)0.588(3)0.090(7)0.121(9)0.16(1)0.028(7)0.003(7)−0.010(8)
C(17)2i0.7173(4)0.5220(4)0.5670(3)0.043(2)0.044(3)0.038(2)0.005(2)−0.006(2)−0.018(2)
C(18)2i0.7421(4)0.6610(5)0.5064(3)0.030(2)0.051(3)0.043(2)0.005(2)−0.001(2)−0.009(2)
C(19)2i0.6755(5)0.6995(5)0.4030(4)0.062(3)0.062(3)0.045(3)0.022(3)−0.006(2)−0.014(2)
C(20)2i0.6928(6)0.8410(6)0.3490(5)0.065(4)0.074(4)0.065(4)0.026(3)−0.007(3)0.004(3)

aDisordered, occupancy factor: 0.732(5); bDisordered, occupancy factor: 0.268(5).

Source of material

Carbon disulfide (0.015 mol) was added drop-wise to an ethanol solution (20 mL) of N-sec-butyl-N-n-propylamine (0.015 mol). The solution was kept at 277 K for 2 h. n-Butyltin trichloride (0.005 mol) dissolved in ethanol (20 mL) was added to give a white precipitate. This was collected and recrystallized from a methanol/dichloromethane (1/2) mixture. Yield: 72%. m.p.: 363 K. Elemental analysis. Found: C, 41.1; H, 7.9; N, 4.7. Calc.: C, 40.6; H, 7.0; N, 4.7. 1H NMR (CDCl3, ppm): δ Sn–Bu: 3.35 t (Sn–CH2); 1.94 m, 1.53 m (CH2CH2); 0.91 t (Bu–CH3); n-Pr: 3.50 t (N–CH2); 1.68 m (CH2CH3); 0.88 t (CH3); sec-Bu: 4.63 m (N–CH2), 1.68 m (CHCH2), 1.22 d (CHCH3), 0.88 t (CH2CH3). 13C NMR (CDCl3, ppm): δ Sn–Bu: 46.7 (Sn–CH2), 28.3, 25.3 (CH2CH2), 10.9 (CH3); n-Pr: 51.0 (N–CH2), 18.3 (CH2CH3), 13.8 (CH3); sec-Bu: 64.0 (N–CH), 27.9 (CHCH2), 21.6 (CHCH3), 11.3 (CH2CH3); 198.3 (NCS2). IR (KBr, cm−1): 1484 ν(C—N), 991 ν(C—S2), 328 ν(Sn—S). UV–Vis (CHCl3, nm): 247 (π—π*transition from NCS2).

Experimental details

The C-bound H atoms were geometrically placed (C—H = 0.98–1.00 Å) and refined as riding with Uiso(H) = 1.2–1.5Ueq(C). Disorder was noted in both sec-butyl groups and modelled over two sites with site occupancy factors of 0.732(5) and 0.268(5) (not shown in the figure). Equivalent atoms were refined with the same anisotropic displacement parameter and equivalent bonds were restrained to be equal to each other. Finally, the anisotropic displacement parameters of atoms C13—C16 were restrained to be nearly isotropic. The maximum and minimum residual electron density peaks of 1.26 and 1.08 e Å−3, respectively, were located 0.79 Å and 0.74 Å from the Sn atom.

Discussion

Owing to promising biological activities and their usefulness as molecular synthetic precursors for tin sulfide nanoparticles, the chemistry of organotin dithiocarbamates continues to attract attention; these applications have been reviewed [1]. In continuation of ongoing studies of the structural chemistry of molecules of the general formula RSn(S2CNR′R′′)2Cl, R, R′, R′′ = alkyl and/or aryl [2], the structure of the R = n-butyl, R′ = n-propyl and R′′ = sec-butyl derivative, has been investigated. The structural motif adopted by the title molecule is common to all other molecules having this generic formula [2–12]. Thus, the Sn atom exists within a C, Cl, S4 donor set that describes a distorted octahedral geometry, being coordinated by n-butyl-C [2.144(4) Å], Cl [2.5069(10) Å] and four S atoms derived from two almost symmetrically coordinating dithiocarbamate ligands [Sn—S1–S4 = 2.5230(11), 2.6201(10), 2.5601(11) and 2.6043(12) Å]. The butyl-C and Cl atoms are cis to each other. The ranges of cis- and trans-angles are 69.78(4)–107.33(3)° and 151.45(4)–164.42(12)°, respectively, with the acute angles being due to the chelating ligands. No directional intermolecular contacts are noted in the crystal packing.

Corresponding author: Ibrahim Baba, School of Chemical Sciences and Food Technology, Universiti Kebangsaan Malaysia, 43600 Bangi, Selangor, Malaysia, e-mail:

Acknowledgements:

The authors thank Universiti Kebangsaan Malaysia and the Ministry of Science, Technology and Innovation (MOSTI), Malaysia, for supporting this research through grants DPP-2014–064 and 06–01–02-SF0887, respectively.

References

1. Tiekink, E. R. T.: Tin dithiocarbamates: applications and structures. Appl. Organomet. Chem. 22 (2008) 533–550.10.1002/aoc.1441Search in Google Scholar

2. Faizah, A.; Muthalib, A.; Baba, I.; Khaledi, H.; Ali; H. Md.; Tiekink, E. R. T.: Structural systematics of RSn(S2CNR′R′′)2Cl compounds. Z. Kristallogr. Cryst. Mat. 229 (2014) 39–46.10.1515/zkr_i-2013-1682Search in Google Scholar

3. Harrison, P. G.; Mangia, A.: Structural studies in main group chemistry: XVII. The crystal and molecular structure of phenylchlorobis-(diethyldithiocarbamato)tin(IV). J. Organomet. Chem. 120 (1976) 211–216.10.1016/S0022-328X(00)98026-4Search in Google Scholar

4. Jung, O. -S.; Jeong, J. H.; Sohn, Y. S.: Structure of chlorobis(N,N-dimethyldithiocarbamato)(3-methoxy-3-oxopropyl)tin(IV). Acta Crystallogr. C46 (1990) 31–33.10.1107/S010827018900483XSearch in Google Scholar

5. Seth, N.; Gupta, V. D.; Nöth, H.; Thomann, M.: Synthesis and molecular structure of tin(IV) 1-pyrrolecarbodithioates. Chem. Ber. 125 (1992) 1523–1528.10.1002/cber.19921250702Search in Google Scholar

6. Vrábel, V.; Kellö, E.; Holeěk, J.; Sivý, J. Lokaj, J.: Chlorobis(N,N-diethyldithiocarbamato)(vinyl)tin(IV). Acta Crystallogr. C51 (1995) 70–72.10.1107/S0108270194006293Search in Google Scholar

7. Hibbert, T. G.; Mahon, M. F.; Molloy, K. C.: Organotin dithiocarbamate chlorides: X-ray structures of n-BuSn(S2CNEt2)Cl2 and n-BuSn(S2CNEt2)2Cl. Main Group Met. Chem. 22 (1999) 235–241.10.1515/MGMC.1999.22.4.235Search in Google Scholar

8. Clarke, D. J.; Dakternieks, D.; Tiekink, E. R. T.: X-ray structure of chloro-bis(diisobutyldithiocarbamato)phenyltin(IV). Main Group Met. Chem. 24 (2001) 303–304.10.1515/MGMC.2001.24.5.303Search in Google Scholar

9. Clarke, D. J.; Dakternieks, D.; Tiekink, E. R. T.: X-ray structure of n-butyl-chloro-bis(diisobutyldithiocarbamato)tin(IV). Main Group Met. Chem. 24 (2001) 307–308.10.1515/MGMC.2001.24.5.307Search in Google Scholar

10. Clarke, D. J.; Dakternieks, D.; Tiekink, E. R. T.: X-ray structure of n-butyl-chloro-bis(diisopropyldithiocarbamato)tin(IV). Main Group Met. Chem. 24 (2001) 385–386.10.1515/MGMC.2001.24.6.385Search in Google Scholar

11. Lébl, T.; Zoufalá, P.; Bruhn, C.: A comparative assessment of the effect of the Lewis acidity of the central tin atom on intramolecular coordination of (3-methoxypropyl)stannanes. Eur. J. Inorg. Chem. (2005) 2536–2544.10.1002/ejic.200400877Search in Google Scholar

12. Li, Y. -X.; Zhang, R. -F.; Ma, C. -L.: Chlorobis(N,N-di-n-butyldithiocarbamato)phenyltin(IV). Acta Crystallogr. E61 (2005) m2365–m2366.10.1107/S1600536805033635Search in Google Scholar

13. Agilent Technologies (2010) CrysAlis PRO. Agilent Technologies, Santa Clara, CA, U.S.A.Search in Google Scholar

14. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallog. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

15. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Cryst. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

Received: 2015-11-24
Accepted: 2016-1-18
Published Online: 2016-2-9
Published in Print: 2016-3-1

©2016 Amirah Faizah Abdul Muthalib et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
