Crystal structure of N′-(adamantan-2-ylidene)-isonicotinohydrazide, C16H19N3O

  • Ebtehal S. Al-Abdullah , Hazem A. Ghabbour EMAIL logo , Maher M. Al-Jabal , Hoong-Kun Fun and Ali A. El-Emam
Published/Copyright: January 23, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C16H19N3O, orthorhombic, Pna21 (no. 33), a = 8.0251(7) Å, b = 10.1627(9) Å, c = 17.0686(16) Å, V = 1392.1(2) Å3, Z = 4, Rgt(F) = 0.064, wR(F2) = 0.109, T = 100 K.

CCDC no.:: 1404042

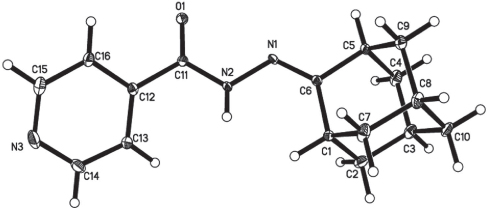

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless, needle, size 0.08×0.12×0.85 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.83 cm−1
Diffractometer, scan mode:Bruker APEX-II CCD, φ and ω scans
2θmax:66.32°
N(hkl)measured, N(hkl)unique:12950, 4046
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3230
N(param)refined:185
Programs:SHELX [17], Bruker data collection and reduction programs [18]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1A)4a0.53920.88810.52450.015
H(2A)4a0.55751.12270.54350.023
H(2B)4a0.42221.09140.47690.023
H(3A)4a0.31231.24880.56710.019
H(4A)4a0.11741.10280.50770.021
H(4B)4a0.05641.13830.59460.021
H(5A)4a0.03530.90460.57320.015
H(7A)4a0.48790.82700.65890.022
H(7B)4a0.59880.95820.65640.022
H(8A)4a0.37880.98520.74910.019
H(9A)4a0.18590.83690.68780.020
H(9B)4a0.09590.97500.70450.020
H(10A)4a0.46211.17960.68080.020
H(10B)4a0.26681.18650.70020.020
H(13A)4a0.61340.68560.34130.016
H(14A)4a0.81850.54680.29210.025
H(15A)4a0.54460.23450.33170.023
H(16A)4a0.33130.36150.38380.016
H(1N2)4a0.466(2)0.736(2)0.458(1)0.008(4)
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
O(1)4a0.1651(1)0.5878(1)0.39484(7)0.0099(5)0.0170(6)0.0168(6)−0.0013(4)−0.0003(5)−0.0056(5)
N(1)4a0.2385(2)0.7871(1)0.49212(8)0.0077(6)0.0117(6)0.0089(6)0.0010(5)0.0022(5)−0.0008(5)
N(2)4a0.3619(2)0.7209(1)0.45016(8)0.0061(6)0.0114(6)0.0123(6)0.0007(5)0.0010(5)−0.0037(5)
N(3)4a0.7027(2)0.3775(2)0.3083(1)0.0186(7)0.0236(8)0.0245(9)0.0091(6)−0.0005(7)−0.0087(7)
C(1)4a0.4522(2)0.9352(2)0.5557(1)0.0080(6)0.0132(7)0.0160(8)−0.0007(6)0.0006(6)−0.0052(6)
C(2)4a0.4473(2)1.0823(2)0.5334(1)0.0201(8)0.0176(8)0.0187(9)−0.0085(7)0.0027(7)−0.0025(7)
C(3)4a0.3138(2)1.1535(2)0.5816(1)0.0183(8)0.0087(7)0.0194(9)0.0009(6)−0.0031(7)−0.0004(6)
C(4)4a0.1437(2)1.0925(2)0.5640(1)0.0159(8)0.0151(8)0.0223(9)0.0059(6)−0.0062(7)−0.0051(7)
C(5)4a0.1456(2)0.9455(2)0.5855(1)0.0077(6)0.0143(7)0.0144(8)0.0004(6)0.0013(6)−0.0052(6)
C(6)4a0.2822(2)0.8785(2)0.5393(1)0.0090(6)0.0091(7)0.0101(7)0.0012(6)0.0007(6)0.0001(6)
C(7)4a0.4875(2)0.9213(2)0.6443(1)0.0189(8)0.0164(8)0.0190(9)0.0047(7)−0.0083(7)−0.0053(7)
C(8)4a0.3544(2)0.9941(2)0.6919(1)0.0212(8)0.0155(8)0.0118(7)−0.0002(7)−0.0022(7)−0.0026(6)
C(9)4a0.1841(2)0.9312(2)0.6734(1)0.0199(8)0.0175(8)0.0127(8)−0.0033(7)0.0033(7)−0.0041(7)
C(10)4a0.3524(2)1.1396(2)0.6692(1)0.0152(7)0.0138(7)0.0207(9)−0.0018(6)−0.0040(7)−0.0080(7)
C(11)4a0.3116(2)0.6175(2)0.4051(1)0.0103(7)0.0108(7)0.0094(7)−0.0005(5)−0.0002(6)−0.0007(6)
C(12)4a0.4501(2)0.5380(2)0.3698(1)0.0106(6)0.0131(7)0.0087(6)0.0016(6)−0.0016(6)−0.0023(6)
C(13)4a0.5968(2)0.5930(2)0.3409(1)0.0134(7)0.0140(7)0.0138(7)−0.0011(6)0.0014(6)−0.0041(6)
C(14)4a0.7183(2)0.5089(2)0.3113(1)0.0126(7)0.028(1)0.0210(9)0.0000(7)0.0042(7)−0.0073(8)
C(15)4a0.5594(2)0.3271(2)0.3345(1)0.0231(8)0.0144(7)0.0196(8)0.0041(7)−0.0042(7)−0.0044(7)
C(16)4a0.4307(2)0.4022(2)0.3657(1)0.0154(7)0.0120(7)0.0131(7)0.0009(6)−0.0020(7)−0.0027(6)

Source of material

Pyridine-4-carbohydrazide (1.37 g, 0.01 mol) was added to a solution of 2-adamantanone (1.5 g, 0.01 mol) in ethanol (8 mL) and the mixture was heated under reflux for 4 hours. On cooling, the precipitated crystalline solid was filtered, dried and recrystallized from ethanol to yield 2.21 g (82%) of the title compound as colourless crystals. M.P.: 239–241 °C. Single crystals suitable for X-ray analysis were obtained by slow evaporation of CHCl3:EtOH (1:1) at room temperature. 1H NMR (CDCl3, 500.13 MHz): δ 1.92–2.09 (m, 14H, Adamantane-H), 7.76 (d, 2H, pyridine-H, J = 5.5 Hz), 8.75 (d, 2H, pyridine-H, J = 5.5 Hz), 9.09 (s, 1H, NH). 13C NMR (CDCl3, 125.76 MHz): δ 27.66, 32.13, 36.12, 38.01, 39.53, 161.75 (adamantane-C), 122.85, 137.87, 148.95 (pyridine-C), 163.15 (C = O).

Discussion

Isonicotinic acid hydrazide (INH) and its N′-arylidene derivatives were early recognized as effective antitubercular drugs [1–5]. In addition, derivatives of adamantane have long been known for their diverse chemotherapeutic activities such as antiviral [6–10], anticancer [11], antibacterial [12–14] and antitubercular [15, 16] agents. In continuation to our ongoing interest in the structural and pharmacological properties of adamantane derivatives [9, 12–14], we synthesized the title compound as hybrid INH-adamantane molecule with potential chemotherapeutic activity.

The crystal structure of title compound contains one molecule in the asymmetric unit. The molecule is a functionalized hydrazine with 4-pyridinoyl and adamantyl substituents attached to the two hydrazine nitrogen atoms, N1 and N2. The molecules packing in the crystal structure is stabilized by four intermolecular hydrogen bonds, of which O1 and N1 work as hydrogen bond acceptors and N2, C1 and C13 work as hydrogen bond donors. The distance of the interactions between N2—H1⋯N1 is 2.27 (2) Å, C1—H1A⋯N1 is 2.45 Å, C1—H1A⋯O1 is 2.46 Å and C13—H13A⋯O1 is 2.51 Å and the angles are 163°, 157°, 136°, and 159°, respectively.

Corresponding author: Hazem A. Ghabbour, Department of Pharmaceutical Chemistry, College of Pharmacy, King Saud University, P.O.Box 2457, Riaydh 11451, Saudi Arabia, e-mail:

Acknowledgements:

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for funding this work through the Research Group Project No. RG-1435–362.

References

1. Fox, H. H.: Synthetic tuberculstats. I. Pyridine carboxylic acid derivatives. J. Org. Chem. 17 (1952) 542–546.10.1021/jo01138a005Search in Google Scholar

2. Fox, H. H.; Gibas, J. T.: Synthetic tuberculstats. IX. Dialkyl derivatives of isonicotinylhydrazine. J. Org. Chem. 20 (1955) 60–69.10.1021/jo01119a010Search in Google Scholar

3. Maccari, R.; Ottanà, R.; Vigorita, M. G.: In vitro advanced antimycobacterial screening of isoniazid-related hydrazones, hydrazides and cyanoboranes: Part 14. Bioorg. Med. Chem. Lett. 15 (2005) 2509–2513.10.1016/j.bmcl.2005.03.065Search in Google Scholar

4. Kumar, P.; Narasimhan, B.; Yogeeswari, P.; Sriram, D.: Synthesis and antitubercular activities of substituted benzoic acid Nπ′-(substituted benzylidene/furan-2-ylmethylene)-N-(pyridine-3-carbonyl)-hydrazides. Eur. J. Med. Chem. 45 (2010) 6085–6089.10.1016/j.ejmech.2010.08.030Search in Google Scholar

5. Martins, F.; Santos, S.; Ventura, C.; Elvas-Leitão, R.; Santos, L.; Vitorino, S.; Reis, M.; Miranda, V.; Correia, H. F.; Aires-de-Sousa, J.; Kovalishyn, V.; Latino, D. A. R. S.; Ramos, J.; Viveiros, M.: Design, synthesis and biological evaluation of novel isoniazid derivatives with potent antitubercular activity. Eur. J. Med. Chem. 81 (2014) 119–138.10.1016/j.ejmech.2014.04.077Search in Google Scholar

6. Davies, W. L.; Grunnert, R. R.; Haff, R. F.; McGahen, J. W.; Neumeyer, E. M.; Paulshock, M.; Watts, J. C.; Wood, T. R.; Hermann, E. C.; Hoffmann, C. E.: Antiviral activity of 1-adamantamine (amantadine). Science 144 (1964) 862–863.10.1126/science.144.3620.862Search in Google Scholar

7. Rabinovich, S.; Baldini, J. T.; Bannister, R.: Treatment of influenza. The therapeutic efficacy of rimantadine HCl in a naturally occurring influenza A2 outbreak. Am. J. Med. Sci. 257 (1969) 328–335.10.1097/00000441-196905000-00005Search in Google Scholar

8. Burstein, M. E.; Serbin, A. V.; Khakhulina, T. V.; Alymova, I. V.; Stotskaya, L. L.; Bogdan, O. P.; Manukchina, E. E.; Jdanov, V. V.; Sharova, N. K.: Inhibition of HIV-1 replication by newly developed adamantane-containing polyanionic agents. Antiviral Res. 41 (1999) 135–144.10.1016/S0166-3542(99)00006-6Search in Google Scholar

9. El-Emam, A. A.; Al-Deeb, O. A.; Al-Omar, M. A.; Lehmann, J.: Synthesis, antimicrobial, and anti-HIV-1 activity of certain 5-(1-adamantyl)-2-substituted thio-1,3,4-oxadiazoles and 5-(1-adamantyl)-3-substituted aminomethyl-1,3,4-oxadiazoline-2-thiones. Bioorg. Med. Chem. 12 (2004) 5107–5113.10.1016/j.bmc.2004.07.033Search in Google Scholar

10. Balzarini, J.; Orzeszko, B.; Mauri, J. K.; Orzeszko, A.: Synthesis and anti-HIV studies of 2-adamantyl-substituted thiazolidin-4-ones. Eur. J. Med. Chem. 42 (2007) 993–1003.10.1016/j.ejmech.2007.01.003Search in Google Scholar

11. Sun, S. Y.; Yue, P.; Chen, X.; Hong, W. K.; Lotan, R.: The synthetic retinoid CD437 selectively induces apoptosis in human lung cancer cells while sparing normal human lung epithelial cells. Cancer Res. 62 (2002) 2430–2436.Search in Google Scholar

12. Al-Abdullah, E. S.; Asiri, H. H.; Lahsasni, S.; Habib, E. E.; Ibrahim, T. M.; El-Emam, A. A.: Synthesis, antimicrobial, and anti-inflammatory activity, of novel S-substituted and N-substituted 5-(1-adamantyl)-1,2,4-triazole-3-thiols. Drug Des. Dev. Ther. 8 (2014) 505–518.10.2147/DDDT.S62465Search in Google Scholar

13. El-Emam, A. A.; Al-Tamimi, A- .M. S.; Al-Omar, M. A.; Al-Rashood, K. A.; Habib, E. E.: Synthesis and antimicrobial activity of novel 5-(1-adamantyl)-2-aminomethyl-4-substituted-1,2,4-triazoline-3-thiones. Eur. J. Med. Chem. 68 (2013) 96–102.10.1016/j.ejmech.2013.07.024Search in Google Scholar

14. Kadi, A. A.; Al-Abdullah, E. S.; Shehata, I. A.; Habib, E. E.; Ibrahim, T. M.; El-Emam, A. A.: Synthesis, antimicrobial and anti-inflammatory activities of novel 5-(1-adamantyl)-1,3,4-thiadiazole derivatives. Eur. J. Med. Chem. 45 (2010) 5006–5011.10.1016/j.ejmech.2010.08.007Search in Google Scholar

15. Jia, L.; Tomaszewski, J. E.; Hanrahan, C.; Coward, L.; Noker, P.; Gorman, G.; Nikonenko, B.; Protopopova, M.: Pharmacodynamics and pharmacokinetics of SQ109, a new diamine-based antitubercular drug. Brit. J. Pharmacol. 144 (2005) 80–87.10.1038/sj.bjp.0705984Search in Google Scholar

16. Protopopova, M.; Hanrahan, C.; Nikonenko, B.; Samala, R.; Chen, P.; Gearhart, J.; Einck, L.; Nacy, C. A.: Identification of a new antitubercular drug candidate, SQ109, from a combinatorial library of 1,2-ethylenediamines. J. Antimicrob. Chemother. 56 (2005) 968–974.10.1093/jac/dki319Search in Google Scholar

17. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

18. Brucker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, 2009.Search in Google Scholar

Received: 2015-11-17
Accepted: 2016-1-7
Published Online: 2016-1-23
Published in Print: 2016-3-1

©2016 Ebtehal S. Al-Abdullah et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
