Crystal structure of (2,5-dihydroxyphenyl)-(4-hydroxy-3,5-dimethoxyphenyl)methanone, C15H14O6

  • Julio Benites , Jaime A. Valderrama , David Ríos , Alejandro Cárdenas and Iván Brito EMAIL logo
Published/Copyright: January 6, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C15H14O6, triclinic, P1̅ (no. 2), a = 8.2996(5) Å, b = 8.3739(4) Å, c = 10.7565(5) Å, α = 94.942(3)°, β = 112.199(4)°, γ = 102.752(4)°, V = 663.09(6) Å3, Z = 2, Rgt(F) = 0.044, wRref(F2) = 0.1134, T = 299 K.

CCDC no.:: 1442551

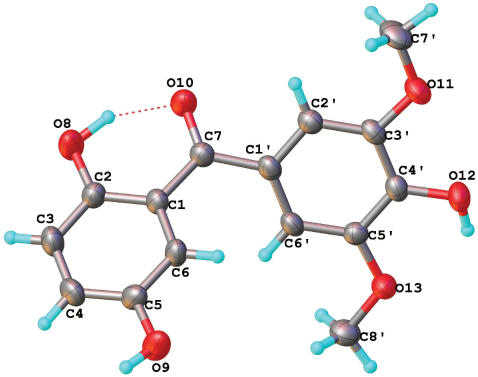

The crystal structure is shown in the figure, Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Source of material

The synthesis and the analysis of the title compound are already been reported [1].

Table 1

Data collection and handling.

Crystal:Block, size 0.18×0.2×0.3 mm
Wavelength:Cu Kα radiation (1.54178 Å)
μ:9.60 cm−1
Diffractometer, scan mode:Bruker AXS D8-Venture,Triumph-IμS-Cu, φ and ω
2θmax:118°
N(hkl)measured, N(hkl)unique:29337, 1900
N(param)refined:201
Programs:SHELXL [2], OLEX2 [3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(9)2i0.174(3)0.987(3)0.420(3)0.068
H(12)2i−0.163(3)0.106(3)−0.194(2)0.051
H(8)2i0.364(4)0.337(3)0.639(3)0.072
H(7'A)2i−0.3082−0.18890.18040.070
H(7'B)2i−0.5033−0.24330.06260.070
H(7'C)2i−0.4328−0.06860.15890.070
H(2')2i−0.12210.06540.28170.033
H(6)2i0.06940.57420.31150.037
H(6')2i0.21940.42490.20470.031
H(8'A)2i0.21860.55560.02520.055
H(8'B)2i0.25020.4886−0.10200.055
H(8'C)2i0.33170.42620.03570.055
H(3)2i0.52210.76320.74740.046
H(4)2i0.41280.94930.61550.043
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
O(11)2i−0.3294(2)−0.0800(1)0.0240(1)0.0317(7)0.0286(6)0.0322(7)−0.0043(5)0.0079(5)−0.0022(5)
O(9)2i0.1465(2)0.8841(2)0.3724(1)0.079(1)0.0246(7)0.0276(7)0.0227(6)0.0111(7)0.0038(5)
O(12)2i−0.2223(2)0.0658(1)−0.1472(1)0.0326(7)0.0358(7)0.0200(6)−0.0009(5)0.0028(5)−0.0038(5)
O(13)2i0.0699(2)0.3272(1)−0.0657(1)0.0348(7)0.0321(7)0.0234(6)−0.0022(5)0.0069(5)0.0040(5)
O(10)2i0.1989(2)0.2125(1)0.4917(1)0.0617(9)0.0240(6)0.0255(7)0.0109(6)0.0053(6)0.0051(5)
O(8)2i0.4318(2)0.4493(2)0.6908(1)0.0613(9)0.0323(7)0.0264(7)0.0107(6)−0.0075(6)0.0058(6)
C(7′)2i−0.3990(3)−0.1508(2)0.1136(2)0.042(1)0.038(1)0.053(1)−0.0063(8)0.022(1)0.0020(9)
C(3′)2i−0.1803(2)0.0548(2)0.0810(2)0.0231(8)0.0188(8)0.0283(9)0.0038(6)0.0055(7)−0.0006(7)
C(2′)2i−0.0860(2)0.1168(2)0.2196(2)0.0333(9)0.0220(8)0.0256(9)0.0079(7)0.0112(7)0.0040(7)
C(1′)2i0.0631(2)0.2562(2)0.2662(2)0.0310(9)0.0192(8)0.0230(9)0.0084(6)0.0051(7)0.0006(6)
C(7)2i0.1664(2)0.3160(2)0.4152(2)0.0334(9)0.0228(8)0.0237(9)0.0082(7)0.0071(7)0.0038(7)
C(1)2i0.2313(2)0.4956(2)0.4742(2)0.0328(9)0.0232(8)0.0194(8)0.0070(7)0.0067(7)0.0012(7)
C(6)2i0.1608(2)0.6115(2)0.3990(2)0.040(1)0.0257(9)0.0186(8)0.0100(7)0.0042(7)−0.0007(7)
C(5)2i0.2245(2)0.7791(2)0.4525(2)0.047(1)0.0237(8)0.0230(9)0.0124(7)0.0132(8)0.0041(7)
C(4′)2i−0.1243(2)0.1286(2)−0.0122(2)0.0249(8)0.0212(8)0.0214(8)0.0068(6)0.0032(7)−0.0021(6)
C(6′)2i0.1201(2)0.3315(2)0.1737(2)0.0268(8)0.0174(7)0.0253(9)0.0033(6)0.0032(7)−0.0001(6)
C(5′)2i0.0279(2)0.2661(2)0.0357(2)0.0285(8)0.0199(8)0.0224(8)0.0072(6)0.0072(7)0.0029(6)
C(8′)2i0.2307(2)0.4602(2)−0.0232(2)0.0333(9)0.0338(9)0.039(1)0.0022(8)0.0128(8)0.0085(8)
C(2)2i0.3639(2)0.5546(2)0.6082(2)0.036(1)0.0284(9)0.0214(9)0.0071(7)0.0051(7)0.0037(7)
C(3)2i0.4313(3)0.7243(2)0.6597(2)0.041(1)0.0322(9)0.0238(9)0.0046(8)−0.0006(8)−0.0045(7)
C(4)2i0.3641(3)0.8354(2)0.5815(2)0.049(1)0.0215(8)0.030(1)0.0044(7)0.0116(8)−0.0039(7)

Experimental details

Carbon-bound hydrogen atoms were placed in calculated positions with Uiso(H) values of 1.2Ueq(C) and 1.5Ueq(C) for CH and CH3 groups. H atoms attached to O atoms were located from Fourier map and were refined isotropically, with O—H distances in the range 0.87(2)–0.90(3) Å.

Discussion

The compound was synthesized from benzoquinone and syringaldehyde, and the structure was determined to confirm its relationship with phenstatin, a potent anti-cancer agent.

Corresponding author: Iván Brito, Departamento de Química, Facultad de Ciencias Básicas, Universidad de Antofagasta, Casilla 170, Antofagasta, Chile, e-mail:

References

1. Arenas, P.; Peña, A.; Ríos, D.; Benites, J.; Muccioli, G. G.; Calderon, P. B.; Valderrama, J. A.: Eco-friendly synthesis and antiproliferative evaluation of some oxygen substituted diaryl ketones. Molecules 18 (2013) 9818–9832.10.3390/molecules18089818Search in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Cryst. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

3. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

Received: 2015-5-6
Accepted: 2015-12-15
Published Online: 2016-1-6
Published in Print: 2016-3-1
