Crystal structure of a poly[bis(3,4,5,6-tetrachlorophthalato)neodym(III)potassium(I)] — 4,4′-bipyridine — water (1/1/5.5)

  • Fan Zhang , Ya-Jie Qu , Wen-Hua Wu and Yu-Heng Deng EMAIL logo
Published/Copyright: February 3, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C26H19Cl8KN2NdO13.5, triclinic, P1̅ (no. 2), a = 8.6114(17) Å, b = 12.665(3) Å, c = 16.997(3) Å, α = 96.53(3)°, β = 103.28(3)°, γ = 97.89(3)°, V = 1766.6(6) Å3, Z = 2, Rgt(F) = 0.0254, wRref(F2) = 0.0838, T = 293 K.

CCDC no.:: 1446579

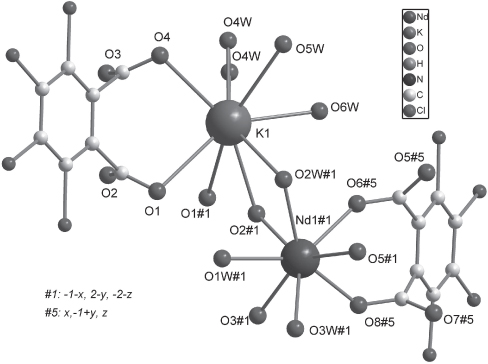

The crystal structure is shown in the figure, Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colorless, block, size 0.28×0.42×0.68 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:22.60 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:50.1°
N(hkl)measured, N(hkl)unique:6180, 6180
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5990
N(param)refined:481
Programs:SHELX [12], Diamond [13]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1WA)2i−0.21831.1661−1.11410.068
H(1WB)2i−0.33811.1082−1.08400.068
H(2WA)2i−0.55411.2237−1.14140.056
H(2WB)2i−0.64301.2908−1.09970.056
H(3WA)2i−0.047(5)1.424(3)−1.053(2)0.061
H(3WB)2i0.023(3)1.341(3)−1.010(3)0.061
H(5WA)2i0.082(6)0.861(3)−0.791(1)0.080
H(5WB)2i−0.019(6)0.769(2)−0.848(3)0.080
H(6WA)2i−0.24230.7084−1.06030.075
H(6WB)2i−0.10400.7791−1.06110.075
H(17)2i−0.22881.2098−1.36820.058
H(18)2i−0.30861.1417−1.50500.051
H(21)2i−0.48331.0262−1.61670.052
H(22)2i−0.55480.9499−1.75080.059
H(23)2i−0.20180.7866−1.71780.053
H(24)2i−0.12100.8541−1.58100.048
H(25)2i−0.16050.8675−1.44920.050
H(26)2i−0.08390.9443−1.31440.054
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Nd(1)2i−0.31203(2)1.31807(1)−0.982877(8)0.0259(1)0.0240(1)0.0174(1)0.00682(7)0.00679(7)0.00051(7)
K(1)2i−0.2435(1)0.92989(8)−0.94078(7)0.0705(6)0.0494(5)0.0651(6)−0.0085(4)0.0308(5)−0.0195(4)
O(1)2i−0.5139(4)1.0253(2)−0.8879(2)0.086(2)0.031(1)0.037(1)−0.014(1)0.010(1)0.001(1)
O(1W)2i−0.2738(3)1.1674(2)−1.0787(2)0.054(2)0.034(1)0.048(2)−0.001(1)0.028(1)−0.013(1)
O(2)2i−0.4633(3)1.1692(2)−0.9430(1)0.071(2)0.043(1)0.024(1)−0.019(1)0.001(1)0.005(1)
O(2W)2i−0.5672(3)1.2537(2)−1.0965(1)0.038(1)0.044(1)0.025(1)0.011(1)0.0032(9)−0.0033(9)
O(3)2i−0.1128(3)1.2364(2)−0.8940(2)0.052(1)0.070(2)0.037(1)0.037(1)0.027(1)0.027(1)
O(3W)2i−0.0571(3)1.3745(2)−1.0235(2)0.038(1)0.044(1)0.046(1)0.010(1)0.020(1)0.007(1)
O(4)2i−0.0450(3)1.1052(2)−0.8257(2)0.052(1)0.039(1)0.039(1)0.024(1)0.019(1)0.008(1)
O(4W)2i0.0490(8)1.0016(6)−0.9608(5)0.069(4)0.063(4)0.098(5)−0.005(3)0.043(4)0.009(4)
O(5)2i−0.3416(3)1.4681(2)−1.0548(1)0.040(1)0.039(1)0.028(1)0.005(1)0.0023(9)0.0115(9)
O(5W)2i0.0337(4)0.8328(2)−0.8406(2)0.066(2)0.053(2)0.037(1)−0.006(1)0.020(1)−0.010(1)
O(6)2i−0.4709(2)1.6077(2)−1.0634(1)0.027(1)0.045(1)0.031(1)0.0082(9)0.0067(9)−0.013(1)
O(6W)2i−0.1611(3)0.7568(2)−1.0298(2)0.037(1)0.059(2)0.052(2)0.005(1)0.014(1)−0.008(1)
O(7)2i−0.8208(3)1.3689(2)−1.1405(2)0.039(1)0.048(1)0.043(1)0.004(1)0.021(1)0.013(1)
O(8)2i−0.8165(2)1.5462(2)−1.1311(1)0.023(1)0.047(1)0.030(1)0.0099(9)0.0054(9)−0.012(1)
N(1)2i−0.1482(4)1.0843(3)−1.3278(2)0.051(2)0.055(2)0.030(2)0.000(1)0.013(1)−0.004(1)
N(2)2i−0.3851(4)0.8600(3)−1.7474(2)0.053(2)0.050(2)0.030(2)0.007(1)0.008(1)−0.000(1)
C(1)2i−0.4615(3)1.1207(2)−0.8835(2)0.020(1)0.026(1)0.023(1)0.002(1)0.007(1)−0.001(1)
C(2)2i−0.3794(3)1.1853(2)−0.7995(2)0.022(1)0.026(1)0.021(1)0.003(1)0.006(1)0.003(1)
C(3)2i−0.4704(3)1.2125(2)−0.7445(2)0.020(1)0.035(2)0.026(2)0.006(1)0.009(1)0.003(1)
C(4)2i−0.3956(4)1.2668(2)−0.6669(2)0.028(1)0.034(2)0.026(2)0.008(1)0.015(1)0.001(1)
C(5)2i−0.2274(4)1.2942(2)−0.6428(2)0.030(1)0.030(2)0.020(1)0.004(1)0.005(1)−0.001(1)
C(6)2i−0.1372(3)1.2679(2)−0.6983(2)0.020(1)0.030(1)0.025(1)0.004(1)0.006(1)0.002(1)
C(7)2i−0.2124(3)1.2144(2)−0.7768(2)0.024(1)0.024(1)0.022(1)0.004(1)0.008(1)0.004(1)
C(8)2i−0.1141(3)1.1825(2)−0.8367(2)0.017(1)0.029(1)0.022(1)0.002(1)0.005(1)−0.002(1)
C(9)2i−0.4316(3)1.5236(2)−1.0930(2)0.018(1)0.031(1)0.017(1)−0.003(1)0.006(1)0.002(1)
C(10)2i−0.4996(3)1.4886(2)−1.1850(2)0.024(1)0.024(1)0.018(1)0.006(1)0.006(1)0.002(1)
C(11)2i−0.3982(3)1.4800(2)−1.2373(2)0.023(1)0.035(2)0.024(1)0.004(1)0.007(1)0.004(1)
C(12)2i−0.4640(4)1.4473(2)−1.3213(2)0.028(1)0.035(2)0.022(1)0.008(1)0.013(1)0.003(1)
C(13)2i−0.6300(4)1.4255(2)−1.3521(2)0.029(1)0.035(2)0.016(1)0.006(1)0.005(1)−0.001(1)
C(14)2i−0.7308(3)1.4344(2)−1.2992(2)0.020(1)0.036(2)0.023(1)0.006(1)0.006(1)0.000(1)
C(15)2i−0.6666(3)1.4639(2)−1.2155(2)0.023(1)0.026(1)0.019(1)0.007(1)0.006(1)0.001(1)
C(16)2i−0.7780(3)1.4595(2)−1.1575(2)0.018(1)0.040(2)0.019(1)0.005(1)0.003(1)−0.003(1)
C(17)2i−0.2144(5)1.1400(3)−1.3848(2)0.058(2)0.041(2)0.044(2)0.005(2)0.015(2)−0.005(2)
C(18)2i−0.2631(5)1.0996(3)−1.4675(2)0.053(2)0.040(2)0.035(2)0.009(2)0.011(2)0.005(1)
C(19)2i−0.2433(4)0.9961(3)−1.4936(2)0.041(2)0.035(2)0.029(2)0.001(1)0.010(1)0.004(1)
C(20)2i−0.2922(4)0.9492(3)−1.5815(2)0.038(2)0.034(2)0.029(2)0.001(1)0.009(1)0.004(1)
C(21)2i−0.4243(5)0.9769(3)−1.6354(2)0.050(2)0.051(2)0.034(2)0.018(2)0.012(2)0.008(2)
C(22)2i−0.4660(5)0.9310(3)−1.7160(2)0.052(2)0.065(2)0.030(2)0.021(2)0.004(2)0.006(2)
C(23)2i−0.2598(5)0.8347(3)−1.6968(2)0.051(2)0.044(2)0.038(2)0.010(2)0.014(2)−0.003(2)
C(24)2i−0.2093(4)0.8756(3)−1.6142(2)0.042(2)0.043(2)0.033(2)0.010(2)0.007(1)0.002(1)
C(25)2i−0.1754(4)0.9377(3)−1.4344(2)0.050(2)0.039(2)0.034(2)0.006(2)0.007(2)0.004(1)
C(26)2i−0.1298(5)0.9846(3)−1.3533(2)0.051(2)0.051(2)0.030(2)0.002(2)0.007(2)0.009(2)
Cl(1)2i−0.67828(9)1.17683(8)−0.77380(5)0.0199(3)0.0679(6)0.0359(4)0.0041(3)0.0098(3)−0.0020(4)
Cl(2)2i−0.5075(1)1.29910(8)−0.59812(5)0.0368(4)0.0651(6)0.0313(4)0.0116(4)0.0194(3)−0.0054(4)
Cl(3)2i−0.1323(1)1.35821(8)−0.54555(5)0.0391(4)0.0597(5)0.0231(4)0.0000(4)0.0060(3)−0.0120(3)
Cl(4)2i0.07051(8)1.30210(7)−0.66937(5)0.0213(3)0.0503(5)0.0327(4)−0.0007(3)0.0051(3)−0.0041(3)
Cl(5)2i−0.19164(9)1.51251(8)−1.19966(5)0.0211(3)0.0755(6)0.0287(4)0.0013(3)0.0086(3)0.0072(4)
Cl(6)2i−0.33980(9)1.43516(8)−1.38663(5)0.0329(4)0.0674(5)0.0264(4)0.0106(4)0.0170(3)0.0011(3)
Cl(7)2i−0.7124(1)1.38548(8)−1.45538(4)0.0365(4)0.0684(6)0.0172(4)0.0084(4)0.0047(3)−0.0042(3)
Cl(8)2i−0.93828(9)1.40752(8)−1.33611(5)0.0206(3)0.0772(6)0.0266(4)0.0061(3)0.0018(3)−0.0001(4)

Source of material

All chemicals and solvents purchased were of reagent grade and used without further purification. Neodymium(III) nitrate hexahydrate (0.438 g, 1 mmol), 3,4,5,6-tetrachlorophthalic acid (0.608 g, 2 mmol) and 4,4′-bipyridine (0.312 g, 2 mmol) were mixed in ethanol (80 ml). The pH value of the mixture was adjusted to about 6.5 by the potassium hydroxide solution, and then stirred at 80°C for 8 hours. After filtration, the resulting solution was stood at room temperature for several days. Crystals suitable for X-ray analysis were collected by filtration.

Experimental details

All the H atoms of carbon were treated as riding-model, with C—H = 0.93–0.98 Å, and their Uiso = 1.2Ueq(carrier atom). Water H atoms except O4W were located in a difference Fourier map and refined with O—H = 0.85(1) Å and Uiso(H) = 1.5Ueq(O). H atoms were not added to water O4W due to its disorder (occupancy factor: 0.5).

Discussion

As a versatile benzendicarboxylate ligand, the tetrachlorophthalate ligand was rarely used to construct complex. By now, there are few of published reports concerning metal complexes with 3,4,5,6-tetrachlorophthalate (tcph), which may play the role of bridging ligand in transition metal complexes [1–6] and terminal ligand in rare earth metal complexes [7–11]. All the reported rare earth metal complexes have a mononuclear structure and contain the Htcph− or tcph2− ligand in terminal coordinate style. Whereas, this article presents a novel mixed neodymium and potassium complex with a two-dimentional network structure, showing the tcph2− ligand in the polydentate bridging mode.

The title compound contains two kinds of metal ion, Nd3+ and K+ ions. The asymmetric unit contains a NdK(tcph)2 moiety and 5.5 water ligands. Nd(III) ion is eight-coordinated with five oxygen atoms from three tcph2− ligands and three oxygen atoms from three coordination waters. K(I) is also eight-coordinated with four oxygen atoms from two tcph2− ligands and four oxygen atoms from four coordination waters. Ligand tcph2− has two kinds of coordination style in the title complex. Two tcph2− ligands construct two K(I) and two Nd(III) ions into a [Nd2K2(tcph)2]4− tetranuclear unit in a hexadentate chelating-bridging mode, and the other two tcph2− ligands both bridge the two neighboring Nd(III) ions of the tetranuclear unit in tridentate bridging style into an infinite chain along the b axis. The adjacent infinite chains are further connected into a 2D network in the ab plane by the bridging water O4W between the K(I) ions. The 4,4′-bipyridine molecule connects the 2D networks into a three-dimentional supramolecule via N–H⋯O hydrogen bonds between the coordination waters O2W, O5W and N2, N1 of 4,4′-bipyridine, respectively. Moreover, there are a lot of hydrogen bonds between the coordination waters, carboxylate O atoms and coordination waters in the structure.

Corresponding author: Yu-Heng Deng, Department of Chemistry, Capital Normal University, Beijing 100048, P. R. China, e-mail:

Acknowledgements:

All authors acknowledge the support for the publication fee by Beijing Municipal Education Commission.

References

1. Liang, M.; Liao, D. Z.; Jiang, Z. H.; Yan, S. P.; Cheng, P.: Novel two-dimensional copper(II) complexes containing tetrachloro-phthalate dianion, dicyanamide or pyrazole. Inorg. Chem. Commun. 7 (2004) 173–175.10.1016/j.inoche.2003.10.033Search in Google Scholar

2. Yang, S. Y.; Long, L. S.; Wu, Z. Y.; Zhan, M. X.; Huang, R. B.; Zheng, L. S.: Synthesis, crystal structure and properties of a one-dimensional polymeric copper(II) complex of tetrachlorophthalate. Transit. Met. Chem. 27 (2002) 546–549.10.1023/A:1015644126830Search in Google Scholar

3. Liu, G. Z.; Li, S. H.; Li, X. L.; Xin, L. Y.; Wang, L. Y.: Three series of MOFs featuring various metal(II)-carboxylate chains cross-linked by dipyridyl-typed coligands: synthesis, structure, and solvent-dependent luminescence. CrystEngComm. 15 (2013) 4571–4580.10.1039/c3ce40109jSearch in Google Scholar

4. Sun, D.; Huang, R. B.; Zheng, L. S.: Halogen bonds in two silver(I) mixed-ligand supramolecular frameworks: synthesis, structure and photoluminescence. Z. Naturforsch. 66b (2011) 1035–1041.10.1515/znb-2011-1008Search in Google Scholar

5. Ma, Y.; Chen, X. P.; Cao, D.; Yan, S. P.; Liao, D. Z.: Structure and magnetic properties of a novel heterospin 1-D chain complex containing both Cu(II) and nitroxide radicals as spin branches. Sci.China Ser.B 52 (2009) 1438–1443.10.1007/s11426-009-0202-0Search in Google Scholar

6. Whitcomb, D. R.; Rajeswaran, M.: Unusual silver coordination by mono-carboxylate utilization of a poly-carboxylate anion, solid-state structures of silver-tetrachlorophthalate with phthalazine and amine ligands. Inorg. Chim. Acta, 361 (2008) 1357–1362.10.1016/j.ica.2007.08.031Search in Google Scholar

7. Xu, N.; Ou-Yang, Y.; Liao, D. Z.; Jiang, Z. H.; Yan, S. P.; Cheng, P.: Synthesis and structure of ytterbium (III) complex containing tetrachlorophthalate dianions. J. Chem. Cryst. 36 (2006) 581–585.10.1007/s10870-006-9103-7Search in Google Scholar

8. Liang, M.; Sun, Y. Q.; Liao, D. Z.; Jiang, Z. H.; Yan, S. P.; Cheng, P.: A novel, three-dimensional, tetrachlorophthalato-bridged samarium(III) complex [Sm(tcph)2(H2O)6]Hpip·5H2O. J. Coord. Chem. 57 (2004) 275–280.10.1080/00958970410001662417Search in Google Scholar

9. Xu, N.; Ouyang, Y.; Liao, D. Z.; Jiang, Z. H.: Heptaaqua[tetrachlorophthalato(2–)]praseodymium(III) tetrachlorophthalate(–) tetrachlorophthalic acid monohydrate. Acta Crystallogr. E61 (2005) m1272-m1274.10.1107/S1600536805017071Search in Google Scholar

10. Ouyang, Y.; Shao, J.; Hao, L. F.; Lu, J. X.: (3,4,5,6-tetrachlorophthalato)-hepta-aqua-erbium(iii) 2-carboxy-3,4,5,6-tetrachlorobenzoate 3,4,5,6-tetrachlorophthalic acid solvate monohydrate. Acta Crystallogr. E68 (2012) m662-m663.10.1107/S1600536812016923Search in Google Scholar PubMed PubMed Central

11. Xu, N.; Liao, D. Z.; Yan, S. P.; Jiang, Z. H.: Synthesis, crystal structure, and characterization of [Nd(tcph)(Htcph)(H2O)5]. J. Coord. Chem. 61 (2008) 435–440.10.1080/00958970701357879Search in Google Scholar

12. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

13. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 3.2i. Crystal Impact, Bonn, Germany 2012.Search in Google Scholar

Received: 2015-5-26
Accepted: 2016-1-11
Published Online: 2016-2-3
Published in Print: 2016-3-1
