The crystal structure of catena-poly[(μ2-1,1′-benzene-1,4-diylbis(1H-benzimidazole-κ2N:N′)silver(I)] nitrate, C20H14N5AgO3

  • Guo-Wang Xu , Hong-Hong Tao and Zhong-Long Wang EMAIL logo
Published/Copyright: February 6, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C20H14N5O3Ag, monoclinic, C2/c (no. 15), a = 17.501 Å, b = 9.896 Å, c = 12.768 Å, β = 124.84°, V = 1814.8 Å3, Z = 4, Rgt(F) = 0.0484, wRref(F2) = 0.1042, T = 293 K.

CCDC no.:: 1447147

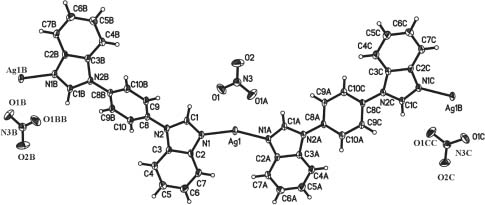

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless, block, size 0.170×0.180×0.200 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:11.45 cm−1
Diffractometer, scan mode:Bruker SMART 1000 CCD, φ and ω scans
2θmax:54.97°
N(hkl)measured, N(hkl)unique:9363, 2065
N(param)refined:133
Programs:Bruker programs [8], SHELXTL [9, 10]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(10)8f0.81180.04320.59790.046
H(9)8f0.61810.33260.47950.046
H(1)8f0.62550.24660.66640.046
H(7)8f0.5481−0.20270.70040.051
H(5)8f0.6599−0.34730.52260.062
H(4)8f0.7033−0.13170.50290.053
H(6)8f0.5871−0.38260.62430.061
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Ag(1)4e0.50.10666(5)0.750.0579(3)0.0474(3)0.0656(4)0.00.0545(3)0.0
N(2)8f0.6636(2)0.1012(3)0.5934(3)0.043(2)0.036(2)0.046(2)0.001(2)0.037(2)0.004(2)
C(10)8f0.7869(3)0.1260(4)0.5583(4)0.041(2)0.040(2)0.049(2)0.000(2)0.034(2)0.002(2)
N(1)8f0.5883(2)0.0644(3)0.6855(3)0.049(2)0.039(2)0.046(2)−0.001(2)0.040(2)0.001(2)
C(8)8f0.7072(3)0.1755(4)0.5449(4)0.037(2)0.038(2)0.040(2)−0.004(2)0.032(2)0.000(2)
C(9)8f0.6709(3)0.2993(4)0.4875(4)0.041(2)0.041(2)0.054(3)0.003(2)0.039(2)0.002(2)
C(2)8f0.6037(3)−0.0603(4)0.6490(4)0.036(2)0.039(2)0.036(2)0.002(2)0.029(2)−0.000(2)
C(1)8f0.6254(3)0.1545(4)0.6517(4)0.047(3)0.038(2)0.053(3)0.002(2)0.042(2)0.002(2)
C(7)8f0.5792(3)−0.1887(4)0.6616(4)0.052(3)0.043(2)0.054(3)−0.001(2)0.043(2)0.005(2)
C(3)8f0.6512(3)−0.0401(4)0.5913(4)0.036(2)0.034(2)0.042(2)−0.000(2)0.030(2)0.001(2)
C(5)8f0.6470(3)−0.2735(5)0.5551(5)0.061(3)0.044(3)0.070(3)0.001(2)0.049(3)−0.008(2)
C(4)8f0.6729(3)−0.1456(4)0.5424(4)0.054(3)0.043(2)0.057(3)−0.001(2)0.045(3)−0.005(2)
C(6)8f0.6019(3)−0.2950(4)0.6154(5)0.061(3)0.036(2)0.071(3)−0.002(2)0.046(3)0.004(2)
N(3)4e0.50.4276(5)0.750.045(3)0.042(3)0.041(3)0.00.026(3)0.0
O(1)8f0.5645(3)0.3653(4)0.7572(4)0.071(3)0.070(2)0.097(3)0.011(2)0.057(2)−0.021(2)
O(2)4e0.50.5514(5)0.750.054(3)0.035(3)0.136(5)0.00.047(4)0.0

Source of material

The title complex was synthesized from a mixture of AgNO3 (0.169 g, 1 mmol), 1,4-bis(benzoimidazo-1-yl)benzene and deionized (0.310 g, 1 mmol) water (8 mL), which was sealed under reaction kettle and heated to 120 °C for 3 days, followed by cooling to roomtemperature at 25 °C/h. The solid products were recovered by filtration and washed with distilled water. Colourless block-shaped, crystals which were suitable for X-ray diffraction analysis were obtained. The product was stable in air and common organic solvents. The yield of the compound was about 62% based on silver.

Experimental details

H atoms were placed in geometrically idealized positions with Csp2—H = 0.93 Å.

Discussion

In recent dacades, the rational design and synthesis of cationic metal-organic frameworks (CMOFs) have attracted sigificant interests due to their intriguing structures and potential application in many fields, such as nonlinear optics, magnetism, catalyst, adsorption, ion exchange, luminescence and drug deliver [1–5]. The common strategy to synthesize the CMOFs is to select a pyridine/imidazole and other N-donor ligands to react with a metal salt. Use some positive methods to control the anion from metal salt or solvent and other kinds atoms like O/ F/ Cl do not coordinate with metals and then the whole structure may be constructed as a new CMOFs. As a result, we choose 1,4-bis(benzoimidazo-1-yl)benzene and Ag to constructed a new CMOFs. Fortunately, controlling serial reaction factors, we succeed to construct the title compound. The asymmetric unit contains one half of a Ag(I)ion, one half of a 1,4-bis(benzoimidazo-1-yl)benzene molecule and one half of a nitrate anion. Ag(I) is typically two-coordinated by two N atoms from two organic ligands. The bond length of Ag-N is 2.138(3) Å and the angle of N1A-Ag-N1 is 157.7(2)°, which is similar to those in reported Ag(I) complexes [6, 7].

Corresponding author: Zhong-Long Wang, College of Science, China Three Gorges University, Yichang, 443002, People’s Republic of China, e-mail:

Acknowledgements:

I acknowledge support for the publication fee by the Graduate Student Research Innovation Fund of CTGU (CX2014094) and Training Excellent Masters Thesis Fund of CTGU (Nos. PY2015074), China.

References

1. Zhou, G.-J.; Wong, W.-Y.: Organometallic acetylides of PtII, AuI and HgII as new generation optical power limiting materials. Chem. Soc. Rev. 40 (2011) 2541–2566.10.1039/c0cs00094aSearch in Google Scholar

2. Han, M.-L.; Duan, Y.-P.; Li, D.-S.; Wang, H.-B.; Zhao, J.; Wang, Y.-Y.: Positional isomeric tunable two Co(II) 6-connected 3-D frameworks with pentanuclear to binuclear units: structures, ion-exchange and magnetic properties. Dalton Trans. 43 (2014) 15450–15456.10.1039/C4DT01086HSearch in Google Scholar

3. Xiong, S.; Li, S.; Wang, S.; Wang, Z.: Multi-functional metal-organic frameworks based on H4mdip: Crystal structure, photoluminescence, selective ion-exchange and catalysis. CrystEngComm. 13 (2011) 7236–7245.10.1039/c1ce05751kSearch in Google Scholar

4. Singh, U. P.; Narang, S.; Pachfule, P.; Banerjee, R.: Variation of CO2 adsorption in isostructural Cd(II)/Co(II) based MOFs by anion modulation. CrystEngComm. 16 (2014) 5012–5020.10.1039/c4ce00058gSearch in Google Scholar

5. Mohapatra, S.; Rajeswaran, B.; Chakraborty, A.; Sundaresan, A.; Maji, T. K.: Bimodal magneto-luminescent dysprosium (DyIII)-potassium (KI)-oxalate framework: magnetic switchability with high anisotropic barrier and solvent sensing. Chem. Mater. 25 (2013) 1673–1679.10.1021/cm400116hSearch in Google Scholar

6. Yu, C.; Cowan, M. G.; Noble, R. D.; Zhang, W.: A silver(I) coordinated phenanthroline-based polymer with high ethylene/ethane adsorption selectivity. Chem. Commun. 50 (2014) 5745–5747.10.1039/c4cc02143fSearch in Google Scholar

7. Wang, H.; Wan, C.-Q.; Yang, J.; Mak, T. C. W.: Ligation behavior of an oligo-α-sulfanylpyrazinyl ligand in silver(I) complexes containing carboxylates. Cryst. Growth Des. 14 (2014) 3530–3540.10.1021/cg500474jSearch in Google Scholar

8. Bruker. SMART and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA, 2007.Search in Google Scholar

9. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008), 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

10. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Received: 2015-7-19
Accepted: 2016-1-13
Published Online: 2016-2-6
Published in Print: 2016-3-1

©2016 Guo-Wang Xu et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
