Crystal structure of trans-tetraaquabis(4-(pyridin-4-ylsulfonyl)pyridine-κN)cobalt(II) diperchlorate dihydrate, C20H28Cl2CoN4O18S2

  • Rong Zhou EMAIL logo , An Jie Liu and Fan Zhang
Published/Copyright: February 3, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C20H28Cl2CoN4O18S2, monoclinic, P21/c (no. 14), a = 8.0756(2) Å, b = 17.4328(4) Å, c = 11.5696(2) Å, β = 106.477(1)°, V = 1561.88(6) Å3, Z = 2, Rgt(F) = 0.0456, wRref(F2) = 0.1298, T = 296 K.

CCDC no.:: 1443472

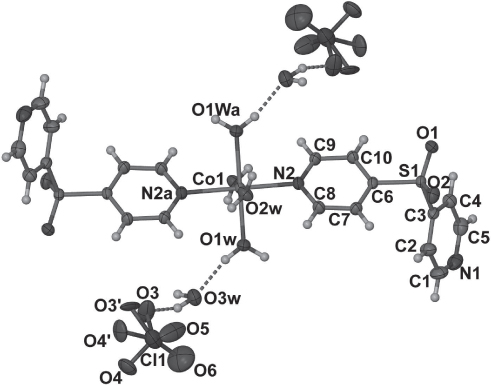

The crystal structure is shown in the figure, Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Pink, block, size 0.30×0.30×0.52 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:9.40 cm−1
Diffractometer, scan mode:Bruker APEXII, Multi-Scan
2θmax:55.79°
N(hkl)measured, N(hkl)unique:12832, 3647
N(param)refined:232
Programs:SHELX [7], Diamond [8]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1A)4e1.14260.09970.56200.057
H(2A)4e0.87020.13620.44780.047
H(4A)4e0.67770.03370.69270.041
H(5A)4e0.9546−0.00680.79060.051
H(7A)4e0.62810.23990.34910.037
H(8A)4e0.59850.37100.35700.038
H(9A)4e0.40300.35470.62770.036
H(10A)4e0.41670.22210.62390.035
H(2WA)4e0.28980.48510.27450.070
H(2WB)4e0.42090.53400.26390.070
H(1WA)4e0.81390.46070.47420.070
H(1WB)4e0.81810.54360.48660.070
H(3WA)4e1.02530.64510.58130.070
H(3WB)4e1.00590.65430.46380.070
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Co(1)2b0.50.50.50.0225(3)0.0194(2)0.0267(3)−0.0014(2)0.0067(2)−0.0005(2)
C(1)4e1.0475(4)0.0853(2)0.5873(3)0.027(2)0.057(2)0.060(2)0.005(1)0.015(2)0.002(2)
C(2)4e0.8850(4)0.1087(2)0.5189(3)0.032(2)0.045(2)0.044(2)0.004(1)0.014(1)0.009(1)
C(3)4e0.7470(3)0.0895(2)0.5601(2)0.023(1)0.024(1)0.031(1)0.001(1)0.005(1)−0.003(1)
C(4)4e0.7702(4)0.0467(2)0.6636(3)0.033(2)0.035(2)0.034(2)−0.001(1)0.008(1)0.002(1)
C(5)4e0.9372(5)0.0239(2)0.7225(3)0.046(2)0.039(2)0.036(2)0.007(1)0.000(2)0.002(1)
C(6)4e0.5260(3)0.2176(1)0.4868(2)0.023(1)0.020(1)0.028(1)−0.0001(9)0.005(1)−0.0022(9)
C(7)4e0.5810(4)0.2621(2)0.4058(3)0.036(2)0.027(1)0.033(1)0.001(1)0.016(1)−0.002(1)
C(8)4e0.5636(4)0.3406(2)0.4120(3)0.039(2)0.026(1)0.035(1)−0.003(1)0.018(1)0.001(1)
C(9)4e0.4472(4)0.3311(2)0.5707(3)0.034(1)0.025(1)0.033(1)0.000(1)0.014(1)−0.004(1)
C(10)4e0.4563(4)0.2515(2)0.5701(3)0.035(2)0.023(1)0.031(1)−0.001(1)0.014(1)0.001(1)
N(1)4e1.0742(4)0.0437(2)0.6867(3)0.032(1)0.046(2)0.049(2)0.010(1)0.001(1)−0.005(1)
N(2)4e0.4990(3)0.3755(1)0.4932(2)0.029(1)0.023(1)0.030(1)−0.0005(8)0.008(1)−0.0012(9)
O(1)4e0.4191(3)0.0836(1)0.5369(2)0.031(1)0.028(1)0.053(1)−0.0022(8)0.017(1)0.0025(9)
O(2)4e0.5147(3)0.0990(1)0.3516(2)0.043(1)0.030(1)0.033(1)0.0044(9)0.0047(9)−0.0073(8)
S(1)4e0.53450(8)0.11583(3)0.47671(6)0.0241(3)0.0200(3)0.0312(3)0.0002(2)0.0074(3)−0.0023(2)
Cl(1)4e0.9819(1)0.72303(6)0.24034(8)0.0707(6)0.0539(5)0.0436(5)−0.0136(4)0.0197(4)−0.0046(4)
O(3)4e0.917(1)0.7284(4)0.3365(7)0.24(1)0.086(4)0.123(5)0.019(5)0.139(6)0.015(3)
O(3')4e0.837(3)0.766(2)0.267(4)0.09(2)0.14(2)0.23(4)−0.06(2)0.12(2)−0.13(2)
O(4)4e1.0885(8)0.7838(3)0.2244(5)0.111(4)0.092(3)0.113(4)−0.033(3)0.055(3)0.014(3)
O(4')4e0.888(4)0.7954(9)0.183(2)0.15(2)0.053(9)0.09(1)0.01(1)0.03(1)0.035(9)
O(5)4e1.1173(9)0.6652(5)0.2830(7)0.152(6)0.213(7)0.182(6)0.056(5)0.005(5)0.049(6)
O(6)4e0.8866(6)0.6875(4)0.1404(5)0.081(3)0.237(7)0.155(5)−0.015(3)0.012(3)−0.121(5)
O(1W)4e0.7500(3)0.5029(1)0.4748(2)0.027(1)0.031(1)0.056(1)−0.0024(8)0.016(1)−0.0038(9)
O(2W)4e0.3981(3)0.4998(1)0.3145(2)0.033(1)0.038(1)0.027(1)−0.0098(8)0.0023(9)0.0042(8)
O(3W)4e1.0025(3)0.6139(1)0.5178(2)0.049(1)0.034(1)0.057(2)−0.005(1)0.016(1)0.000(1)

Source of material

All reagents and solvents were obtained from commercial sources. The starting material di-4-pyridylsulfide was synthesized following the procedure reported [1]. Di-4-pyridylsulfide (470 mg, 2.5 mmol) was mixed in glacial acetic acid (15 ml) and 30° w/w hydrogen peroxide (1.5 ml) at room temperaturere for two week. The solution was then treated with water (20 ml), leading to crystalline precipitate, which was filtered off and purified by chromatography over silica-gel by using ethyl acetate/CH2Cl2 (3:2). 4-(Pyridin-4-ylsulfonyl)pyridine was obtained as white powder 209 mg (Yield 38%). 4-(Pyridin-4-ylsulfonyl)pyridine (22 mg, 0.1 mmol) and cobalt(II) perchlorate hexahydrate (18 mg, 0.05 mmol) were dissolved in a mixed solvent of 3 ml acetonitrile and 2 ml methanol at room temperature. After 3 hours, the clear solution was filtrated and left to slowly evaporate in air. Block crystals of the title complex (yield 16.5 mg, 41% based on ligand) were deposited after about one week.

Experimental details

All hydrogen atoms were identified in difference Fourier syntheses. The Uiso values of the hydrogen atoms of the water molecules were set to 1.5Ueq(O) and the Uiso values of all other hydrogen atoms were set to 1.2Ueq(C). The perchlorate counteranion shows a serious disorder.

Discussion

Transition metal complexes of di-4-pyridylsulfide and its positional isomers have been already studied [2–4]. Only several metal complexes with 4-(pyridin-4-ylsulfinyl)pyridine, and one derivate of di-4-pyridylsulfide, were reported recentely [5]. Herein, we report a mononuclear Co(II) complex with a newly synthesized 4-(pyridin-4-ylsulfonyl)pyridine. In the title complex the Co(II) ion is located on an inversion center with a slightly ditorted N2O4 octahedral coordination sphere comprising N atoms from two monodentate trans-related 4-(pyridin-4-ylsulfonyl)pyridine ligands and four aqua ligands. The two perchlorate anions are linked to the O1w of the mononuclear complex molecule through O—H⋯O hydrogen bonds (O3w⋯O3 2.835(2) Å, O3w⋯O1w 2.753(3) Å) (see the figure). The Co1—N2 bond length is 2.172(2) Å. The C—S—C angle equals 105.78(12)°, which is comparable to that value of 104.05(8)° in 4-(pyrazine-4-ylsulfonyl)pyrazine [6].

Corresponding author: Rong Zhou, Editorial Department, Xinjiang University, Urumqi 830046, P. R. China, e-mail:

Acknowledgements:

I acknowledge support from Scientific Research Program of the Higher Education Institution of Xinjiang Uinversity (XJEDU2013I05).

References

1. Jung, O.-S.; Kim, Y. J.; Lee, Y.-A; Chae, H. K.; Jang, H. G.; Hong, J.: Structures and related properties of AgX bearing 3,3′-thiobispyridine (X = NO3−, BF4−, ClO4−, and PF6−). Inorg. Chem. 40 (2001) 2105–2110.10.1021/ic001072uSearch in Google Scholar

2. Jung, O.-S.; Park, S. H.; Kim, D. C.; Kim, K. M.: Novel double-stranded chains vs two-layer interwoven sheets. Subtle coligand effects and related properties for [Co(Py2S)2X2]∞(Py2S)4,4′-dipyridyl sulfide, X = NCS, Cl). Inorg. Chem. 37 (1998) 610–611.10.1021/ic971415xSearch in Google Scholar

3. Jung, O.-S.; Park, S. H.; Lee, Y.-A.; Lee, U.: Molecular networks consisting of dumbbell-cage motif: structure and anion exchangeability of [Ag(Py2S)2·BF4]n (Py2S = 4,4′-Dipyridyl Sulfide). Chem. Letters 29 (2000) 1012–1013.10.1246/cl.2000.1012Search in Google Scholar

4. Jung, O.-S.; Kim, Y. J.; Lee, Y.-A; Park, J. K.; Chae, H. K.: Smart molecular helical springs as tunable receptors. J. Am. Chem. Soc. 122 (2000) 9921–9925.10.1021/ja001618bSearch in Google Scholar

5. Wan, C.-Q.; Wang, Z.-W.; Wang, G.; Li, A.-M.; Jin, Q.-H.; Deng, Y.-H.; Mak, T. C. W.: Di(4-pyridyl) sulfoxide as an angled building block for zigzag-chain silver(I) complexes stabilized by supramolecular O = S⋯π interactions. Eur. J. Inorg. Chem. 14 (2013) 2591–2600.10.1002/ejic.201201466Search in Google Scholar

6. Wan, C. Q.; Mak, T. C. W.: Supramolecular frameworks constructed from angular-shaped sulfonyldipyrazine and various silver(I) salts. New J. Chem. 35 (2011) 319–327.10.1039/C0NJ00631ASearch in Google Scholar

7. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

8. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 3.2i. Crystal Impact, Bonn, Germany 2012.Search in Google Scholar

Received: 2015-6-8
Accepted: 2016-1-6
Published Online: 2016-2-3
Published in Print: 2016-3-1
