Crystal structure of 1-benzyl-3-(4-methylpyridin-2-yl)-1H-imidazol-3-ium hexafluorophosphate, C16H16F6N3P

  • Zhi-Qiang Wang EMAIL logo , Wen-Hui Wang and Yun-Lai Ren EMAIL logo
Published/Copyright: February 4, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C16H16F6N3P, monoclinic, P21/n, a = 8.6414(8) Å, b = 20.755(2) Å, c = 10.1157(8) Å, β = 104.686(9)°, V = 1755.0(3) Å3, Z = 4, Rgt(F) = 0.0547, wRref(F2) = 0.1496, T = 291(2) K.

CCDC no.:: 1446882

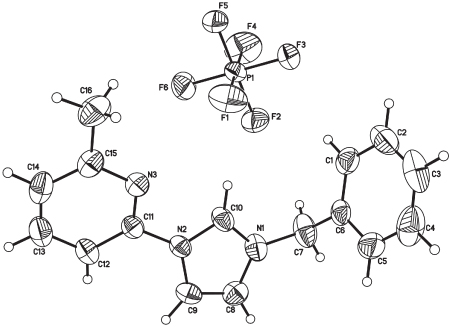

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colorless blocks, size 0.17×0.18×0.2 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:20.14 cm−1
Diffractometer, scan mode:Xcalibur, Eos, Gemini, ω scans
2θmax:134.15°
N(hkl)measured, N(hkl)unique:6326, 3133
N(param)refined:237
Programs:SHELX [5–7]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1)4e0.25560.79120.28130.097
H(2)4e0.06650.83990.11020.123
H(3)4e−0.06120.92850.15180.143
H(4)4e−0.00130.97390.36440.148
H(5)4e0.18400.92490.54190.110
H(7A)4e0.43770.79600.49270.118
H(7B)4e0.43990.85520.58930.118
H(8)4e0.41080.81800.82370.088
H(9)4e0.28130.72930.91090.083
H(10)4e0.17830.71450.50820.080
H(12)4e0.20760.62070.90840.086
H(13)4e0.05290.52840.90250.103
H(14)4e−0.13030.50140.70390.102
H(16A)4e−0.28050.59380.43510.152
H(16B)4e−0.25490.52020.46830.152
H(16C)4e−0.14650.55590.38870.152
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
C(1)4e0.2040(5)0.8281(2)0.3001(4)0.088(2)0.062(2)0.095(2)−0.014(2)0.029(2)0.001(2)
C(2)4e0.0909(6)0.8573(3)0.1978(4)0.109(3)0.124(4)0.068(2)−0.037(3)0.012(2)0.015(2)
C(3)4e0.0161(6)0.9096(3)0.2223(6)0.086(3)0.135(5)0.132(4)0.001(3)0.019(3)0.069(4)
C(4)4e0.0502(7)0.9364(2)0.3488(7)0.120(4)0.093(3)0.179(5)0.040(3)0.077(4)0.035(4)
C(5)4e0.1624(5)0.9075(2)0.4544(4)0.116(3)0.078(2)0.093(3)−0.002(2)0.050(2)−0.005(2)
C(6)4e0.2419(4)0.8530(1)0.4303(3)0.062(2)0.058(2)0.069(2)−0.016(1)0.012(1)0.012(1)
C(7)4e0.3723(4)0.8219(2)0.5371(4)0.067(2)0.114(3)0.104(3)−0.024(2)0.006(2)0.040(2)
C(8)4e0.3476(4)0.7861(2)0.7720(3)0.061(2)0.076(2)0.075(2)−0.007(2)0.003(2)−0.008(2)
C(9)4e0.2766(4)0.7375(2)0.8196(3)0.066(2)0.089(2)0.050(1)0.000(2)0.010(1)−0.005(2)
C(10)4e0.2192(4)0.7291(2)0.5971(3)0.061(2)0.083(2)0.050(1)−0.015(2)0.002(1)0.011(1)
C(11)4e0.1049(3)0.6440(1)0.7108(3)0.054(1)0.063(2)0.057(2)0.003(1)0.017(1)0.003(1)
C(12)4e0.1318(4)0.6085(2)0.8296(3)0.075(2)0.080(2)0.061(2)0.005(2)0.021(2)0.013(2)
C(13)4e0.0407(5)0.5542(2)0.8252(4)0.098(3)0.079(2)0.089(2)0.008(2)0.038(2)0.023(2)
C(14)4e−0.0677(5)0.5381(2)0.7072(4)0.084(2)0.061(2)0.123(3)−0.003(2)0.049(2)0.007(2)
C(15)4e−0.0857(4)0.5763(2)0.5914(4)0.058(2)0.066(2)0.091(2)−0.003(2)0.023(2)−0.006(2)
C(16)4e−0.2023(5)0.5601(2)0.4590(4)0.085(3)0.094(3)0.115(3)−0.023(2)0.008(2)−0.018(2)
N(1)4e0.3103(3)0.7803(1)0.6324(3)0.054(1)0.083(2)0.069(2)−0.014(1)−0.002(1)0.017(1)
N(2)4e0.1949(3)0.7018(1)0.7093(2)0.054(1)0.068(1)0.046(1)−0.001(1)0.0086(9)0.005(1)
N(3)4e0.0020(3)0.6300(1)0.5938(2)0.053(1)0.064(1)0.061(1)−0.002(1)0.014(1)0.001(1)
F(1)4e0.1954(3)0.6561(2)0.3122(3)0.082(1)0.178(3)0.106(2)0.020(2)0.035(1)−0.027(2)
F(2)4e0.4490(3)0.6849(1)0.3512(2)0.100(2)0.098(2)0.093(1)−0.021(1)−0.002(1)−0.014(1)
F(3)4e0.2853(4)0.6900(1)0.1399(2)0.206(3)0.080(1)0.071(1)−0.014(2)0.003(2)0.017(1)
F(4)4e0.4795(4)0.6160(2)0.1904(4)0.130(2)0.182(3)0.178(3)−0.001(2)0.098(2)−0.043(3)
F(5)4e0.2233(3)0.5867(1)0.1512(2)0.128(2)0.082(1)0.068(1)−0.016(1)−0.009(1)−0.005(1)
F(6)4e0.3857(3)0.5806(1)0.3610(2)0.119(2)0.093(2)0.087(1)−0.003(1)−0.017(1)0.024(1)
P(1)4e0.33791(9)0.63520(4)0.25089(7)0.0625(5)0.0682(5)0.0512(4)0.0029(4)0.0105(3)−0.0002(3)

Source of material

The title compound was obtained by the follow method: the mixture of benzyl chloride (2.52 g, 20 mmol) and 2-(imidazol-1-yl)pyridine (1.45 g, 10 mmol) was refluxed for 40 h in ethyl acetate (30 mL). After the solvent was evaporated, the residue was dissolved in acetone (50 mL), then KPF6 (2.76 g, 15 mmol) was added and reacted for 3 h. After the precipitate was filtrated, the organic solvent was evaporated and a white powder was obtained (2.7 g, yield 71%). Single crystals suitable for X-ray diffraction were obtained by crystallization from methanol.

Discussion

Since the isolation of the thermally stable, free N-heterocyclic carbenes (NHCs) by Arduengo et al. in 1991, metal complexes based on NHCs have been extensively reported for their intriguing structures and numerous applications in catalysis, medicine, and materials chemistry [1–3]. It has been known that imidazolium salt precursors are suitable for the synthesis of NHCs complexes [4]. So we focus on new imidazolium salts with different substituents that can provide metal complexes with interesting properties.

The asymmetric unit of the title compound consists of one 1-benzyl-3-(4-methylpyridin-2-yl)-1H-imidazol-3-ium cation and one PF6− anion. In the cation, the dihedral angles between the benzene ring (C1—C6), the imidazolium ring (C8—C10/N1/N2), and the pyridine ring (C11—C15/N3) are 71.71(4)°, 20.48(3)°, and 66.76(3)°, respectively. The bond of C11—N2 (1.433(4) Å) is slightly shorter than a single C—N bond, indicating a small double bond character. In the imidazolium group, the bonding pattern presents two short C—N bonds (C10—N1 = 1.316(4) Å, C10—N2 = 1.332(3) Å), one short C—C bond (C8—C9 = 1.332(5) Å), and two longer C—N bonds (C8—N1 = 1.371(4) Å, C9—N2 = 1.376(4) Å).

Experimental details

The hydrogen atoms were assigned with common isotropic displacement factors Uiso(H) = 1.2 times Ueq(C, aromatic ring), Uiso(H) = 1.2 times Ueq(C, methylene) and Uiso(H) = 1.5 times Ueq(C, methyl). The final refinement was executed using geometrical restraints, with C–H = 0.93 Å (aromatic ring), C–H = 0.96 Å (methyl), and C–H = 0.97 Å (methylene).

Corresponding author: Zhi-Qiang Wang, College of Chemistry and Chemical Engineering, Luoyang Normal University, Luoyang, Henan 471022, P. R. China, e-mail: ; and Yun-Lai Ren, School of Chemical Engineering & Pharmaceutics, Henan University of Science and Technology, Luoyang, Henan 471003, P. R. China, e-mail:

Acknowledgements:

This work was supported by the Science and Technology Development Plan of Luoyang City (No. 1301059A) and the Science and Technology Research Projects of Education Department of Henan Province (No. 13A150804).

References

1. Pugh, D.; Danopoulos, A. A.: Metal complexes with `pincer'-type ligands incorporating N-Heterocyclic carbene functionalities. Coord. Chem. Rev. 251 (2007) 610–641.10.1016/j.ccr.2006.08.001Search in Google Scholar

2. Catalano, V. J.; Munro, L. B.; Strasser, C. E.; Samin, A. F.: Modulation of metal-metal separations in a series of Ag(I) and intensely blue photoluminescent Cu(I) NHC-Bridged triangular clusters. Inorg. Chem. 50 (2011) 8465–8476.10.1021/ic201053tSearch in Google Scholar PubMed

3. Gimeno, M.C.; Laguna, A.; Visbal, R.: N-Heterocyclic carbene coinage metal complexes as intense blue-green emitters. Organometallics. 31 (2012) 7146–7157.10.1021/om300571mSearch in Google Scholar

4. Gründemann, S.; Kovacevic, A.; Albrecht, M.; Faller, J. W.; Crabtree, R. H.: Abnormal ligand binding and reversible ring hydrogenation in the reaction of imidazolium salts with IrH5(PPh3)2. J. Am. Chem. Soc. 124 (2002) 10473–10481.10.1021/ja026735gSearch in Google Scholar PubMed

5. Sheldrick, G. M.: SHELXS-97. Program for the solution of crystal structures. University of Göttingen, Germany 1997.Search in Google Scholar

6. Sheldrick, G. M.: SHELXL-97. Program for the refinement of crystal structures. University of Göttingen, Germany 1997.Search in Google Scholar

7. Sheldrick, G. M.: SHELXTL. Structure determination software suite. Version 5.10. Bruker AXS, Madison, Wisconsin, USA 1998.Search in Google Scholar

Received: 2015-10-31
Accepted: 2016-1-12
Published Online: 2016-2-4
Published in Print: 2016-3-1

©2016 Zhi-Qiang Wang et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
