Crystal structure of poly[bis(μ4-4,4′-(1,2-phenylenebis(oxy))dibenzoato-κ4O:O′:O′′:O′′′)bis(μ3-4,4′-(1,2-phenylenebis(oxy))dibenzoato–κ3O:O′:O′′)(μ2-1-(4-((1H-imidazol-1-yl)methyl)benzyl)-1H-imidazole-κ2N:N′)tetracobalt(II)], C94H62O24N4Co4

  • Ye Gao EMAIL logo
Published/Copyright: January 9, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 1

Abstract

C94H62O24N4Co4, triclinic, P1̅, a = 9.3604(11) Å, b = 11.7945(14) Å, c = 19.805(2) Å, α = 94.227(2)°, β = 98.390(2)°, γ = 98.965(2)°, V = 2126.2(4) Å3, Z = 1, Rgt(F) = 0.0540, wRref(F2) = 0.1163, T = 293 K.

CCDC no.:: 1440940

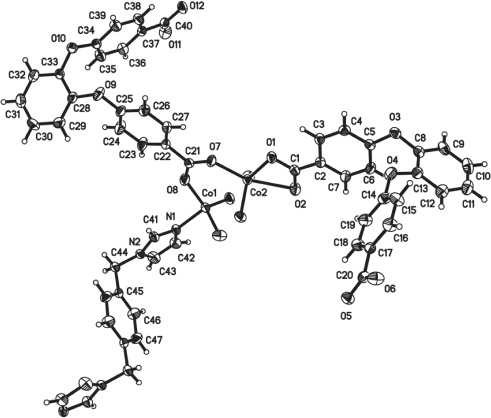

The crystal structure is shown in the figure, Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Pink, Block, size 0.19×0.22×0.25 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:8.47 cm−1
Diffractometer, scan mode:Bruker APEXII CCD, φ and ω scans
2θmax:52°
N(hkl)measured, N(hkl)unique:11706, 8263
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5040
N(param)refined:568
Programs:SHELXTL [9]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(3)2i0.58410.44610.20190.049
H(4)2i0.81100.55660.20710.052
H(6)2i0.98620.36130.34240.055
H(7)2i0.75810.24930.33680.057
H(9)2i1.29280.45370.28120.062
H(10)2i1.47890.47560.37360.074
H(11)2i1.46300.58480.47270.074
H(12)2i1.25680.66650.48200.064
H(15)2i1.12650.85840.44760.072
H(16)2i1.06960.93910.54850.066
H(18)2i0.78120.65290.55600.061
H(19)2i0.84390.57210.45740.064
H(23)2i−0.33610.08190.11550.070
H(24)2i−0.50080.16380.04430.078
H(26)2i−0.19870.44720.05410.058
H(27)2i−0.03530.36400.12400.053
H(29)2i−0.64270.31860.08840.090
H(30)2i−0.89140.25300.06020.109
H(31)2i−1.00290.2392−0.05200.106
H(32)2i−0.86750.2821−0.13690.070
H(35)2i−0.59260.1378−0.12310.061
H(36)2i−0.42100.0349−0.15760.058
H(38)2i−0.18270.3259−0.19860.059
H(39)2i−0.35290.4299−0.16270.060
H(41)2i−0.33180.02070.29940.049
H(42)2i−0.2037−0.27870.29990.061
H(43)2i−0.4331−0.29720.34480.067
H(44A)2i−0.6326−0.16040.35090.058
H(44B)2i−0.5921−0.03580.32920.058
H(46)2i−0.4395−0.17590.47100.071
H(47)2i−0.4061−0.10460.58420.070
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
C(1)2i0.5033(5)0.2596(4)0.2623(2)0.040(2)0.042(3)0.050(3)0.009(2)0.014(2)0.008(2)
C(2)2i0.6481(4)0.3339(3)0.2684(2)0.037(2)0.028(2)0.048(2)0.004(2)0.007(2)0.007(2)
C(3)2i0.6648(4)0.4282(3)0.2298(2)0.037(2)0.037(2)0.050(3)0.008(2)0.006(2)0.008(2)
C(4)2i0.7999(4)0.4942(4)0.2331(2)0.049(3)0.036(2)0.044(2)0.004(2)0.006(2)0.012(2)
C(5)2i0.9186(4)0.4693(3)0.2743(2)0.040(2)0.029(2)0.040(2)−0.002(2)0.011(2)−0.002(2)
C(6)2i0.9052(4)0.3777(4)0.3139(2)0.039(2)0.041(3)0.055(3)0.004(2)−0.004(2)0.014(2)
C(7)2i0.7687(4)0.3111(4)0.3103(2)0.041(2)0.038(2)0.062(3)0.003(2)0.004(2)0.020(2)
C(8)2i1.1629(4)0.5448(3)0.3269(2)0.040(2)0.027(2)0.050(3)−0.008(2)0.008(2)0.003(2)
C(9)2i1.2853(5)0.4960(4)0.3217(3)0.047(3)0.037(3)0.075(3)0.003(2)0.023(3)0.008(2)
C(10)2i1.3966(5)0.5098(4)0.3765(3)0.042(3)0.039(3)0.108(4)0.008(2)0.019(3)0.019(3)
C(11)2i1.3865(5)0.5745(4)0.4359(3)0.048(3)0.046(3)0.085(4)−0.005(2)−0.007(3)0.025(3)
C(12)2i1.2637(5)0.6241(4)0.4414(2)0.056(3)0.041(3)0.059(3)0.002(2)0.002(2)0.002(2)
C(13)2i1.1514(4)0.6103(4)0.3865(2)0.043(2)0.041(3)0.048(3)0.001(2)0.004(2)0.006(2)
C(14)2i0.9931(5)0.7059(4)0.4449(2)0.061(3)0.053(3)0.038(2)0.020(2)0.006(2)0.000(2)
C(15)2i1.0589(5)0.8168(4)0.4704(2)0.063(3)0.057(3)0.061(3)0.002(3)0.026(3)0.002(3)
C(16)2i1.0233(5)0.8654(4)0.5302(2)0.066(3)0.041(3)0.053(3)−0.002(2)0.012(2)−0.004(2)
C(17)2i0.9188(4)0.8045(3)0.5628(2)0.038(2)0.036(2)0.041(2)0.003(2)0.006(2)0.009(2)
C(18)2i0.8520(5)0.6943(4)0.5347(2)0.052(3)0.045(3)0.050(3)−0.007(2)0.009(2)0.008(2)
C(19)2i0.8894(5)0.6459(4)0.4759(2)0.062(3)0.044(3)0.049(3)−0.004(2)0.007(2)−0.001(2)
C(20)2i0.8861(5)0.8540(4)0.6287(2)0.042(2)0.039(3)0.040(2)0.009(2)0.003(2)0.006(2)
C(21)2i−0.0648(5)0.1624(4)0.1754(2)0.042(3)0.058(3)0.042(2)0.019(2)0.013(2)0.016(2)
C(22)2i−0.1691(4)0.2139(4)0.1273(2)0.036(2)0.057(3)0.044(2)0.018(2)0.007(2)0.013(2)
C(23)2i−0.3083(5)0.1558(4)0.1032(3)0.041(3)0.049(3)0.084(4)0.008(2)−0.003(2)0.027(3)
C(24)2i−0.4076(5)0.2045(4)0.0613(3)0.045(3)0.055(3)0.088(4)0.002(2)−0.012(3)0.022(3)
C(25)2i−0.3656(5)0.3151(4)0.0450(2)0.045(3)0.055(3)0.043(2)0.017(2)−0.001(2)0.008(2)
C(26)2i−0.2267(5)0.3738(4)0.0671(2)0.051(3)0.039(3)0.056(3)0.014(2)0.008(2)0.009(2)
C(27)2i−0.1293(4)0.3238(4)0.1084(2)0.037(2)0.045(3)0.052(3)0.012(2)0.006(2)0.005(2)
C(28)2i−0.6068(5)0.3339(4)−0.0073(2)0.045(3)0.057(3)0.046(3)0.023(2)0.003(2)0.008(2)
C(29)2i−0.6875(6)0.3098(5)0.0428(3)0.079(4)0.116(5)0.044(3)0.052(4)0.016(3)0.019(3)
C(30)2i−0.8360(7)0.2722(6)0.0261(3)0.079(4)0.140(6)0.084(4)0.054(4)0.053(4)0.051(4)
C(31)2i−0.9021(6)0.2631(6)−0.0409(3)0.047(3)0.124(6)0.110(5)0.032(3)0.025(3)0.054(4)
C(32)2i−0.8220(5)0.2887(4)−0.0914(3)0.049(3)0.066(3)0.061(3)0.017(3)0.000(2)0.012(3)
C(33)2i−0.6734(4)0.3242(4)−0.0748(2)0.042(2)0.044(3)0.046(3)0.021(2)0.014(2)0.010(2)
C(34)2i−0.4885(4)0.2936(4)−0.1405(2)0.043(2)0.045(3)0.039(2)0.016(2)0.011(2)0.006(2)
C(35)2i−0.5102(5)0.1755(4)−0.1384(2)0.047(3)0.038(3)0.071(3)0.006(2)0.021(2)0.007(2)
C(36)2i−0.4076(4)0.1144(4)−0.1593(2)0.048(3)0.033(2)0.065(3)0.005(2)0.015(2)0.004(2)
C(37)2i−0.2860(4)0.1685(3)−0.1823(2)0.037(2)0.040(2)0.037(2)0.009(2)0.002(2)0.001(2)
C(38)2i−0.2652(5)0.2880(4)−0.1835(2)0.044(2)0.046(3)0.062(3)0.007(2)0.020(2)0.012(2)
C(39)2i−0.3670(5)0.3502(4)−0.1622(2)0.056(3)0.033(2)0.066(3)0.009(2)0.022(2)0.014(2)
C(40)2i−0.1817(5)0.1022(4)−0.2086(2)0.040(2)0.058(3)0.042(3)0.015(2)0.001(2)−0.004(2)
C(41)2i−0.3276(4)−0.0563(4)0.3051(2)0.040(2)0.032(2)0.052(3)0.002(2)0.013(2)0.009(2)
C(42)2i−0.2583(5)−0.2202(4)0.3053(2)0.060(3)0.035(2)0.062(3)0.013(2)0.020(2)0.012(2)
C(43)2i−0.3842(5)−0.2307(4)0.3304(2)0.065(3)0.030(2)0.074(3)−0.002(2)0.023(3)0.014(2)
C(44)2i−0.5559(4)−0.0933(4)0.3566(2)0.034(2)0.063(3)0.046(3)0.001(2)0.010(2)0.007(2)
C(45)2i−0.5242(4)−0.0456(4)0.4311(2)0.029(2)0.051(3)0.041(2)0.006(2)0.007(2)0.010(2)
C(46)2i−0.4653(5)−0.1047(4)0.4824(2)0.077(3)0.052(3)0.052(3)0.025(3)0.007(3)0.002(2)
C(47)2i−0.4432(5)−0.0614(4)0.5505(2)0.067(3)0.067(3)0.047(3)0.032(3)0.005(2)0.018(2)
N(1)2i−0.2224(3)−0.1101(3)0.2888(2)0.032(2)0.037(2)0.049(2)0.002(2)0.008(2)0.006(2)
N(2)2i−0.4271(3)−0.1262(3)0.3308(2)0.035(2)0.042(2)0.039(2)0.002(2)0.008(2)0.005(2)
O(1)2i0.3936(3)0.2891(2)0.2252(1)0.035(2)0.044(2)0.059(2)0.003(1)0.007(1)0.013(1)
O(2)2i0.4851(3)0.1702(3)0.2921(2)0.044(2)0.045(2)0.083(2)0.001(2)0.008(2)0.024(2)
O(3)2i1.0536(3)0.5351(2)0.2709(1)0.043(2)0.042(2)0.047(2)−0.008(1)0.011(1)0.002(1)
O(4)2i1.0260(3)0.6567(3)0.3843(2)0.055(2)0.081(2)0.045(2)0.030(2)0.001(2)−0.007(2)
O(5)2i0.8005(3)0.7940(3)0.6594(1)0.050(2)0.049(2)0.048(2)−0.000(2)0.014(2)0.003(1)
O(6)2i0.9498(4)0.9555(3)0.6497(2)0.082(2)0.041(2)0.047(2)−0.005(2)0.012(2)−0.003(1)
O(7)2i0.0647(3)0.2121(3)0.1904(2)0.036(2)0.058(2)0.058(2)0.011(2)−0.000(1)0.017(2)
O(8)2i−0.1162(3)0.0676(3)0.1964(2)0.042(2)0.068(2)0.074(2)0.014(2)0.006(2)0.033(2)
O(9)2i−0.4570(3)0.3739(3)0.0051(2)0.053(2)0.060(2)0.071(2)0.017(2)−0.012(2)0.021(2)
O(10)2i−0.5921(3)0.3590(3)−0.1253(2)0.057(2)0.054(2)0.054(2)0.031(2)0.023(2)0.020(2)
O(11)2i−0.2088(4)−0.0065(3)−0.2127(2)0.075(2)0.040(2)0.078(2)0.022(2)0.009(2)−0.007(2)
O(12)2i−0.0677(3)0.1534(3)−0.2276(2)0.043(2)0.063(2)0.060(2)0.016(2)0.015(2)−0.002(2)
Co(1)2i−0.03781(6)−0.03350(5)0.26000(3)0.0341(3)0.0384(3)0.0448(3)0.0063(3)0.0104(2)0.0063(3)
Co(2)2i0.23801(6)0.17003(5)0.24628(3)0.0328(3)0.0368(3)0.0453(3)0.0058(2)0.0071(2)0.0096(2)

Source of material

A mixture of 4,4′-(1,2-phenylenebis(oxy))dibenzoic acid (0.2 mmol, 0.086 g), 1-(4-((1H-imidazol-1-yl)methyl)-benzyl)-1H-imidazole (0.2 mmol, 0.040 g), CoCl2 · 6H2O, (0.2 mmol, 0.050 g), and H2O (20 mL) was stirred for ten minutes. The mixtures were transfered in a 25 mL stainless steel reactor with a Teflon liner and heated from 293 to 443 K in 3 h and a constant temperature was maintained at 443 K for 72 h. After cooling to room temperature, pink block-shaped crystals were collected in 58% yield based on the added amounts of CoCl2 · 6H2O.

Experimental details

All H atoms were refined using a riding model, with C—H distances of 0.93 Å and Uiso(H) values of 1.2Ueq(C) for aromatic and imidazole rings and 0.97 Å and Uiso(H) values of 1.2Ueq(C) for methylene groups.

Results and discussion

The assembly of mixed-ligand coordination polymers attracted greatly attention due to their intriguingly complicated architecture and potential applications in adsorption, separation and magnetism [1–5]. Molecular building blocks associated with polydentate carboxylic acid are widely used in chiral catalysis, optoelectronic materials, hematopathology, and medicine [6–8]. In our laboratory, we synthesized a novel cobalt coordination polymer constructed by polydentate carboxylic acid in combination with 1-(4-((1H-imidazol-1-yl)methyl)benzyl)-1H-imidazole as ancillary ligand.

In the asymmetric unit of the title structure, there are two crystallographically independent cobalt(II) ions, two 4,4′-(1,2-phenylenebis(oxy))dibenzoate, and one half of 1-(4-((1H-imidazol-1-yl)methyl)benzyl)-1H-imidazole molecule. One of the cobalt(II) ions is five-coordinated by five O atoms of four 4,4′-(1,2-phenylenebis(oxy))dibenzoate ligands. and one N atom from amide molecule. The other cobalt(II) ion is four-coordinated by three O atoms of two 4,4′-(1,2-phenylenebis(oxy))dibenzoate ligands and one N atom from 1-(4-((1H-imidazol-1-yl)methyl)benzyl)-1H-imidazole ligand. The distances between Co and coordination atoms are the following: d(Co1—N1) = 2.001(3) Å, d(Col—O6) = 1.954(3) Å, d(Co1—O8) = 1.942(3) Å, d(Co1—O12) = 1.968(3) Å, d(Co2—O1) = 1.973(3) Å, d(Co2—O2) = 2.358(3) Å, d(Co2—O5) = 1.982(3) Å, d(Co2—O7) = 1.978(3) Å, and d(Co2—O11) = 1.957(3) 2 Å, respectively. The Co(II) coordination angles are in the normal range from 59.80(11) Å to 159.87(12) Å. The polydentate carboxylate ligands link the cobalt ions into one-dimensional chains. The ancillary ligand lies on a center of inversion and bridges two chains into a two-dimensional structure.

Corresponding author: Ye Gao, Department of Chemistry, Changchun Normal University, Changchun 130032, People's Republic of China, e-mail:

Acknowledgements:

The authors thank the Science Foundation of Jilin Province (No. 20140101121JC).

References

1. Song, X. Z.; Song, S. Y.; Zhao, S. N.; Hao, Z. M.; Zhu, M.; Meng, X.; Wu, L. L.; Zhang, H. J.: Single-crystal-to-single-crystal transformation of a europium(III) metal-organic framework producing a multi-responsive luminescent sensor. Adv. Funct. Mater. 24 (2014) 4034–4041.10.1002/adfm.201303986Search in Google Scholar

2. Meng, X.; Zhong, R. L.; Song, X. Z.; Song, S. Y.; Hao, Z. M.; Zhu, M.; Zhao, S. N.; Zhang, H. J.: A stable, pillar-layer metal-organic framework containing uncoordinated carboxyl groups for separation of transition metal ions. Chem. Commun. 50 (2014) 6406–6408.10.1039/C4CC00553HSearch in Google Scholar

3. Zhao, S. N.; Song, X. Z.; Zhu, M.; Meng, X.; Wu, L. L.; Song, S. Y.; Wang, C.; Zhang, H. J.: Highly thermostable lanthanide metal-organic frameworks exhibiting unique selectivity for nitro explosives. RSC Adv. 5 (2015) 93–98.10.1039/C4RA13773FSearch in Google Scholar

4. Zhao, S. N.; Song, X. Z.; Zhu, M.; Meng, X.; Wu, L. L.; Song, S. Y.; Wang, C.; Zhang, H. J.: Assembly of three coordination polymers based on a sulfonic-carboxylic ligand showing high proton conductivity. Dalton Trans. 44 (2015) 948–954.10.1039/C4DT02870HSearch in Google Scholar

5. Meng, X.; Song, S. Y.; Song, X. Z.; Zhu, M.; Zhao, S. N.; Wu, L. L.; Zhang, H. J.: A Eu/Tb-codoped coordination polymer luminescent thermometer. Inorg. Chem. Front. 1 (2014) 757–760.10.1039/C4QI00122BSearch in Google Scholar

6. Chen, M. M.; Chen, S. S.; Sheng, L. Q. Crystal structure of catena-poly[aqua-μ-1,4-benzenedicarboxylato-κ2O:O′-3,5-dimethyl-4-phenyl-1,2,4-triazole-κN-zinc(II)] monohydrate, Zn(H2O)(C8H4O4)(C10H11N3)·H2O, C18H17N3O6Zn. Z. Kristallogr. NCS 228 (2013) 337–338.10.1524/ncrs.2013.0165Search in Google Scholar

7. Zhu, M.; Song, X. Z.; Song, S. Y.; Meng, X.; Zhao, S. N.; Wu, L. L.; Wang, C. ; Zhang, H. J.: A temperature-responsive smart europium metal-organic framework switch for reversible capture and release of intrinsic Eu3+ Ions. Adv. Sci. 2 (2015) DOI: 10.1002/advs.201500012.10.1002/advs.201500012Search in Google Scholar PubMed PubMed Central

8. Zhao, S. N.; Li, L. J.; Song, X. Z.; Zhu, M.; Hao, Z. M.; Meng, X.; Wu, L. L.; Feng, J.; Song, S. Y.; Wang, C.; Zhang, H. J.: Lanthanide ion codoped emitters for tailoring emission trajectory and temperature sensing. Adv. Funct. Mater. 25 (2015) 1463–1469.10.1002/adfm.201402061Search in Google Scholar

9. Sheldrick, G.M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-4-8
Accepted: 2015-12-8
Published Online: 2016-1-9
Published in Print: 2016-3-1
