Extracting oil from oil shale using internal distillation (in situ retorting)

  • Sarah Saad Mohammed Jawad ORCID logo , Zainab Abdulmaged Khalaf ORCID logo EMAIL logo and Safa Waleed Shakir ORCID logo
Published/Copyright: October 19, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Open Engineering
From the journal Open Engineering Volume 13 Issue 1

Abstract

The method of internal distillation (in situ retorting) and internal treatment for extracting shale oil is one of the modern methods developed with good economic quality but at a higher cost. Therefore, the net of fossil oil can be considered alternative energy. Hydrocarbon-rich hydrogen turns into oily shale, which distills by heat and turns into gases and petroleum liquids suitable for use as fuel. The fumes from burning oil shale are considered cancer-causing, so advanced treatment is required before extraction. As the temperature increases, the speed of oil extraction increases dramatically, but at 510°C, the production rate begins to decline. Oil extraction produces more than gas; the highest production peak is around 550 h. The permeability is closely proportional to the oil producers, and the permeability is inversely proportional to the highest temperature in the case of high heat through the combustion of coal with oxygen internally. The type of oil shale is affected by the surrounding environment and the temperature of the earth’s crust.

Keywords: in situ retorting; oil shale; extraction of oil shale; permeability; kerogen; production yield

List of abbreviations and symbols

Symbols

meaning

ft3

cubic foot (volume)

°C

Celsius (temperature)

h

hour (time)

K

Kelvin (temperature)

k

permeability factor

md

millidarcy (permeability)

1 Introduction

Shale oil is formed by pyrolysis by transforming the kerogen contained in oil shale. This oil is used as a fuel and energy source or as a bitumen enhancer in industrial cases. Shale oil has become one of the essential strategic sources for providing energy in addition to its presence in huge reserves [1]. Oil is extracted from the oil stone using two methods: traditional mining methods and the surface distillation process, which has proven its quality. The second method, the source of this research, is extracting oil from shale oil using the internal distillation method (in situ retorting), which is still under experiment and investigation [2].

Shale oil extraction is an industrial process for unconventional oil production. This process converts kerogen in oil shale into shale oil by pyrolysis, hydrogenation, or thermal dissolution. The resultant shale oil is used as fuel oil or upgraded to meet refinery feedstock specifications by adding hydrogen and removing sulfur and nitrogen impurities [3,4].

Shale oil extraction is usually performed above ground (ex situ processing) by mining the oil shale and then treating it in processing facilities. Other modern technologies perform the processing underground (on-site or in situ processing) by applying heat and extracting the oil via oil wells. In this process, oil shale is heated in the absence of oxygen until its kerogen decomposes into condensable shale oil vapors and non-condensable combustible oil shale gas. Oil vapors and oil shale gas are then collected and cooled, causing the shale oil to condense. In addition, oil shale processing produces spent oil shale, which is a solid residue. Spent shale consists of inorganic compounds (minerals) and char – a carbonaceous residue formed from kerogen [5,6].

As previously mentioned, shale oil is processed through mining operations above the ground or surface distillation outside the site using refineries and oil treatments. Still, with the passage of time, modern technology began to treat on-site through internal extraction using heat. Fully processed shale oil is extracted from a shale well in a manner similar to an oil well [7] (Figure 1).

Figure 1 Sketch of shale oil extraction process.
Figure 1

Sketch of shale oil extraction process.

This research will discuss some of the previous results with the knowledge of the amount of gas and oil generated due to the thermal decomposition of oil shale with a look at the method of kerogen transformation and the effect of the increase in temperature rates.

Finally, the method of transforming oil stone into oil will be explained with the knowledge of the materials used in the research, with a discussion of the previous results. Here, it should be noted that this research discusses all the earlier studies in this field.

2 Methods of extracting shale oil from oil shale

In this part, we will talk about converting oil shale into shale oil using different methods, including thermal replacement with organic solvents, given that the oil shale dissolves with organic solvents or uses thermal decomposition by raising temperatures during the treatment processes [8,9].

The processing operations are divided into the following:

2.1 Surface retorting processes

This process includes treatment on the ground’s surface through unique processing plants. The treatment is by increasing the temperature and converting it to oil shale using each technique’s direct contact with gaseous fuel products or natural methods [10].

2.1.1 Indirectly gas-heated retort

There are two indirect gas heating methods for shale oil production. The first method (Salermo Retort) occurs by collecting oil rocks greater than 25 mm and placing in large cylindrical containers that are touched from the bottom by the gases resulting from combustion and non-condensable. Studies have proven that this method produces about 90% of shale oil [11].

The second method is called (888). This method depends on placing the oil stone granules in two cylinders for each cylinder 52 retorted. It works to produce about 530 barrels per 10 tons of oil shale, but this method is considered expensive compared to the production of crude oil at international prices, so dealing with it has been stopped [12].

2.1.2 Directly gas-heated retort

The company (Paraho) is considered the first to develop and use this method, as it has developed devices for vertical and vertical ovens. Where this method occurs in three stages, the first stage is the process of separating oil shale with a size of 0.6–8 cm. Then, it works to enter it from the top of the cylinder in the opposite direction to the hot steam resulting from the combustion of fuel so that it increases the temperature inside the cylinder up to 510°C. The second stage begins to dissolve the kerogen inside the cylinder, and it works to form shale oil inside the fog resulting from the dissolving process and then works to remove the liquid mist inside the retort through side tubes. Finally, recycling the gas is used to restore the temperature on the surface of the cylinder and complete the dissolution of the remaining oil shale [13].

2.2 Kerogen

It is a chemical compound consisting of a mixture of organic and chemical substances, and it is the material that makes up oil within sedimentary rocks.

The most crucial property of kerogen is that it does not dissolve in the organic solvents commonly used. Still, part of it is dissolved, called (tar) with high temperatures in the earth’s crust between 60 and 120°C, called the oil barrier. Kerogen decomposes due to high temperatures, the crude oil or shale fuel component. Kerogen-rich oil shale (which has not been exposed to high temperatures inside the earth’s crust and has not got rid of the hydrocarbon trapped in it) is considered one of the essential sources of fuel [14] (Figure 2).

Figure 2 Shale oil extraction method [15].
Figure 2

Shale oil extraction method [15].

3 Procedures

3.1 Material used

  • Surface footprint

  • Ice wall

  • Holes (allow liquids and gases to pass through)

  • Shale bed

3.2 Oil extraction method

The treatment process is carried out under the earth’s surface using hot liquids that dissolve the oil shale formed inside the kerogen. By increasing the temperature, it dissolves the hydrocarbon inside the holes. The existing ice sheets work to re-condensate liquids and gases to facilitate the separation process by pipes, as shown in Figure 3. The fuel comes out separately from each other and has been treated inside the rocky well [16,17,18].

Figure 3 Cross-section of classic shale oil extraction process.
Figure 3

Cross-section of classic shale oil extraction process.

The most important countries that have successfully extracted and treated oil stones in the ground are China, Australia, Germany, and the United States of America. At the same time, Morocco and Jordan seek to do so [19].

3.3 Oil shale properties

Shale oil is one of the materials that possess complex hydrocarbons. Its properties are affected by the type of soil, the surrounding climatic conditions, the temperature of the earth’s crust, etc. [20,21]. The major advantages of oil shale are large potential supplies, easy transportation, and efficient distribution system. The disadvantages of oil shale are low energy net yield, released CO2, and other air pollutants when produced and burned, severe land disruption, and high water use [22]. The main advantages of this technology are that no mining is required and all energy required for retorting is produced by burning a small portion of the oil shale. However, it has the disadvantages of lower oil yield and low calorific value [23].

A typical sample of shale oil contains oxygen (0.5–1)%, nitrogen (1.5–2)%, sulfur (0.5–1)%, and some atoms of sediments and salts. The fluidity of desert fuels is less than fossil fuels, as it is affected by a temperature of 24–2°C, while fossil fuels are affected by a degree of −60 to 30°C, and this may affect the way it is transported in ordinary pipes [24,25].

The hydrocarbons inside the oil shale are considered carcinogens because their organic materials are broken down by hydrogenation [26,27].

Oil shale needs continuous and advanced treatment because sulfur and nitrogen are among the causes of environmental pollution [28,29,30]. Phenol is removed by removing water, requiring an increase in treatment to re-increase the percentage of hydrogen compared to carbon [31,32].

4 Result and discussion

This part will study some of the effects on the production of shale oil by underground distillation.

4.1 Effect of increasing temperatures on amount of shale oil production

Figure 4 shows the effect of the temperature increase on the shale oil production as it starts at a temperature of 400°C by giving small quantities as time increases. The quantities increase by increasing the temperature until it becomes 500°C for the highest amount of the produced yield, but in a shorter time. This indicates thatthe temperature is inversely proportional to time and is directly proportional to the yield, but to a certain extent. After reaching a temperature of 510°C, the yield begins to decrease because it has exceeded the minimum heat required for production [33].

Figure 4 Relationship between time (min) vs yield% at 400, 450, and 500°C.
Figure 4

Relationship between time (min) vs yield% at 400, 450, and 500°C.

4.2 Comparison of percentage of oil and gas produced in shale oil extraction

Figure 5 shows that the oil production rate is much higher than the gas production rate, and the highest peak of oil production is at the 550th h, as is clear and indicated.

Figure 5 Comparison between rates of gas and oil produced from oil shale extracted.
Figure 5

Comparison between rates of gas and oil produced from oil shale extracted.

4.3 Effect of permeability

Figures 6 and 7 show the relationship of permeability with temperature in terms of high and low temperature; it is clear that the higher the permeability, the higher the oil production pressure, while the permeability is higher at low temperatures, and therefore, the tanks with low permeability are less. As for oil production increases with the increase in permeability because the existing coal burns and generates a high temperature with oxygen, increasing the oil productivity due to the high temperatures. The low permeability is inversely proportional to the temperature, except in the presence of increased combustion, as it is affected by the increase in oil production [34].

Figure 6 Average temperature of oil shale for different permeabilities (k 1 = 10,000 md, k 2 = 5,000 md, and k 3 = 1,000 md).
Figure 6

Average temperature of oil shale for different permeabilities (k 1 = 10,000 md, k 2 = 5,000 md, and k 3 = 1,000 md).

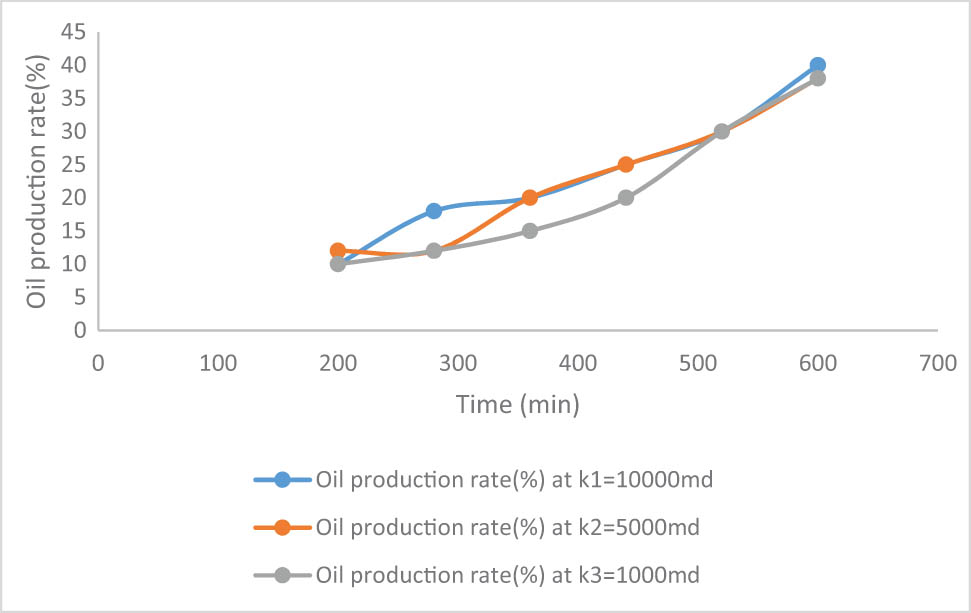

Figure 7 Oil production rate for different permeabilities (k 1 = 10,000 md, k 2 = 5,000 md, and k 3 = 1,000 md) and times.
Figure 7

Oil production rate for different permeabilities (k 1 = 10,000 md, k 2 = 5,000 md, and k 3 = 1,000 md) and times.

5 Conclusion

This work is entirely research work. From the research and results, we found that the method of internal distillation and internal treatment for extracting shale oil is one of the modern methods developed with good economic quality but at a higher cost. Therefore, the net of fossil oil can be considered alternative energy. In addition, hydrocarbon-rich hydrogen turns into oily shale, which distills by heat and turns into gases and petroleum liquids suitable for use as fuel. The fumes from burning oil shale are considered cancer-causing, so advanced treatment is required before extraction. We found as the temperature increases, the speed of oil extraction increases dramatically, but at 510°C, the production rate begins to decline. Oil extraction produces more oil than gas; the highest production peak is around 550 h. The permeability is closely proportional to the oil producers, and the permeability is inversely proportional to the highest temperature in the case of high heat through the combustion of coal with oxygen internally. Finally, the type of oil shale is affected by the surrounding environment and the temperature of the earth’s crust.

  1. Funding information: The authors state no funding involved.

  2. Conflict of interest: The authors state no conflict of interest.

  3. Data availability statement: Most datasets generated and analyzed in this study are in this submitted manuscript. The other datasets are available on a reasonable request from the corresponding author with the attached information.

References

[1] Guo W, Guo X, Chen X, Li Y, Li Z, Dai W. Aggregate-bitumen interface enhancement mechanism of the utilization of oil shale waste as fine aggregate in open grade friction course. Coatings. 2019;9(10):637.10.3390/coatings9100637Search in Google Scholar

[2] Koel M, Ljovin S, Hollis K, Rubin J. Using neoteric solvents in oil shale studies. Pure Appl Chem. 2001;73(1):153–9.10.1351/pac200173010153Search in Google Scholar

[3] Purga J. Shale Products – Production, Quality and Market Challenges. 27th Oil Shale Symposium. 27th Oil Shale Symposium 2007 – Proceedings. Colorado School of Mines; 2007. p. 331.Search in Google Scholar

[4] Burnham AK, McConaghy JR. Comparison of the acceptability of various oil shale processes; 26th Oil Shale Symposium, Colorado School of Mines, 16–19 October, 2006.Search in Google Scholar

[5] Sapto Mulyanto B, Dewanto O, Rizky S. Determining layer oil shale as new alternative energy sources using core analysis and well log method; Int J Eng Technol. 2018;7(4):941–9.10.14419/ijet.v7i4.36.24925Search in Google Scholar

[6] Qian JL, Wang JQ, Li SY. One year’s process in the Chinese oil shale business. Publications-Tell Ertl Oil Shale Repository; 2007.Search in Google Scholar

[7] Wang L, Yang D, Li X, Zhao J, Wang G, Zhao Y. Macro and meso characteristics of in-situ oil shale pyrolysis using superheated steam. Energies. 2018;11(9):2297.10.3390/en11092297Search in Google Scholar

[8] Boak J, Kleinberg R. Shale gas, tight oil, shale oil and hydraulic fracturing. In Future Energy. Elsevier; 2020. p. 67–95.10.1016/B978-0-08-102886-5.00004-9Search in Google Scholar

[9] Amer MW, Alhesan JSA, Marshall M, Fei Y, Jackson WR, Chaffee AL. Energy efficient method of supercritical extraction of oil from oil shale. Energy Convers Manag. 2022;252:115108.10.1016/j.enconman.2021.115108Search in Google Scholar

[10] Pan Y, Zhang X, Liu SH, Yang SC, Ren N. A review on technologies for oil shale surface retort. J Chem Soc Pak. 2012;34(6):1331–8.Search in Google Scholar

[11] Dinneen GU, Ball JS, Thorne HM. Composition of crude shale oils. [Analysis of 19 oils from 7 countries for N, S, pour point, sp. gr., and viscosity]. Ind Eng Chem;(United States). 1952;44:1174.10.1021/ie50515a043Search in Google Scholar

[12] Lankford JD, Ellis CF. Shale Oil Refining. Ind Eng Chem. 1951;43(1):27–32.10.1021/ie50493a016Search in Google Scholar

[13] Stahnke C, Silva MK, Rosa LM, Noriler D, Martignoni WP, Bastos JCSC, et al. Oil shale reactor: process analysis and design by CFD. Chem Eng Res Des. 2019;152:180–92.10.1016/j.cherd.2019.09.043Search in Google Scholar

[14] Aboulkas A, El Harfi K. Study of the Kinetics and Mechanisms of Thermal Decomposition of Moroccan Tarfaya Oil Shale and its Kerogen. Oil Shale. 2008;25(4):426–43.10.3176/oil.2008.4.04Search in Google Scholar

[15] Dammer AR, Killen JC, Biglarbigi K, Crawford PM, Knaus E, Johnson H. Secure fuels from domestic resources: The continuing evolution of America’s oil shale and tar sands industries. Washington, DC, USA: Department of Energy, Office of Naval Petroleum and Oil Shale Reserves; 2007.Search in Google Scholar

[16] KÖK M, Guner G, Bagci S. Application of EOR techniques for oil shale fields (in-situ combustion approach). Oil Shale. 2008;25(2):217–25.10.3176/oil.2008.2.04Search in Google Scholar

[17] “Revolution In Shale Treatment.” Lithgow Mercury. 1921-10-28. Retrieved 2022-04-18.Search in Google Scholar

[18] “Tragedy Of Shale Industry.” Labor Daily. 1937-02-06. P. 4. Retrieved 2022-04-26.Search in Google Scholar

[19] Savage MT. Geothermic fuel cells. In 26th Oil Shale Symposium. Golden; 2006.Search in Google Scholar

[20] Lee S, Joshi R. Enhanced oil recovery from Western United States type oil shale using carbon dioxide retorting technique, US Pat., 4502942, 1985.Search in Google Scholar

[21] Speight J. Synthetic fuels handbook. McGraw-Hill Professional; 2008. p. 188. Retrieved 2008-12-24.Search in Google Scholar

[22] Schlumberger Acquires Raytheon Technology for Oil Extraction from Oil Shale and Oil Sands. Green Car Congress; 2008-01-23. Retrieved 2012-02-14.Search in Google Scholar

[23] Oja V. A breaf overview of motor fuels from shale oil of Kukersite. Oil Shale. 2006;23(2):160.10.3176/oil.2006.2.08Search in Google Scholar

[24] Molder L. Estonian oil shale retorting industry at the crossroads. Oil Shale. 2004;21(2):97–9.10.3176/oil.2004.2.01Search in Google Scholar

[25] Andrews A. Oil shale: History, incentives, and policy (PDF) (Report). Congressional Research Service The Library of Congress; 2006-04-13. p. RL33359. Retrieved 2008-12-24.Search in Google Scholar

[26] Zheng H, Shi W, Ding D, Zhang C. Numerical simulation of in situ combustion of oil shale. Geofluids. 2017;2017:302.10.1155/2017/3028974Search in Google Scholar

[27] Zafar A, Su Y, Li L, Mehmood A, Wang H, Fu J. The numerical simulation and wellbore modelling of steam injection and stored heat recovery from light oil reservoir. Energy Sources Part A: Recovery Util Environ Eff. 2021;43(1):1–16.10.1080/15567036.2019.1676331Search in Google Scholar

[28] Zafar A, Su Y, Wang W, Li L, Alam SG, Mehmood A, et al. The numerical simulation of effects of porosity, permeability and fluid saturation on heat dissipation in an oil reservoir. In Advances in Geophysics, Tectonics and Petroleum Geosciences: Proceedings of the 2nd Springer Conference of the Arabian Journal of Geosciences (CAJG-2), Tunisia 2019. Cham: Springer International Publishing; 2022, April. p. 425–8.10.1007/978-3-030-73026-0_98Search in Google Scholar

[29] Zheng W, Tan X, Wang T, Bai Y. Experimental and simulation study of the in situ combustion process in offshore heavy oil reservoirs. Pet Sci Technol. 2020;38(22):983–91.10.1080/10916466.2020.1808673Search in Google Scholar

[30] Gargar NK, Mailybaev AA, Marchesin D, Bruining H. Effects of water on light oil recovery by air injection. Fuel. 2014;137:200–10.10.1016/j.fuel.2014.07.083Search in Google Scholar

[31] Jawad SSM, Adnan ZAKS. Using of ultrasound waves to desulphurization of commercial Kirkuk diesel. Solid State Technol. 2020;63(2):1422–7.Search in Google Scholar

[32] Bazegskii AE, Shkoller MB. Process research of coal thermal dissolution in order to obtain the binder for refractory masses. Report 1. Preparation of the Binder. Izvestiya Ferrous Metall. 2016;59(8):517–22.10.17073/0368-0797-2016-8-517-522Search in Google Scholar

[33] Li P, Zhang J, Luo B, Li Y, Ji J, He D, et al. Kinetics of carbothermal reduction process of different size phosphate rocks. Open Eng. 2021;11(1):281–93. 10.1515/eng-2021-0025.Search in Google Scholar

[34] Bodor M, Santos R, Gerven T, Vlad M. Recent developments and perspectives on the treatment of industrial wastes by mineral carbonation — a review. Open Eng. 2013;3(4):566–84. 10.2478/s13531-013-0115-8.Search in Google Scholar
Received: 2023-01-28
Revised: 2023-04-28
Accepted: 2023-05-05
Published Online: 2023-10-19

© 2023 the author(s), published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.
